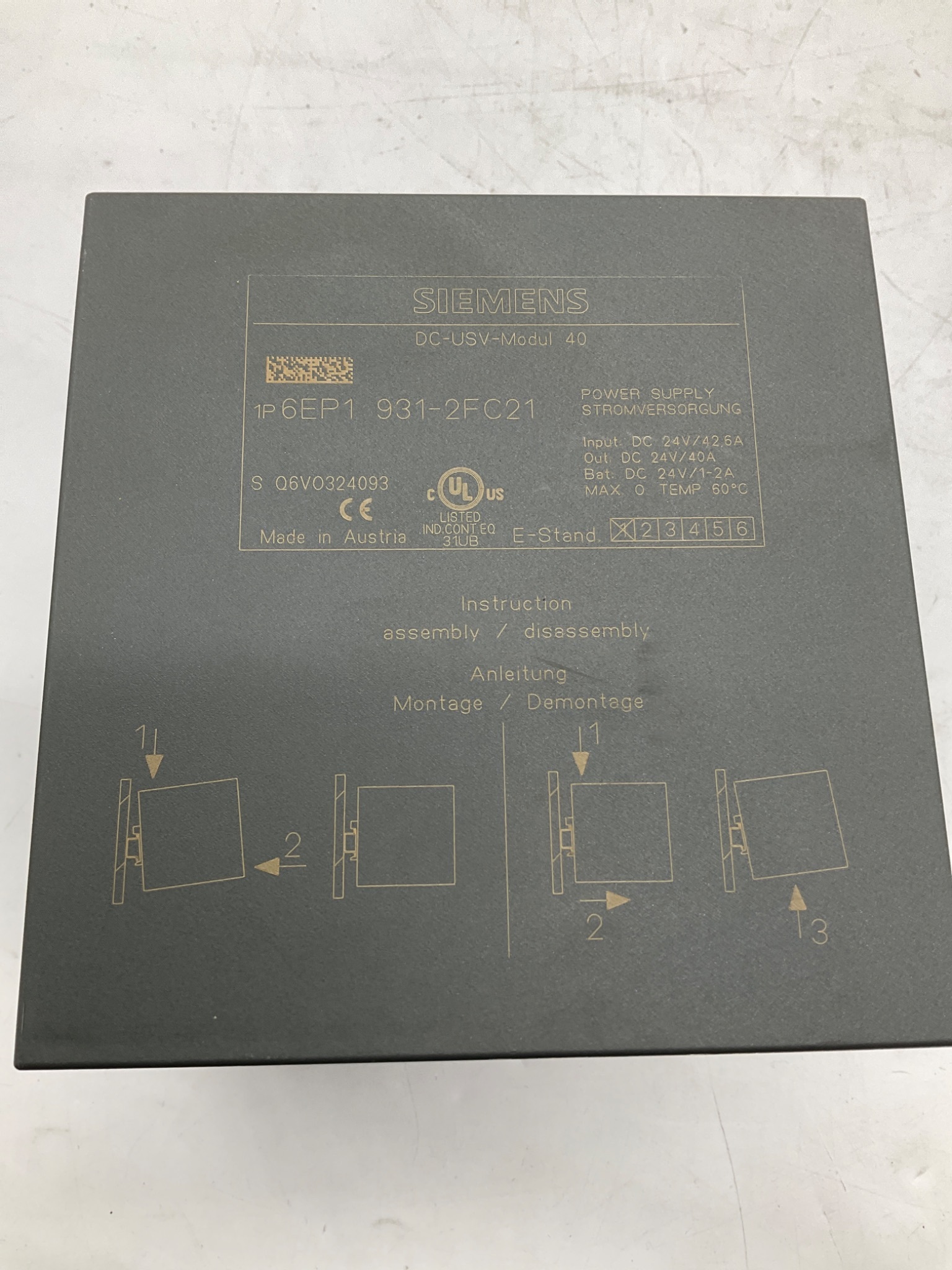

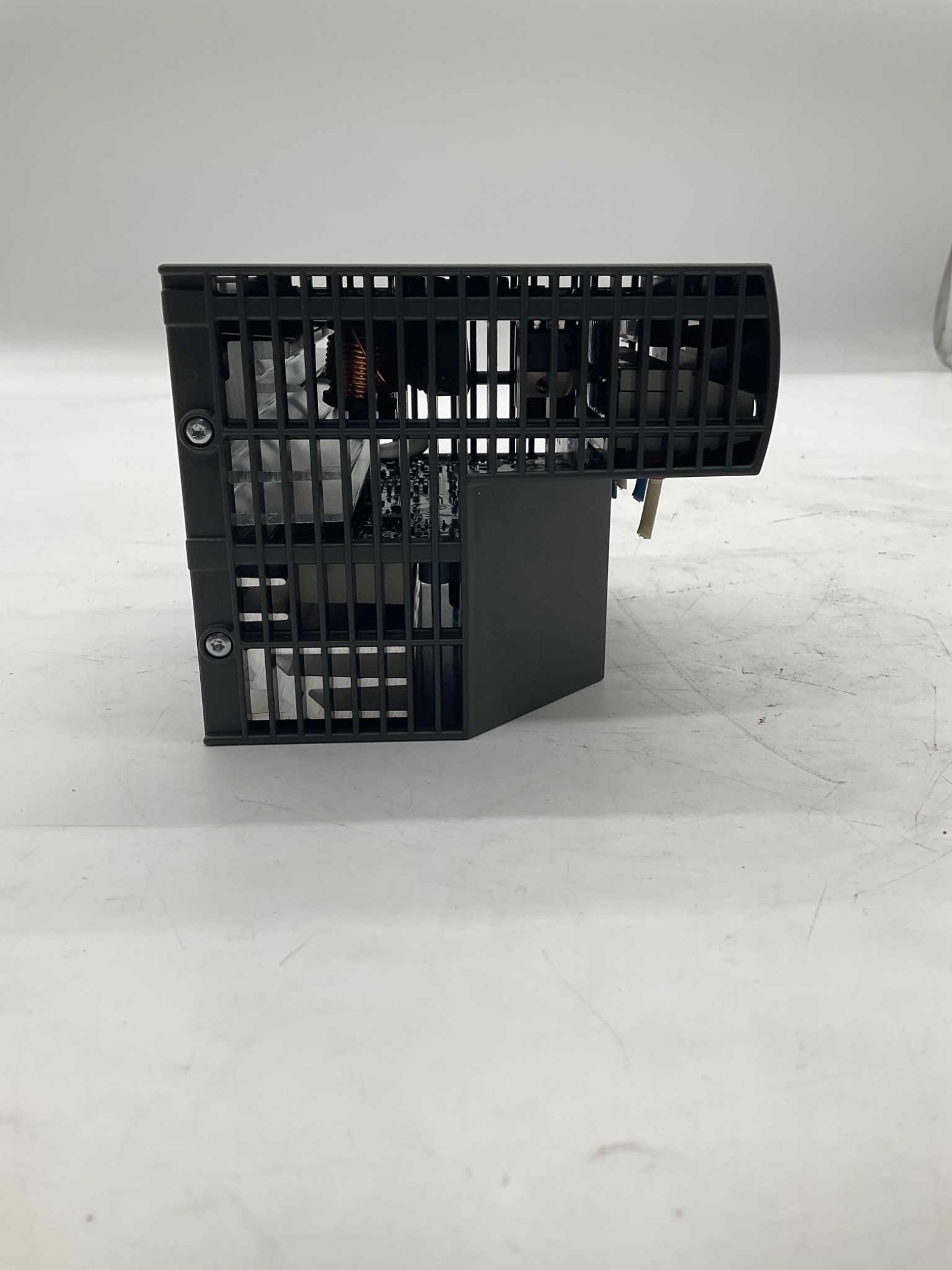

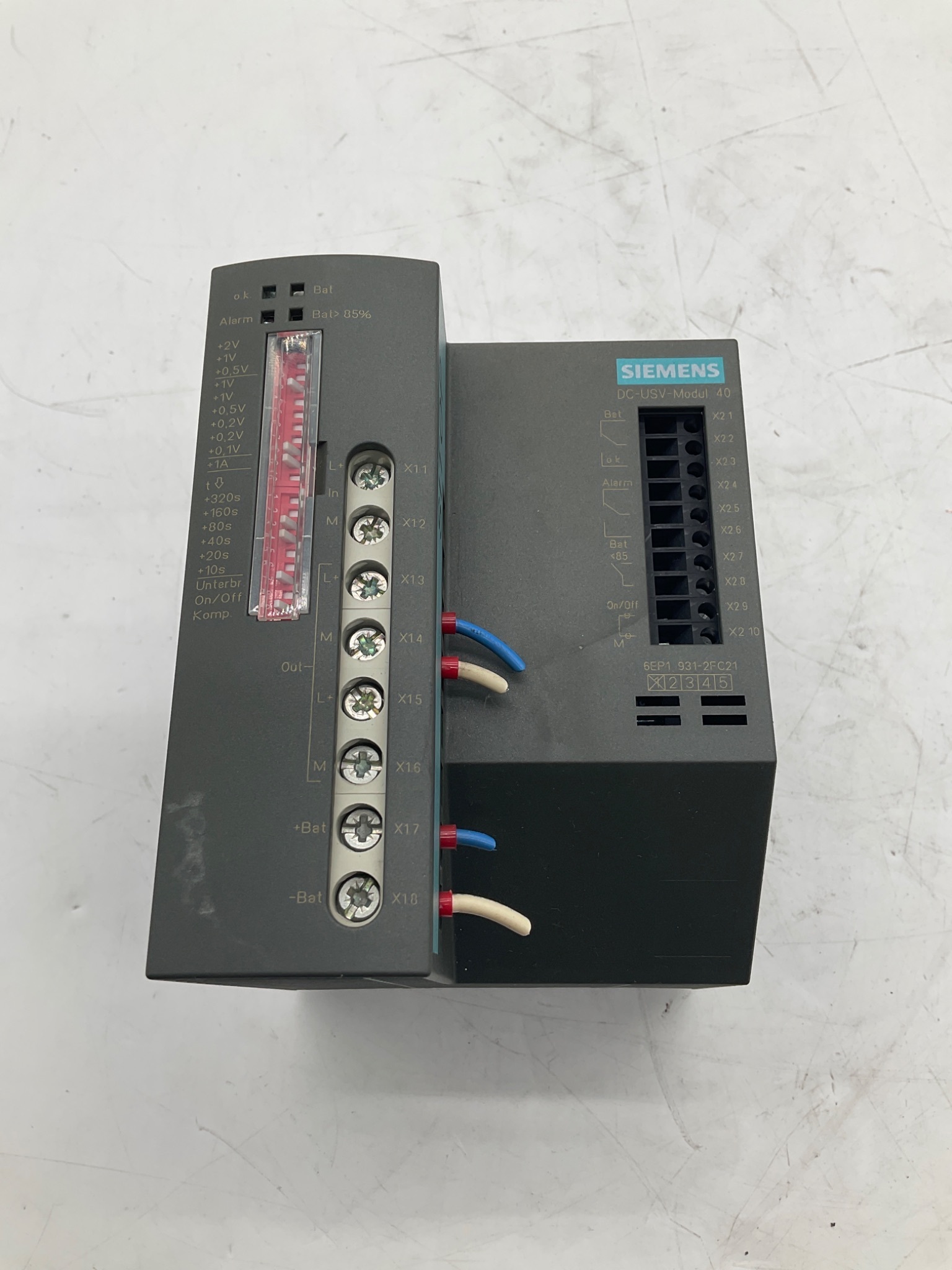

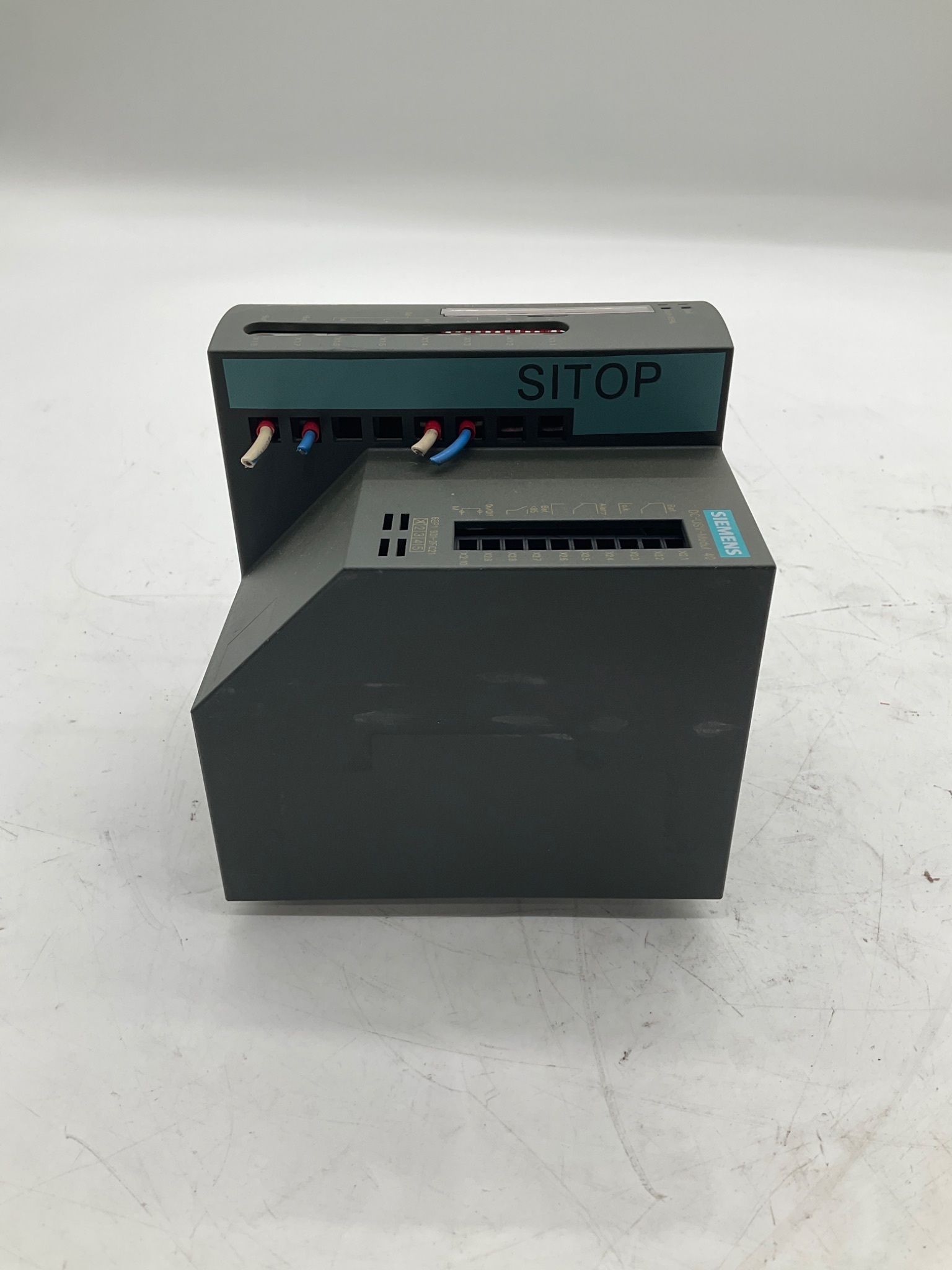

SIEMENS 6EP1931-2FC21 SITOP DC UPS Module 40A 24V DC USED

Specification Table

IDENTIFICATION Manufacturer: Siemens Part Number: 6EP1931-2FC21 Product Family: SITOP Product Designation: DC-USV-Modul 40 Product Type: DC UPS module System Type: Battery-backed DC power Condition: USED YOM: n/a Country of Manufacture: Austria Unit Identification: Q6V0324093   INPUT Input Type: DC Nominal Input Voltage: 24 VDC Input Current Rating: 42.6 A   OUTPUT Output Type: DC Nominal Output Voltage: 24 VDC Output Current Rating: 40 A   BATTERY Battery System Voltage: 24 VDC Battery Charging Current: 1 to 2 A Battery Connection: External Battery Positive Terminal: X1.7 Battery Negative Terminal: X1.8 Battery Charge Monitoring: >85% status indication   POWER CONNECTIONS Input Positive: X1.1 Input Negative: X1.2 / X1.3 Output Positive: X1.4 / X1.5 Output Negative: X1.6 Battery Positive: X1.7 Battery Negative: X1.8 Power Terminal Type: Screw terminal   MONITORING / CONTROL Operating Status Signal: OK Battery Status Signal: Bat Alarm Signal: Alarm Battery Charge Signal: Bat >85% Remote Control: On/Off Signal Connections: X2.1 through X2.10   CONFIGURATION Configuration Method: Front DIP switches Battery Charge Selection: 1 A / 2 A Buffer Time Selections: 5 s 10 s 20 s 40 s 80 s 160 s 320 s Maximum Operating Mode Selection: Interruption / continuous operation Voltage Adjustment Markings: 0 V, +0.5 V, +1 V, +0.5 V, +0.2 V, +0.1 V   ENVIRONMENTAL Maximum Operating Temperature: 60 °C   CONSTRUCTION / INSTALLATION Installation Format: Industrial control cabinet module Cooling: Ventilated housing Power Terminal Range: X1.1 through X1.8 Signal Terminal Range: X2.1 through X2.10   APPROVALS / MARKINGS CE Marking: Present cULus Listing: Present Equipment Classification: Industrial Control Equipment UL Marking: 31UB
