Siemens 5SY4102-7 Miniature Circuit Breaker USED 0
Siemens 5SY4102-7 Miniature Circuit Breaker USED 1
Siemens 5SY4102-7 Miniature Circuit Breaker USED 2
Siemens 5SY4102-7 Miniature Circuit Breaker USED 3

SOLD!

Siemens 5SY4102-7 Miniature Circuit Breaker USED

$15.00
Availability:

8 in stock
BRAND: SIEMENS MODEL: 5SY4102-7 CONDITION: used
SKU: IGAM2781525 Weight: 3 lbs Shipping Calculated at Checkout

8 in stock

Make an offer

Overview

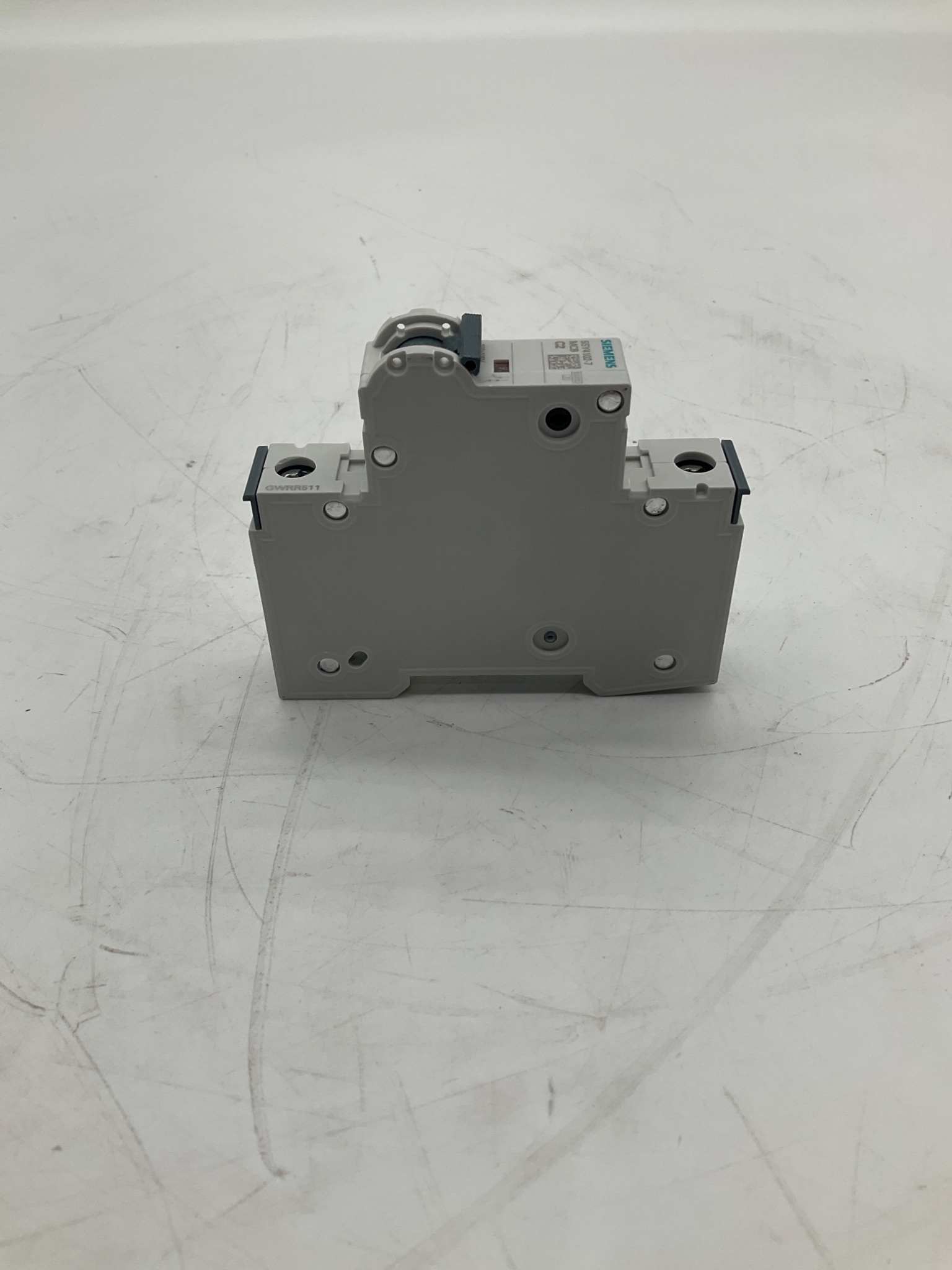

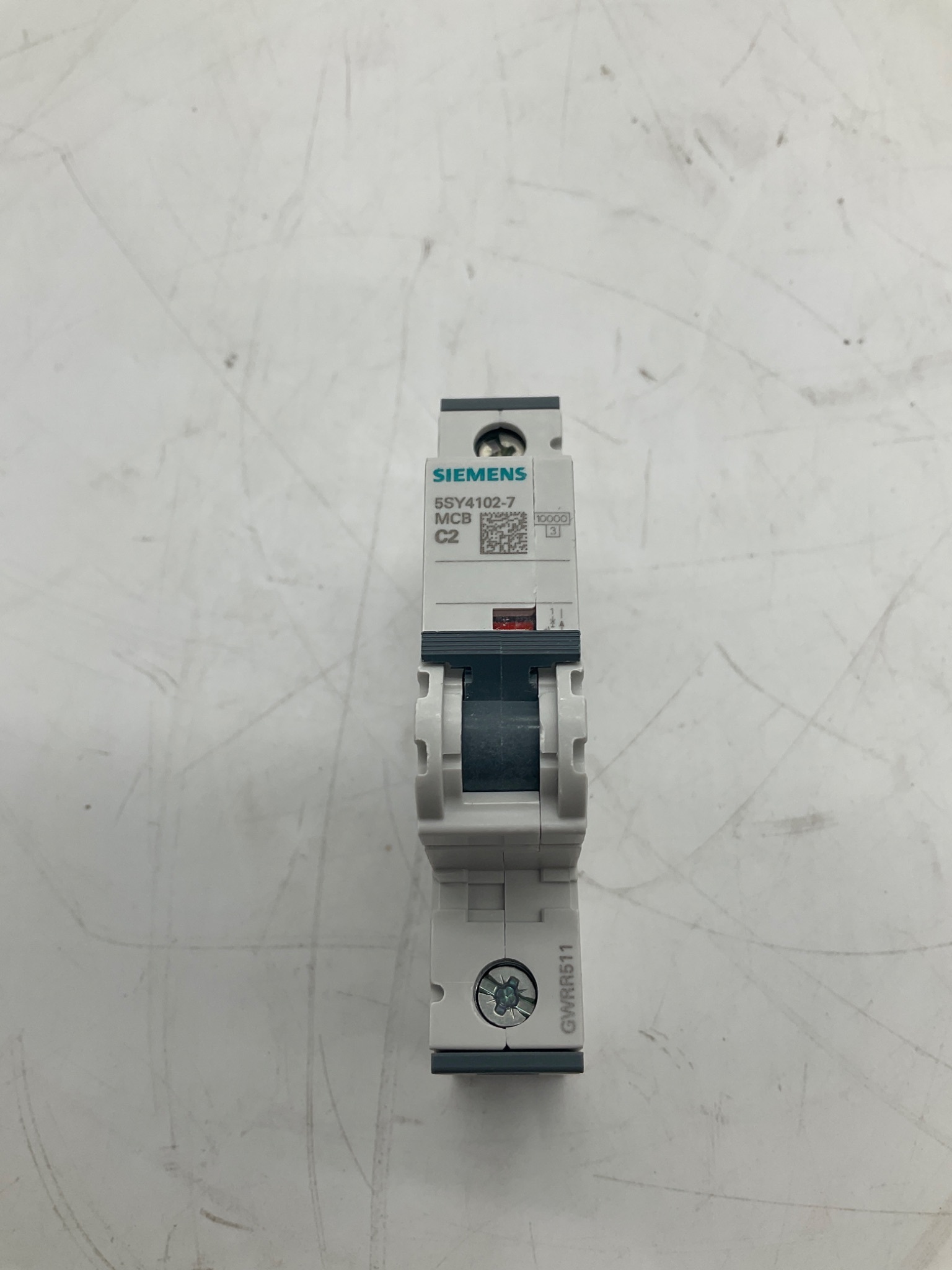

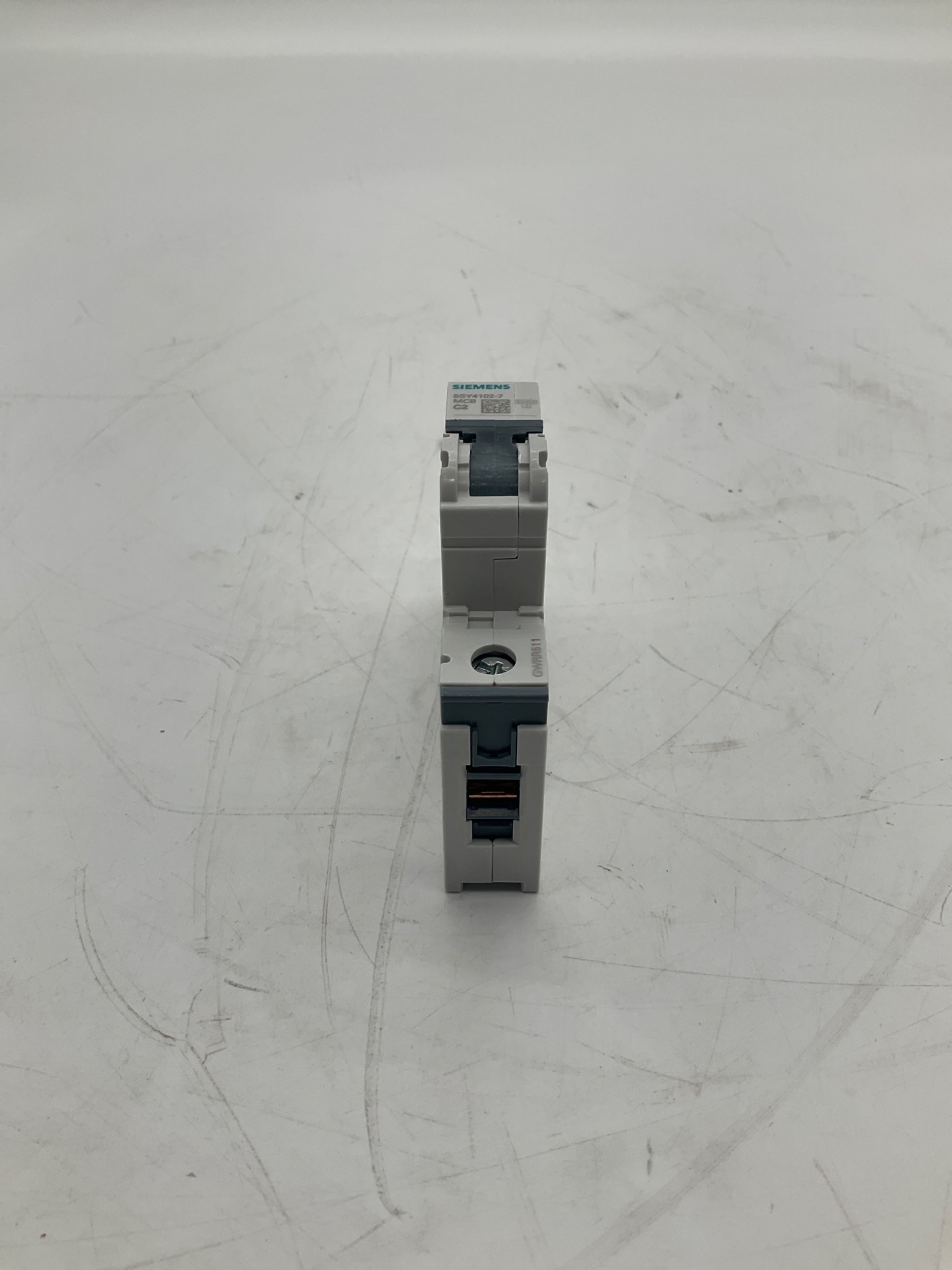

This listing is for a USED Siemens 5SY4102-7. Part of the SENTRON 5SY4 series, this miniature circuit breaker provides branch circuit protection and manual circuit isolation for industrial control panels, machinery, and electrical distribution systems. The unit features a 1-pole configuration, 2 A current rating, and C-curve trip characteristic for general-purpose circuit protection applications.

Specification Table

Manufacturer: Siemens Series: SENTRON 5SY4 Part Number: 5SY4102-7 Description: Miniature Circuit Breaker Device Type: Current-Limiting MCB   Poles: 1 Current Rating: 2 A Trip Characteristic: C Curve   Rated Voltage (IEC): 230/400 VAC Frequency: 50/60 Hz   Breaking Capacity: 10 kA Energy Limitation Class:3   Standard: IEC/EN 60898-1 Standard: GB/T 10963.1   Rated Insulation Voltage (Ui): 440 V Rated Impulse Voltage (Uimp): 4 kV Pollution Degree: 2   Mounting: DIN Rail Terminal Capacity: 0.75-35 mm² Terminal Capacity: AWG 18-2 Strip Length: 15 mm   Terminal Torque: 3.5 N·m Terminal Torque: 31 lb-in   Approvals: CE, EAC, UKCA, UL Recognized, CCC Country of Origin: Germany   Condition: USED
