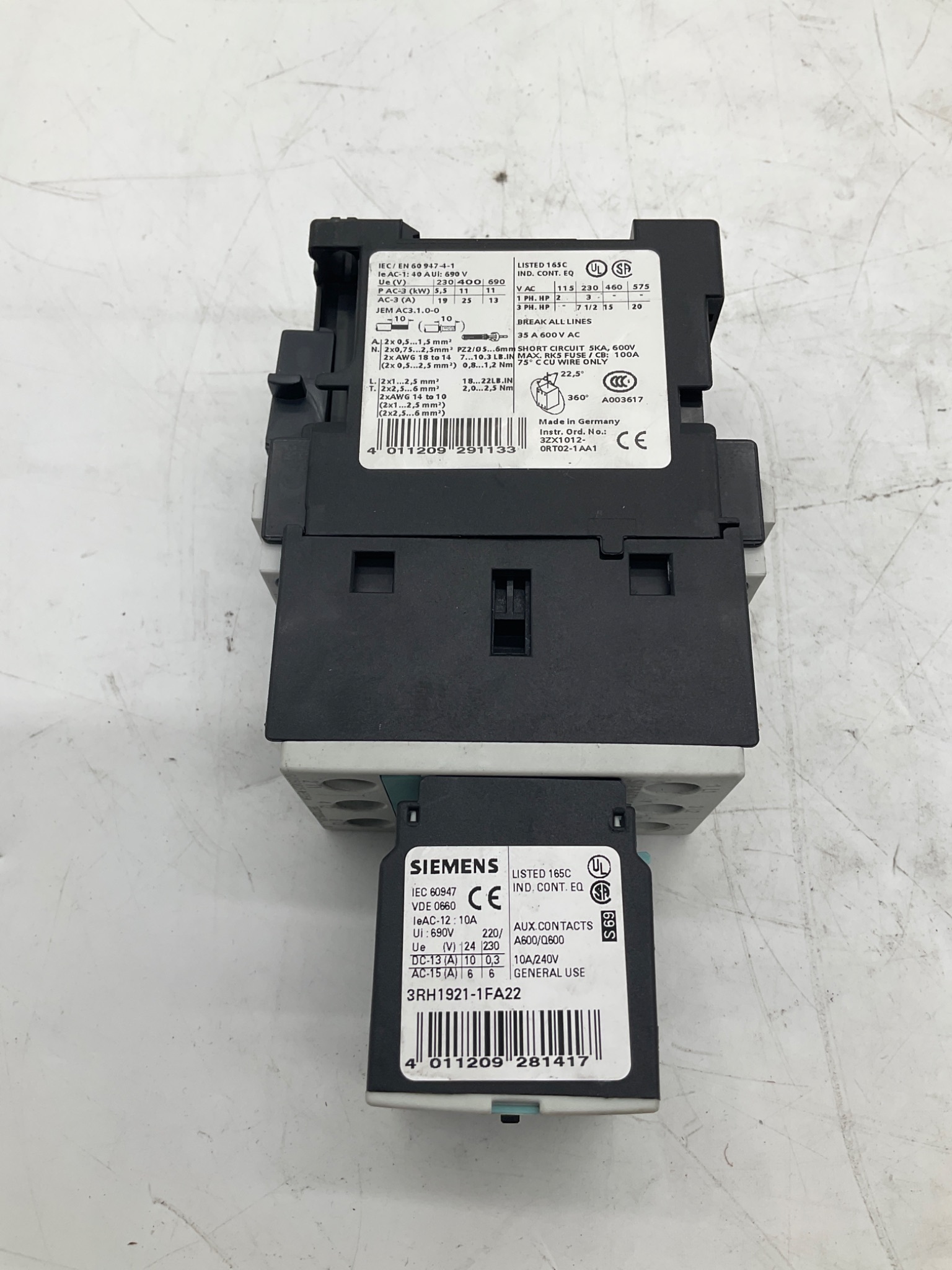

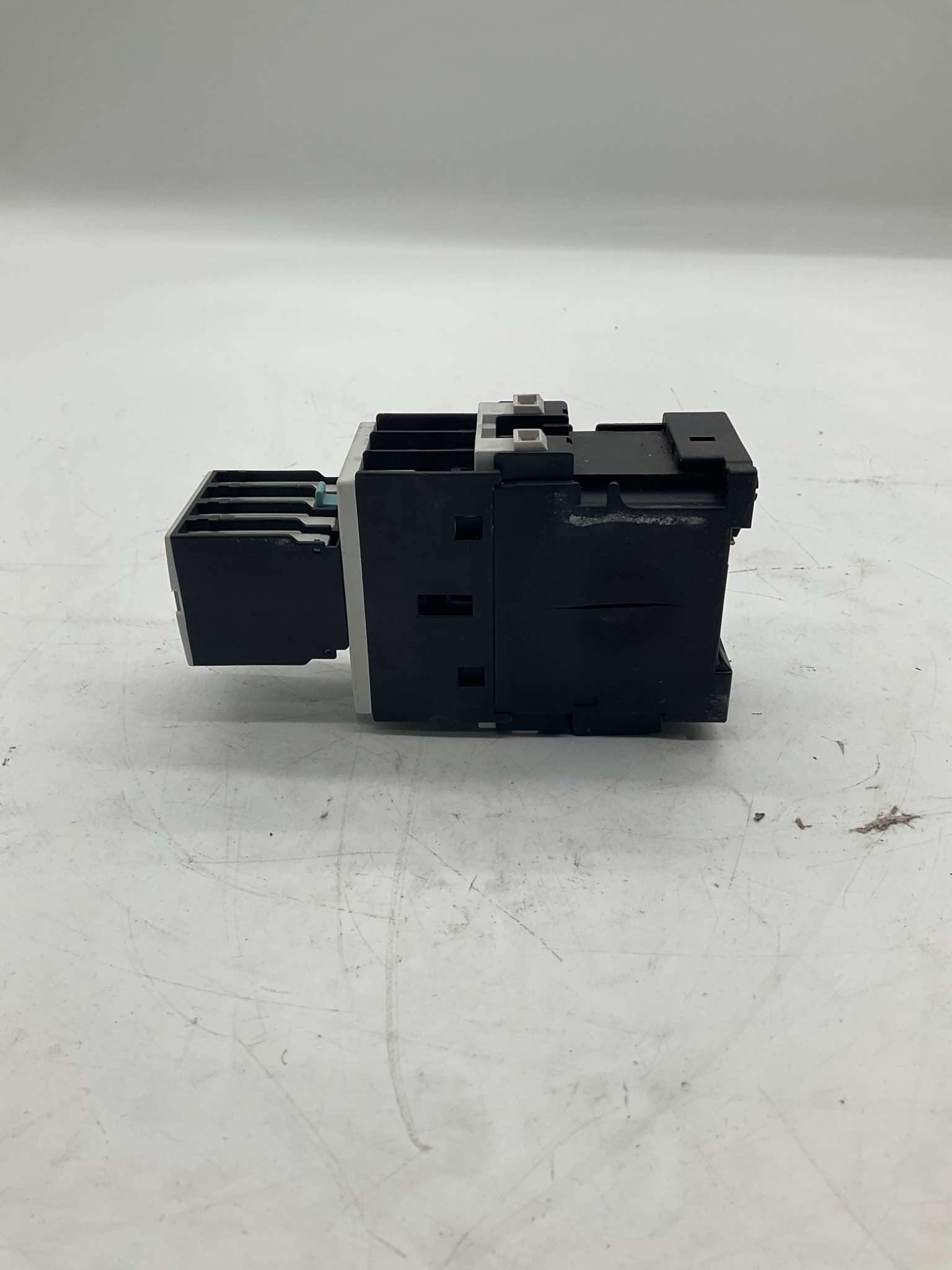

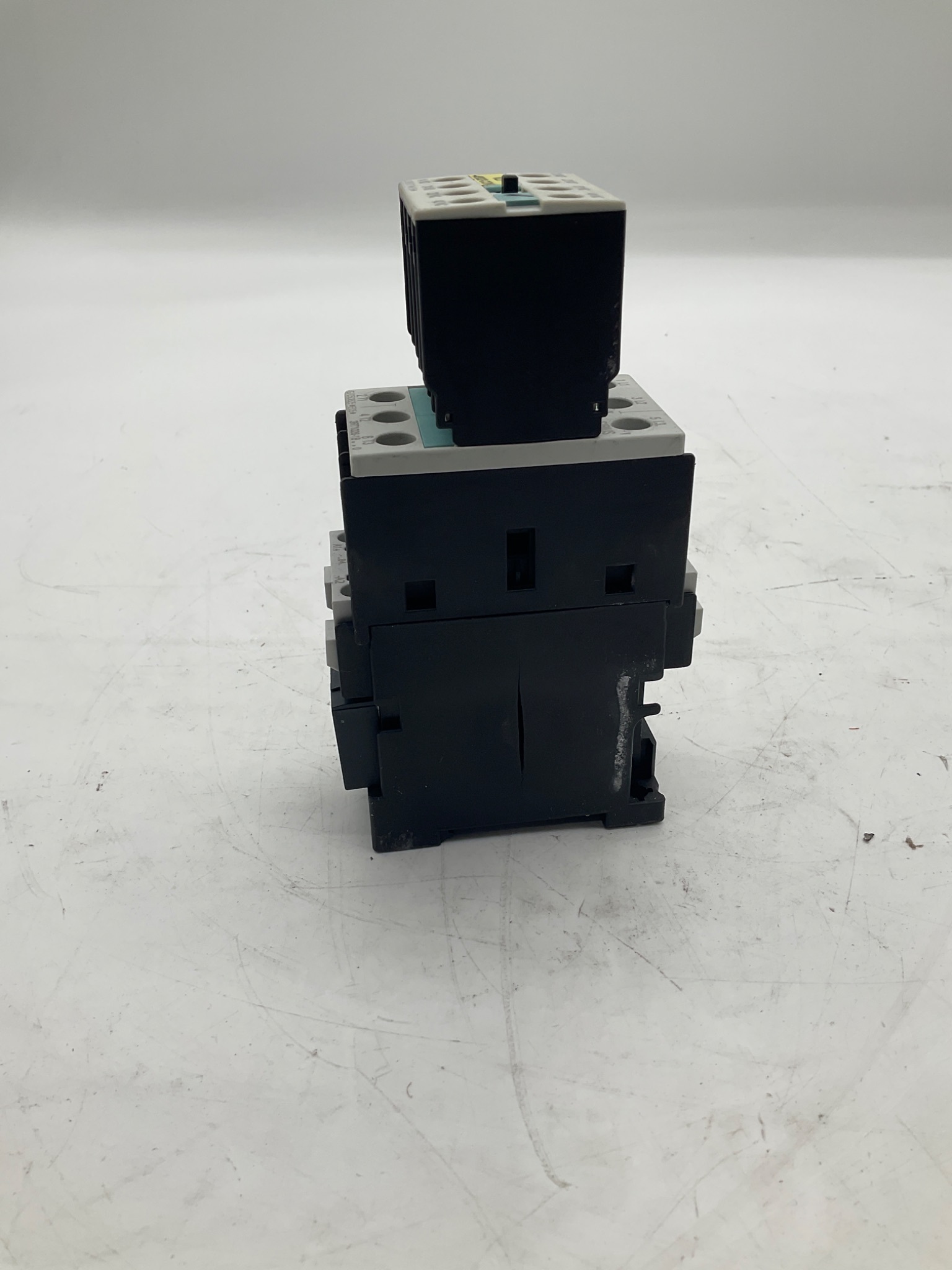

SIEMENS 3ZX1012-0RT02-1AA1 Contactor With 3RH1921-1FA22 Auxiliary Block USED

Specification Table

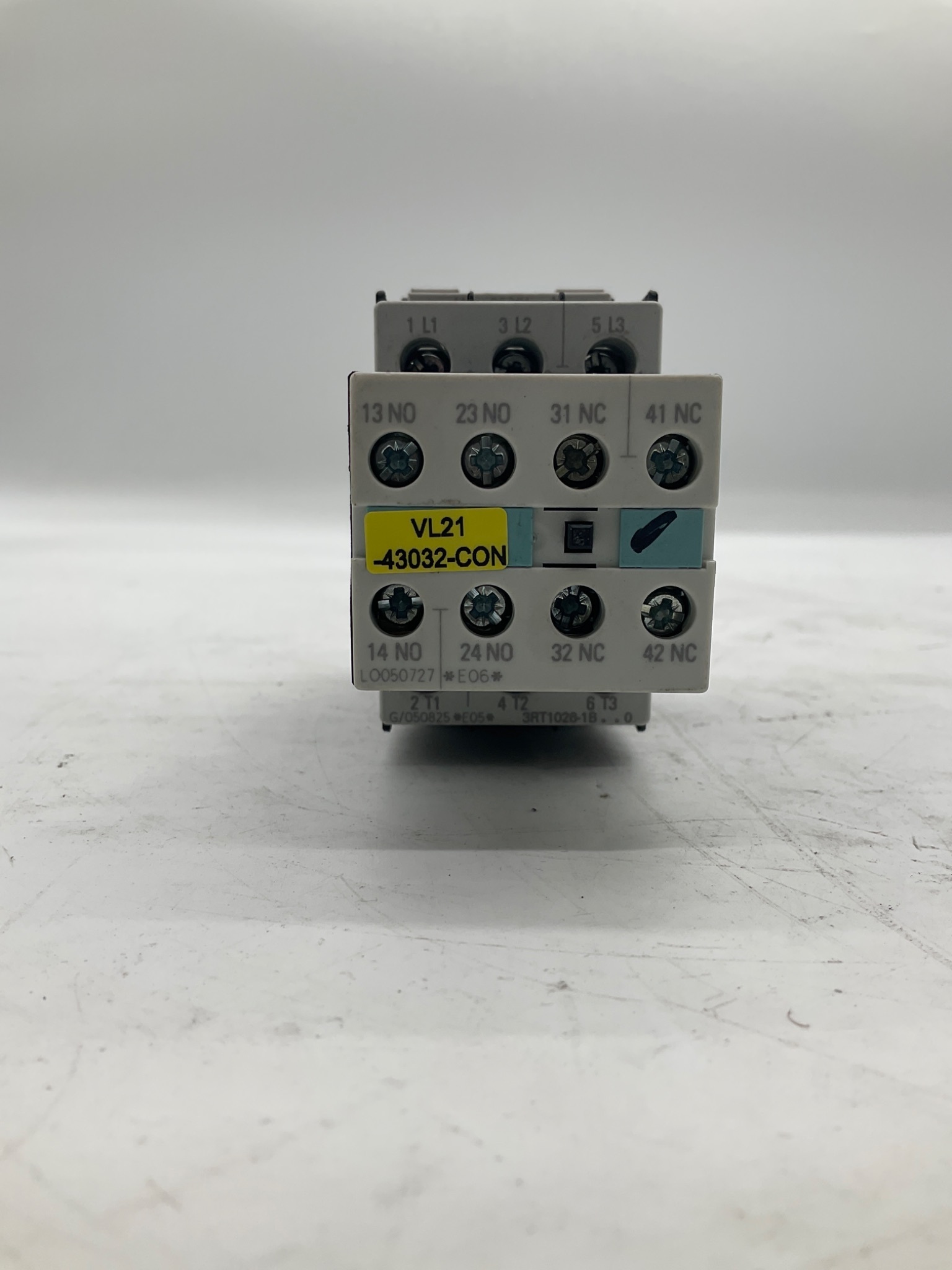

IDENTIFICATION Manufacturer: Siemens Product Type: Contactor with auxiliary contact block Main Device Part Number: Not specified Instruction / Order Number: 3ZX1012-0RT02-1AA1 Condition: USED YOM: n/a Country of Manufacture: Germany   MAIN CONTACTOR Device Type: Three-pole power contactor Main Poles: 3 Rated Insulation Voltage Ui: 690 V AC-1 Current Rating: 40 A Line Terminals: 1/L1, 3/L2, 5/L3 Load Terminals: 2/T1, 4/T2, 6/T3 Main Terminal Type: Screw   MOTOR LOAD RATINGS Operating Voltage: 230 VAC 400 VAC 690 VAC AC-3 Motor Power: 5.5 kW 11 kW 11 kW AC-3 Current: 20 A 25 A 13 A   UL / CSA MOTOR RATINGS Operating Voltage: 200-208 V 230 V 460 V 575 V 1-Phase Motor Rating: 2 HP 3 HP -- -- 3-Phase Motor Rating: -- 7.5 HP 15 HP 20 HP   SHORT-CIRCUIT / PROTECTION Short-Circuit Rating: 5 kA at 600 VAC Maximum RK5 Fuse: 100 A Maximum Current-Limiting Fuse: 100 A Breaker Requirement: Break all lines   AUXILIARY CONTACT BLOCK Part Number: 3RH1921-1FA22 Device Type: Auxiliary contact block Contact Configuration: 2 NO + 2 NC Normally Open Contacts: 13-14, 23-24 Normally Closed Contacts: 31-32, 41-42 Mounting Location: Front Terminal Type: Screw   AUXILIARY ELECTRICAL Rated Insulation Voltage Ui: 690 V Conventional Thermal Current: 10 A DC-13 at 24 VDC: 10 A DC-13 at 230 VDC: 0.3 A AC-15 at 24 VAC: 10 A AC-15 at 230 VAC: 6 A General-Use Rating: 10 A at 240 VAC   CONNECTION / INSTALLATION Main Power Connection: Screw terminals Auxiliary Connection: Screw terminals Auxiliary Mounting: Direct front mounting Main Circuit Configuration: Three-pole   APPROVALS / STANDARDS IEC Standard: IEC / EN 60947-4-1 UL Listing: Present CSA Marking: Present CE Marking: Present CCC Marking: Present
