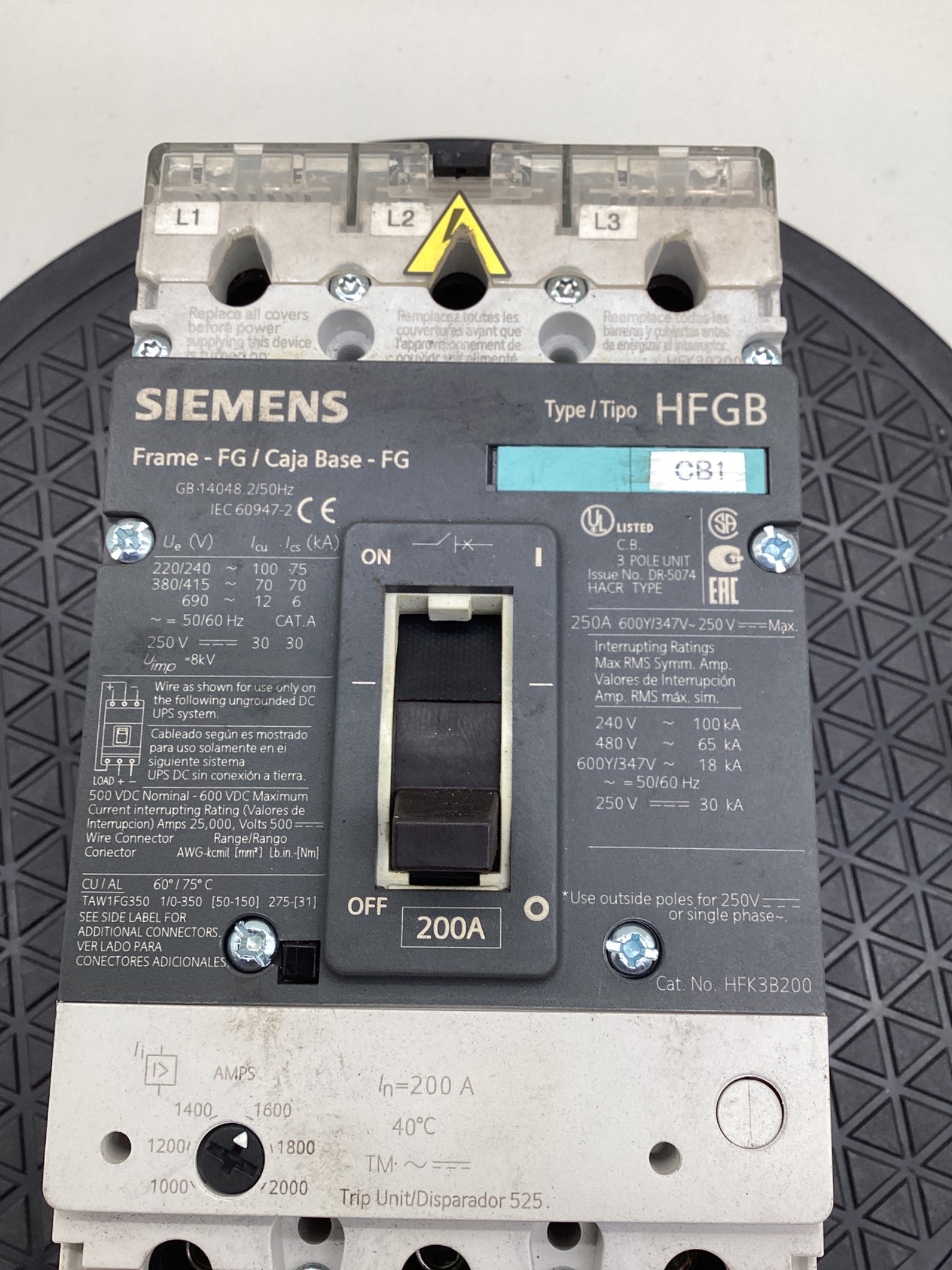

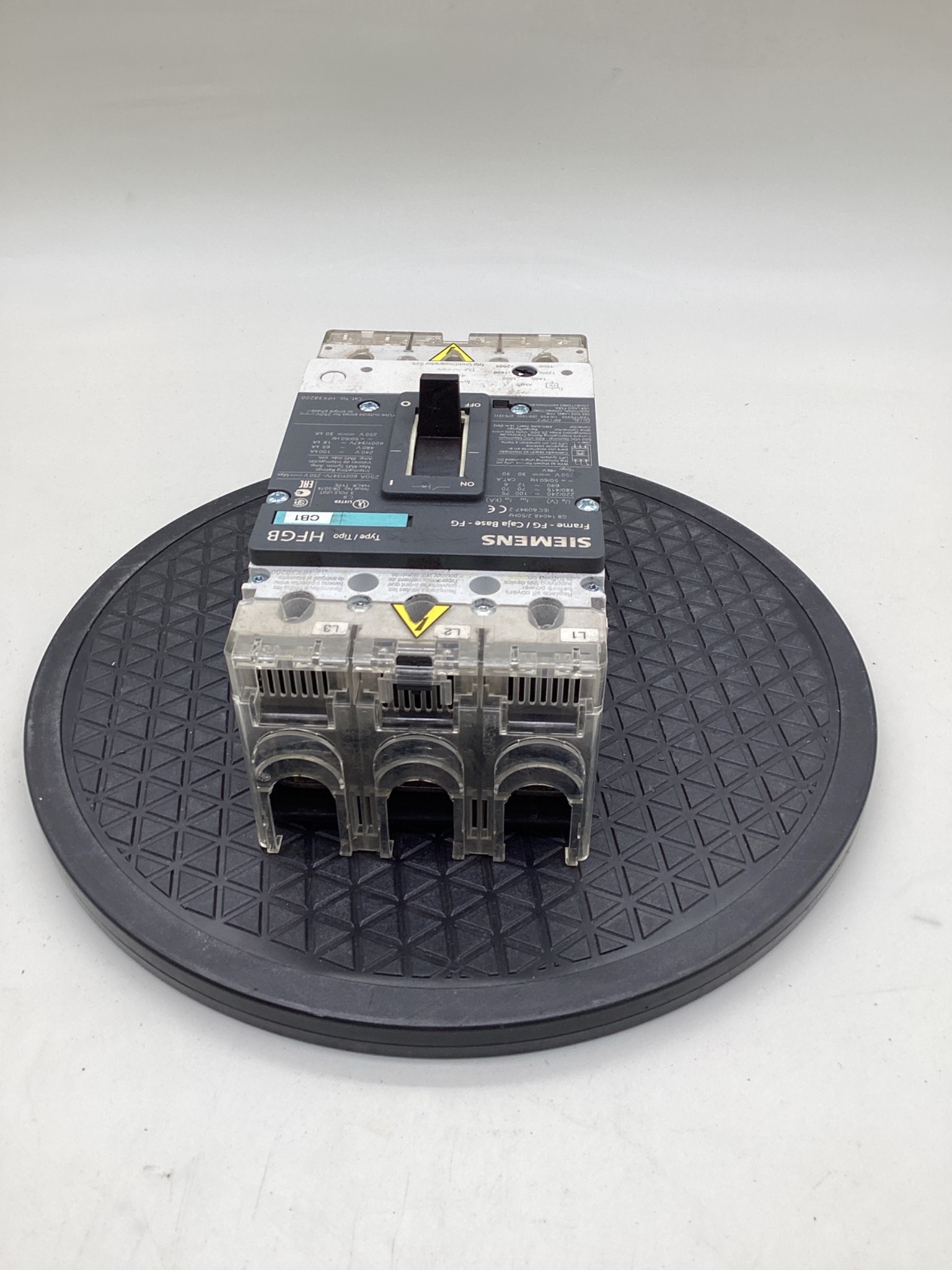

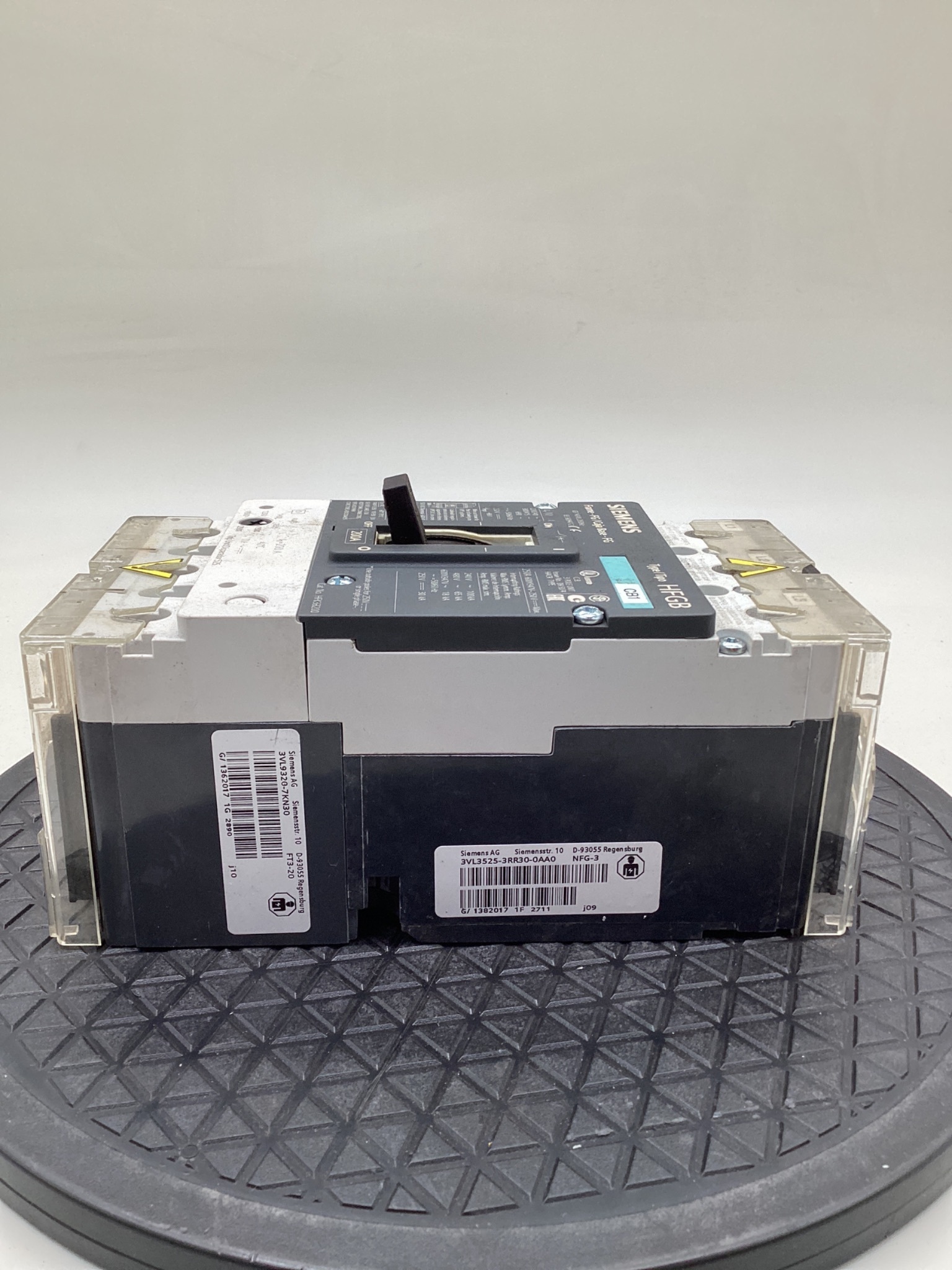

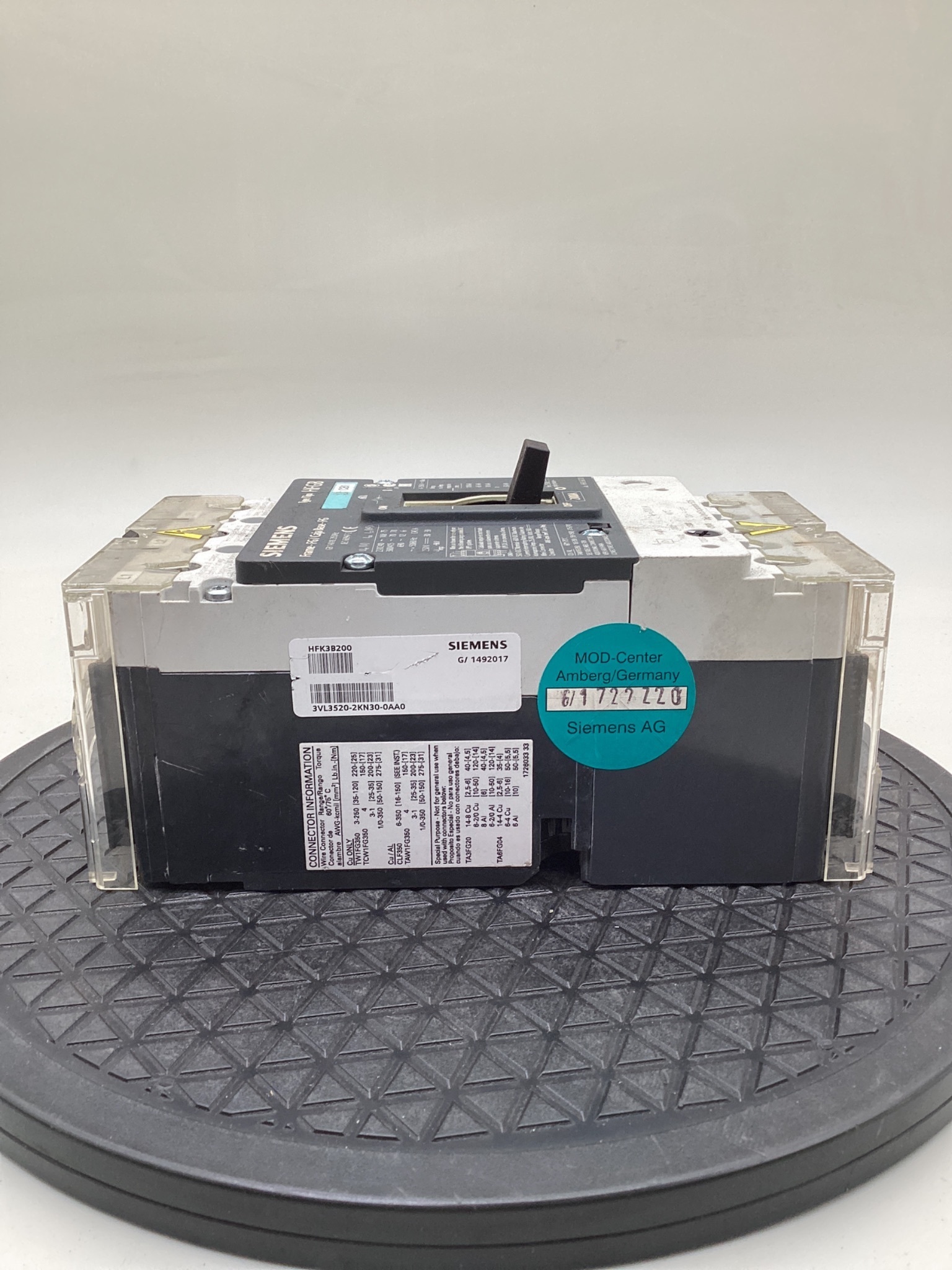

Siemens 3VL3520-2KN30-0AA0 HFK3B200 200A 3-Pole Circuit Breaker USED

Specification Table

IDENTIFICATION Manufacturer: Siemens Part Number: 3VL3520-2KN30-0AA0 Catalog Number: HFK3B200 Frame: FG Type: HFGB Product Type: Molded Case Circuit Breaker Condition: USED YOM: n/a   BREAKER CONFIGURATION Poles: 3 Rated Current: 200 A Trip Unit: 525 Trip Technology: Thermal-Magnetic HACR Type: Yes   AC ELECTRICAL Maximum Voltage: 600Y/347 VAC Frequency: 50/60 Hz Utilization Category: A   AC INTERRUPTING RATINGS 240 VAC: 100 kA RMS Symmetrical 480 VAC: 65 kA RMS Symmetrical 600Y/347 VAC: 18 kA RMS Symmetrical   IEC BREAKING CAPACITY 220/240 VAC Icu / Ics: 100 / 75 kA 380/415 VAC Icu / Ics: 70 / 70 kA 690 VAC Icu / Ics: 12 / 6 kA   DC ELECTRICAL Maximum DC Voltage: 500 VDC DC Interrupting Rating @ 500 VDC: 25 kA 250 VDC Icu / Ics: 30 / 30 kA DC Application: Ungrounded DC UPS System   TRIP SETTINGS Nominal Current (In): 200 A Instantaneous Trip Adjustment: 1000-2000 A Instantaneous Settings: 1000 / 1200 / 1400 / 1600 / 1800 / 2000 A   CONDUCTOR CONNECTIONS Conductor Material: Copper / Aluminum Conductor Temperature Rating: 60°C / 75°C Connector: TAW1FG350 Wire Range: 1/0-350 kcmil Wire Range Metric: 50-150 mm² Terminal Torque: 275 lb-in (31 Nm)   STANDARDS & CERTIFICATIONS IEC Standard: IEC 60947-2 UL Listed: Yes CSA Mark: Present CE Mark: Present EAC Mark: Present UL Issue Number: ND-5074
