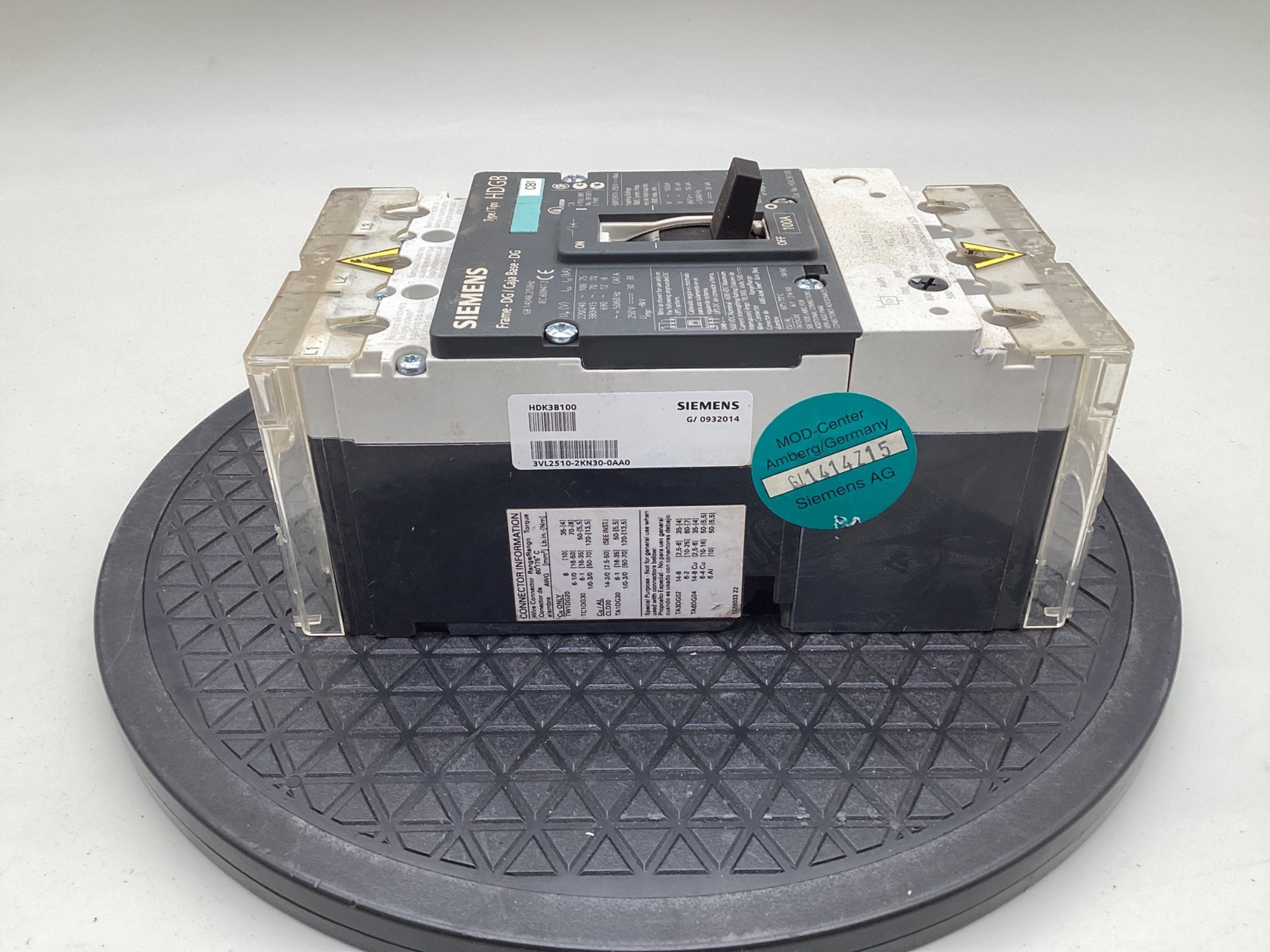

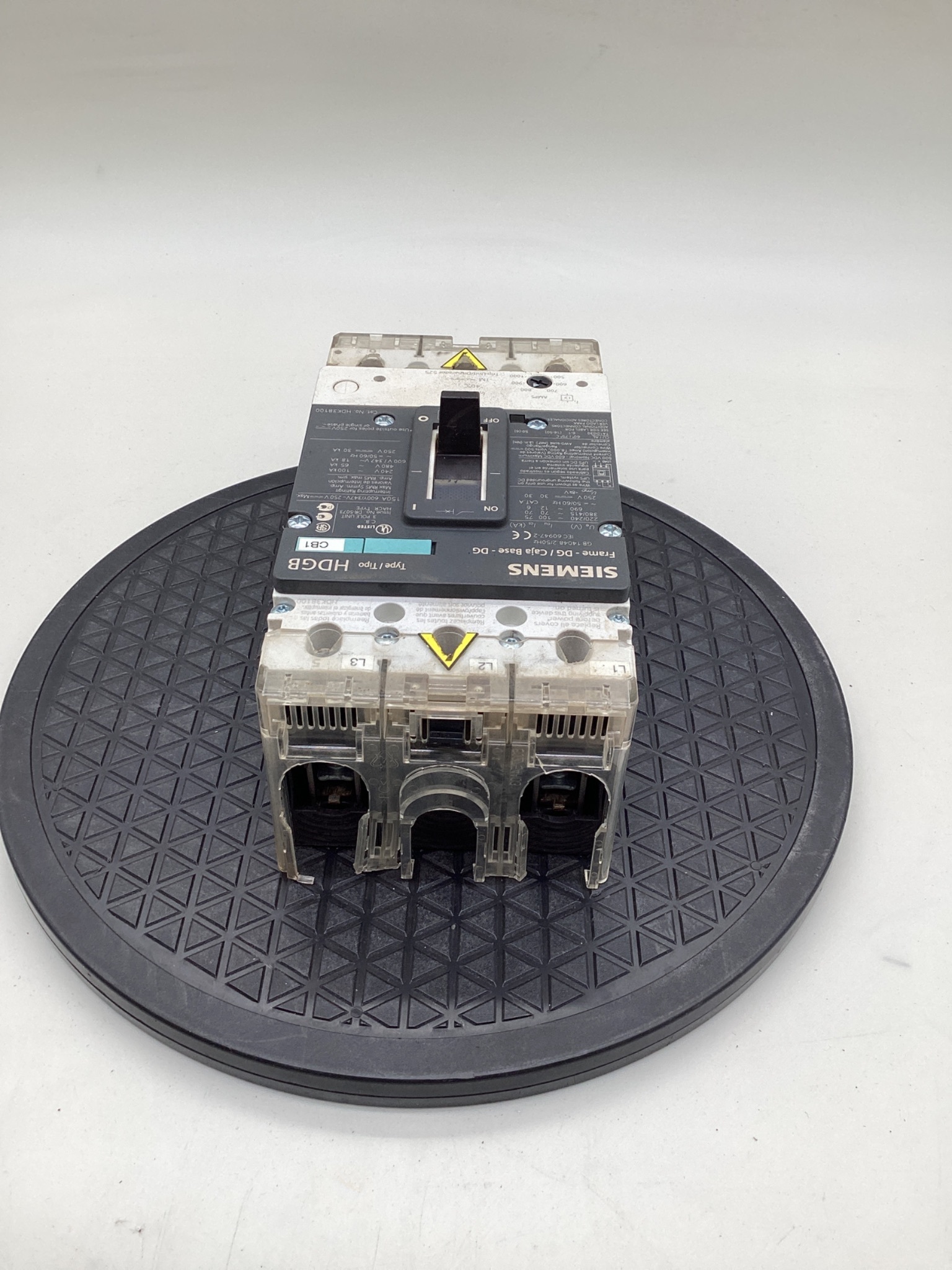

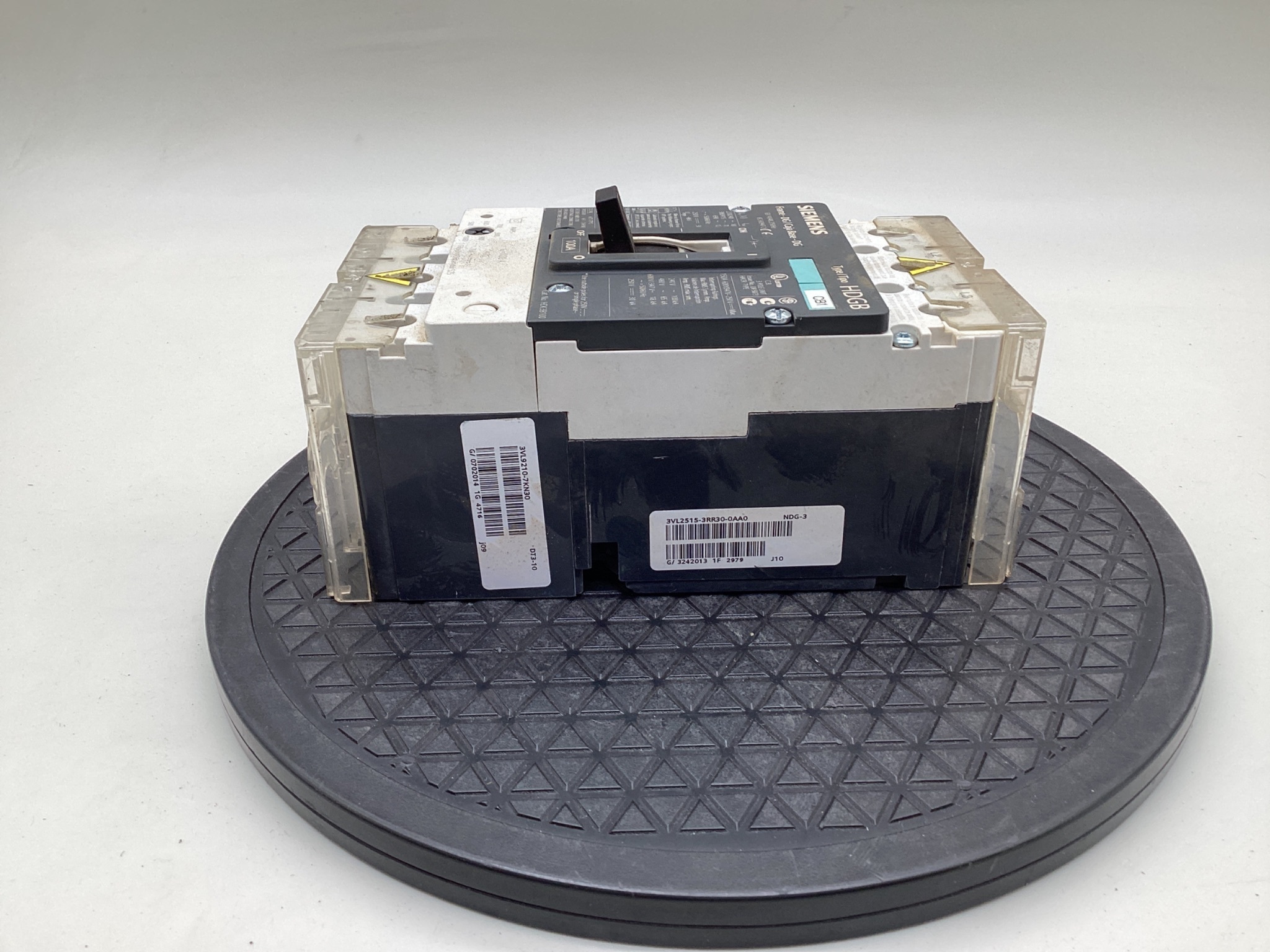

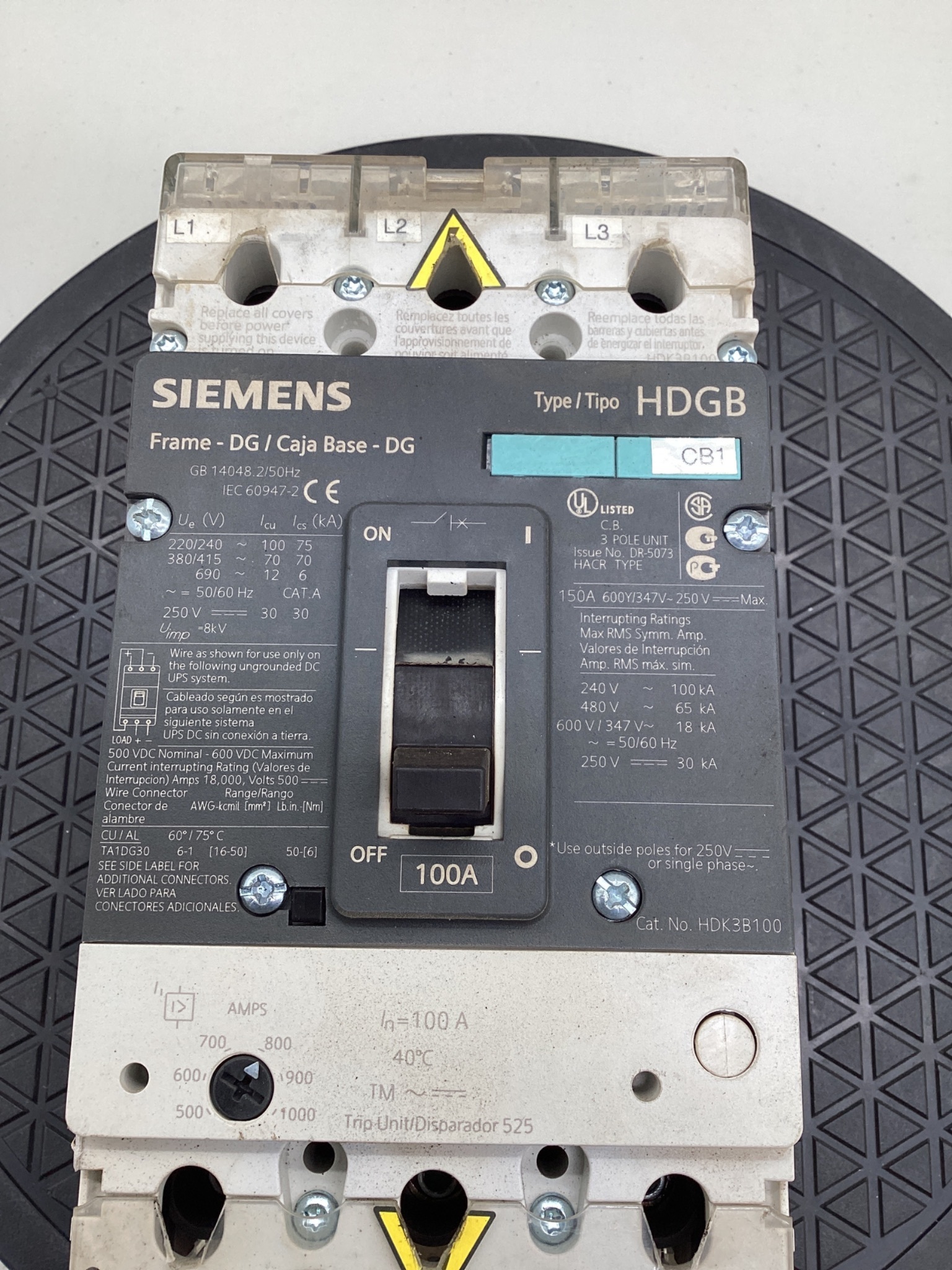

Siemens 3VL2515-3RR30-0AA0 HDK3B100 100A 3-Pole Circuit Breaker USED

Specification Table

IDENTIFICATION Manufacturer: Siemens Part Number: 3VL2515-3RR30-0AA0 Catalog Number: HDK3B100 Frame: DG Type: HDGB Product Type: Molded Case Circuit Breaker Condition: USED YOM: 2013   BREAKER CONFIGURATION Poles: 3 Rated Current: 100 A Trip Unit: 525 Trip Technology: Thermal-Magnetic HACR Type: Yes   AC ELECTRICAL Maximum Voltage: 600Y/347 VAC Frequency: 50/60 Hz Utilization Category: A Impulse Withstand Voltage (Uimp): 8 kV   UL INTERRUPTING RATINGS 240 VAC: 100 kA RMS Symmetrical 480 VAC: 65 kA RMS Symmetrical 600Y/347 VAC: 18 kA RMS Symmetrical 250 VDC: 30 kA   IEC BREAKING CAPACITY 220/240 VAC Icu / Ics: 100 / 75 kA 380/415 VAC Icu / Ics: 70 / 70 kA 690 VAC Icu / Ics: 12 / 6 kA 250 VDC Icu / Ics: 30 / 30 kA   DC ELECTRICAL Nominal DC Voltage: 500 VDC Maximum DC Voltage: 600 VDC DC Interrupting Rating: 18 kA DC Application: Ungrounded DC UPS System   TRIP SETTINGS Nominal Current (In): 100 A Reference Temperature: 40°C Instantaneous Trip Range: 500-1000 A Instantaneous Settings: 500 / 600 / 700 / 800 / 900 / 1000 A   CONDUCTOR CONNECTIONS Conductor Material: Copper / Aluminum Conductor Temperature Rating: 60°C / 75°C Connector: TA1DG30 Wire Range: 6-1 AWG Metric Wire Range: 16-50 mm² Terminal Torque: 50 lb-in (6 Nm)   STANDARDS & CERTIFICATIONS IEC Standard: IEC 60947-2 UL Listed: Yes
