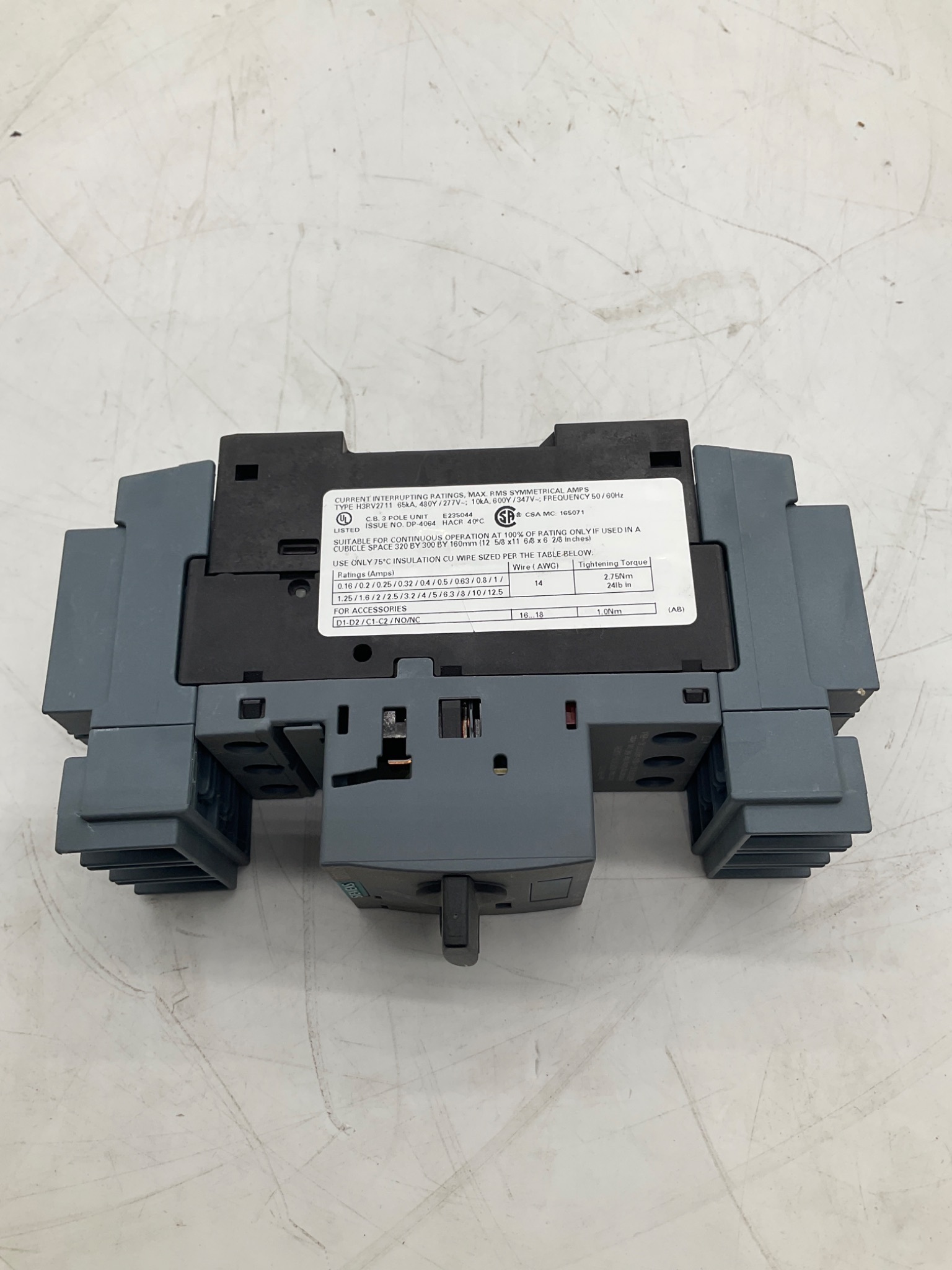

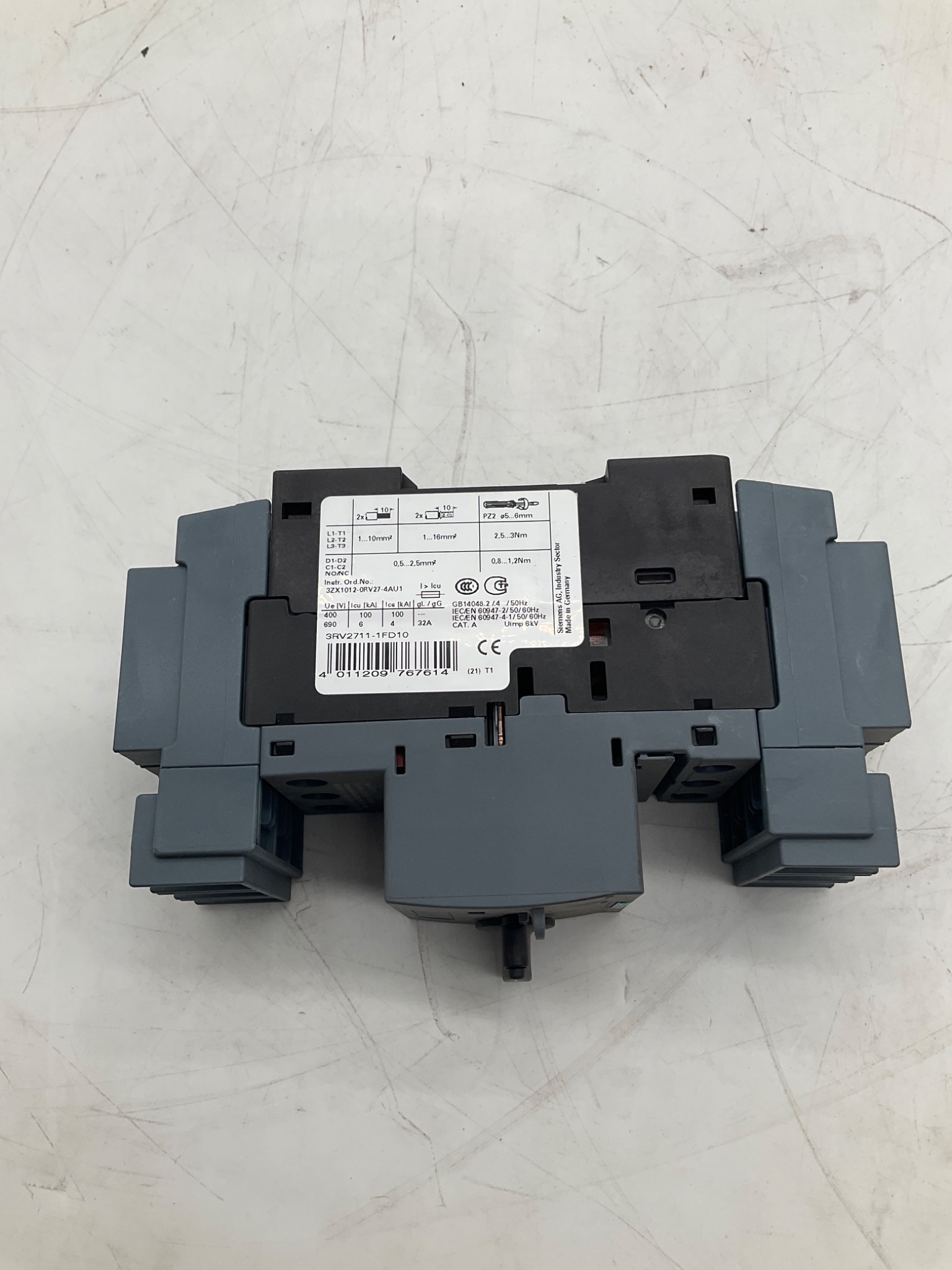

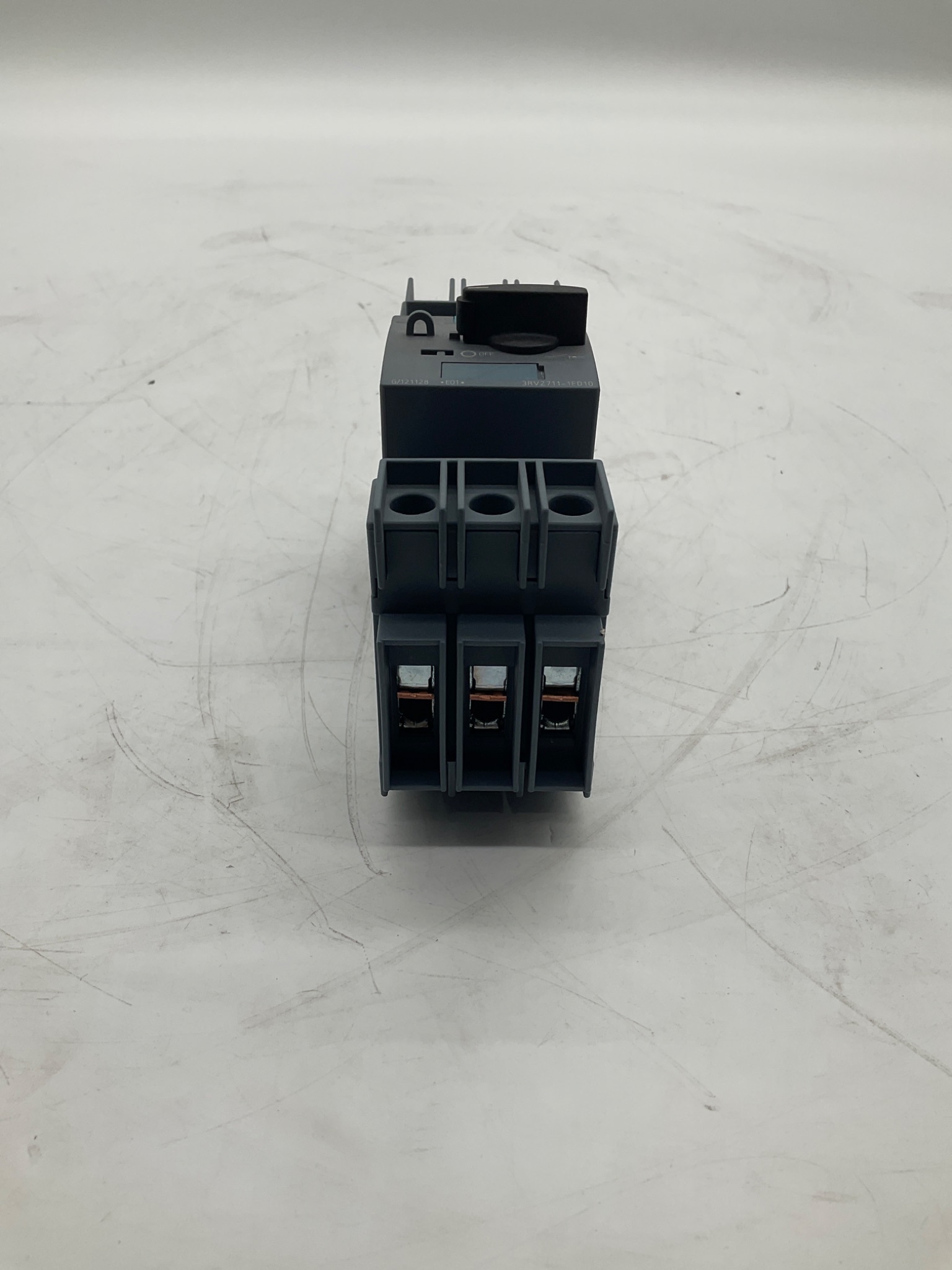

SIEMENS 3RV2711-1FD10 SIRIUS Motor Protection Circuit Breaker 5A USED

Specification Table

Manufacturer: Siemens Series: SIRIUS Part Number: 3RV2711-1FD10 Order Number: 3ZX1012-0RV27-4AU1 Condition: USED   Product Type: Motor Protection Circuit Breaker Protection Type: Thermal-Magnetic Number of Poles: 3 Pole Operation Type: Manual Motor Protector   Current Specifications   Rated Current (In): 5 A   Electrical Specifications   Rated Operational Voltage (Ue): 690 VAC Rated Insulation Voltage (Ui): 690 V Rated Impulse Withstand Voltage (Uimp): 6 kV Frequency: 50/60 Hz   Interrupting Ratings   Breaking Capacity @ 400 VAC: 100 kA Breaking Capacity @ 690 VAC: 32 kA Breaking Capacity @ 480Y/277 VAC: 65 kA Breaking Capacity @ 600Y/347 VAC: 10 kA   Standards & Ratings   IEC/EN 60947-2 IEC/EN 60947-4-1 Trip Class: A   Connection Specifications Terminal Type: Screw Terminal Power Terminal Size: 1-16 mm² Auxiliary Terminal Size: 0.5-2.5 mm²   Mechanical Specifications   Operating Handle: Rotary Trip Indication: Yes Mounting Type: Panel Mount / DIN Rail Compatible   Compliance   UL Listed: Yes CE Marked: Yes CCC Approved: Yes CSA Certified: Yes   Manufacturing Information   YOM: n/a
