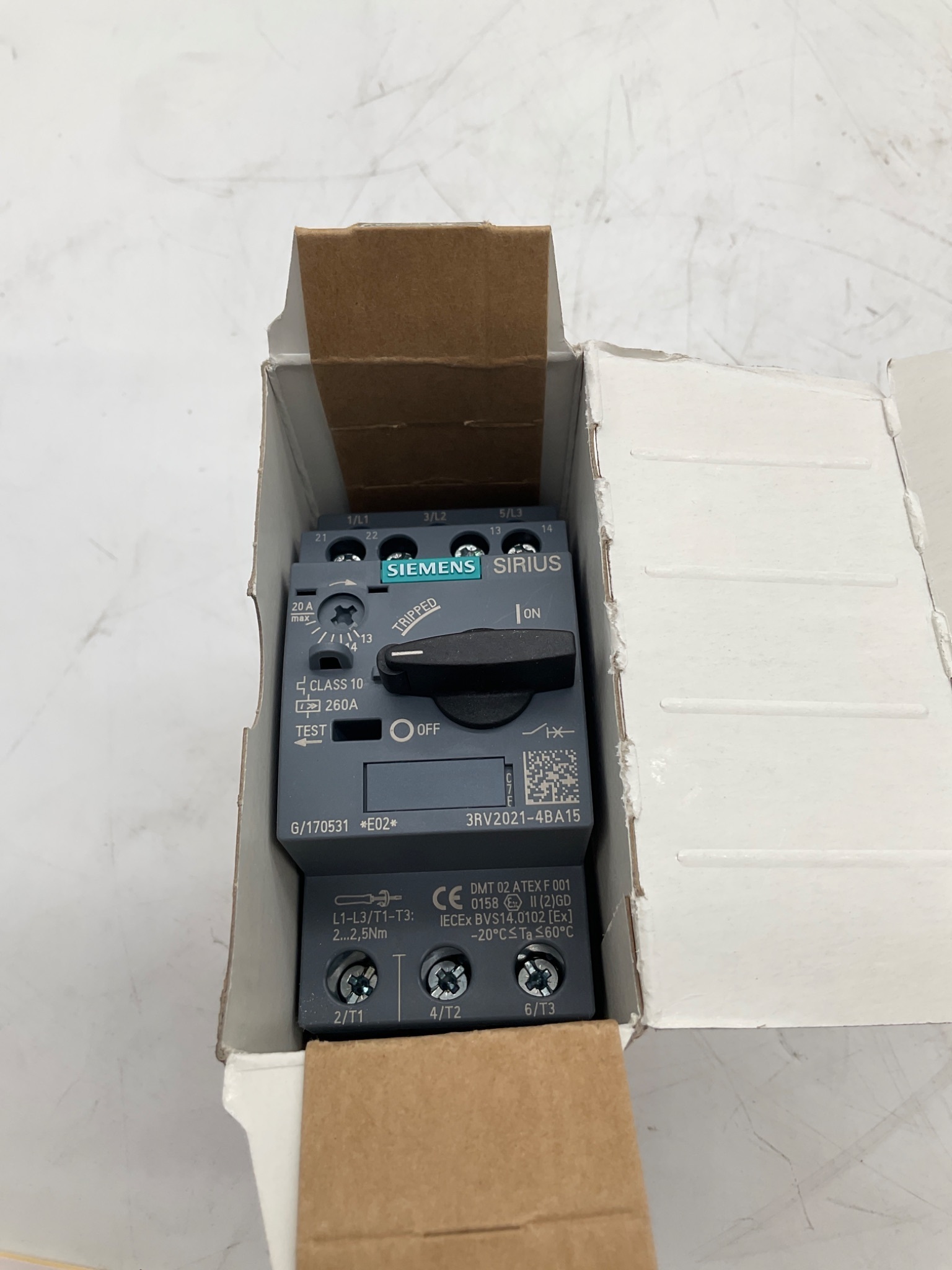

SIEMENS 3RV2021-4BA15 SIRIUS Motor Protection Circuit Breaker NEW

Specification Table

Manufacturer: Siemens Series: SIRIUS 3RV2 Part Number: 3RV2021-4BA15 Condition: NEW Protection Specifications Product Type: Motor Protection Circuit Breaker Thermal Adjustment Range: 13-20 A Protection Functions: Thermal Overload and Magnetic Short-Circuit Protection Motor Protection Type: Manual Motor Starter Tripping Class: Class 10 Electrical Specifications Number of Poles: 3 Pole Rated Operational Voltage: Up to 690 VAC Frequency: 50/60 Hz Auxiliary Contacts: 1NO + 1NC Switching Specifications Operating Method: Manual Rotary Operator Switching Duty: Motor Branch Circuit Protection Short-Circuit Protection: Integrated Overload Protection: Adjustable Mechanical Specifications Terminal Type: Screw Terminals Mounting Method: DIN Rail or Panel Mount Compact Width: 55 mm Compliance IEC 60947-2 IEC 60947-4-1 UL Recognized CSA Certified CE Marked Manufacturing Information Country of Manufacture: Germany Date Code Visible: K28
