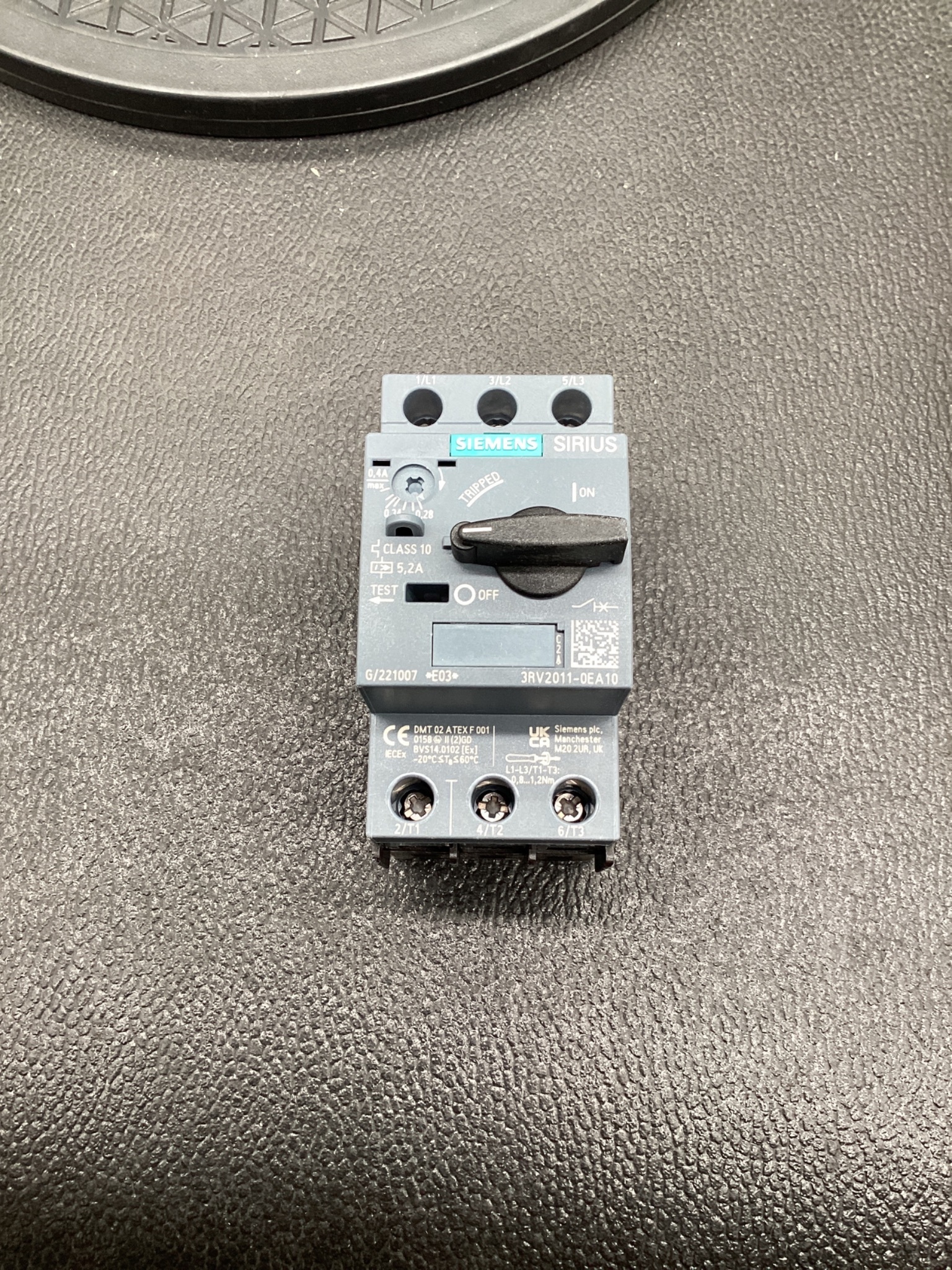

SIEMENS 3RV2011-0EA10 SIRIUS Motor Protection Circuit Breaker NEW

Specification Table

Manufacturer: Siemens Series: SIRIUS 3RV2 Part Number: 3RV2011-0EA10 Condition: NEW Protection Specifications Product Type: Motor Protection Circuit Breaker Protection Functions: Thermal Overload and Magnetic Short-Circuit Protection Tripping Class: Class 10 Thermal Adjustment Range: 0.28-0.40 A Setting Range Indicator: 0.28 A to 0.40 A Magnetic Trip Level: 5.2 A Electrical Specifications Number of Poles: 3 Pole Rated Operational Voltage (AC): Up to 690 VAC Frequency: 50/60 Hz Motor Protection Type: Manual Motor Starter / Motor Protection Breaker Mechanical Specifications Terminal Type: Screw Terminals Mounting Method: DIN Rail or Panel Mount Operating Position: Vertical or Horizontal Switching Handle: Rotary ON/OFF Operator Environmental Specifications Operating Temperature: -20°C to +60°C Storage Temperature: -40°C to +80°C Additional Information Breaking Capacity Class: Standard SIRIUS 3RV2 Series Country of Manufacture: Germany
