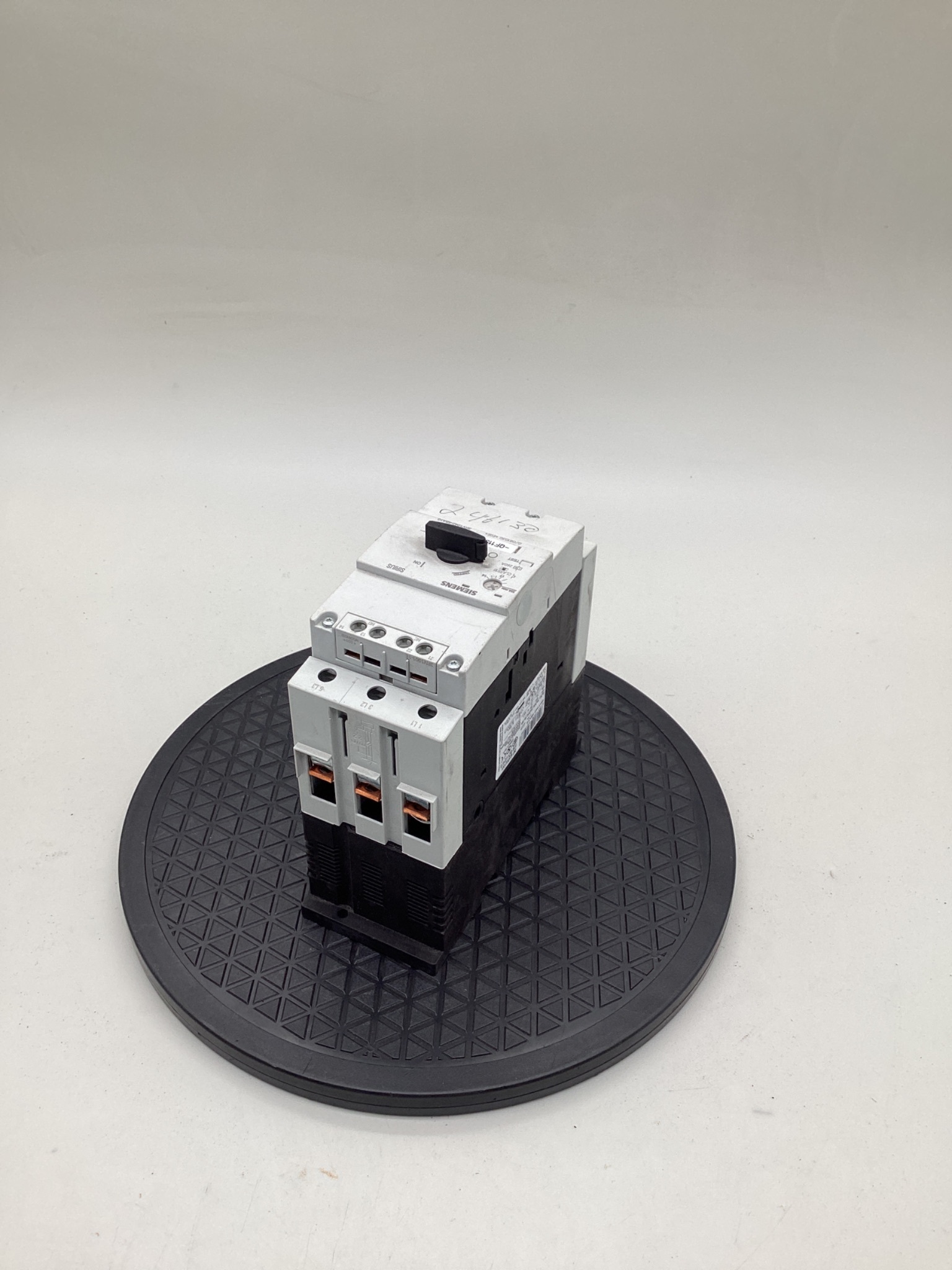

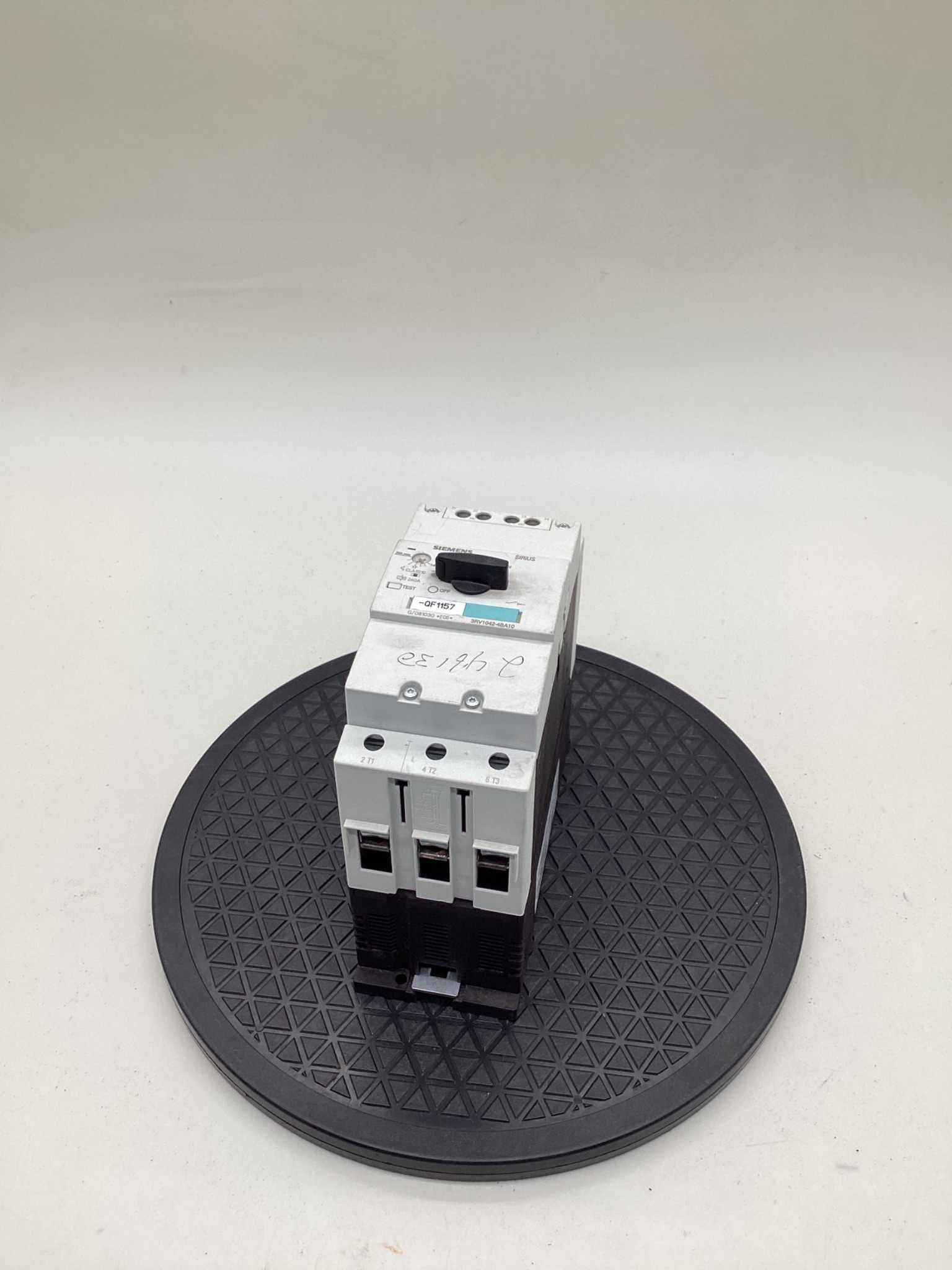

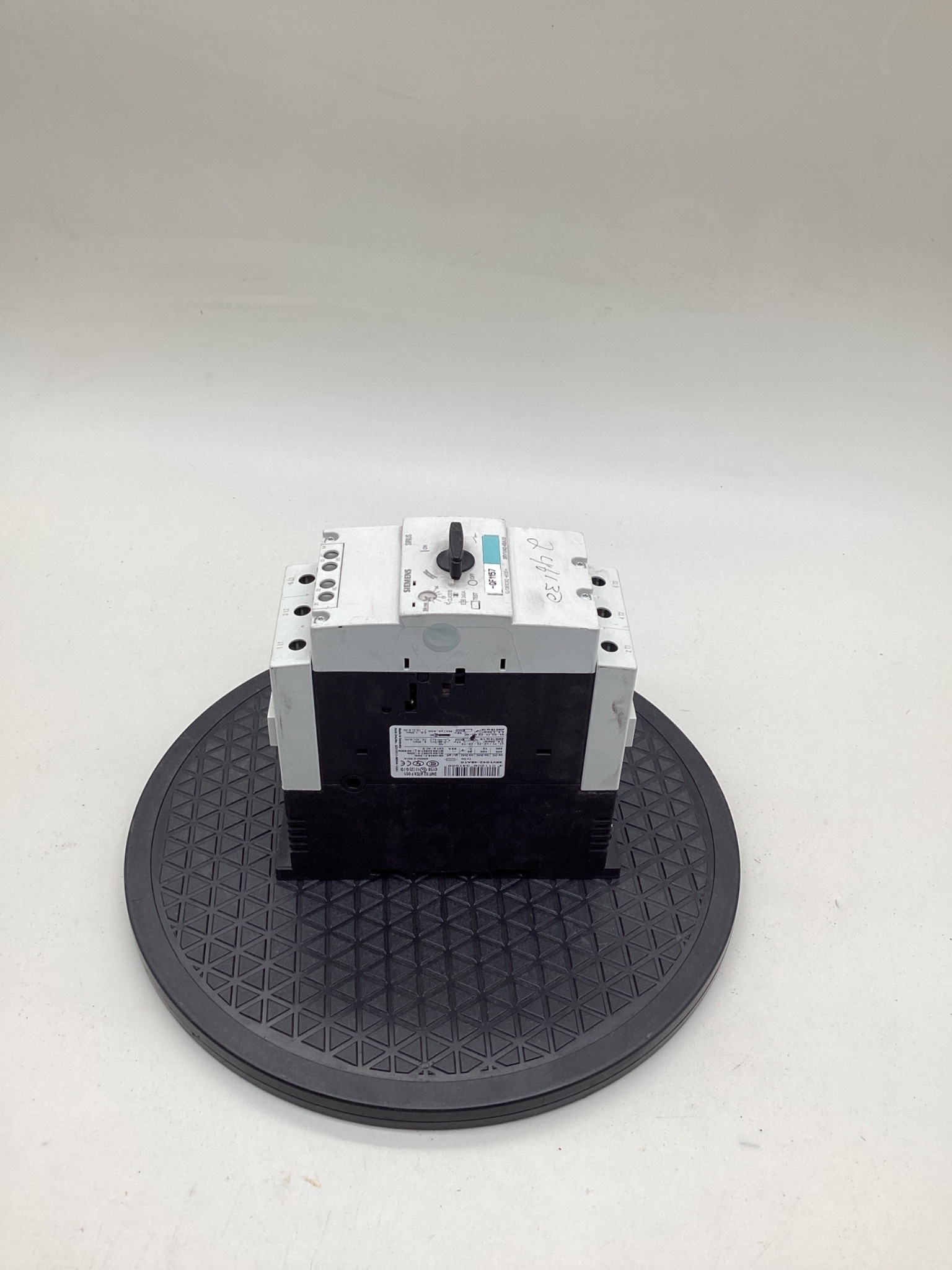

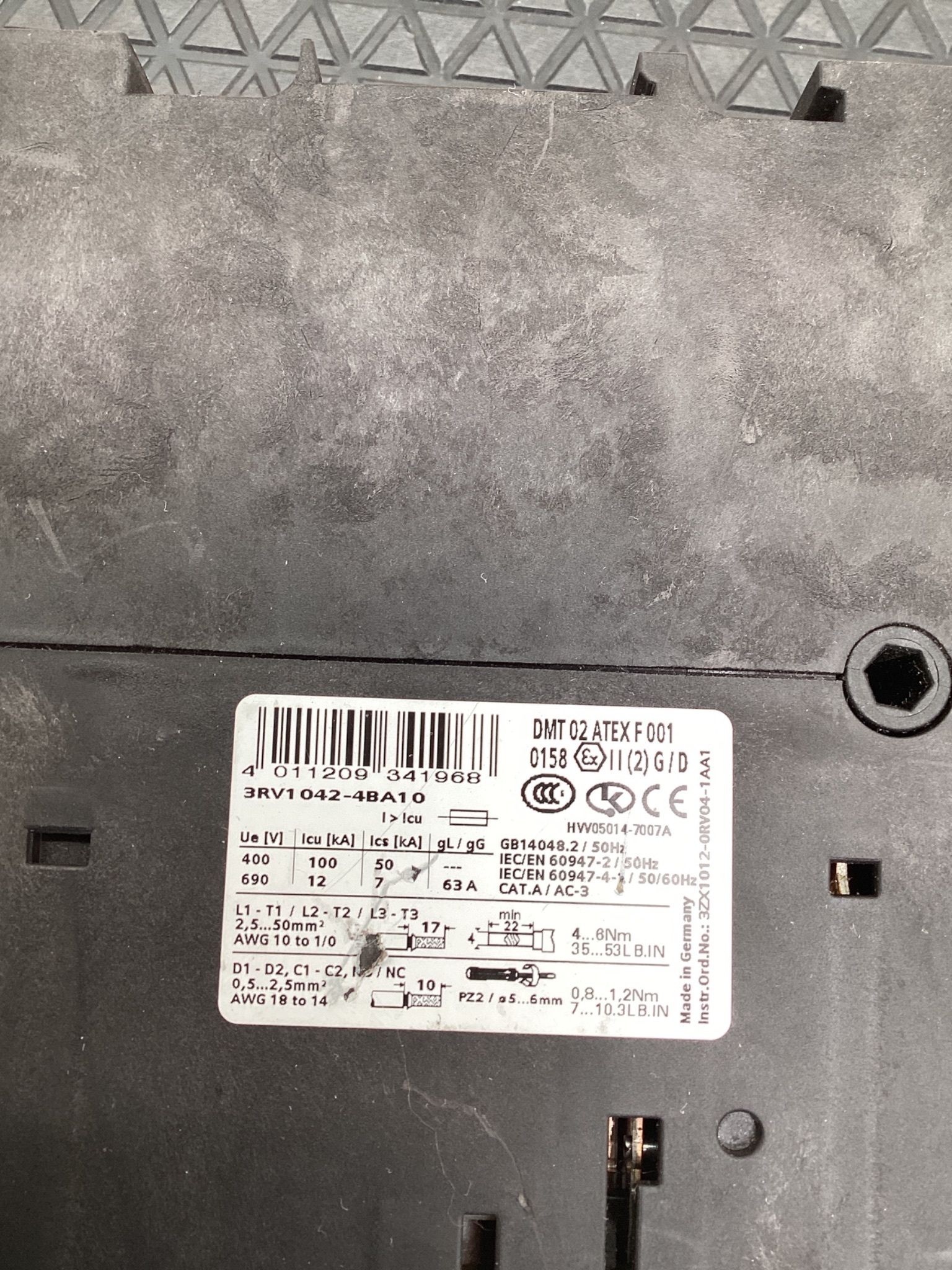

Siemens 3RV1042-4BA10 Motor Protection Circuit Breaker USED

Specification Table

Manufacturer: Siemens Series: SIRIUS Part Number: 3RV1042-4BA10 Condition: USED YOM: n/a   Product Type: Motor Protection Circuit Breaker Function: Motor Overload and Short-Circuit Protection Pole Count: 3 Pole Trip Unit Type: Thermal-Magnetic Motor Starter Function: Yes Manual Disconnect: Yes   Current Adjustment Range: 57 A to 75 A Rated Operational Current: 75 A Maximum Rated Insulation Voltage: 690 VAC Rated Impulse Voltage: 6 kV Frequency Range: 50/60 Hz   Short-Circuit Release: Fixed Magnetic Phase Failure Sensitivity: Yes Terminal Type: Screw Terminals Mounting Position: Standard Panel Mount   Protection Class: IP20 (Front) Mechanical Life: 100,000 Operations Electrical Life: 100,000 Operations   Utilization Category: AC-3 Standards: IEC 60947 Product Family: SIRIUS 3RV10   Motor Protection: Thermal Overload Short Circuit Protection: Magnetic Trip Reset Function: Manual   Connection Type: Line/Load Power Terminals Color: Gray / Black Country of Manufacture: Not specified
