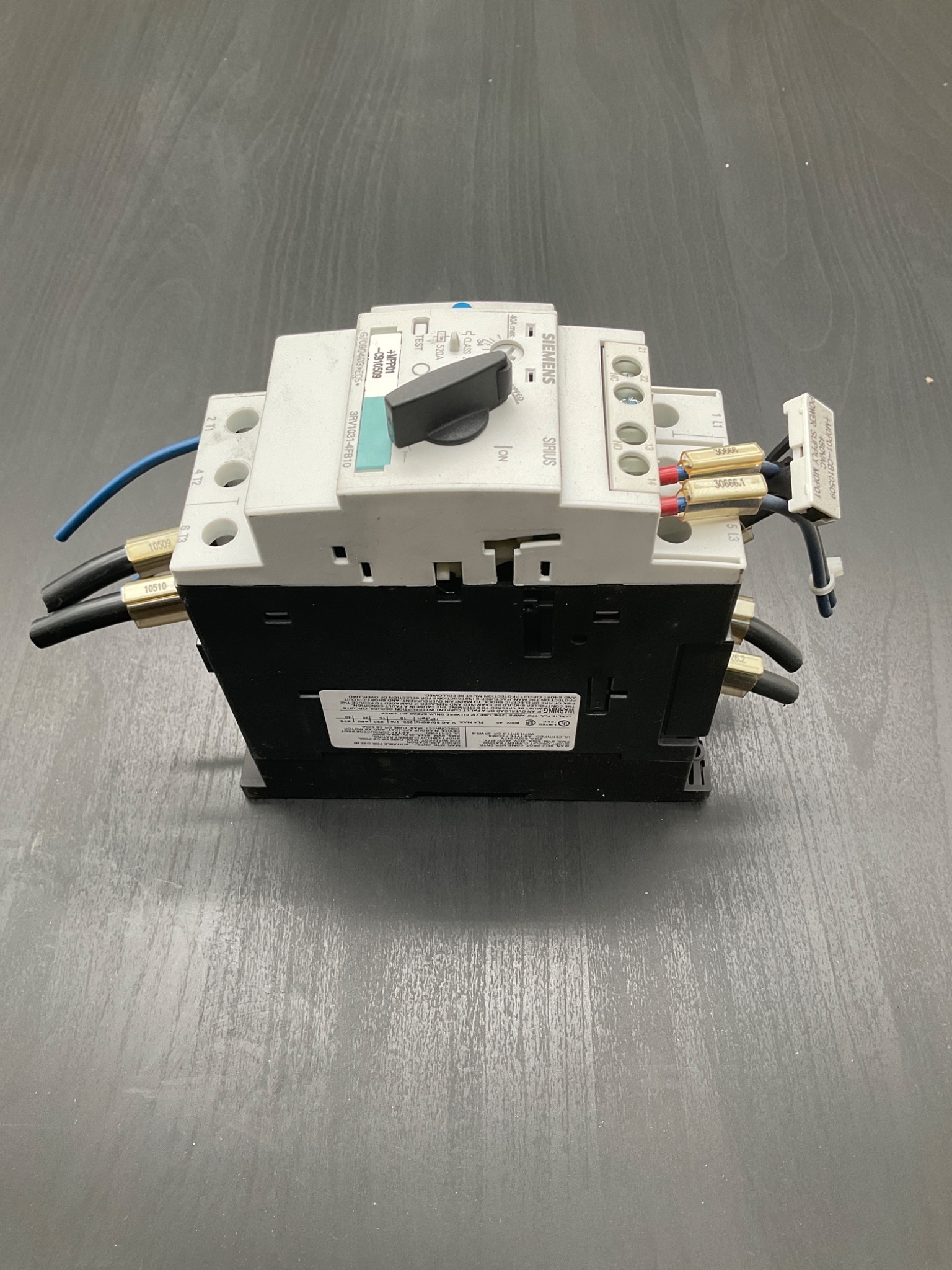

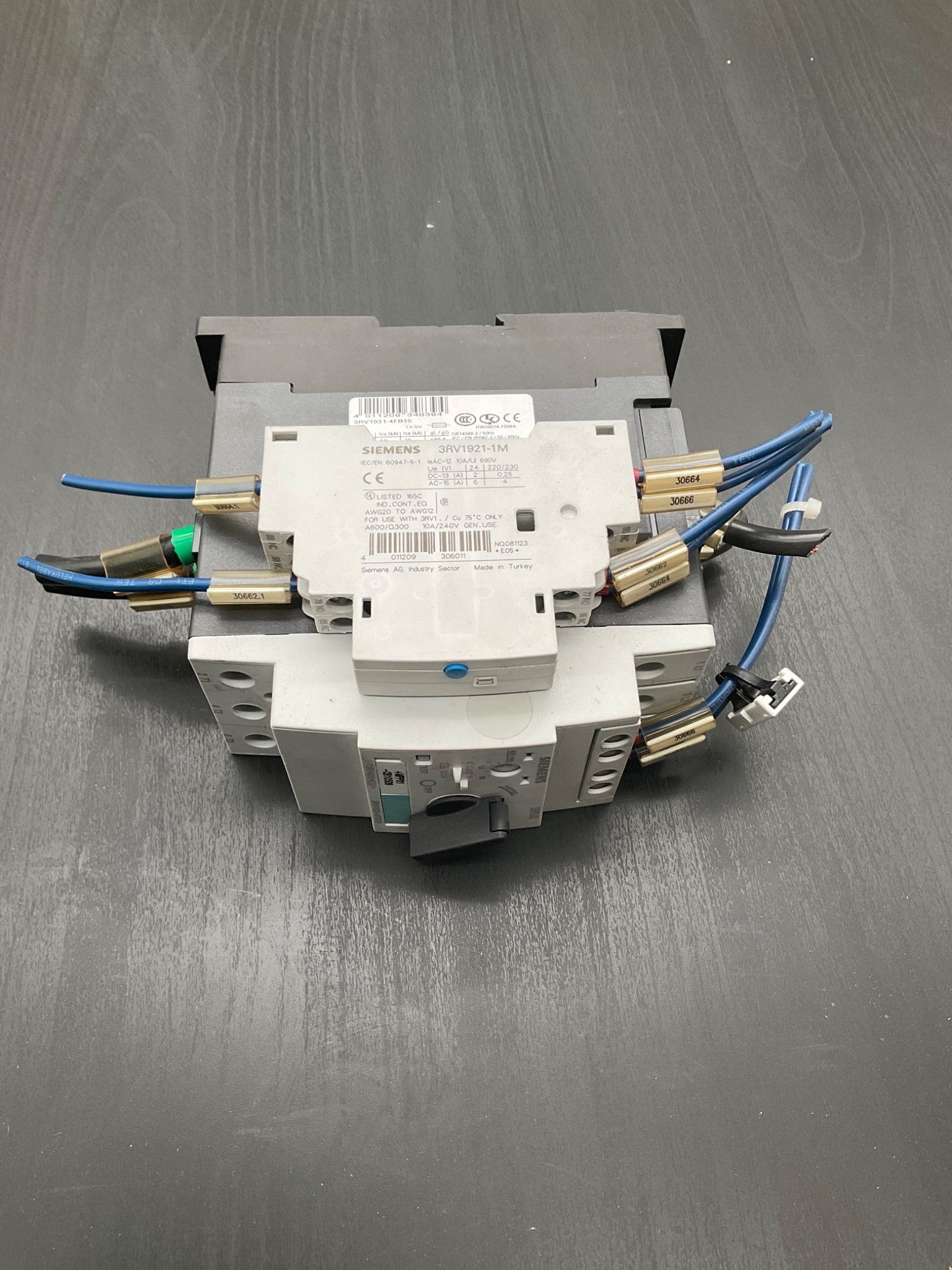

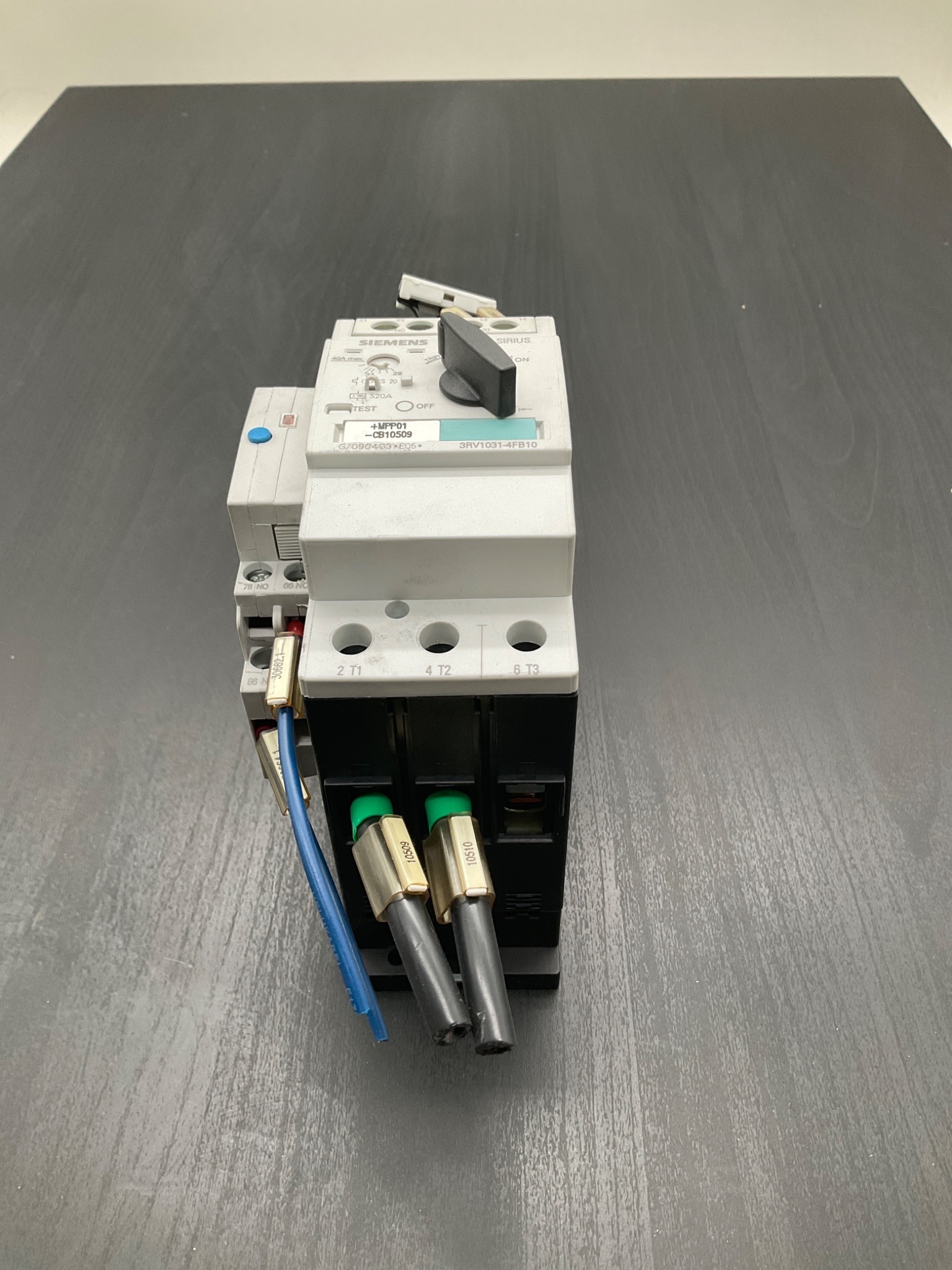

SIEMENS 3RV1031-4FB10 Motor Protection Circuit Breaker w/ 3RV1921-1M Auxiliary Contact USED

Specification Table

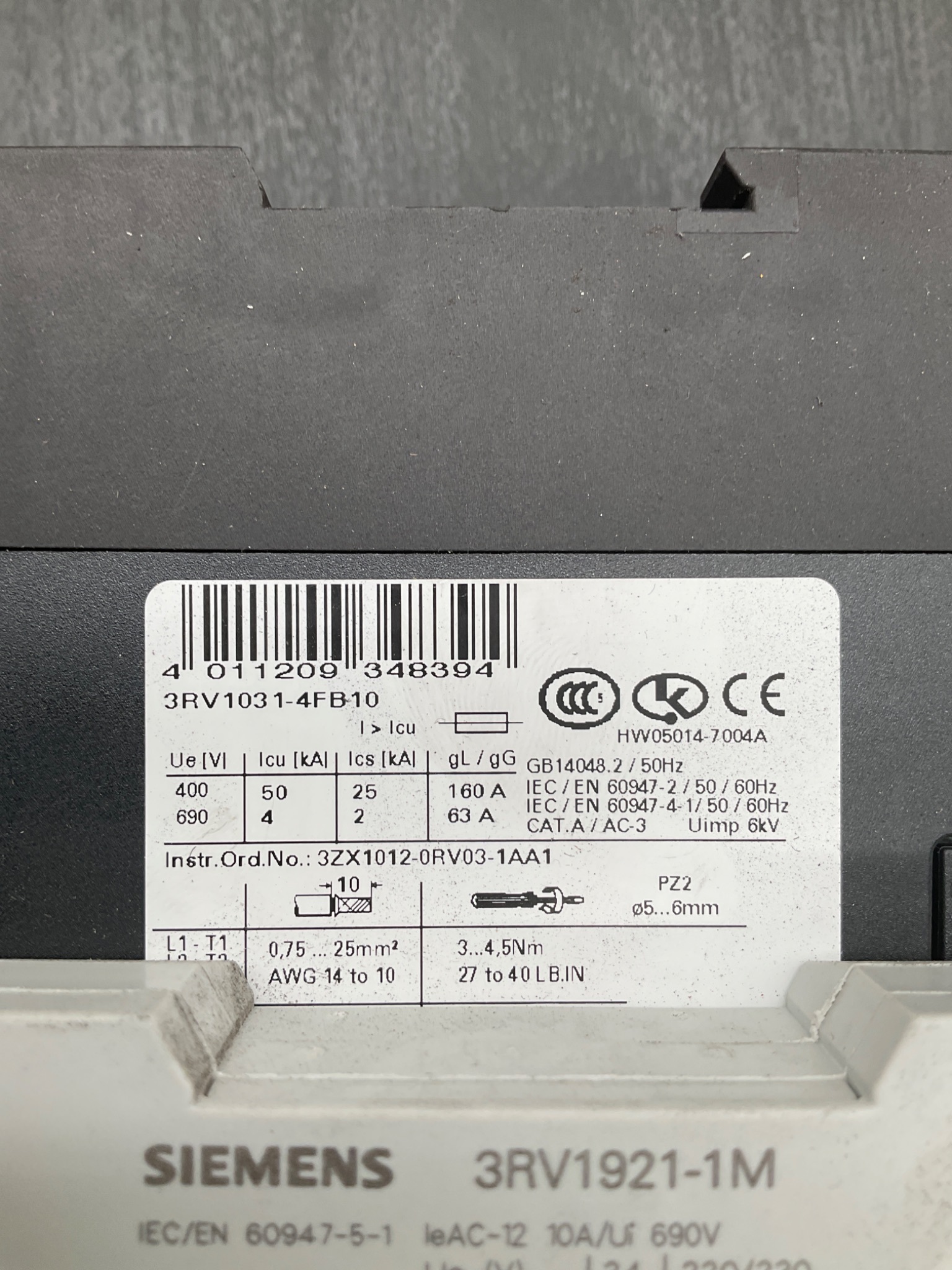

Manufacturer: Siemens Series: SIRIUS   Part Number: 3RV1031-4FB10 Auxiliary Contact Block: 3RV1921-1M   Condition: USED   Product Type: Motor Protection Circuit Breaker   Pole Count: 3 Pole   Current Adjustment Range: 28 - 40 A Current Setting Shown: Approx. 34 A   Protection Type: Thermal Magnetic Trip Class: Class 20   Magnetic Trip Current: 520 A   Rated Operational Voltage:400 V / 690 V Rated Impulse Voltage: 6 kV   Breaking Capacity @400V: 50 kA (Icu) Service Capacity @400V: 25 kA (Ics)   Breaking Capacity @690V: 4 kA (Icu) Service Capacity @690V: 2 kA (Ics)   Fuse Coordination: 160 A gL/gG @ 400V Fuse Coordination: 63 A gL/gG @ 690V   Auxiliary Contacts: 1 NO + 1 NC   NC Contact Terminals: 21-22 NO Contact Terminals: 13-14   AC-12 Rating: 10 A / Ue 690 V AC-15 Rating: 6 A / 230 V   Standards: IEC/EN 60947-2 Standards: IEC/EN 60947-4-1 Standards: IEC/EN 60947-5-1   Terminal Type: Screw Terminal Mounting Method: DIN Rail   YOM: n/a Country of Manufacture: Germany
