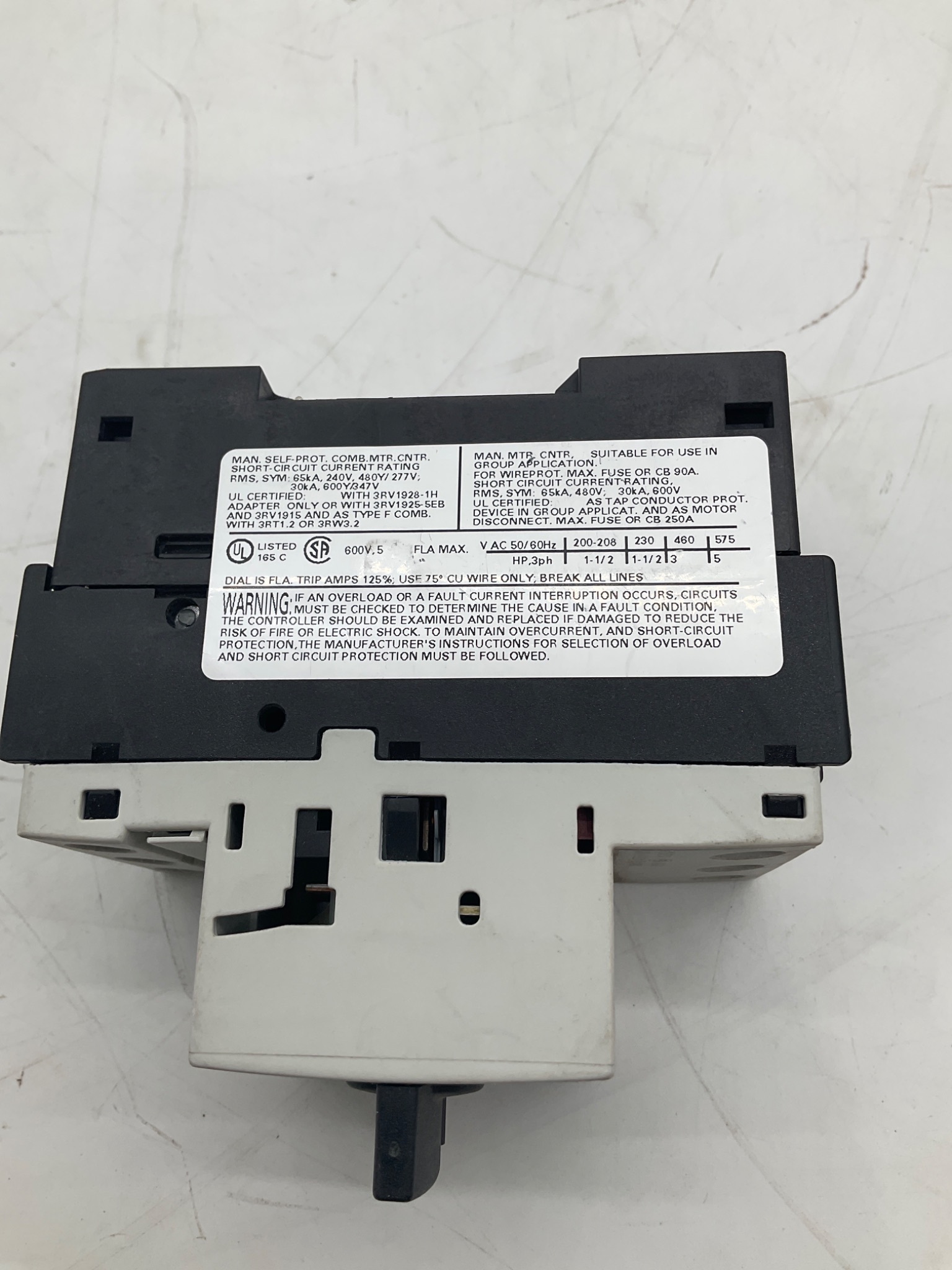

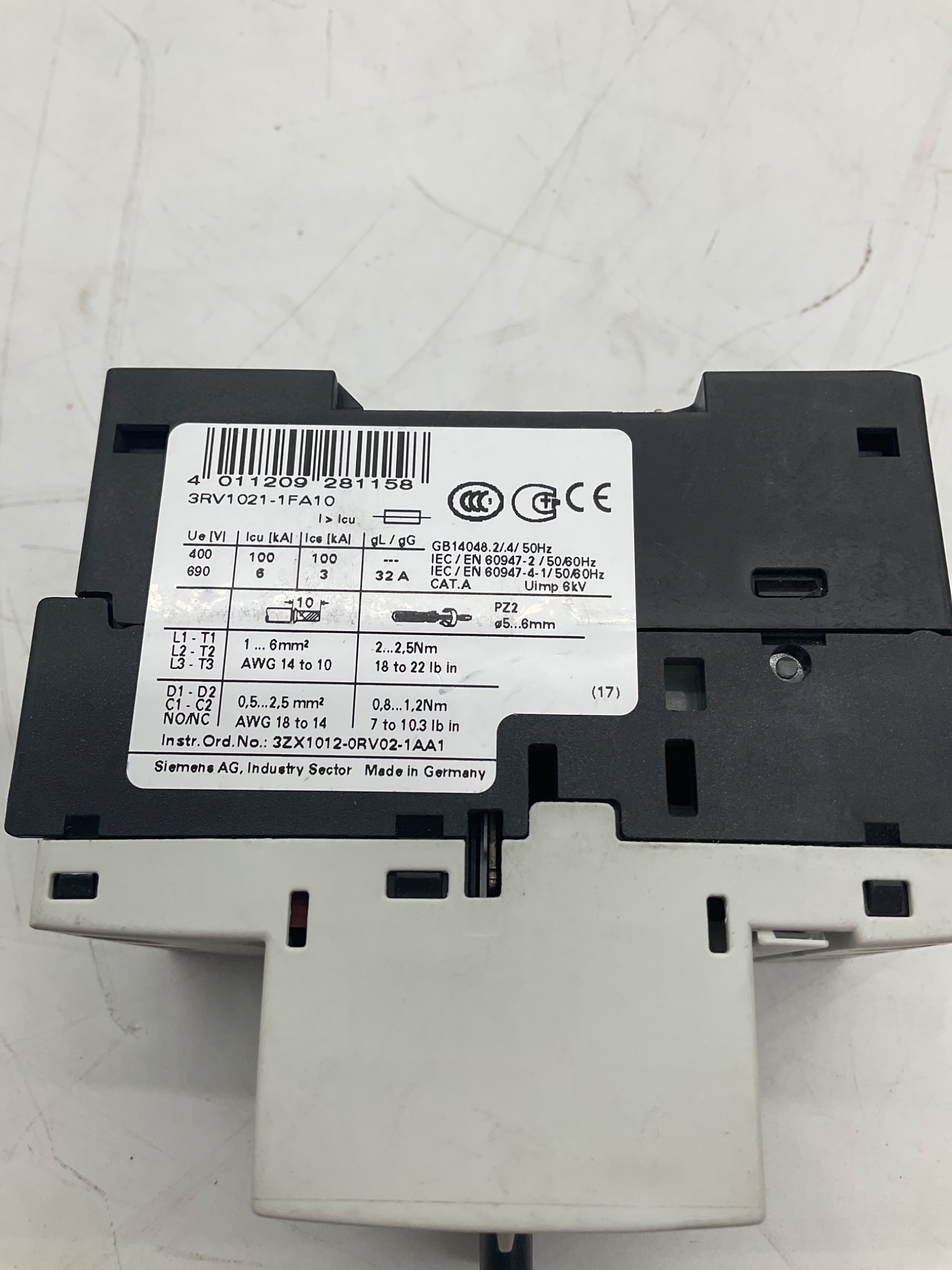

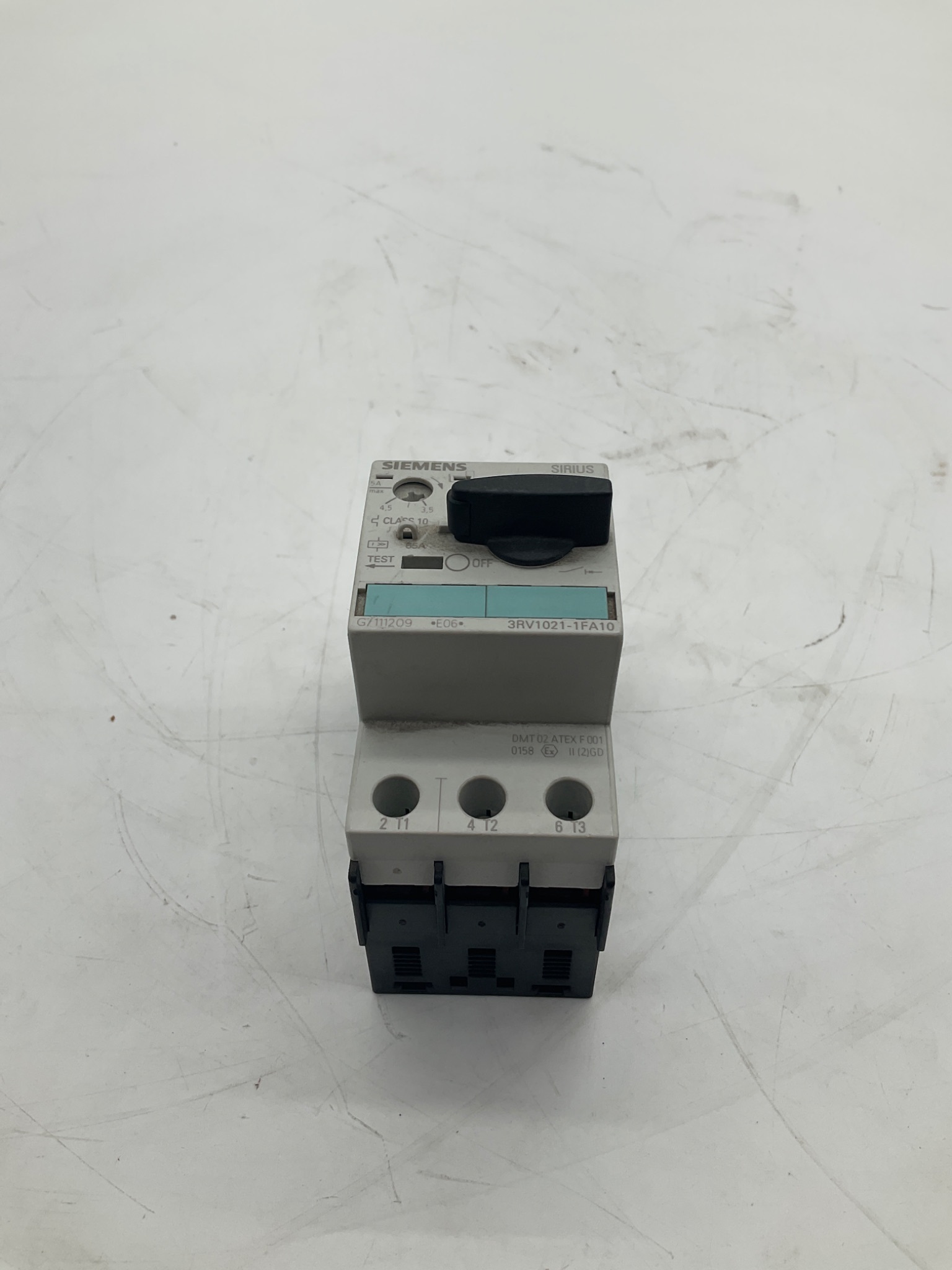

Siemens 3RV1021-1FA10 SIRIUS Motor Protection Circuit Breaker 4.5-6.3A USED

Specification Table

Manufacturer: Siemens Series: SIRIUS Part Number: 3RV1021-1FA10 Condition: USED   Product Type: Motor Protection Circuit Breaker Device Type: Manual Motor Starter   Pole Configuration: 3-Pole   Adjustable Current Range: 4.5-6.3 A Trip Class: Class 10   Short-Circuit Current Rating: 65 kA @ 240 VAC 30 kA @ 480Y/277 VAC   Maximum Fuse: Class CC or CB: 90 A Class J: 250 A   Motor Ratings:   200-208 VAC: 1 HP   230 VAC: 1-1/2 HP   460 VAC: 1-1/2 HP   575 VAC: 3 HP   Rated Frequency: 50/60 Hz   Rated Operational Voltage (Ue): 400 VAC 690 VAC   Breaking Capacity (Icu): 100 kA @ 400 VAC 100 kA @ 690 VAC   Service Breaking Capacity (Ics): 100 kA @ 400 VAC 100 kA @ 690 VAC   Standards: IEC/EN 60947-2 IEC/EN 60947-4-1 UL Listed CSA Certified   Impulse Withstand Voltage (Uimp): 6 kV   Main Terminal Wire Range: 1-6 mm² AWG 14-10   Auxiliary Terminal Wire Range: 0.5-2.5 mm² AWG 18-14   Main Terminal Torque: 18-22 lb-in 2.0-2.5 Nm   Auxiliary Terminal Torque: 7-10.3 lb-in 0.8-1.2 Nm   Strip Length: 10 mm   Mounting Type: DIN Rail Panel Mount   Country of Manufacture: Germany
