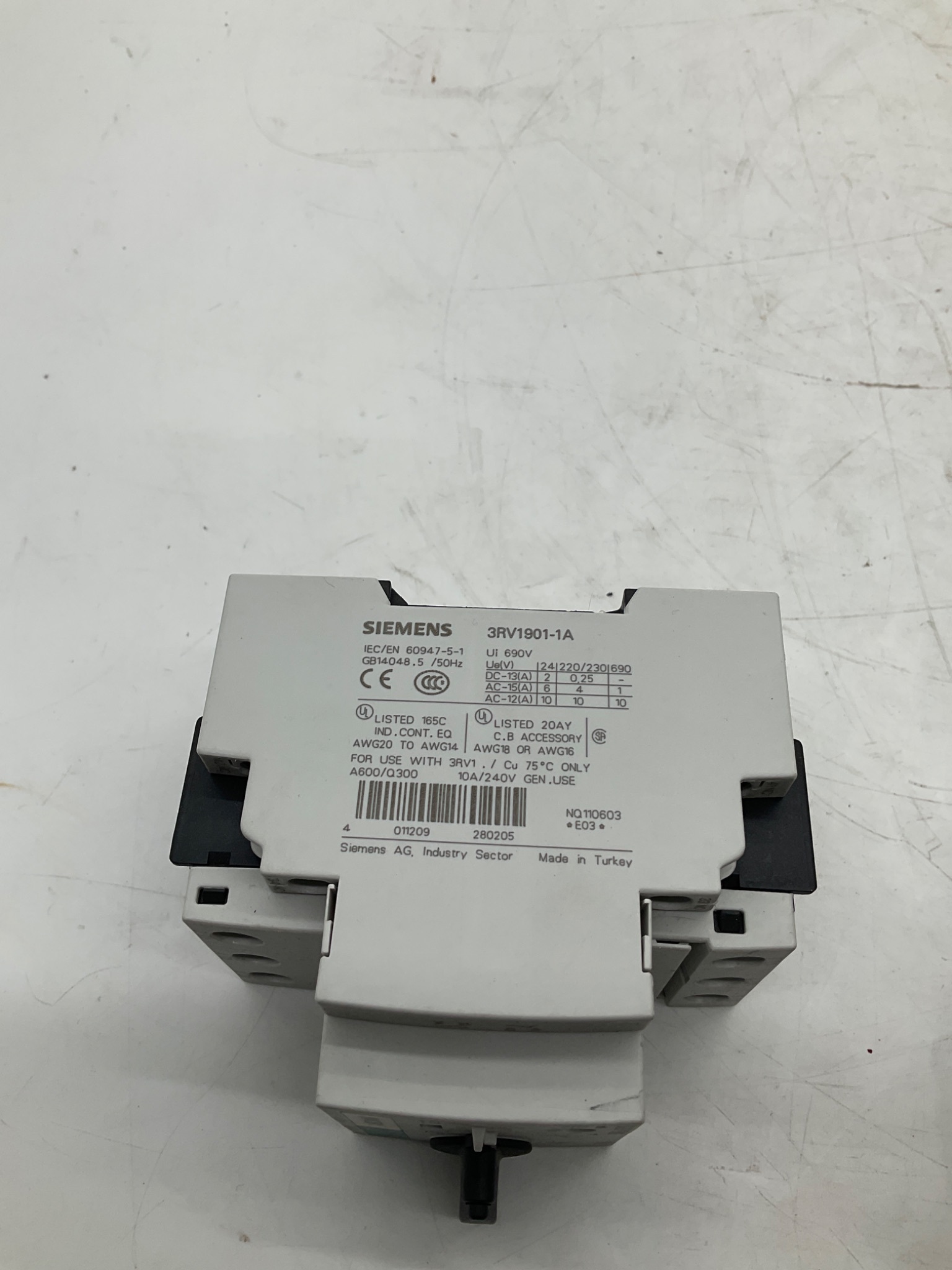

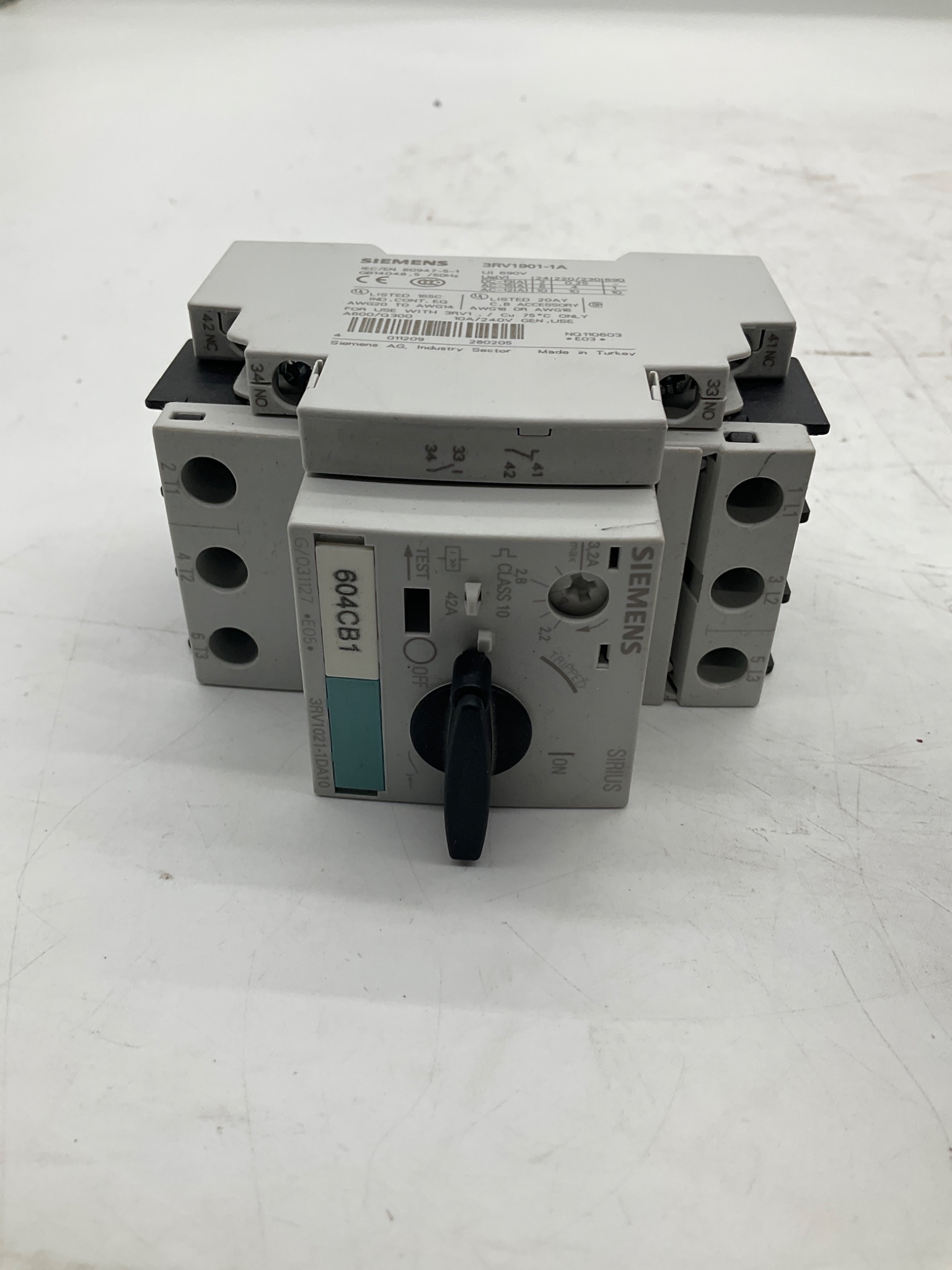

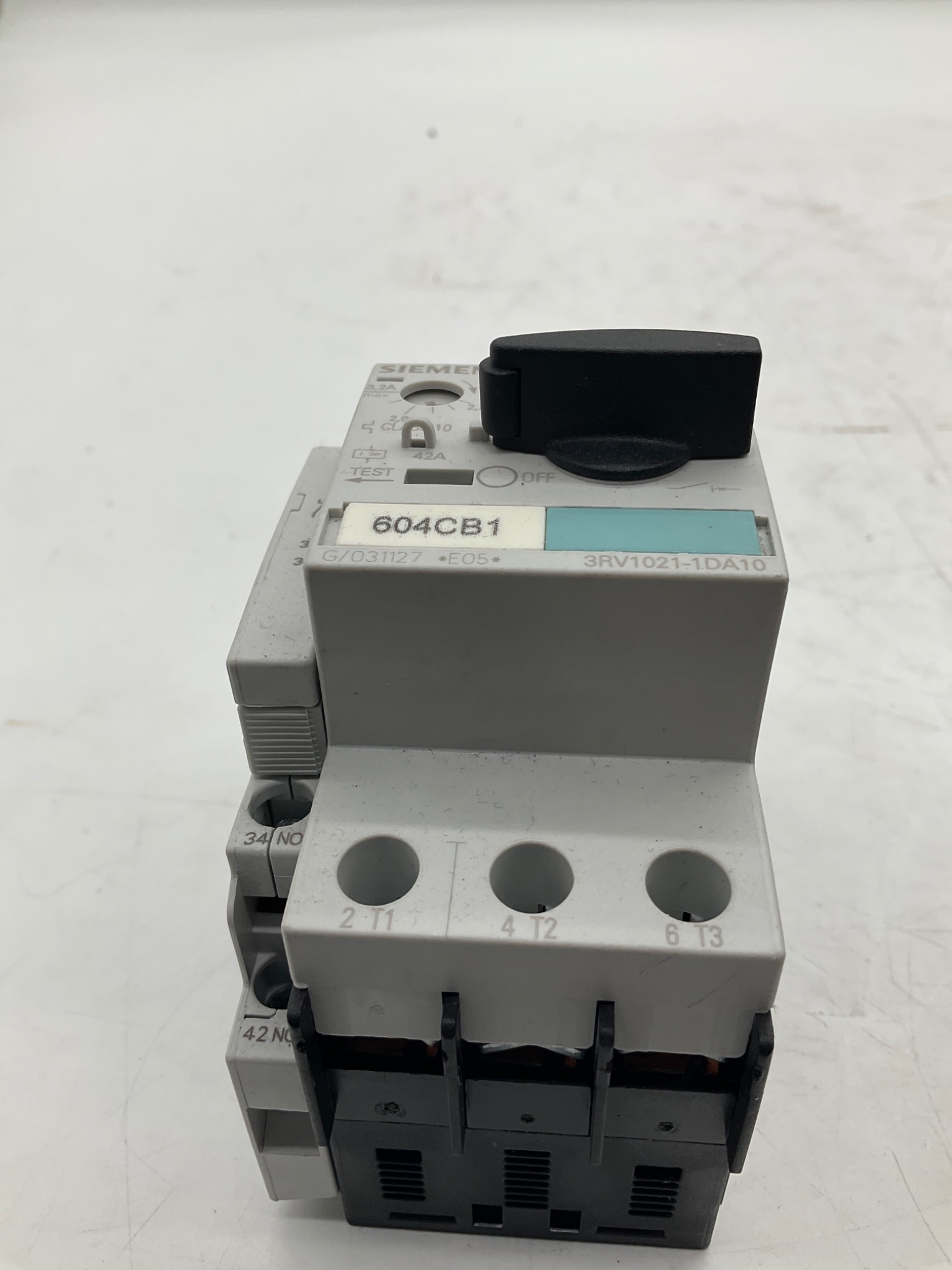

SIEMENS 3RV1021-1DA10 Motor Starter Protector W/ 3RV1901-1A Aux Contact USED

Specification Table

Manufacturer: Siemens Series: SIRIUS   Primary Part Number: 3RV1021-1DA10 Accessory Part Number: 3RV1901-1A   Condition: USED YOM: n/a   Product Type: Motor Starter Protector Accessory Type: Auxiliary Contact Block   Pole Configuration: 3 Pole   Adjustable Current Range: 2.2 - 3.2 A Maximum Setting: 3.2 A   Trip Class: Class 10   Operating Handle: Rotary Protection Functions: Thermal Overload Protection Functions: Magnetic Short Circuit   Main Line Terminals: L1, L2, L3 Main Load Terminals: T1, T2, T3   Auxiliary Contact Installed: Yes Auxiliary Contact Model: 3RV1901-1A   Auxiliary Configuration: 1 NO + 1 NC NO Contact Terminals: 33-34 NC Contact Terminals: 41-42   Auxiliary Rated Voltage: 690 V Auxiliary Frequency: 50/60 Hz   Auxiliary Standard: IEC/EN 60947-5-1 Auxiliary Standard: GB14048.5   DC-13 Rating @ 24V: 6 A DC-13 Rating @ 220V: 0.25 A DC-13 Rating @ 230V: 0.25 A DC-13 Rating @ 690V: 0.12 A   AC-15 Rating @ 24V: 6 A AC-15 Rating @ 220V: 4 A AC-15 Rating @ 230V: 4 A AC-15 Rating @ 690V: 1 A   AC-12 Rating @ 24V: 10 A AC-12 Rating @ 220V: 10 A AC-12 Rating @ 230V: 10 A AC-12 Rating @ 690V: 10 A   UL Listed: Yes CSA Approved: Yes CE Marked: Yes   Country of Manufacture: Turkey
