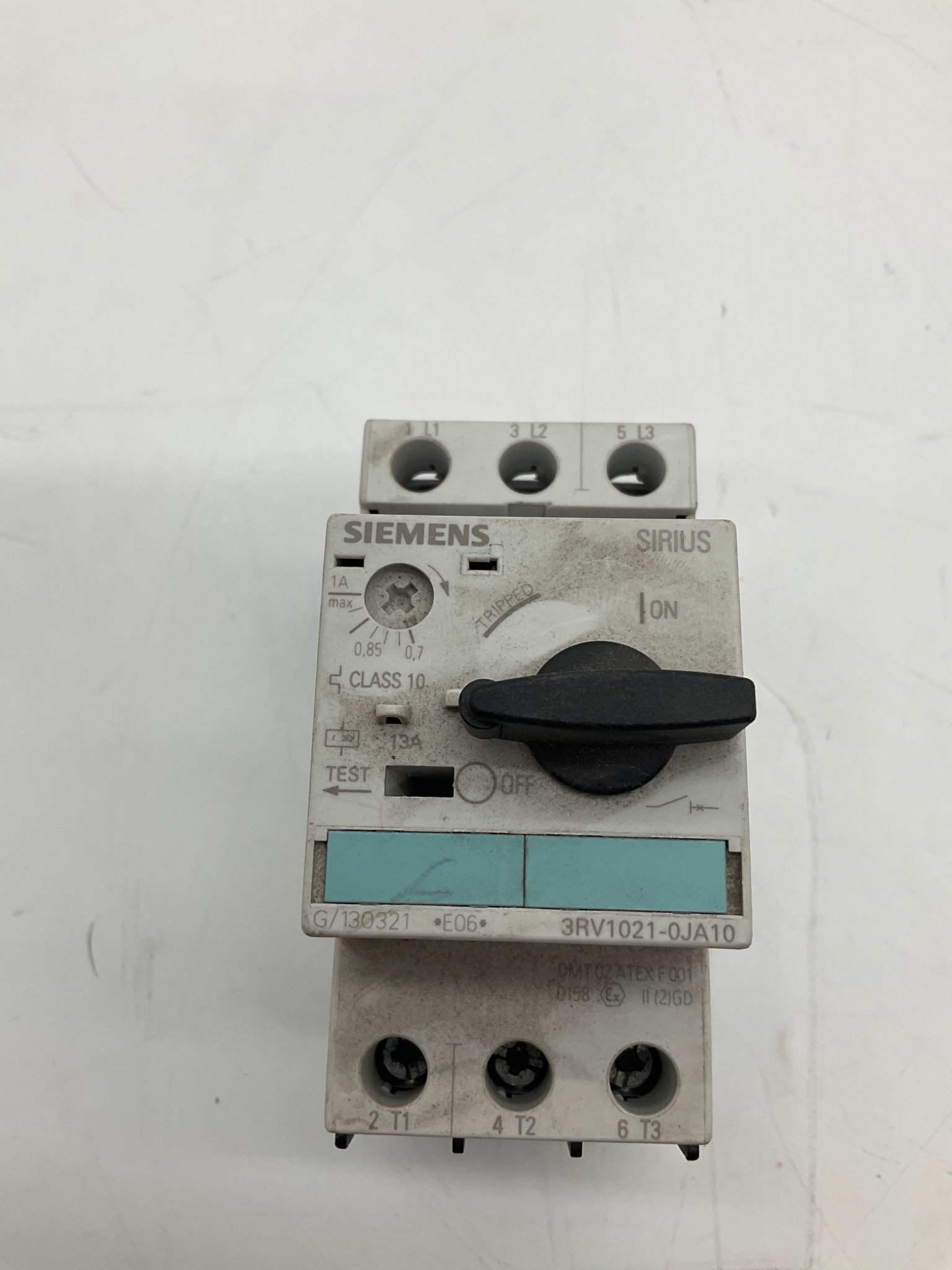

Siemens 3RV1021-0JA10 SIRIUS Motor Protection Circuit Breaker 0.7-1.0A USED

Specification Table

Manufacturer: Siemens Series: SIRIUS Part Number: 3RV1021-0JA10 Condition: USED   Product Type: Motor Protection Circuit Breaker Device Type: Manual Motor Starter Pole Configuration: 3-Pole   Adjustable Current Range: 0.7-1.0 A Maximum Setting: 1.0 A Minimum Setting: 0.7 A   Tripping Class: Class 10   Rated Operational Voltage (Ue): 400 VAC 690 VAC   Breaking Capacity (Icu): 100 kA @ 400 VAC 100 kA @ 690 VAC   Service Breaking Capacity (Ics): 100 kA @ 400 VAC 100 kA @ 690 VAC   Standards: IEC/EN 60947-2 IEC/EN 60947-4-1 GB14048.2   Overvoltage Category: Category A Impulse Withstand Voltage (Uimp): 6 kV   Main Terminal Wire Range: 1-6 mm² AWG 14-10   Auxiliary Terminal Wire Range: 0.5-2.5 mm² AWG 18-14   Main Terminal Torque: 2.0-2.5 Nm 18-22 lb-in   Auxiliary Terminal Torque: 0.8-1.2 Nm 7-10.3 lb-in   Mounting Type: DIN Rail / Panel Mount Country of Manufacture: Germany   ATEX Marking: II (2)GD Barcode Number: 4011209281080
