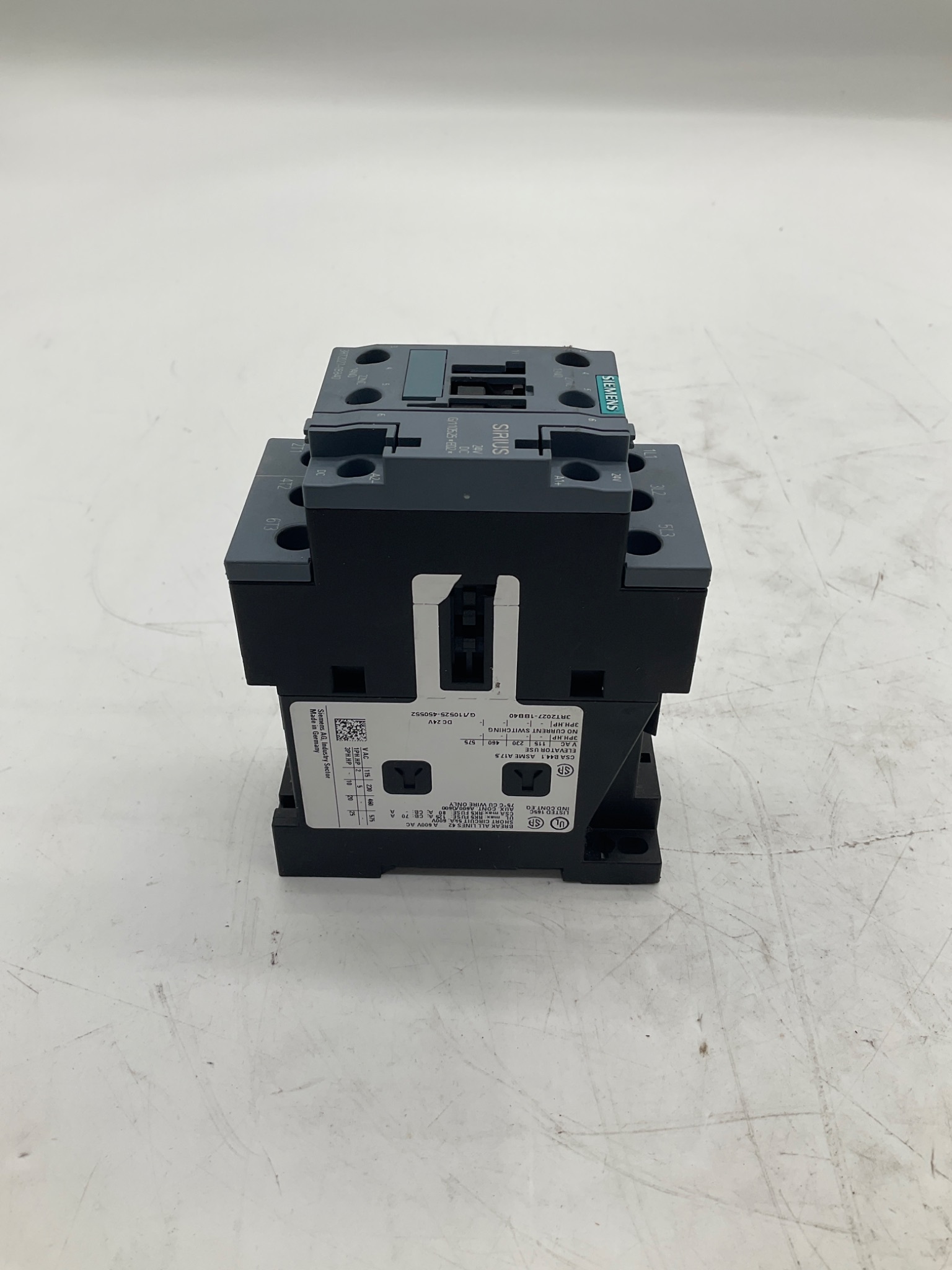

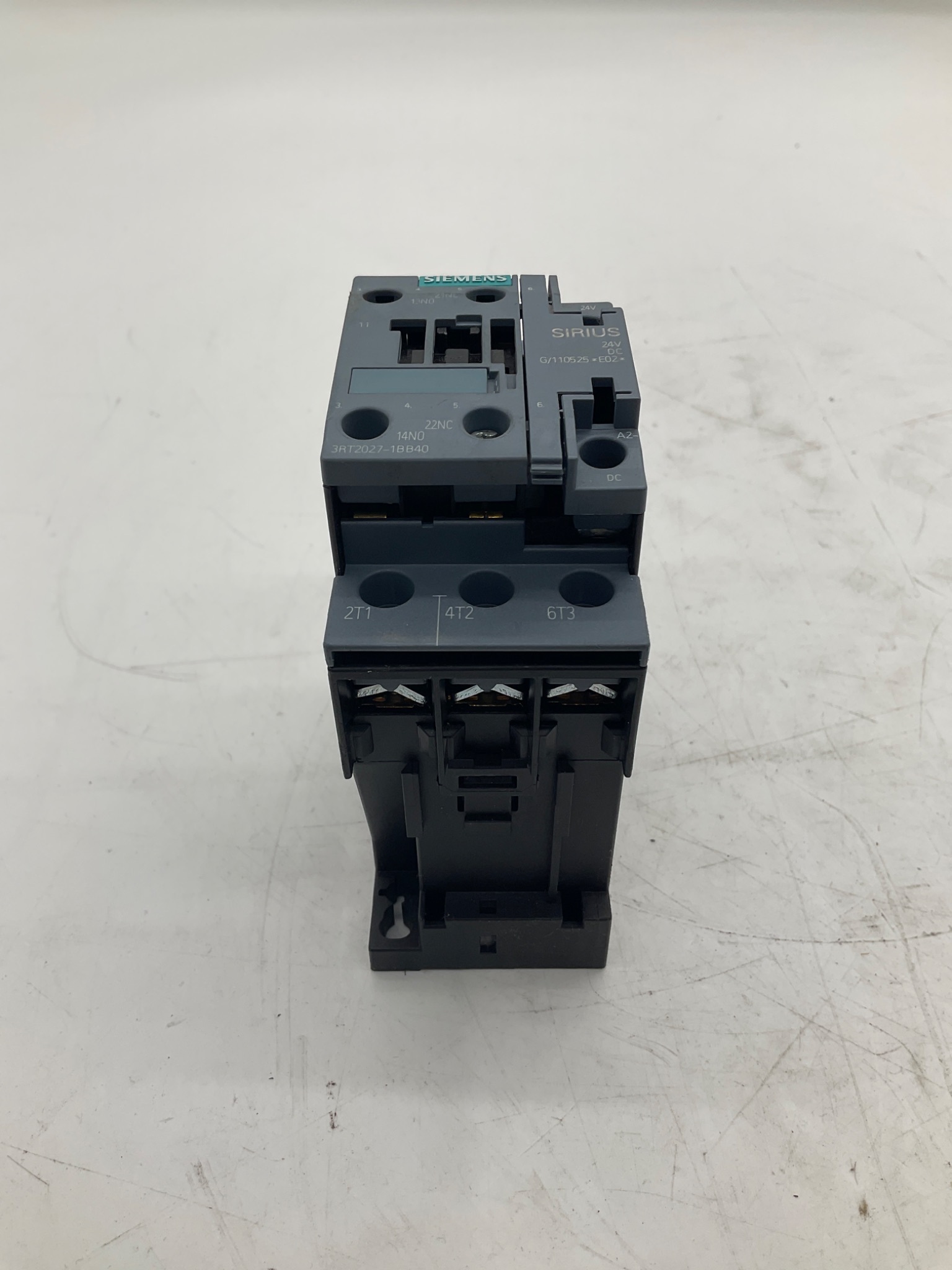

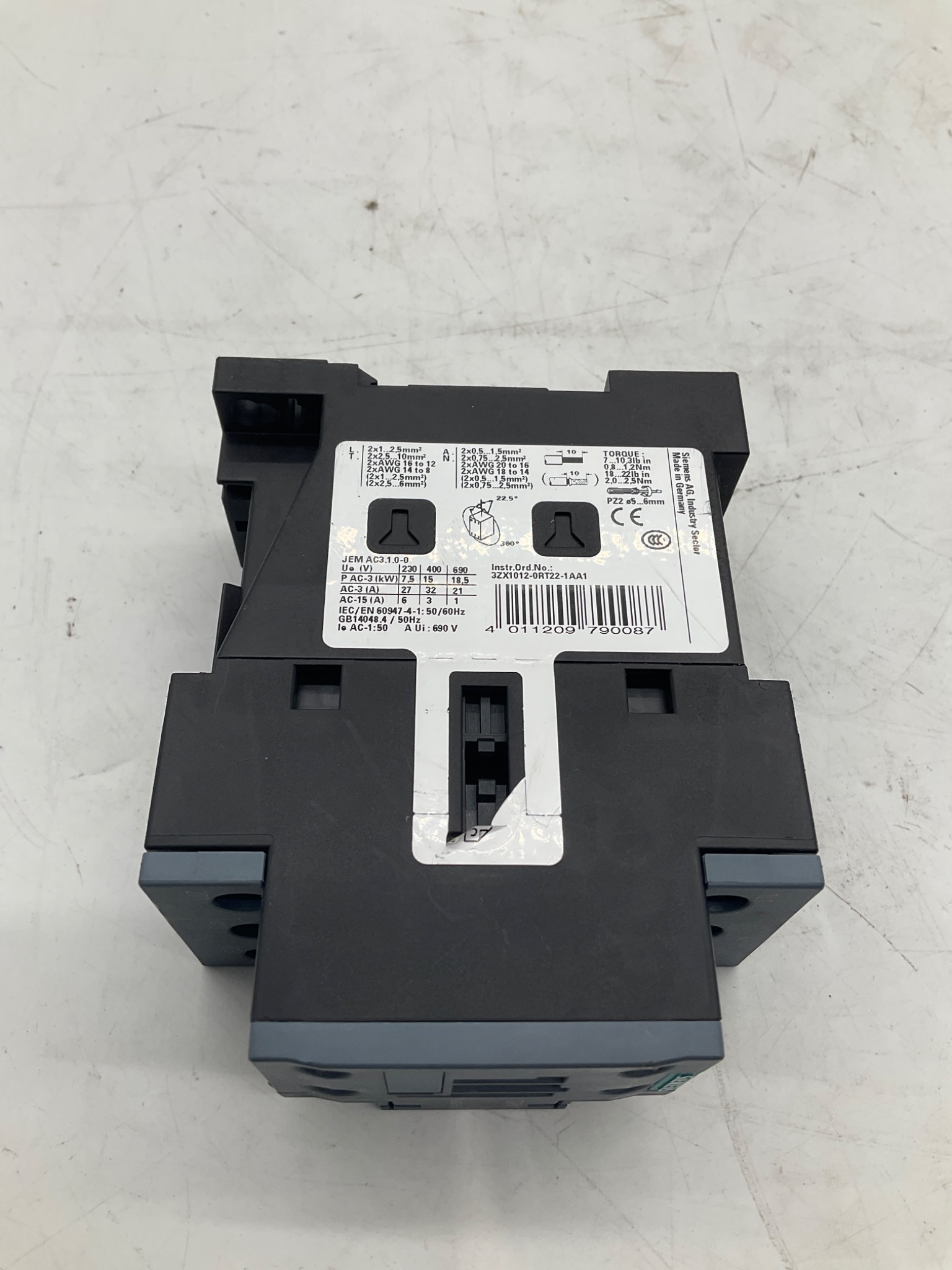

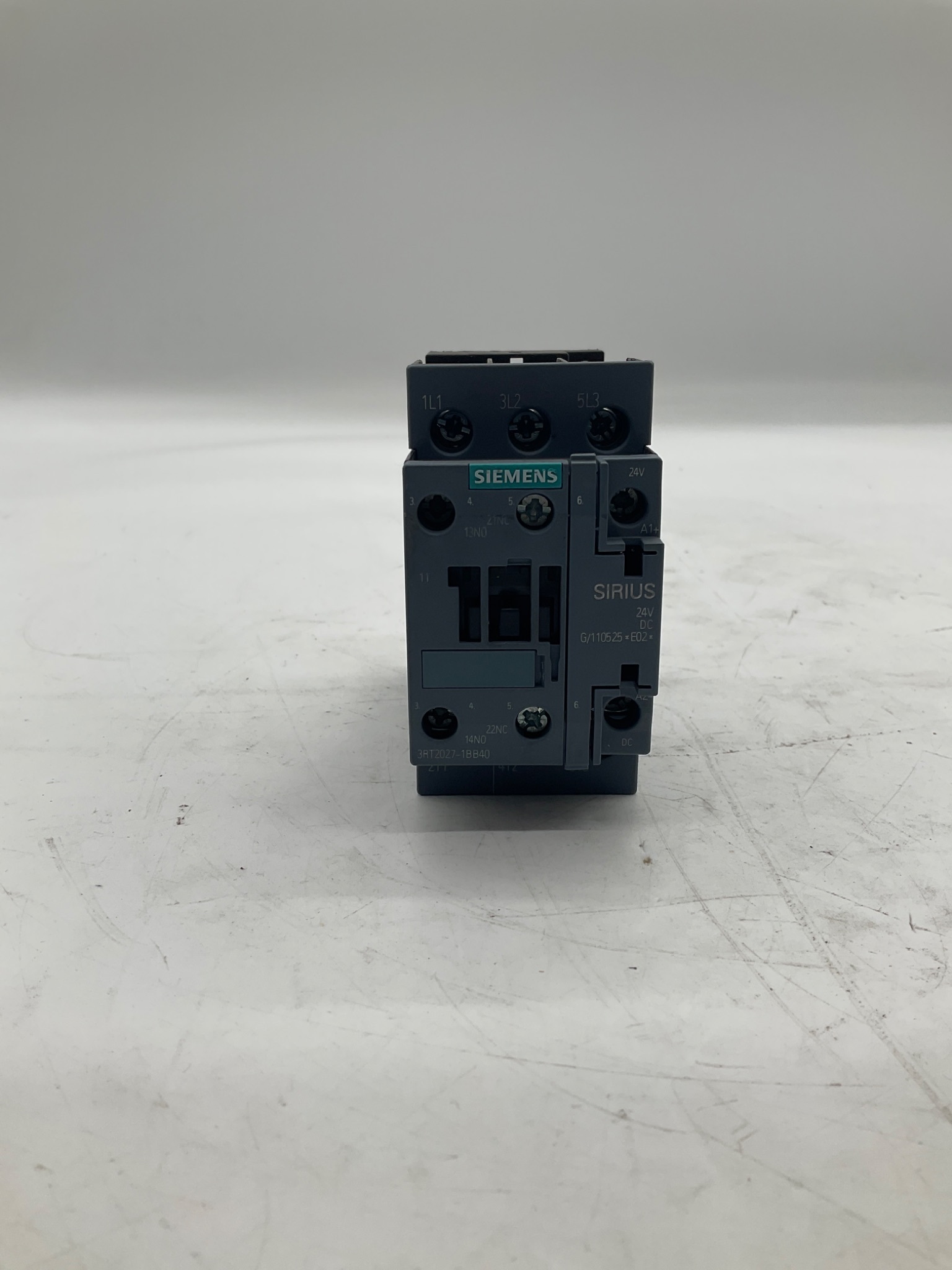

Siemens 3RT2027-1BB40 SIRIUS 3-Pole Contactor 24VDC Coil USED

Specification Table

IDENTIFICATION Manufacturer: Siemens Product Family: SIRIUS Part Number: 3RT2027-1BB40 Product Type: Power contactor Condition: USED YOM: n/a Country of Manufacture: Germany   CONTACT CONFIGURATION Main Poles: 3 Main Contacts: 3 NO Auxiliary Contacts: 1 NO + 1 NC NO Auxiliary Terminals: 13 / 14 NC Auxiliary Terminals: 21 / 22 Line Terminals: 1/L1, 3/L2, 5/L3 Load Terminals: 2/T1, 4/T2, 6/T3   COIL / CONTROL Coil Voltage: 24 VDC Coil Current Type: DC Coil Terminals: A1 / A2 Control Type: Electromagnetic   IEC MOTOR RATINGS Utilization Category: AC-3 AC-3 Motor Power at 230 V: 7.5 kW AC-3 Motor Power at 400 V: 15 kW AC-3 Motor Power at 690 V: 18.5 kW Standards Frequency: 50 / 60 Hz   AUXILIARY CONTACT RATINGS Utilization Category: AC-15 AC-15 Current at 230 V: 6 A AC-15 Current at 400 V: 3 A AC-15 Current at 690 V: 1 A   CONNECTIONS Main Terminal Type: Screw Auxiliary Terminal Type: Screw Coil Terminal Type: Screw Power Conductor Range: 2 x 1.5-25 mm² Auxiliary Conductor Range: 2 x 0.5-1.5 mm² Power Terminal Torque: 2.0-2.5 Nm Auxiliary Terminal Torque: 0.8-1.2 Nm   INSTALLATION Mounting: DIN rail / panel Installation Orientation: Fixed Terminal Screwdriver Size: PZ2
