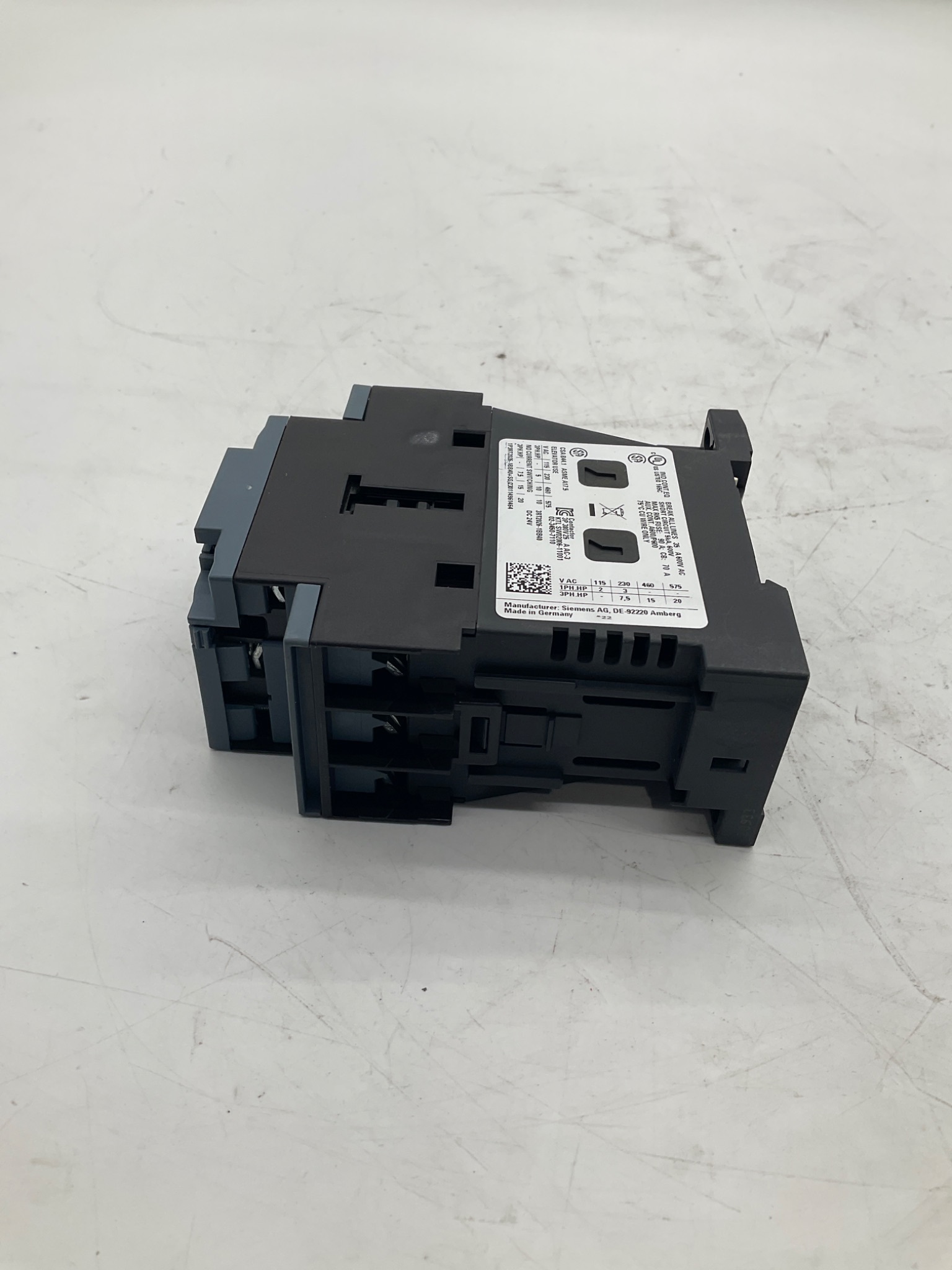

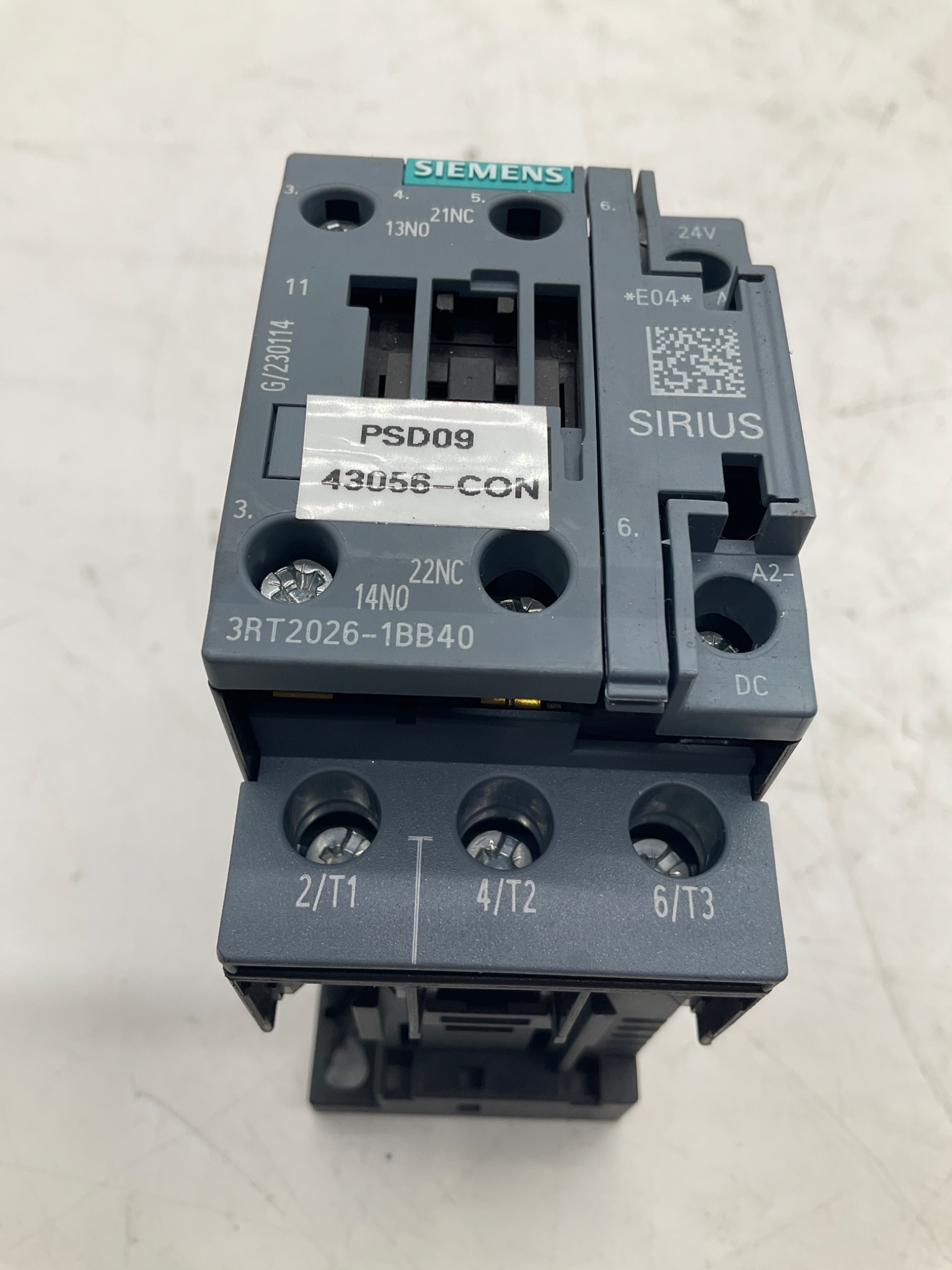

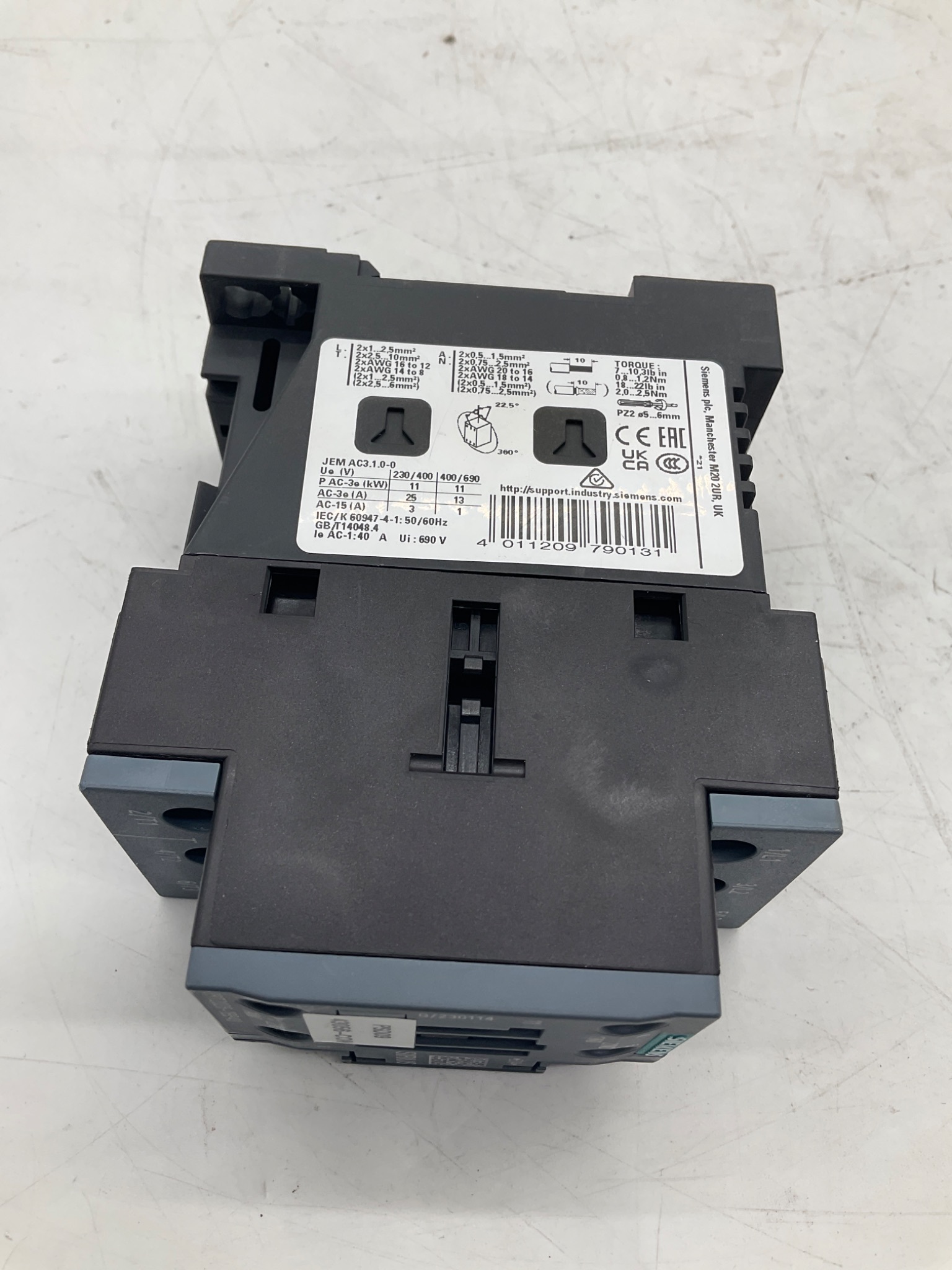

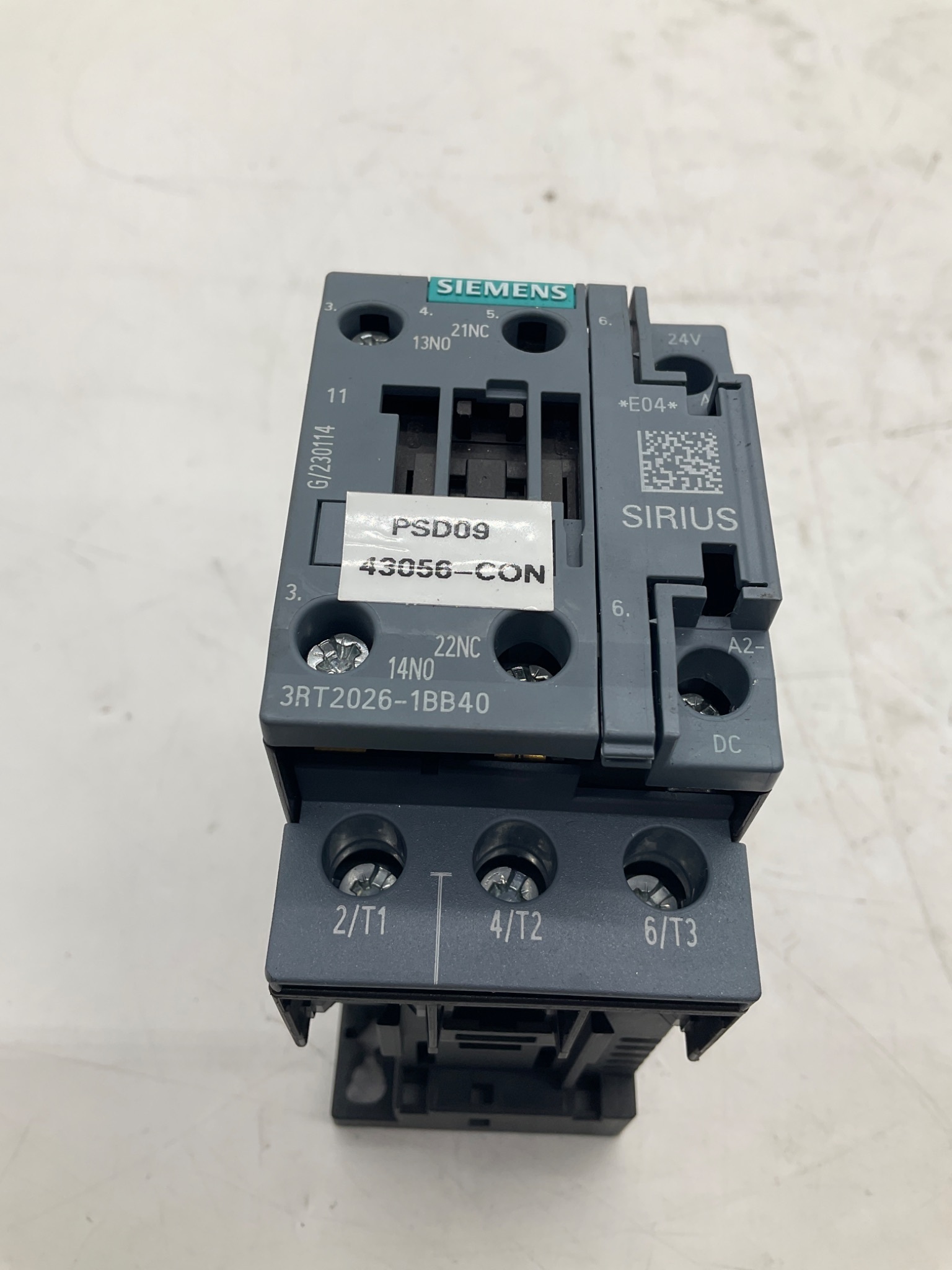

SIEMENS 3RT2026-1BB40 SIRIUS 3-Pole Contactor 24V DC Coil USED

Specification Table

IDENTIFICATION Manufacturer: Siemens Part Number: 3RT2026-1BB40 Product Family: SIRIUS Product Type: Power contactor Poles: 3 Condition: USED YOM: n/a   CONTROL Coil Voltage: 24 VDC Coil Type: DC Coil Terminals: A1 / A2   MAIN CONTACTS Main Poles: 3 Line Terminals: 1/L1, 3/L2, 5/L3 Load Terminals: 2/T1, 4/T2, 6/T3 Conventional Free-Air Thermal Current Ith: 40 A Rated Insulation Voltage Ui: 690 V   AC-3 UTILIZATION RATINGS Operating Voltage Ue: 230 VAC 400 VAC 690 VAC Motor Power: 11 kW 11 kW 11 kW Rated Current: 25 A 13 A 13 A   AC-15 AUXILIARY RATING Operating Voltage: 230 VAC Rated Current: 3 A   AUXILIARY CONTACTS Auxiliary Configuration: 1 NO + 1 NC Normally Open Contact: 13-14 Normally Closed Contact: 21-22   ELECTRICAL / UTILIZATION Frequency: 50/60 Hz Utilization Categories: AC-1 / AC-3 / AC-15   CONNECTION / INSTALLATION Terminal Type: Screw terminals Power Conductor Range: 2 x 0.5 to 2.5 mm² AWG Range: AWG 16 to 8 Terminal Screwdriver: PZ2 Mounting Configuration: Contactor mounting base   TERMINAL TORQUE Main Terminal Torque: 0.8 to 1.2 Nm 7 to 10.3 lb-in Auxiliary / Control Torque: 0.8 to 1.2 Nm 7 to 10.3 lb-in   STANDARDS / COMPLIANCE IEC Standard: IEC/EN 60947-4-1 GB/T Standard: GB/T 14048.4 CE Marking: Present UKCA Marking: Present EAC Marking: Present CCC Marking: Present
