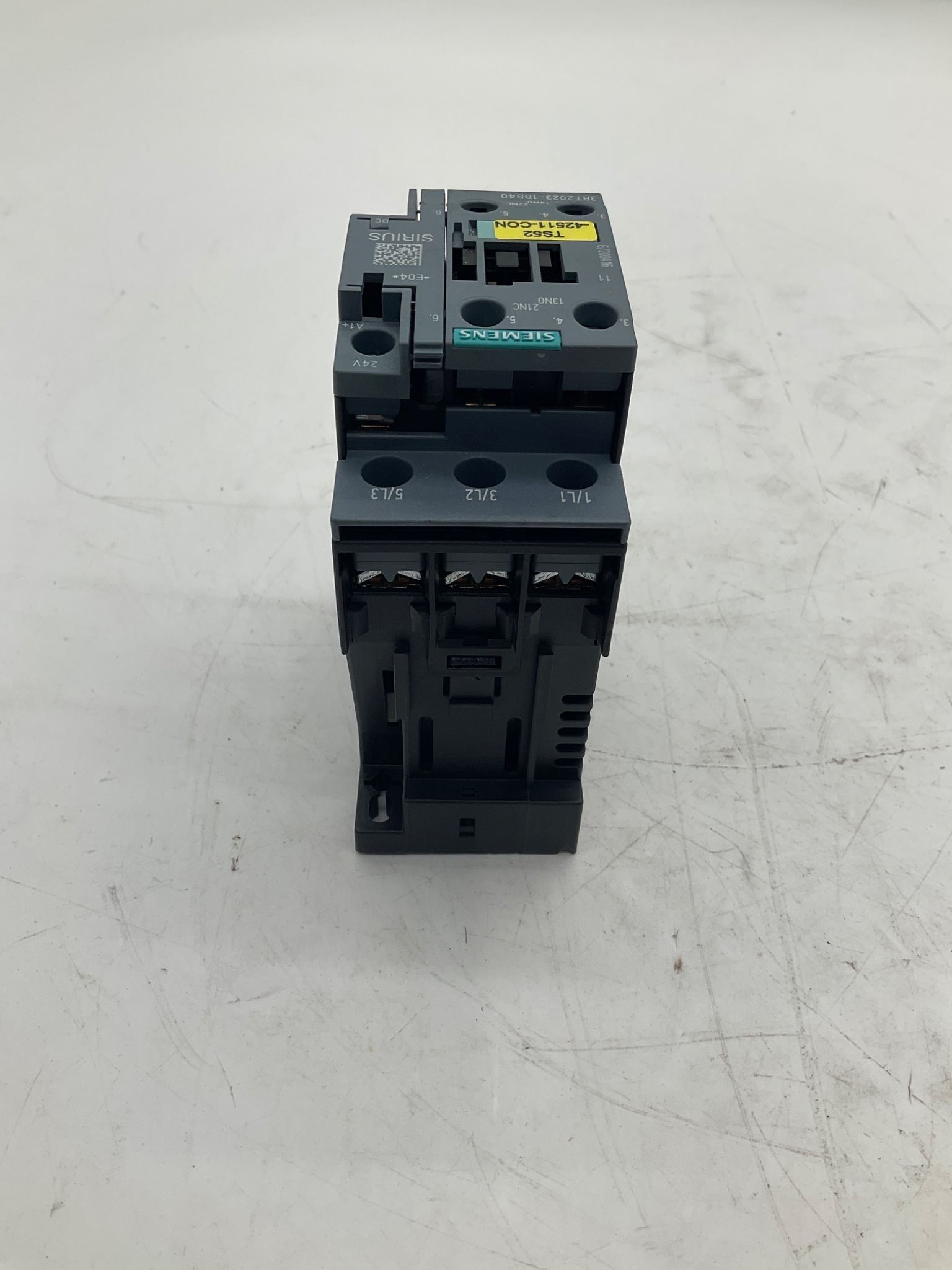

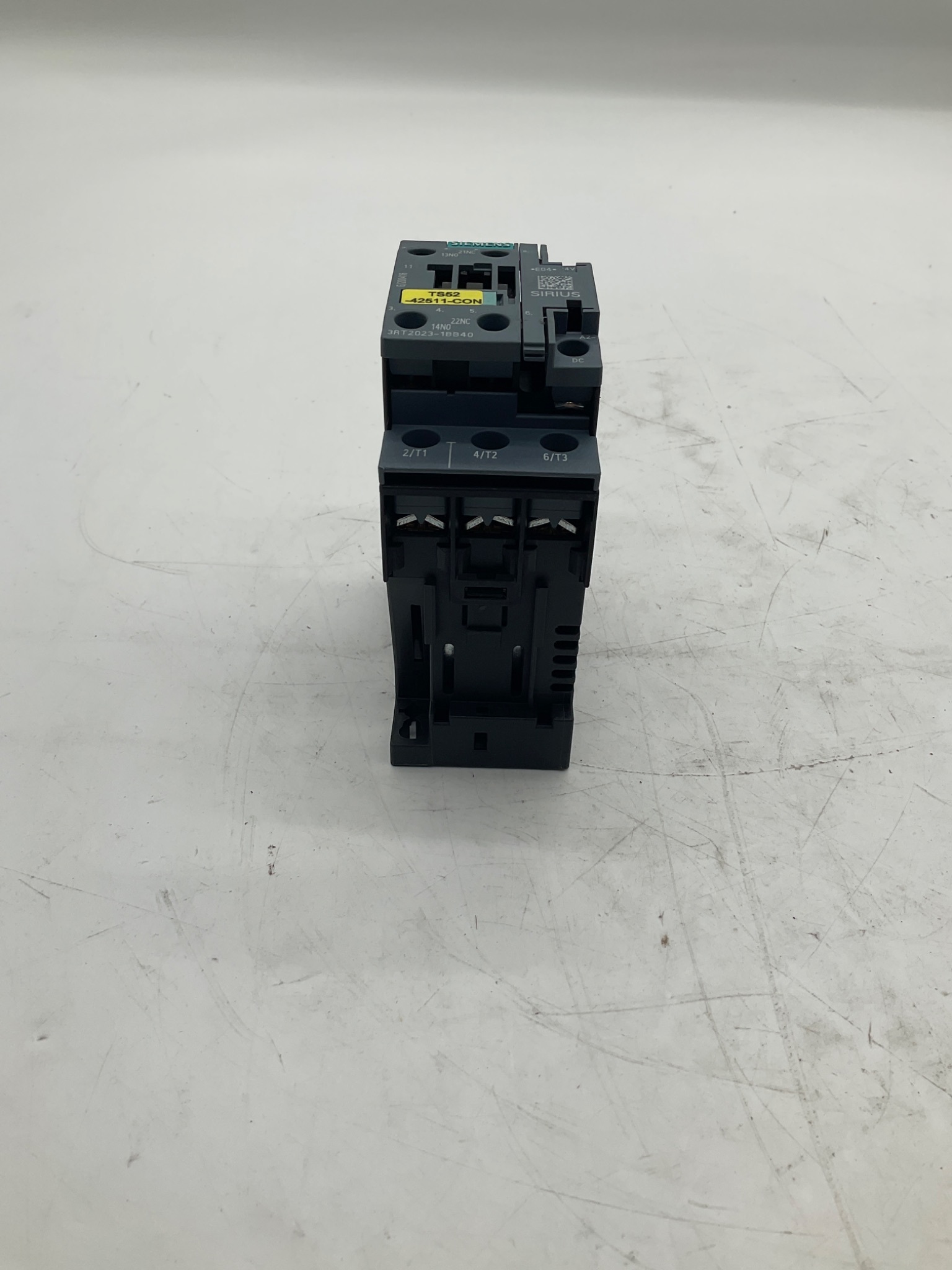

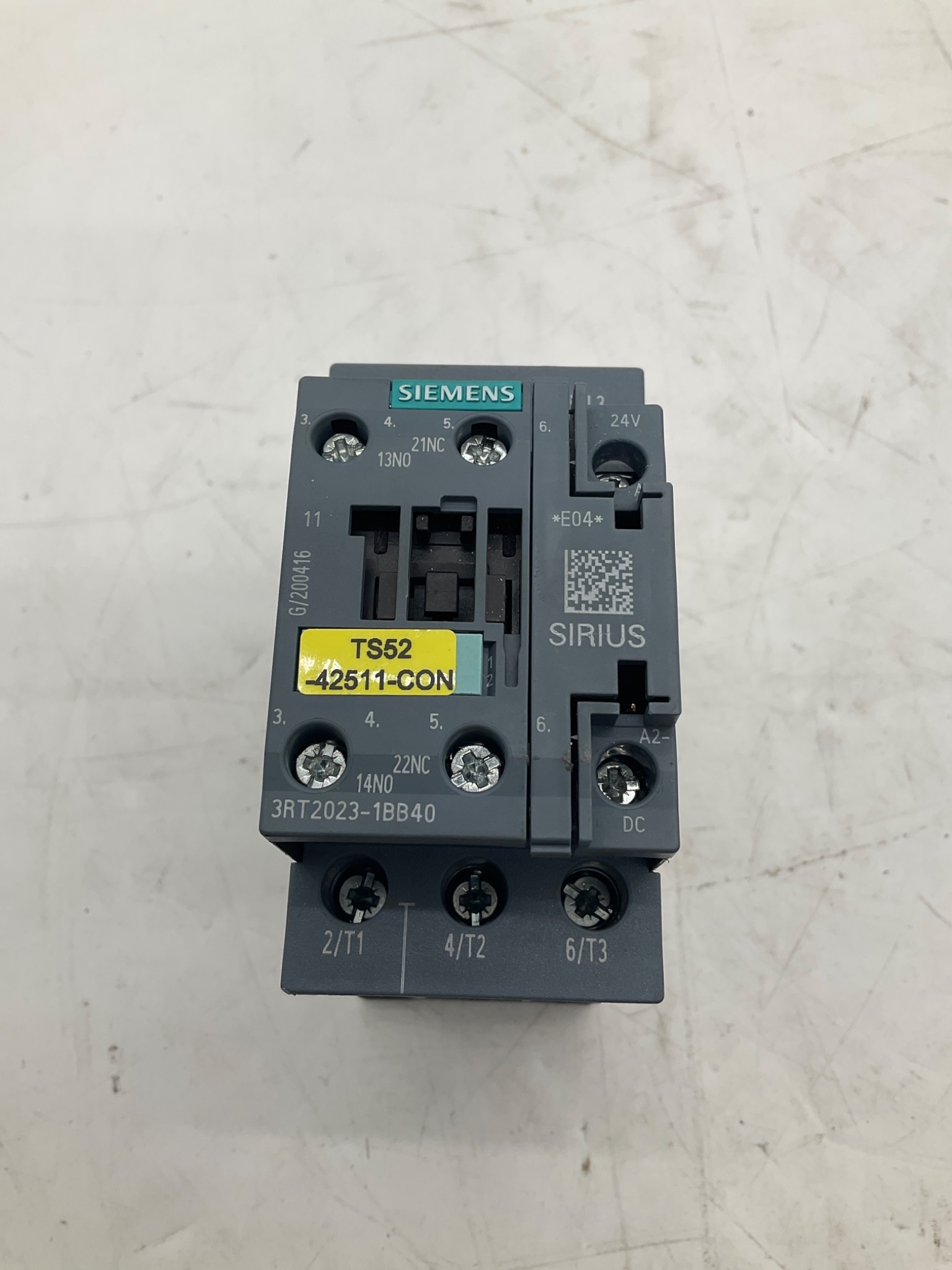

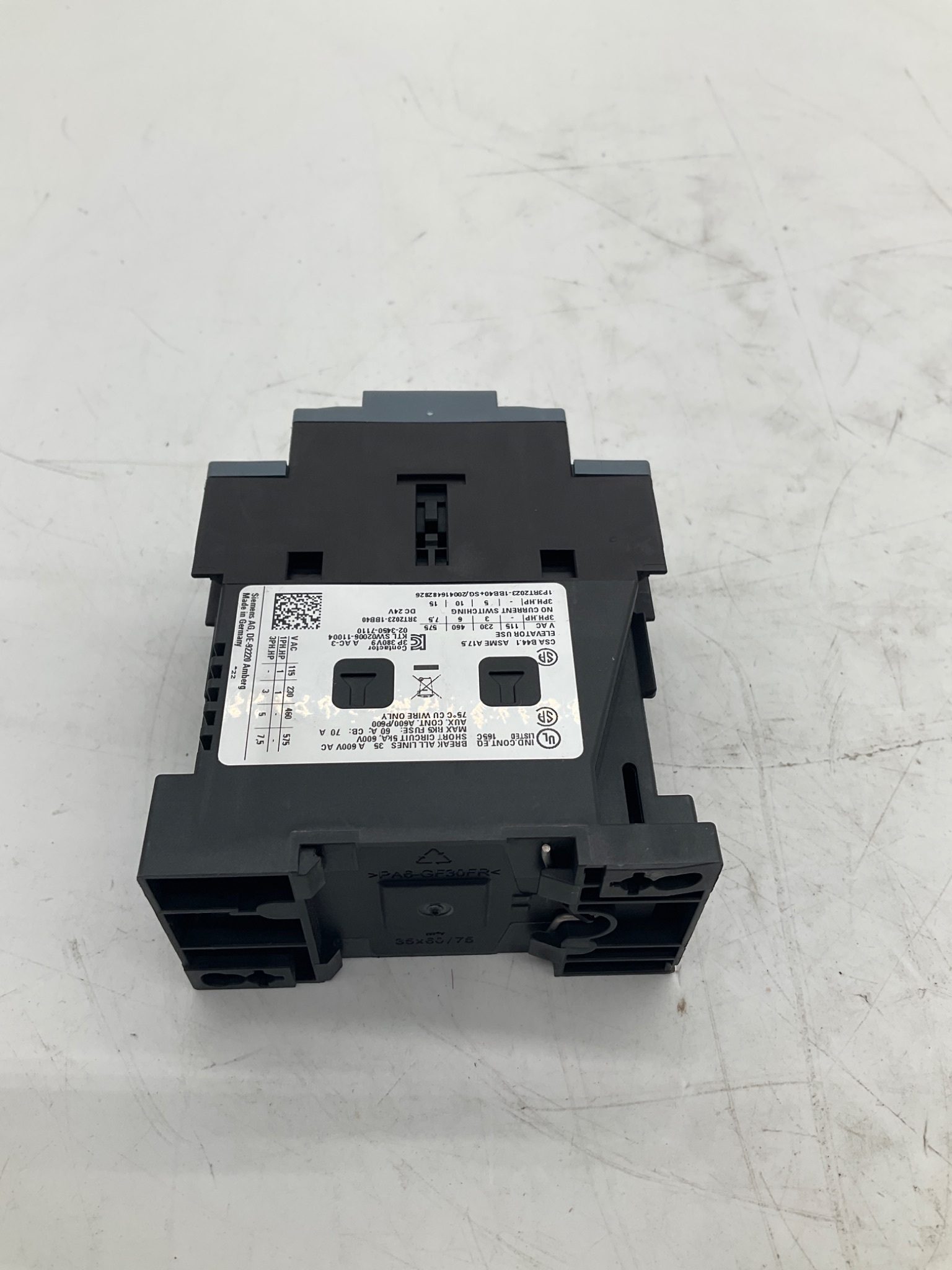

Siemens 3RT2023-1BB40 SIRIUS 3-Pole Contactor 24VDC Coil USED

Specification Table

IDENTIFICATION Manufacturer: Siemens Product Family: SIRIUS Part Number: 3RT2023-1BB40 Product Type: Power contactor Condition: USED YOM: n/a Country of Manufacture: Germany   CONTACT CONFIGURATION Main Poles: 3 Main Contact Configuration: 3 NO Auxiliary Contacts: 1 NO + 1 NC NO Auxiliary Terminals: 13 / 14 NC Auxiliary Terminals: 21 / 22 Line Terminals: 1/L1, 3/L2, 5/L3 Load Terminals: 2/T1, 4/T2, 6/T3   COIL / CONTROL Coil Voltage: 24 VDC Coil Terminals: A1 / A2 Control Type: Electromagnetic Coil Current Type: DC   IEC RATINGS Utilization Category: AC-3 AC-3 Current at 400 V: 9 A Motor Power at 230 V: 2.2 kW Motor Power at 400 V: 4 kW Motor Power at 500 V: 5.5 kW Motor Power at 690 V: 5.5 kW Rated Insulation Voltage Ui: 690 V Rated Impulse Voltage Uimp: 6 kV Frequency: 50 / 60 Hz   NORTH AMERICAN MOTOR RATINGS 3-Phase HP at 200 V: 3 HP 3-Phase HP at 230 V: 3 HP 3-Phase HP at 460 V: 5 HP 3-Phase HP at 575 V: 7.5 HP 1-Phase HP at 115 V: 0.5 HP 1-Phase HP at 230 V: 1.5 HP   SHORT-CIRCUIT / PROTECTION Short-Circuit Rating: 5 kA at 600 VAC Maximum Fuse / Circuit Breaker: 60 A Conductor Temperature Rating: 75°C   CONNECTION / INSTALLATION Main Terminal Type: Screw Auxiliary Terminal Type: Screw Coil Terminal Type: Screw Mounting: DIN rail / panel Installation Orientation: Fixed
