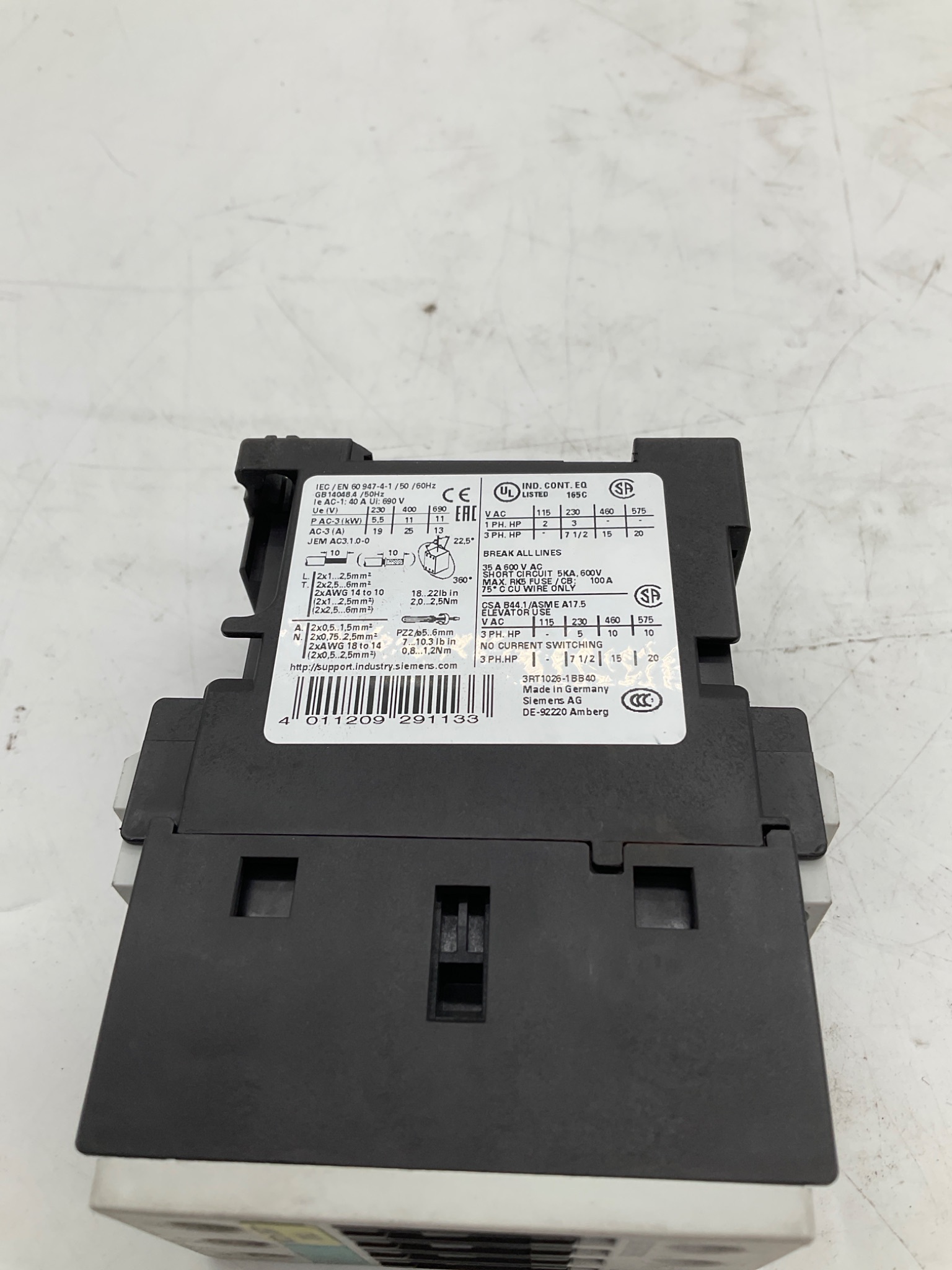

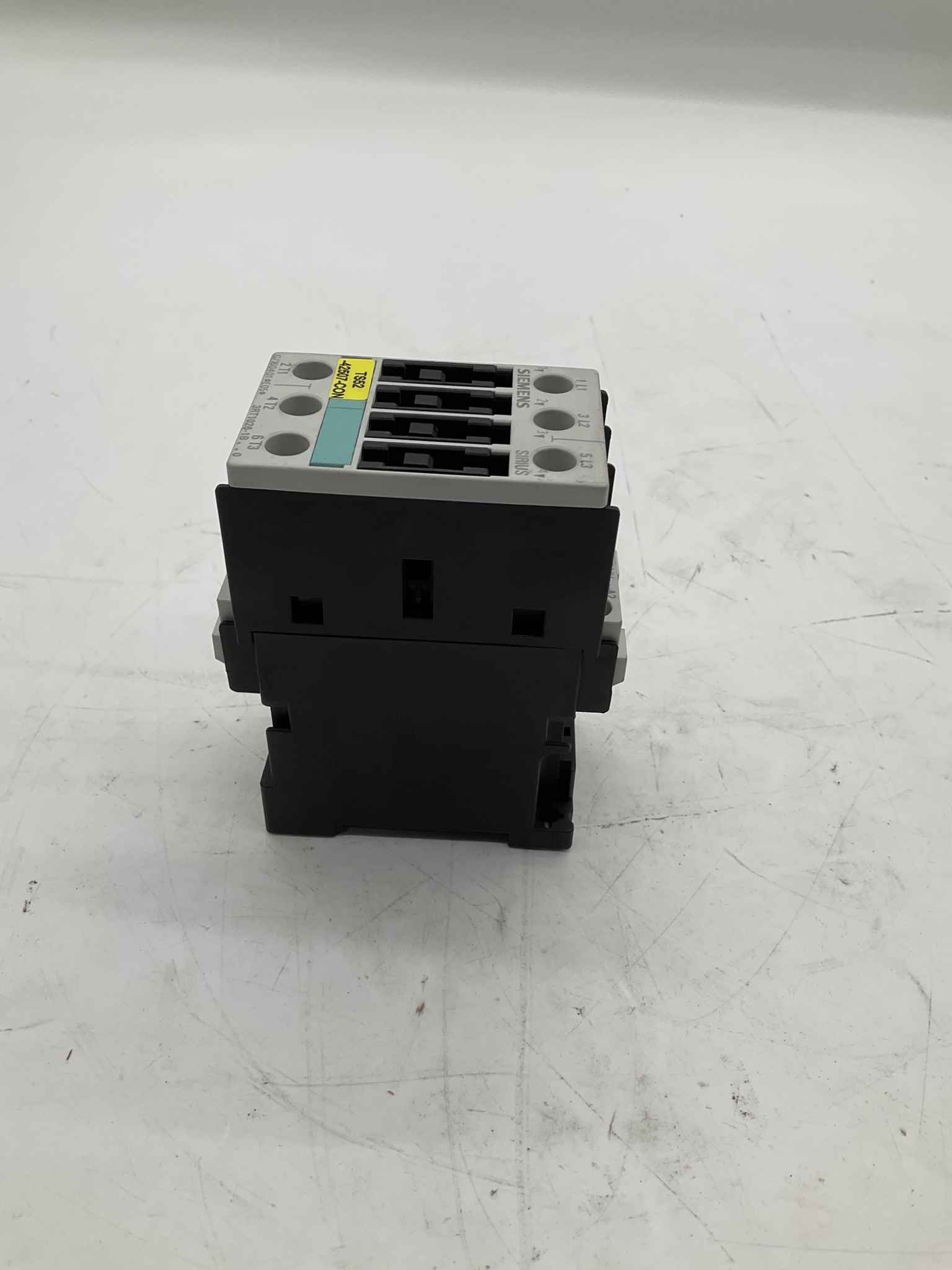

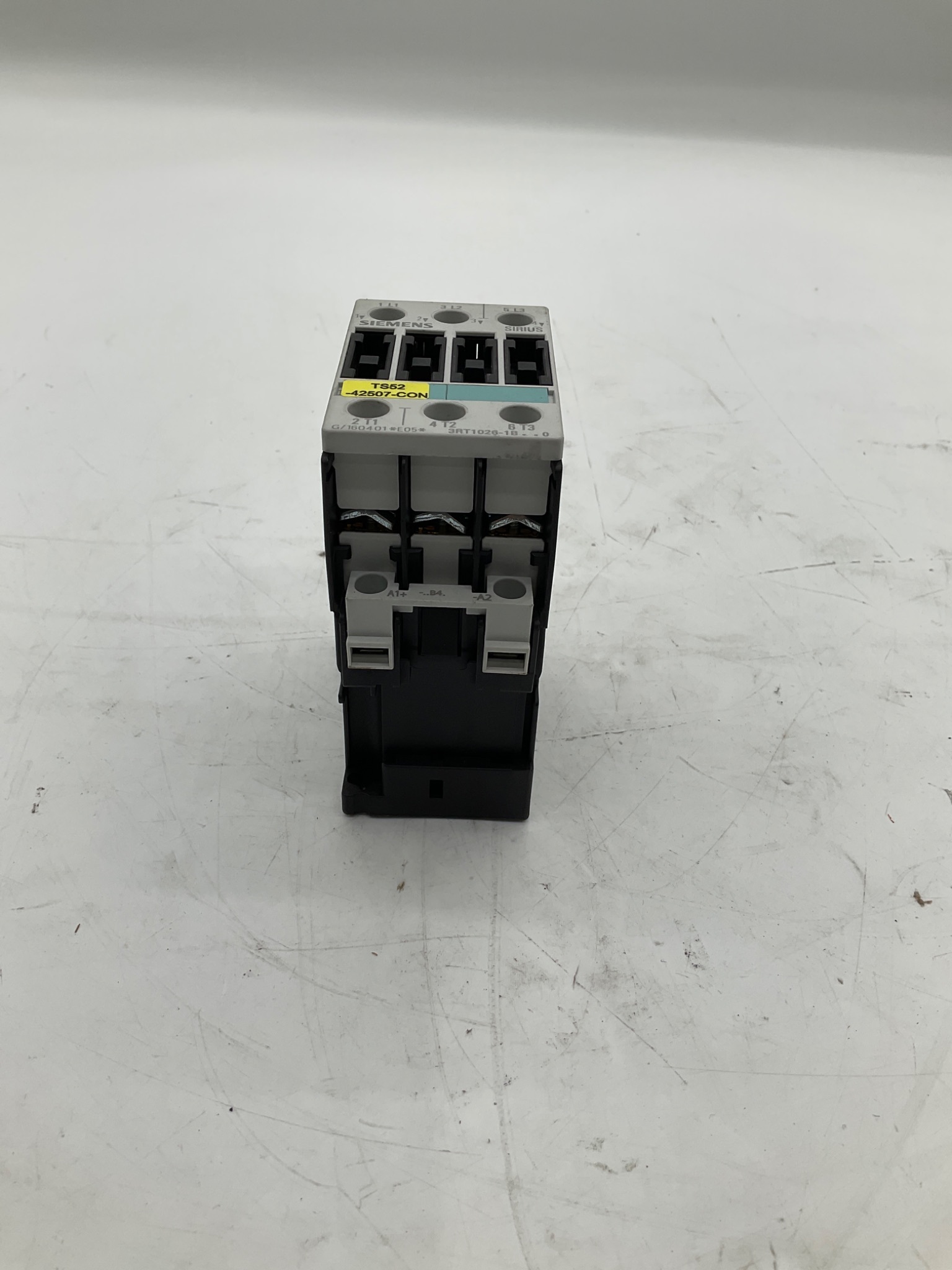

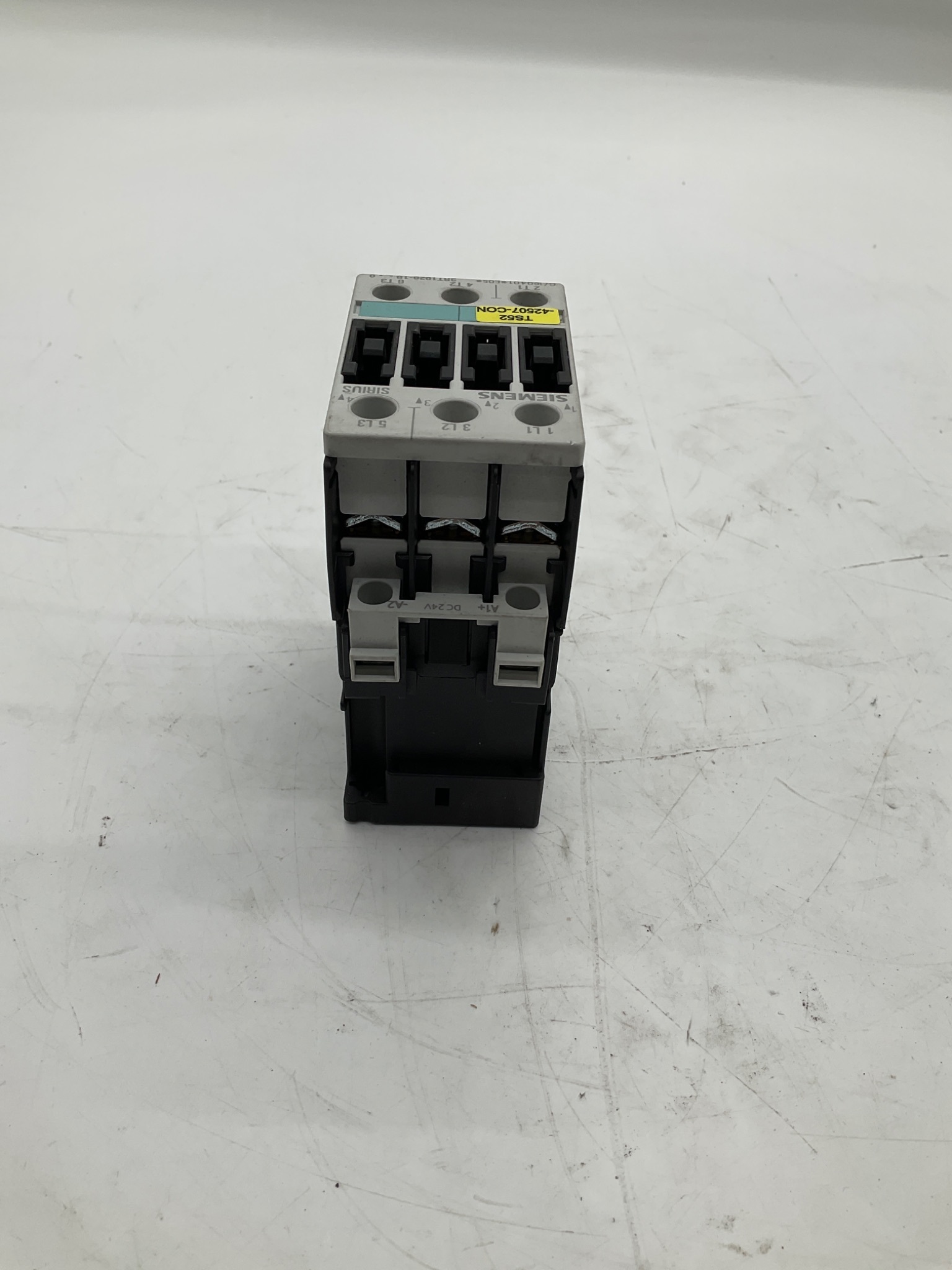

Siemens 3RT1026-1BB40 SIRIUS 3-Pole Contactor USED

Specification Table

IDENTIFICATION Manufacturer: Siemens Product Family: SIRIUS Part Number: 3RT1026-1BB40 Product Type: Power contactor Condition: USED YOM: n/a Country of Manufacture: Germany   CONTACT CONFIGURATION Main Poles: 3 Main Contacts: 3 NO Line Terminals: 1L1 / 3L2 / 5L3 Load Terminals: 2T1 / 4T2 / 6T3 Utilization Category: AC-3   IEC RATINGS AC-3 Current at 400 V: 25 A AC-3 Motor Power at 230 V: 5.5 kW AC-3 Motor Power at 400 V: 11 kW AC-3 Motor Power at 690 V: 13 kW Rated Insulation Voltage Ui: 690 V Rated Impulse Voltage Uimp: 6 kV Frequency: 50 / 60 Hz   NORTH AMERICAN MOTOR RATINGS 3-Phase HP at 115 V: 3 HP 3-Phase HP at 230 V: 7.5 HP 3-Phase HP at 460 V: 15 HP 3-Phase HP at 575 V: 20 HP 1-Phase HP at 115 V: 2 HP 1-Phase HP at 230 V: 3 HP   PROTECTION / SCCR Short-Circuit Current Rating: 5 kA at 600 VAC Maximum RK5 Fuse / CB: 100 A 75°C Copper Wire: Required   COIL / CONTROL Coil Terminals: A1 / A2 Coil Voltage: Not specified Control Type: Electromagnetic   CONNECTION / INSTALLATION Main Terminal Type: Screw connection Conductor Torque: 18.22 lb-in Mounting Configuration: Panel / rail mount
