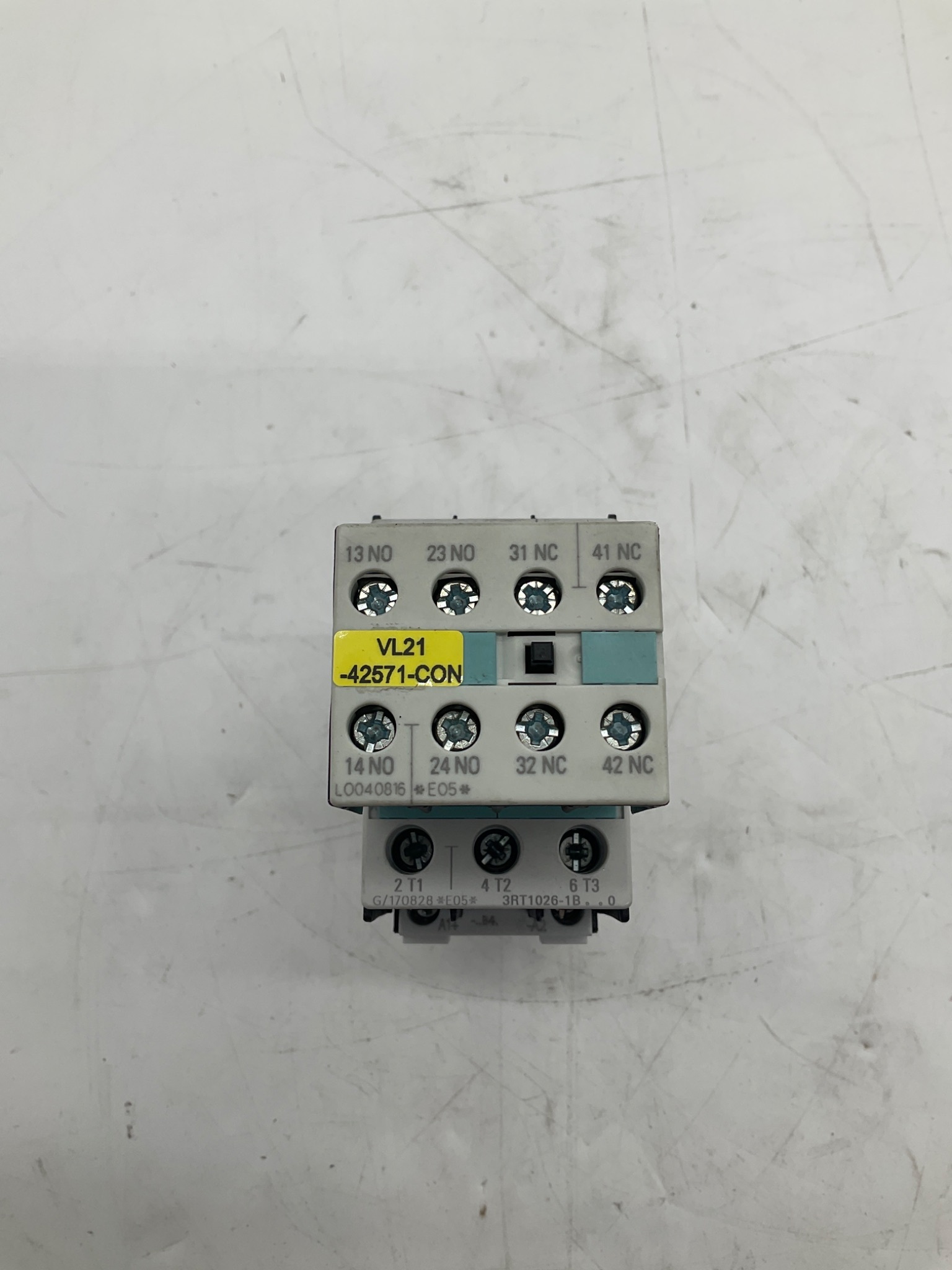

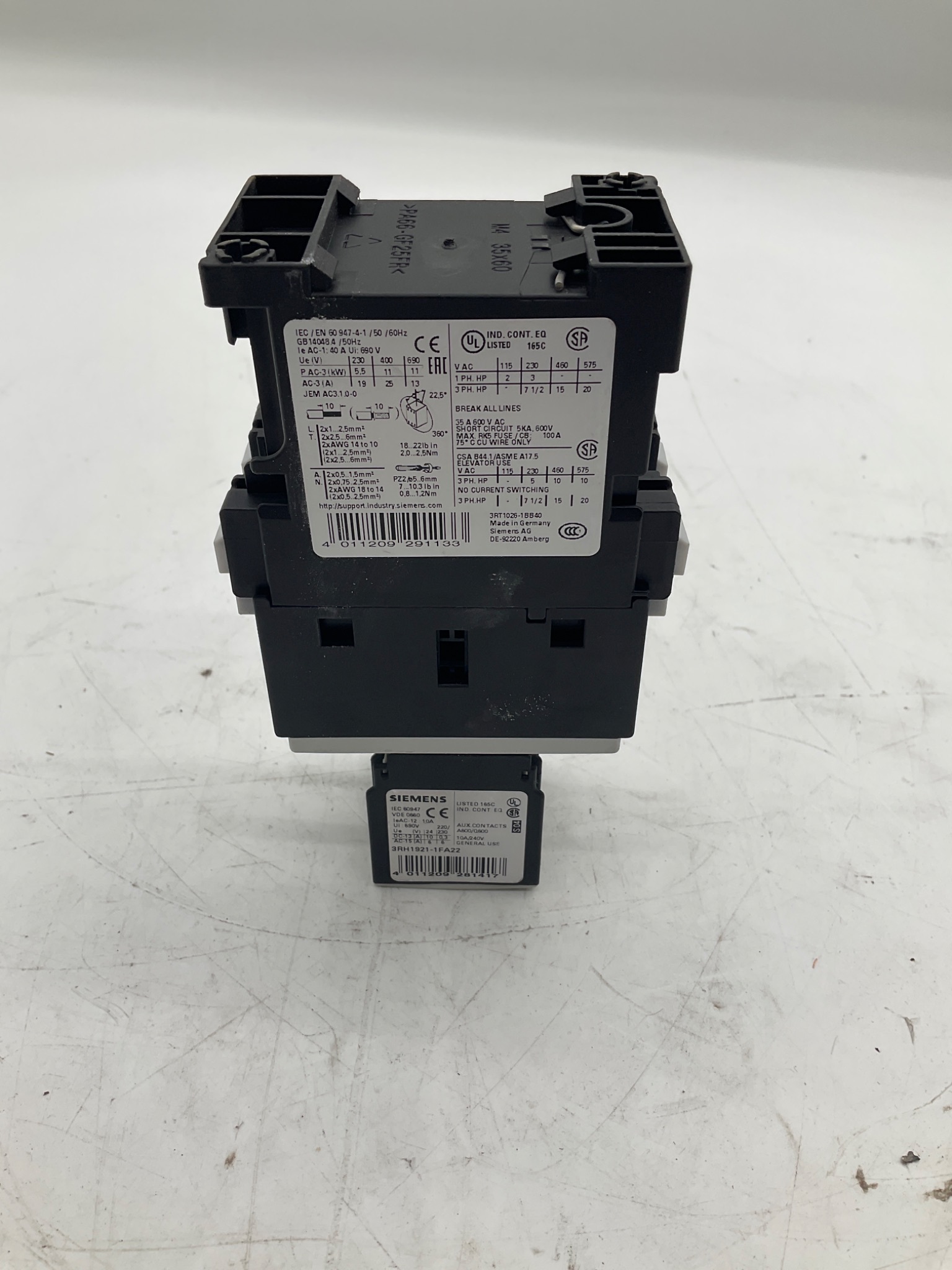

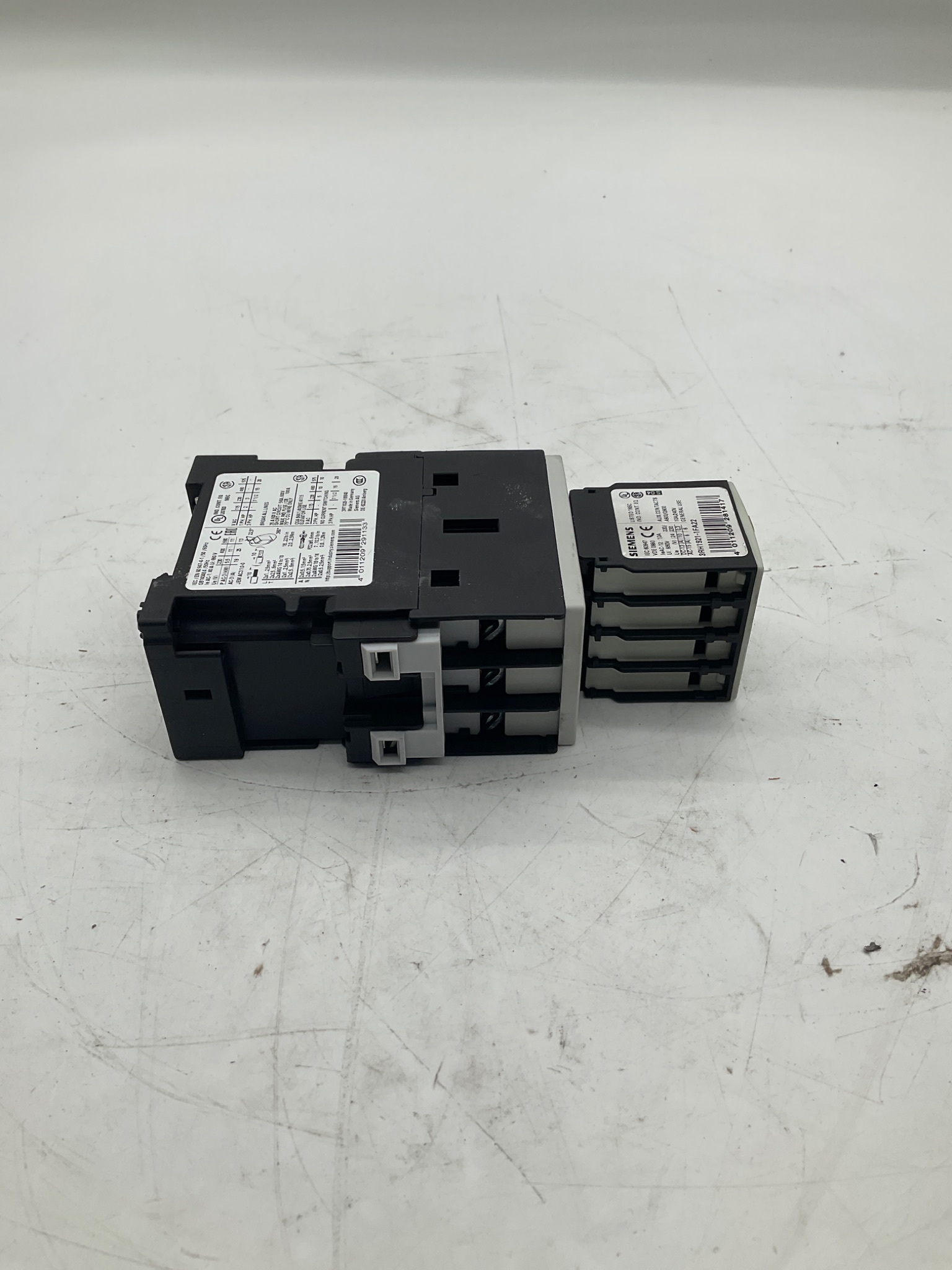

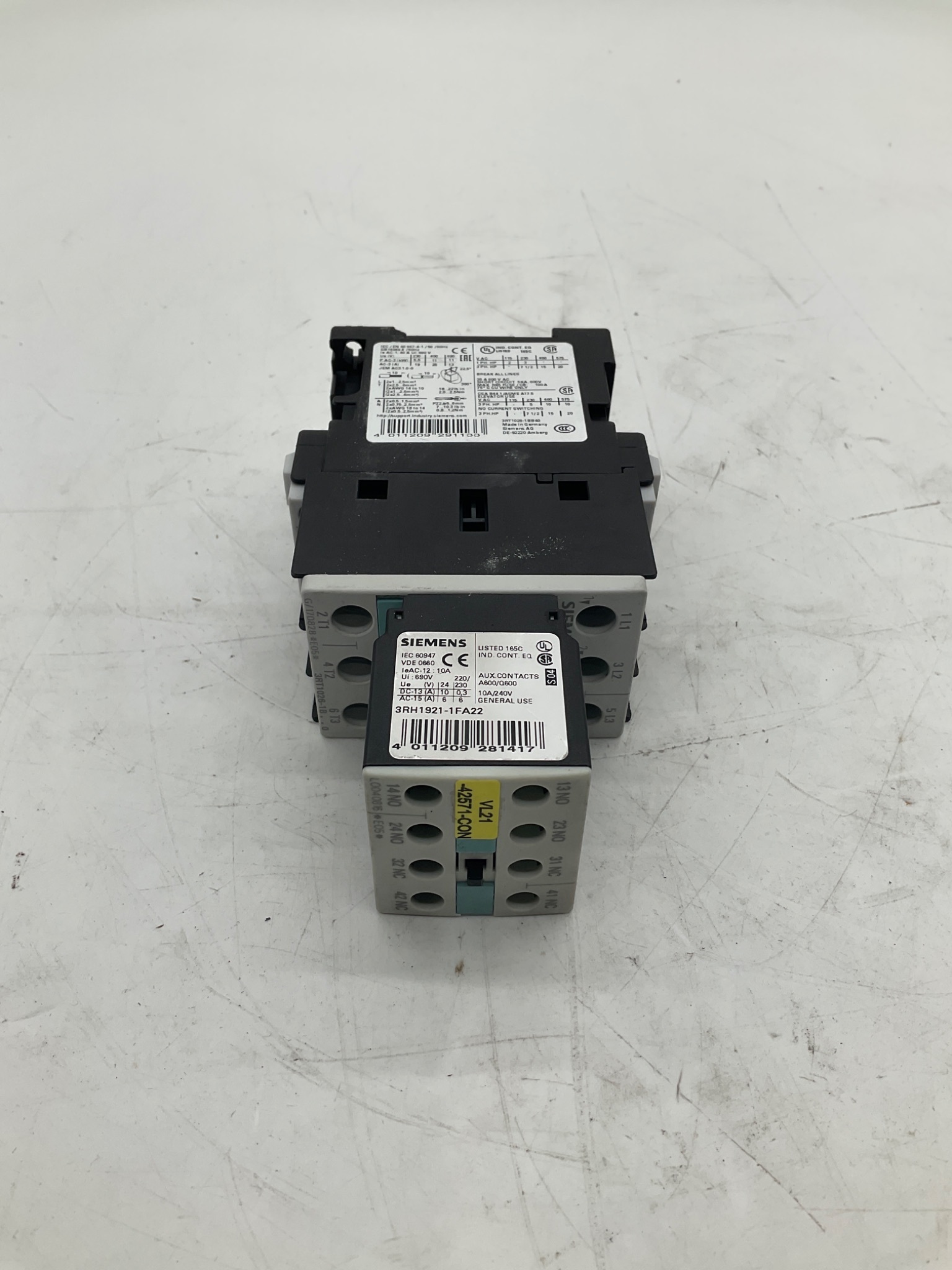

SIEMENS 3RT1026-1BB40 Contactor With 3RH1921-1FA22 Auxiliary Block USED

Specification Table

IDENTIFICATION Manufacturer: Siemens Product Family: SIRIUS Product Type: Contactor with auxiliary contact block Condition: USED YOM: n/a   CONTACTOR Part Number: 3RT1026-1BB40 Device Type: Three-pole power contactor Main Poles: 3 Line Terminals: 1/L1, 3/L2, 5/L3 Load Terminals: 2/T1, 4/T2, 6/T3 Coil Type: DC Coil Terminals: A1 / A2   CONTACTOR ELECTRICAL Rated Insulation Voltage Ui: 690 V AC-1 Current Rating: 40 A AC-3 Current at 230 VAC: 25 A AC-3 Current at 400 VAC: 13 A AC-3 Current at 690 VAC: 13 A AC-3 Motor Power at 230 VAC: 11 kW AC-3 Motor Power at 400 VAC: 11 kW AC-3 Motor Power at 690 VAC: 11 kW   AUXILIARY CONTACT BLOCK Part Number: 3RH1921-1FA22 Device Type: Auxiliary contact block Contact Configuration: 2 NO + 2 NC Normally Open Contacts: 13-14, 23-24 Normally Closed Contacts: 31-32, 41-42 Mounting Location: Front mounted Terminal Type: Screw   AUXILIARY ELECTRICAL Rated Insulation Voltage Ui: 690 V Conventional Thermal Current: 10 A AC-15 Current at 230 VAC: 6 A AC-15 Current at 400 VAC: 4 A AC-15 Current at 690 VAC: 2 A Auxiliary General-Use Rating: 10 A / 240 VAC   CONNECTION / INSTALLATION Main Terminal Type: Screw Auxiliary Terminal Type: Screw Contactor Installation: Industrial control mounting Auxiliary Installation: Direct front mounting   APPROVALS / STANDARDS IEC Standard: IEC 60947 UL Listing: Present CSA Marking: Present CE Marking: Present
