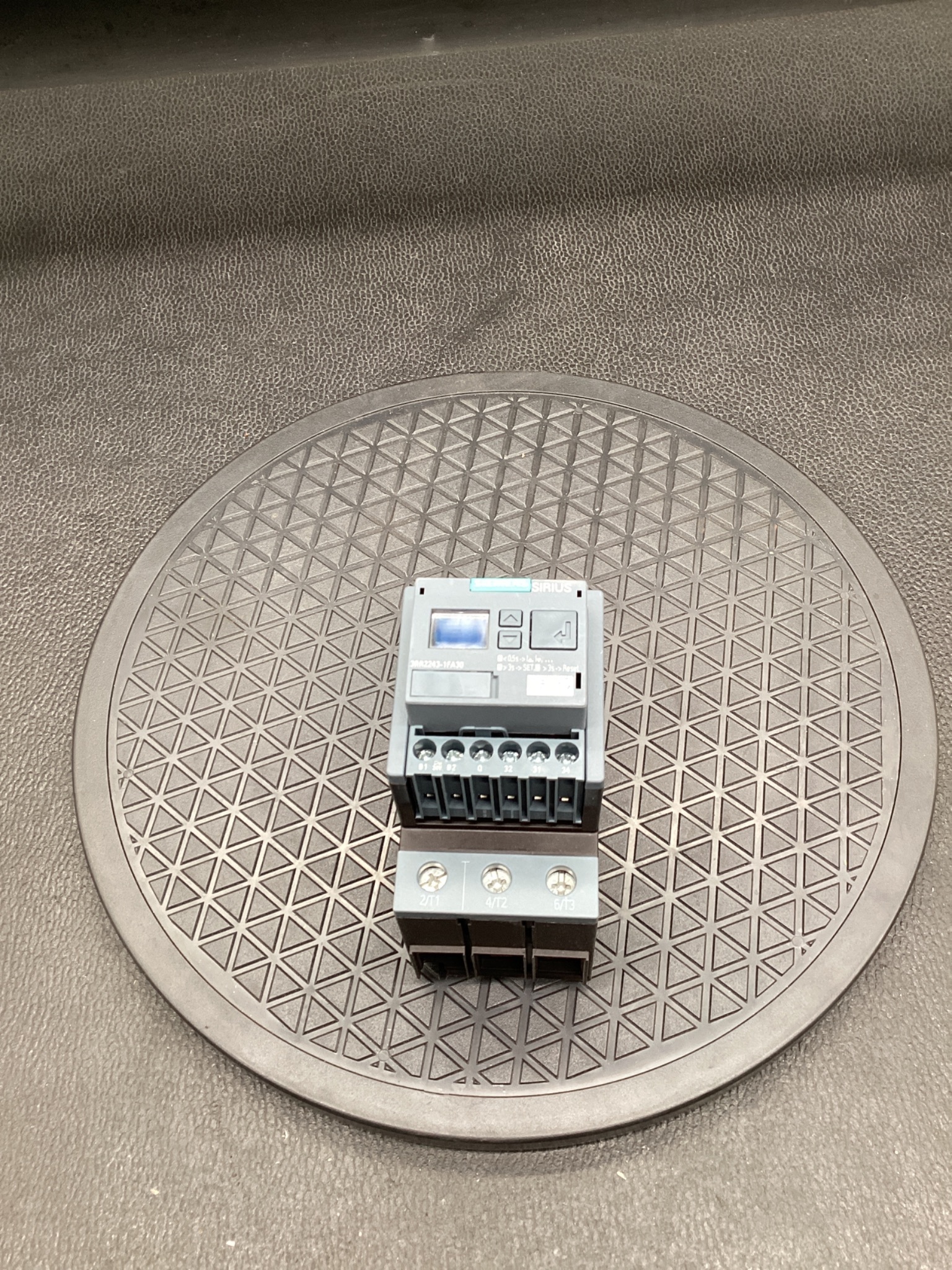

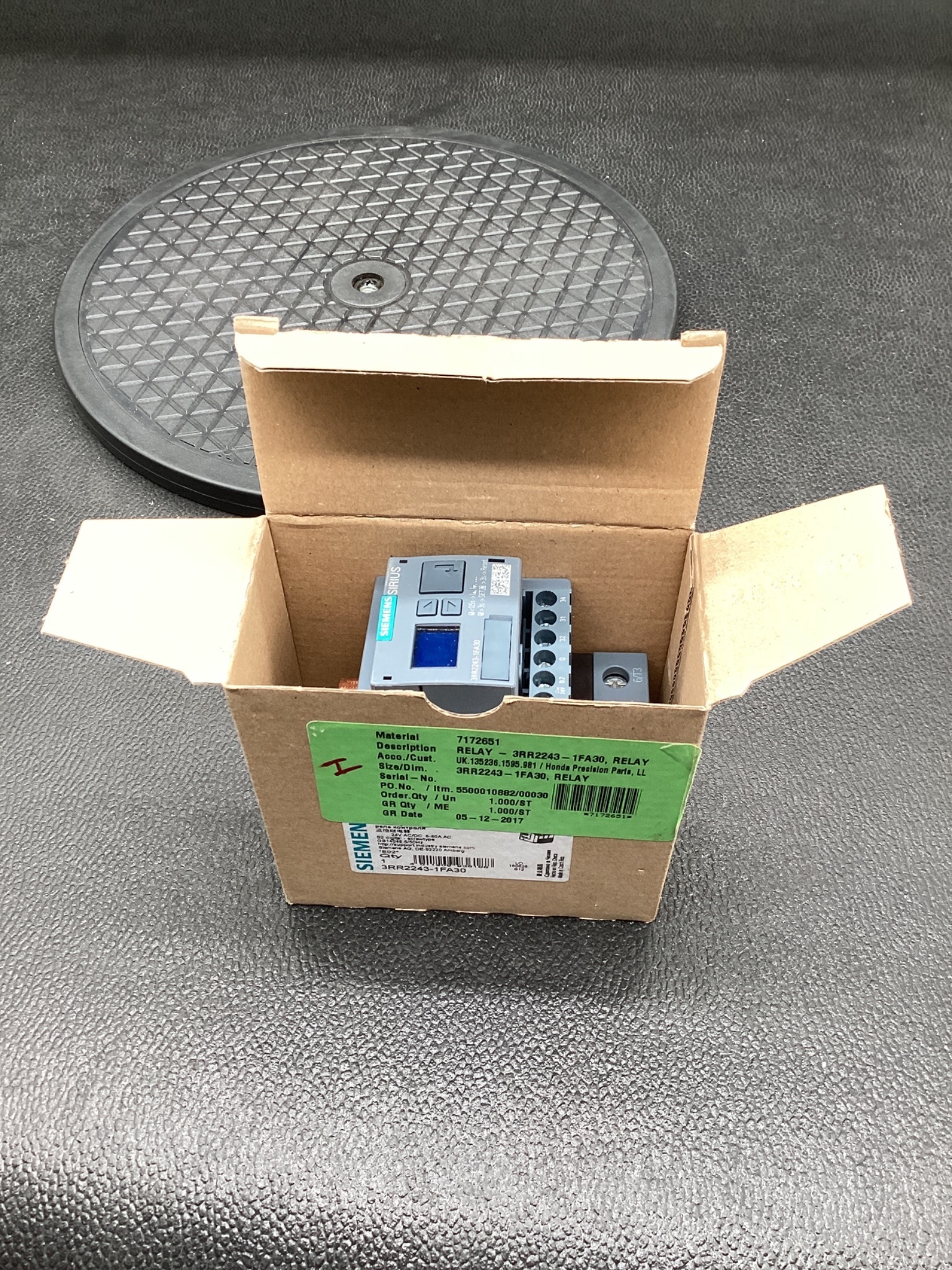

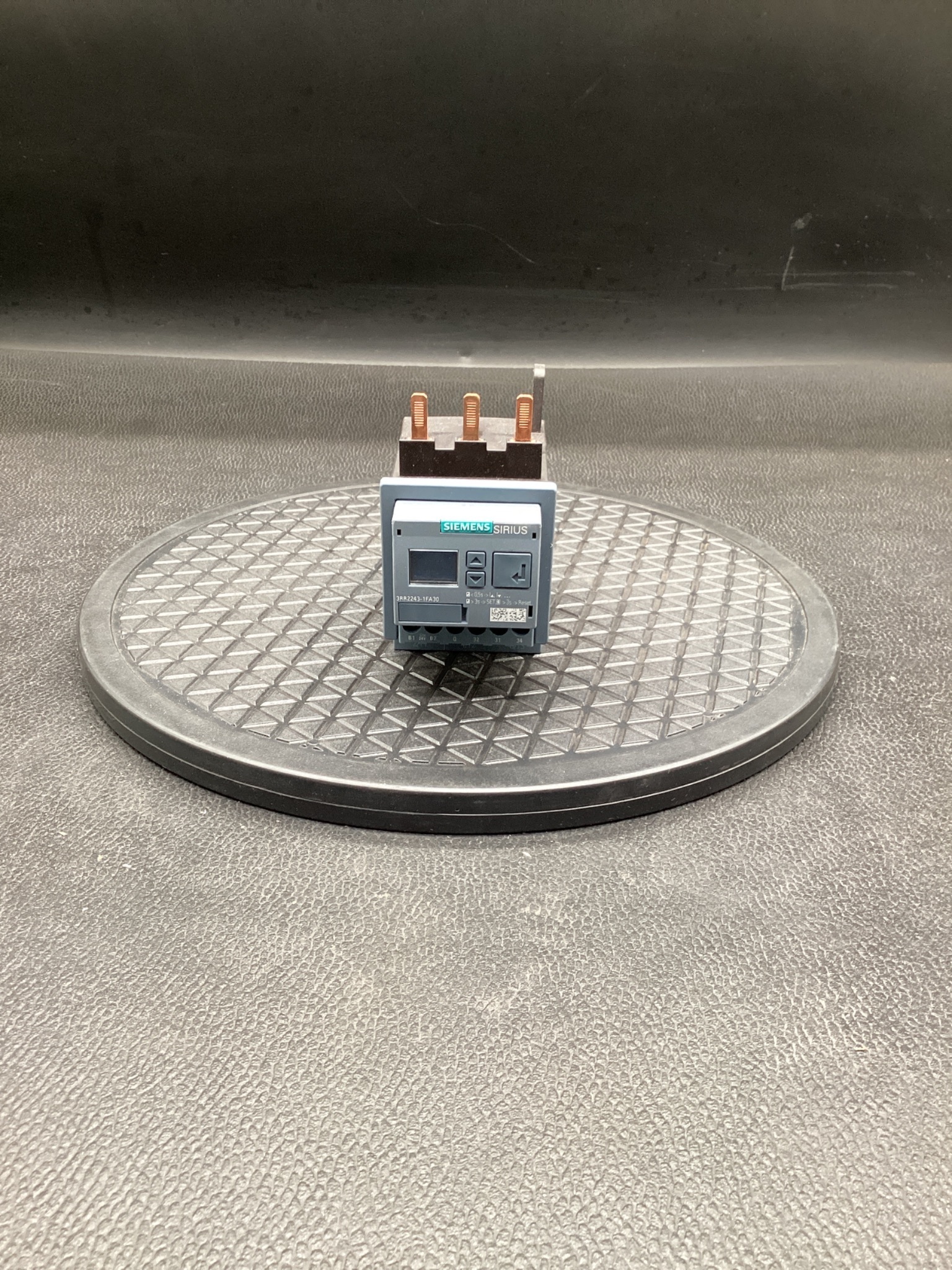

SIEMENS 3RR2243-1FA30 SIRIUS Current Monitoring Relay NEW

Specification Table

Manufacturer: Siemens Series: SIRIUS Part Number: 3RR2243-1FA30 Condition: NEW Product Specifications Product Type: Current Monitoring Relay Monitoring Function: Current Monitoring Display Type: LCD Display Adjustment Method: Front Keypad Programming Integrated Current Transformer: Yes Electrical Specifications Supply Voltage: 24 V AC/DC Supply Voltage Range: 24 V AC/DC Frequency Range: 50-60 Hz Current Measuring Range: 3-40 A Number of Phases: 3 Phase Output Specifications Relay Outputs: 1 Changeover Contact (SPDT) Output Contact Configuration: 1 CO Status Indication: Display and LED Indication Monitoring Functions Overcurrent Monitoring: Supported Undercurrent Monitoring: Supported Window Monitoring: Supported Load Monitoring: Supported Phase Monitoring: Supported Mechanical Specifications Mounting Method: DIN Rail Mount Terminal Type: Screw Terminals Connection Capacity: Up to 16 mm² Compliance IEC 60947 CE Marked EAC Marked UL Recognized CSA Certified Manufacturing Information Country of Manufacture: Germany Date Code Visible: 16/08
