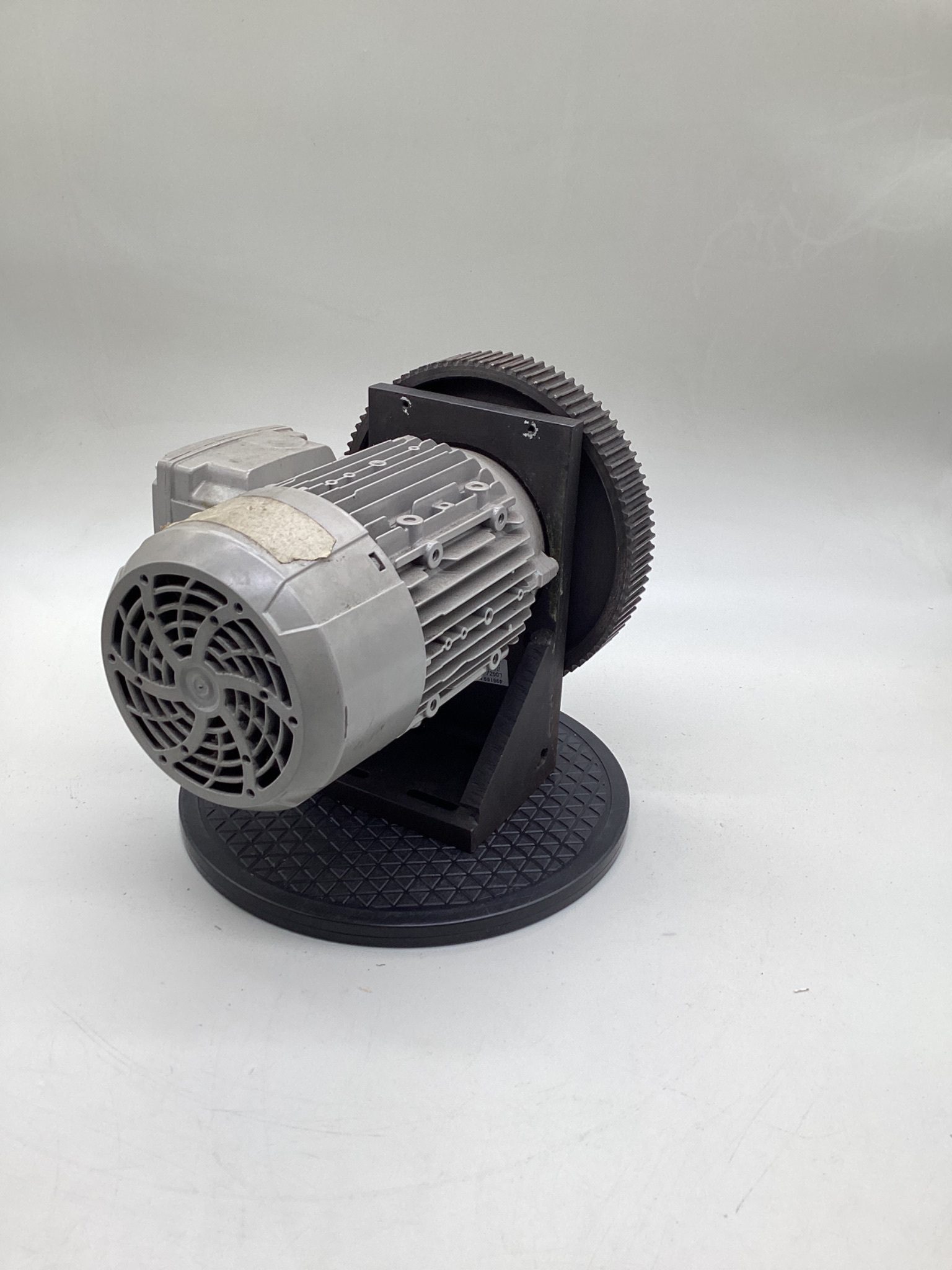

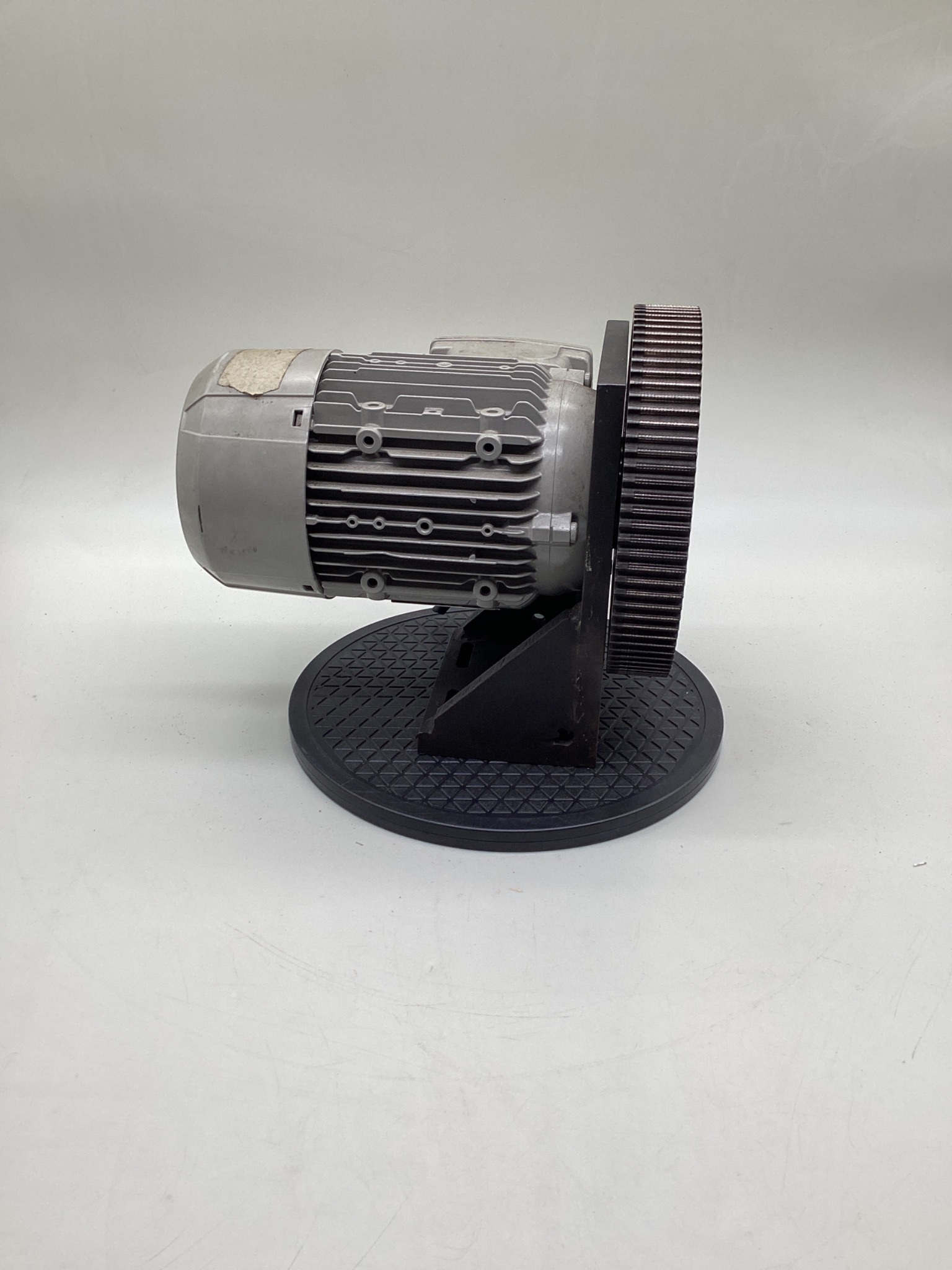

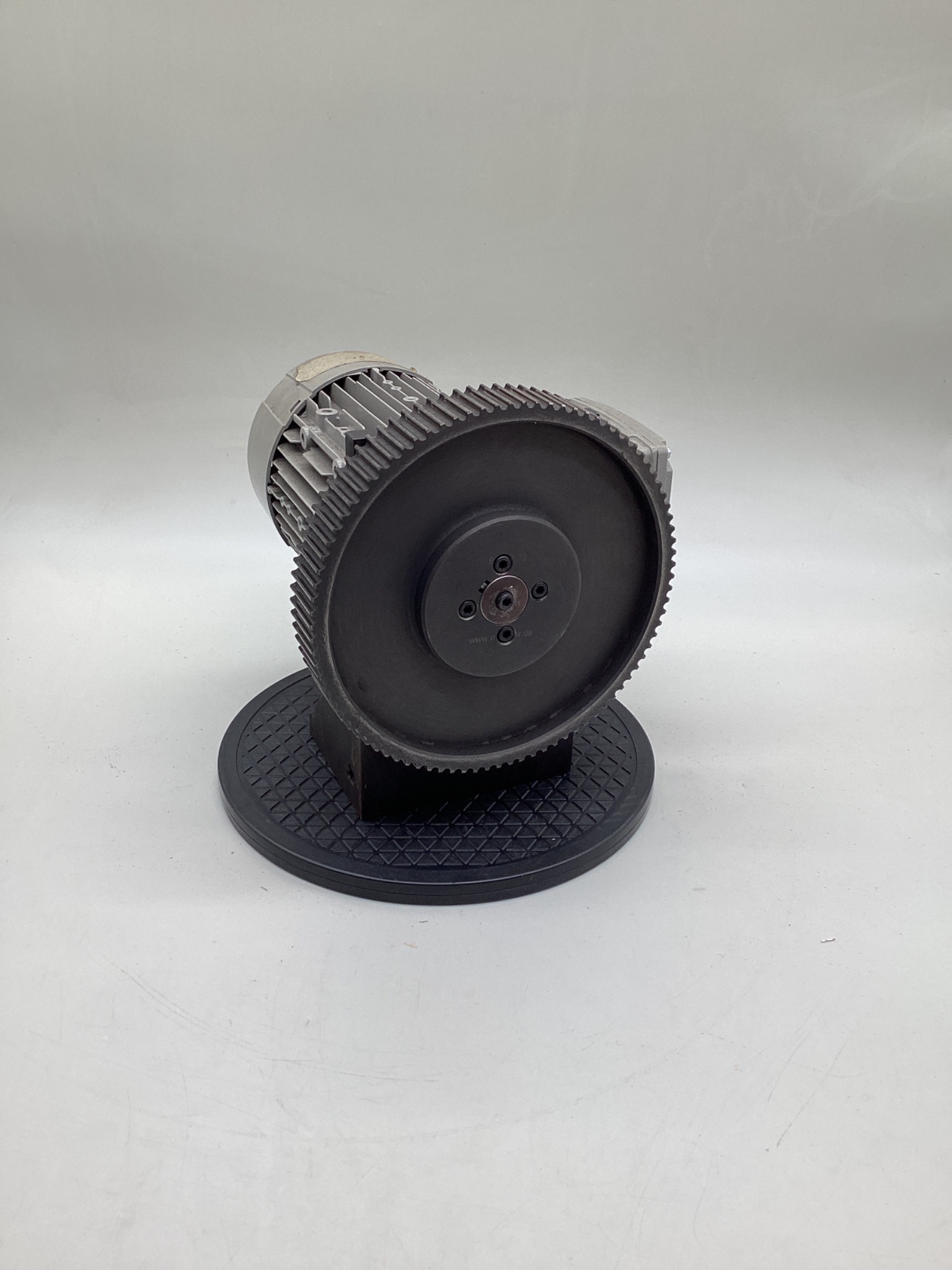

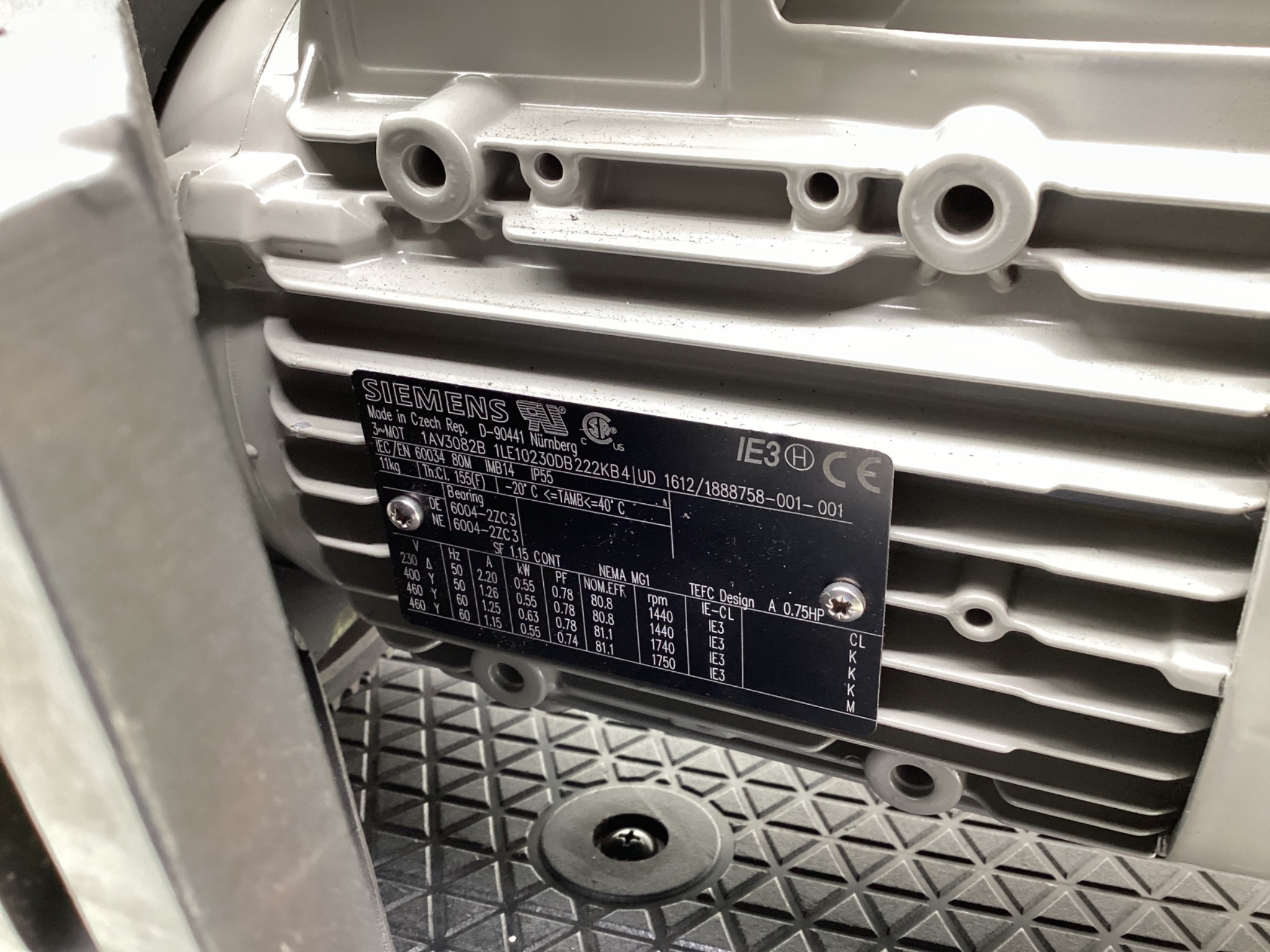

Siemens 1AV3082B / 1LE10230DB222KB4 Gearmotor With Timing Pulley 0.55kW USED

Specification Table

Manufacturer: Siemens Model: 1AV3082B Motor Part Number: 1LE10230DB222KB4 Condition: USED YOM: n/a   Product Type: Gearmotor Function: Mechanical Power Transmission   Motor Type: Three-Phase AC Motor Efficiency Class: IE3   Rated Output Power: 0.55 kW Rated Output Power: 0.75 HP   Mounting Configuration: IM B14   Rated Voltage: 230 VAC Delta Rated Voltage: 400 VAC Wye Rated Voltage: 460 VAC Wye   Frequency: 50/60 Hz   Rated Current: 2.20 A @ 230 VAC Rated Current: 1.25 A @ 400 VAC Rated Current: 1.15 A @ 460 VAC   Power Factor: 0.78 @ 50 Hz Power Factor: 0.74 @ 60 Hz   Rated Speed: 1440 RPM @ 50 Hz Rated Speed: 1750 RPM @ 60 Hz   Service Factor: 1.15   Protection Rating: IP55   Insulation Class: Class F Temperature Class: 155(F)   Motor Efficiency: 80.8% @ 50 Hz Motor Efficiency: 81.1% @ 60 Hz   Cooling Method: TEFC   Bearing DE: 6004-2ZC3 Bearing NDE: 6004-2ZC3   Mechanical Output: Timing Pulley Installed Mounting Bracket: Installed   Motor Weight: 11 kg Motor Weight: 24.3 lb   Country Of Manufacture: Czech Republic   Motor Serial Number: UD 1612/1888758-001-001
