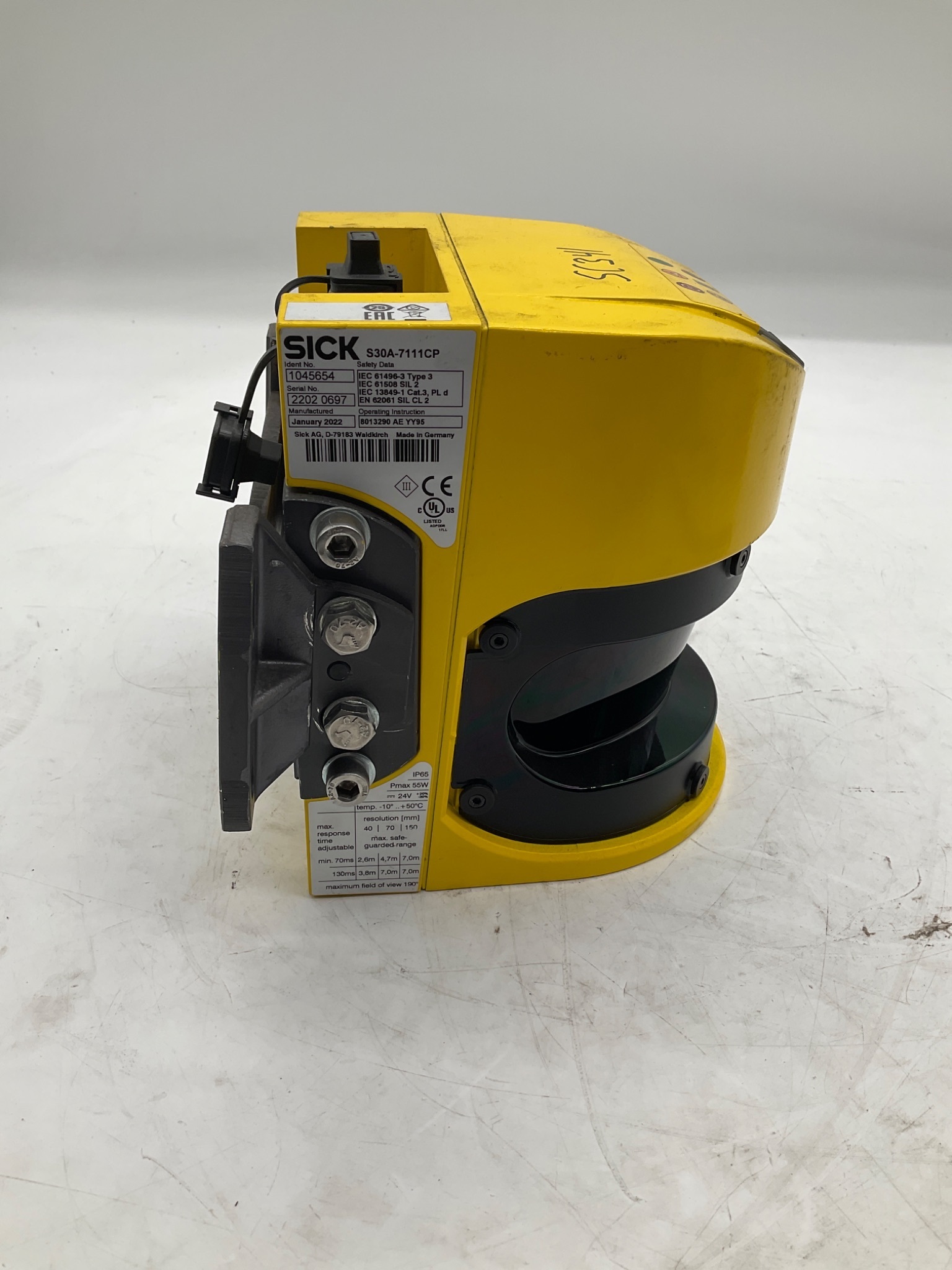

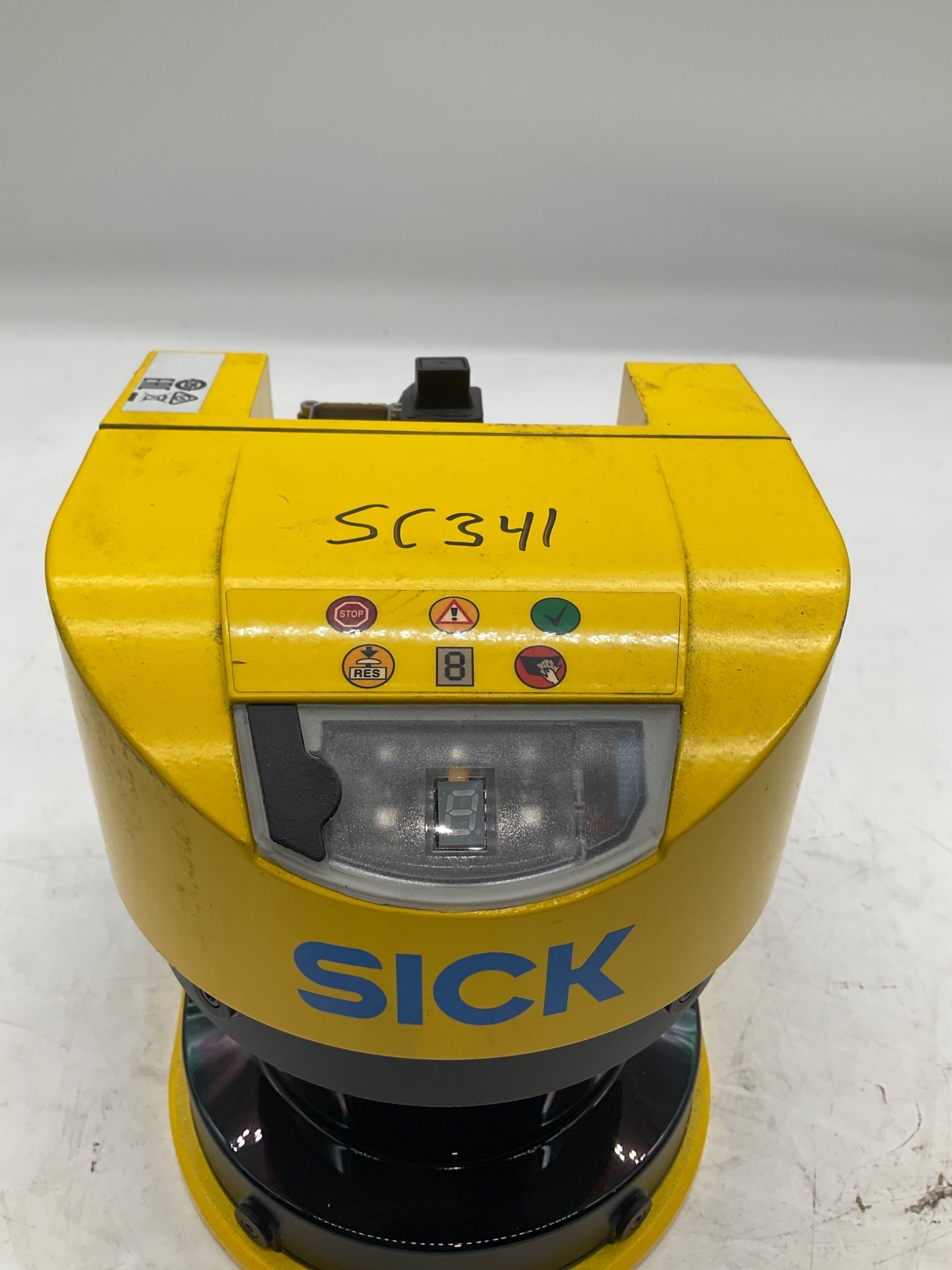

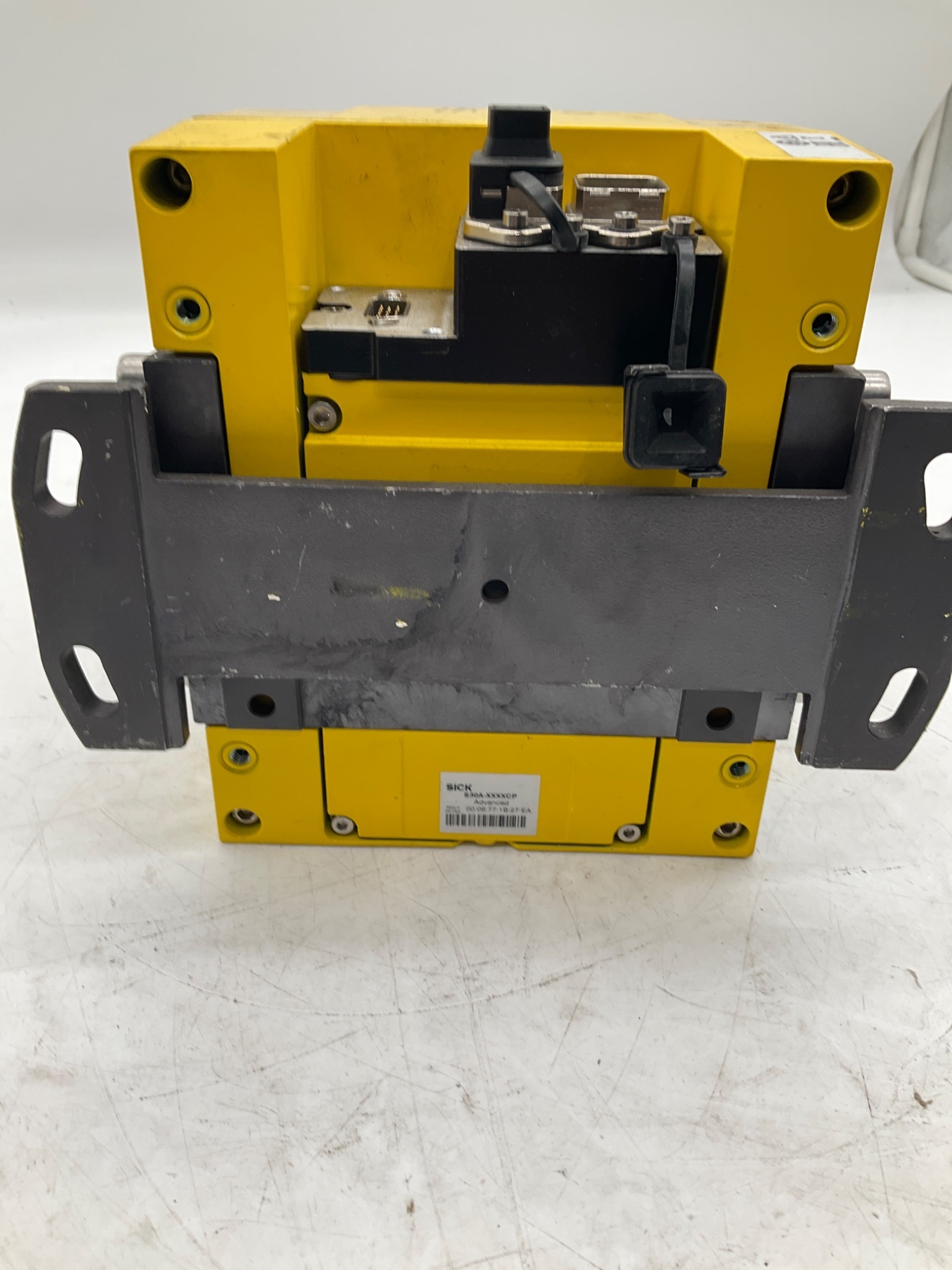

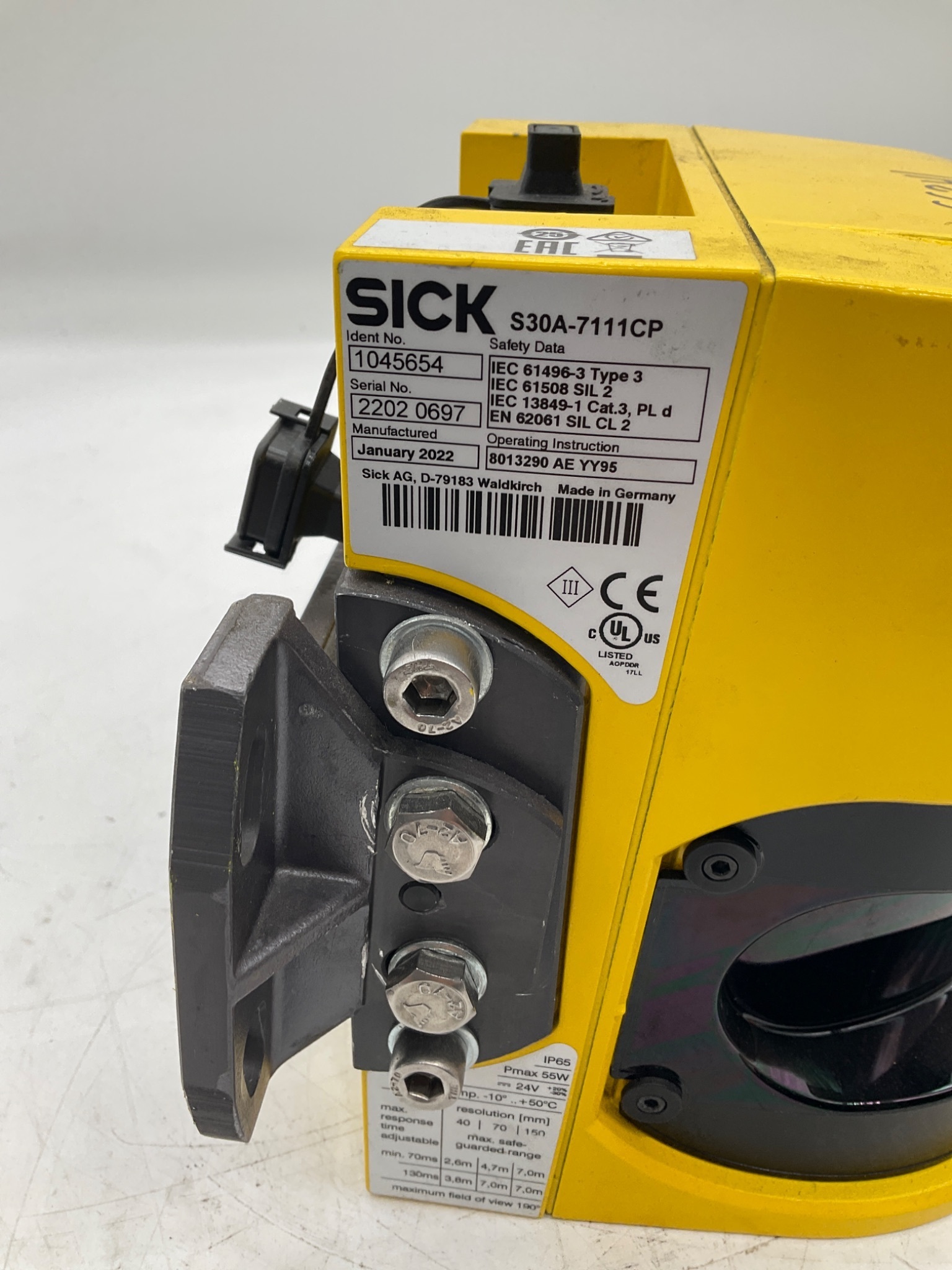

SICK 1045654 S30A-7111CP S300 PROFINET Safety Laser Scanner 7m USED

Specification Table

IDENTIFICATION Manufacturer: SICK Model: S30A-7111CP Ident Number: 1045654 Product Family: S300 Product Type: Safety Laser Scanner Condition: USED YOM: 2022 Serial Number: 2202 0697 Country of Origin: Germany   SAFETY PERFORMANCE Safety Scanner Type: Type 3 Safety Integrity Level: SIL 2 SIL Claim Limit: SIL CL 2 Performance Level: PL d Category: Category 3 IEC 61496-3: Type 3 IEC 61508: SIL 2 EN ISO 13849-1: Category 3, PL d EN 62061: SIL CL 2   DETECTION / SCANNING Scanning Angle: 190° Resolution Settings: 30 / 40 / 50 / 70 mm Protective Field @ 30 mm: 2.0 m Protective Field @ 40 mm: 2.0 m Protective Field @ 50 mm: 4.7 m Protective Field @ 70 mm: 7.0 m Maximum Protective Field: 7.0 m Response Time: Adjustable   COMMUNICATION / INTERFACE Network Interface: PROFINET Safety Communication: PROFIsafe SICK Interface: EFI-pro System Plug: Present Status Display: Integrated Status Indicators: Integrated   ELECTRICAL Supply Voltage: 24 VDC Maximum Power Consumption: 55 W Protection Class: Class III   CONSTRUCTION / ENVIRONMENTAL Enclosure Rating: IP65 Maximum Temperature: +50°C Housing Color: Yellow / Black   INSTALLATION Mounting Configuration: Bracket Mounted Mounting Bracket: Present   COMPLIANCE CE: Marked cULus: Listed EAC: Marked
