Specification Table
Manufacturer: SEW‑EURODRIVE
Part Number: K47DRE100LC4BE5HR/MM30
Condition: USED

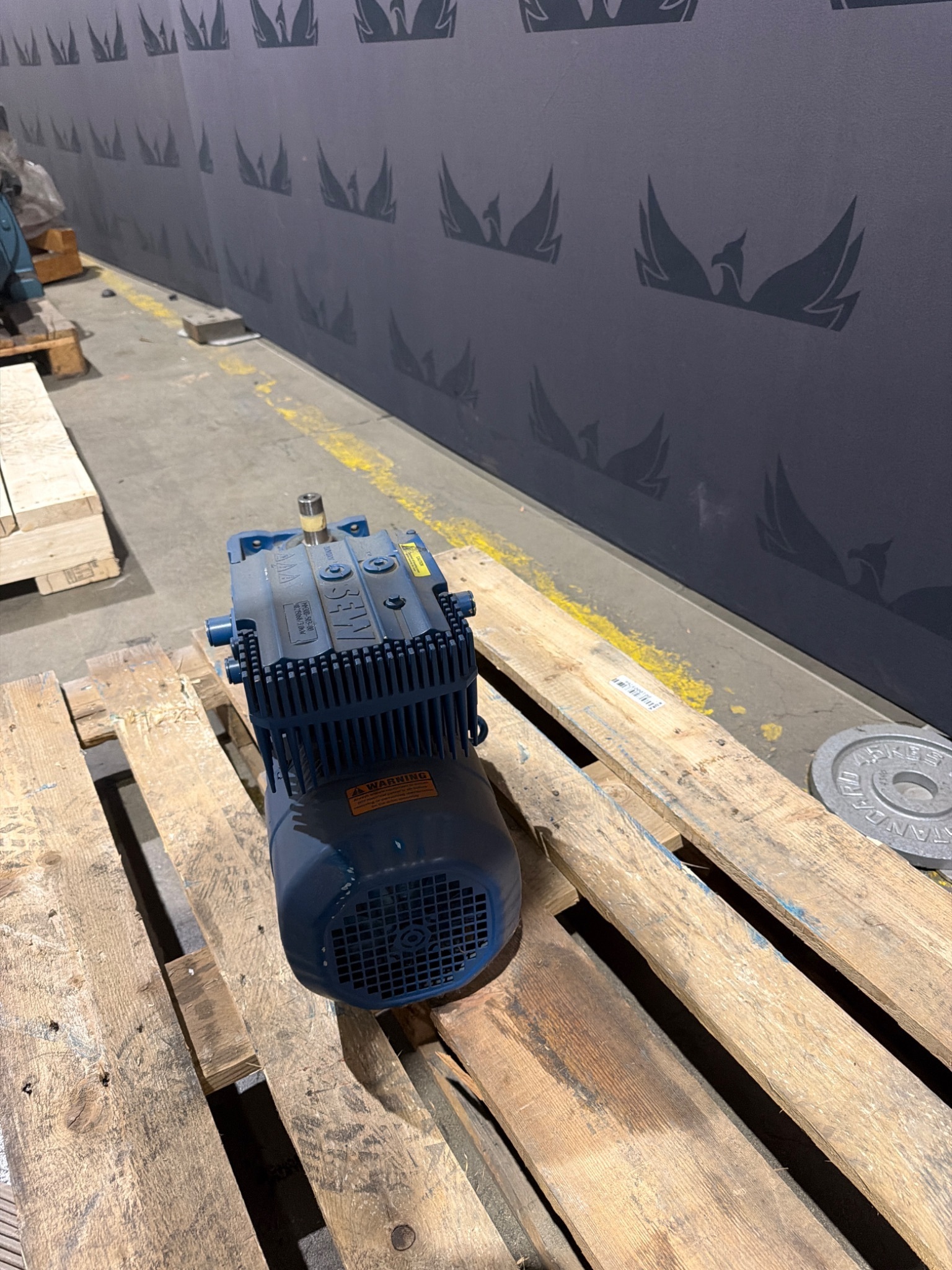

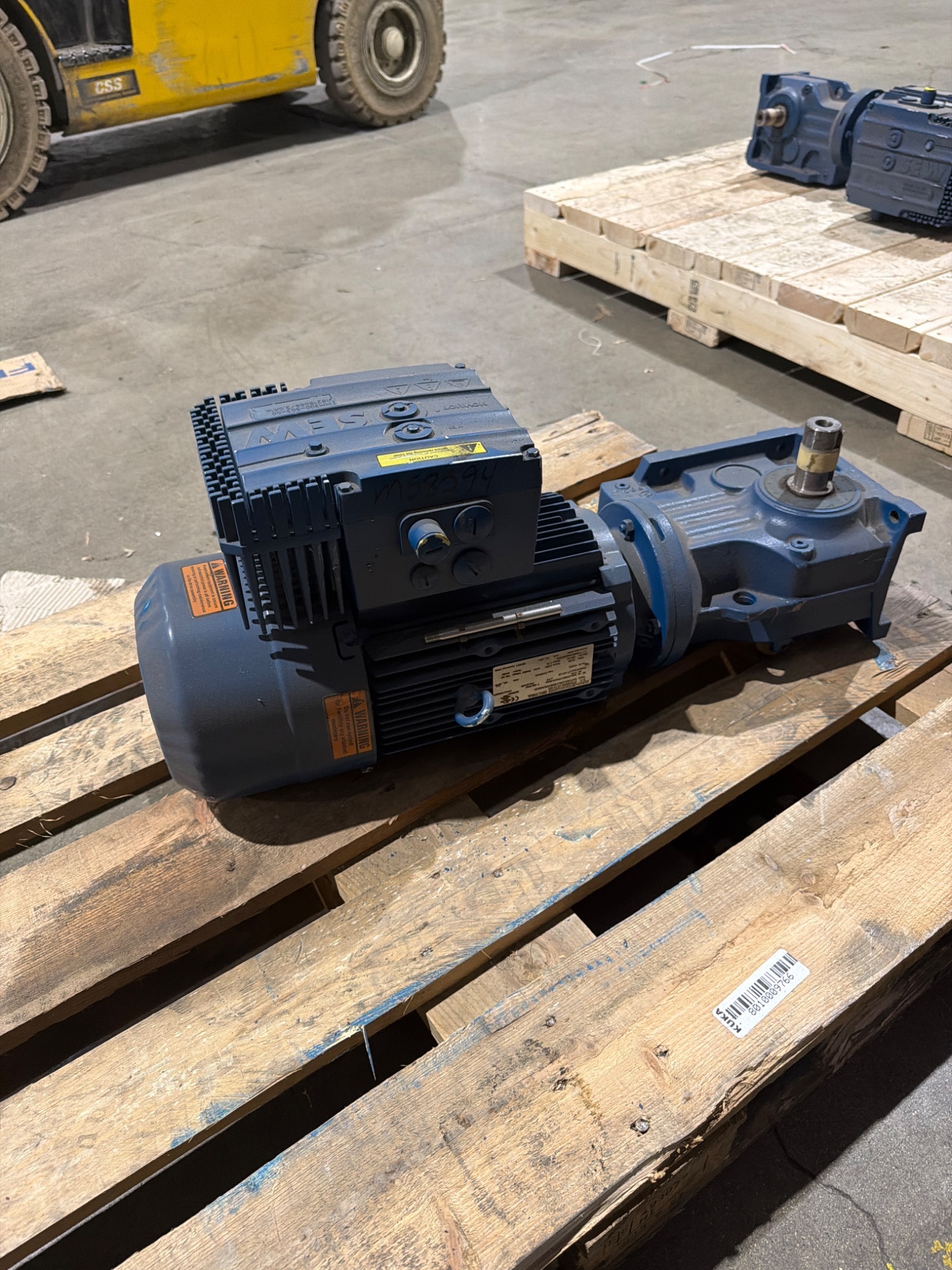

Function: 5 HP gear motor assembly for industrial power transmission
Motor HP: 5.00 HP
Output Speed: 17–107 RPM
Torque Rating: 2,920 in‑lbs
Gear Ratio: 15.86:1
Voltage: 380–500V AC
Current: 5.8A
Brake: 120V AC, 40 Nm
Inverter Duty: VPWM
▸ Key Features:
• Integrated SEW‑EURODRIVE gear reducer and 3‑phase motor assembly
• 5 HP motor with inverter‑duty VPWM design for variable‑frequency operation
• Gear ratio: 15.86:1 for high torque, low‑speed output
• Rated torque: 2,920 in‑lbs
• Output speed range: 17–107 RPM depending on input frequency
• IP54 protection rating for industrial environments
• Continuous duty (CONT‑S1) operation
• Brake assembly included (120V AC), 40 Nm
• Compatible with SEW DR/E and K‑series motor‑gearbox configurations
▸ Applications:
• Conveyor drive systems
• Production line automation
• Material handling machinery
• OEM equipment power transmission
• Heavy‑duty industrial mechanical systems
• Applications requiring high torque at low speed
▸ Alternative Model Numbers:
K47DRE100LC4
K47DRE100LC4BE5
SEW K‑Series Gear Motor
SEW DRE100LC4 Motor Variants
K47 Gearmotor Assemblies
▸ Common Misspellings or Phrasing:
K47‑DRE100LC4
SEW Euro Drive Motor
K47DRE100LC4BE5HRMM30
SEW Gear Motor 5HP
Eurodrive K47 Motor
