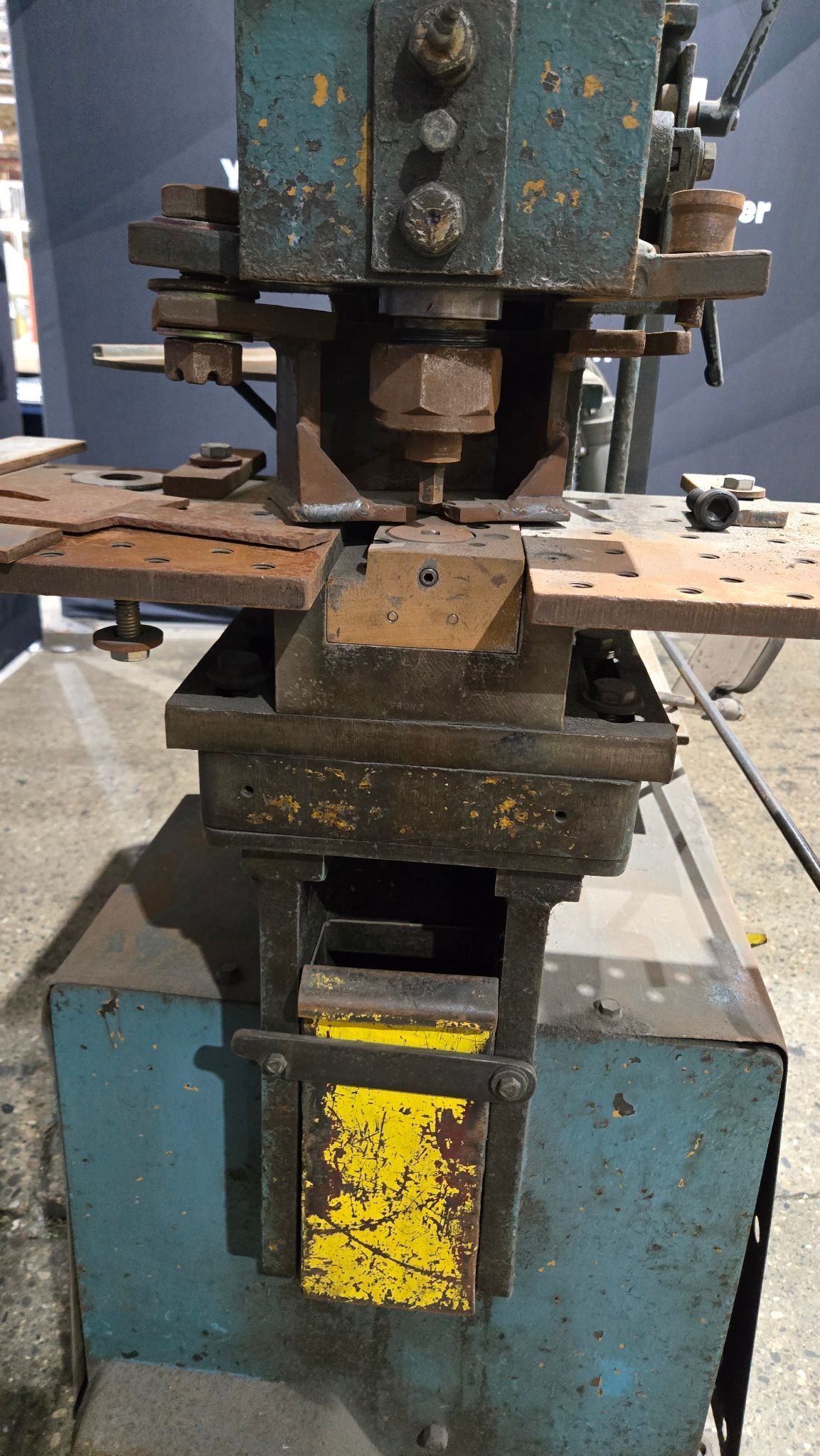

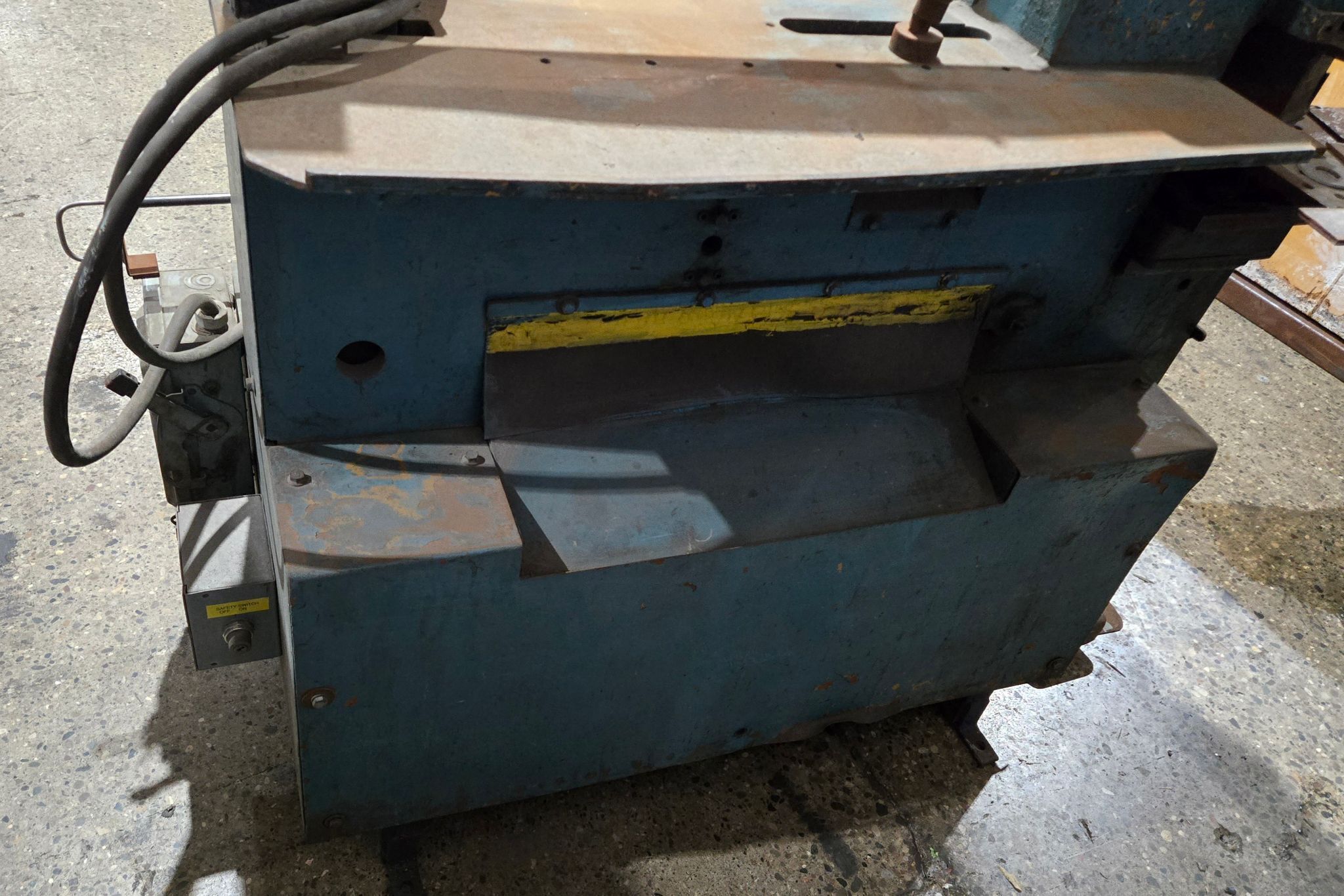

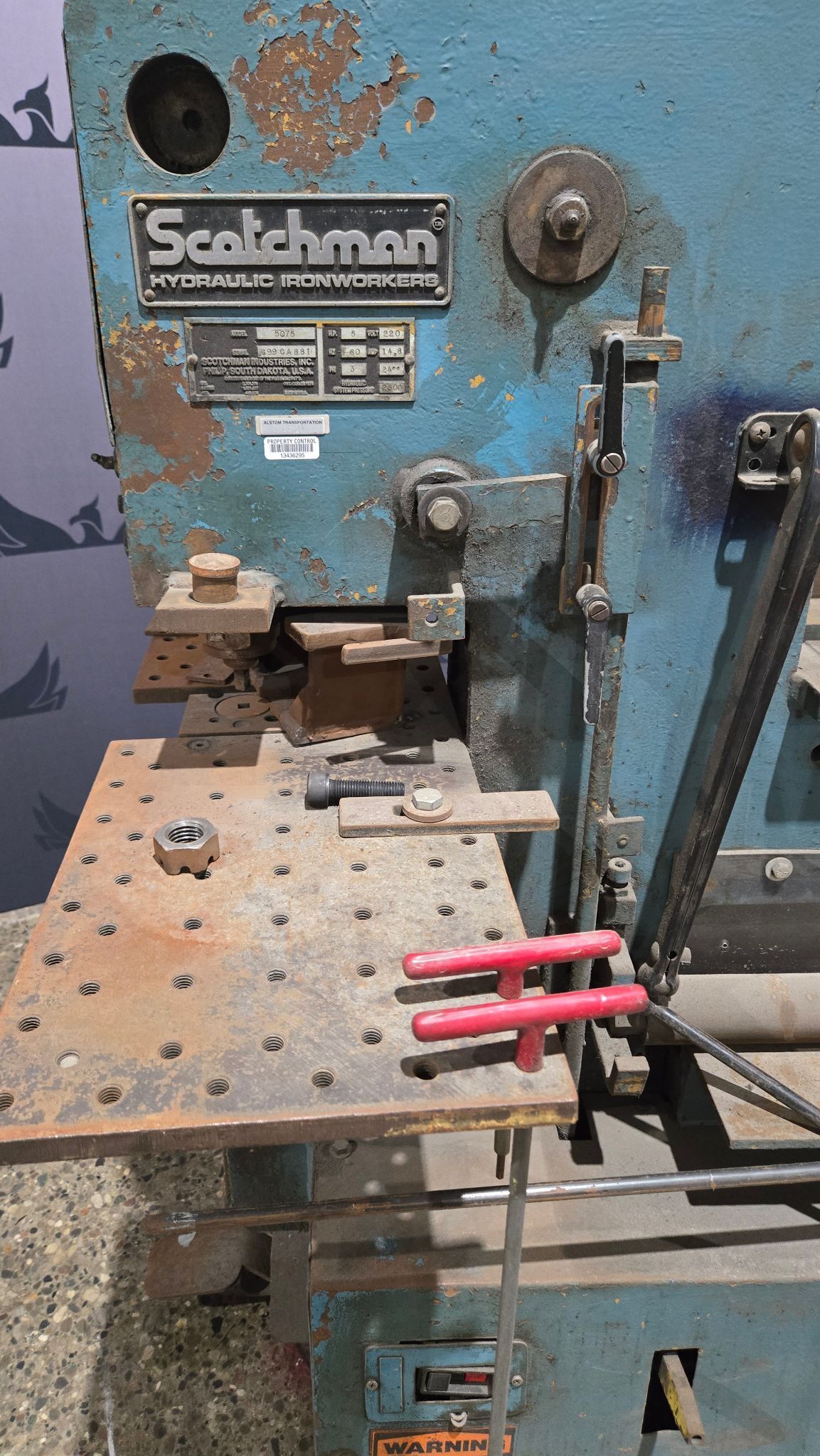

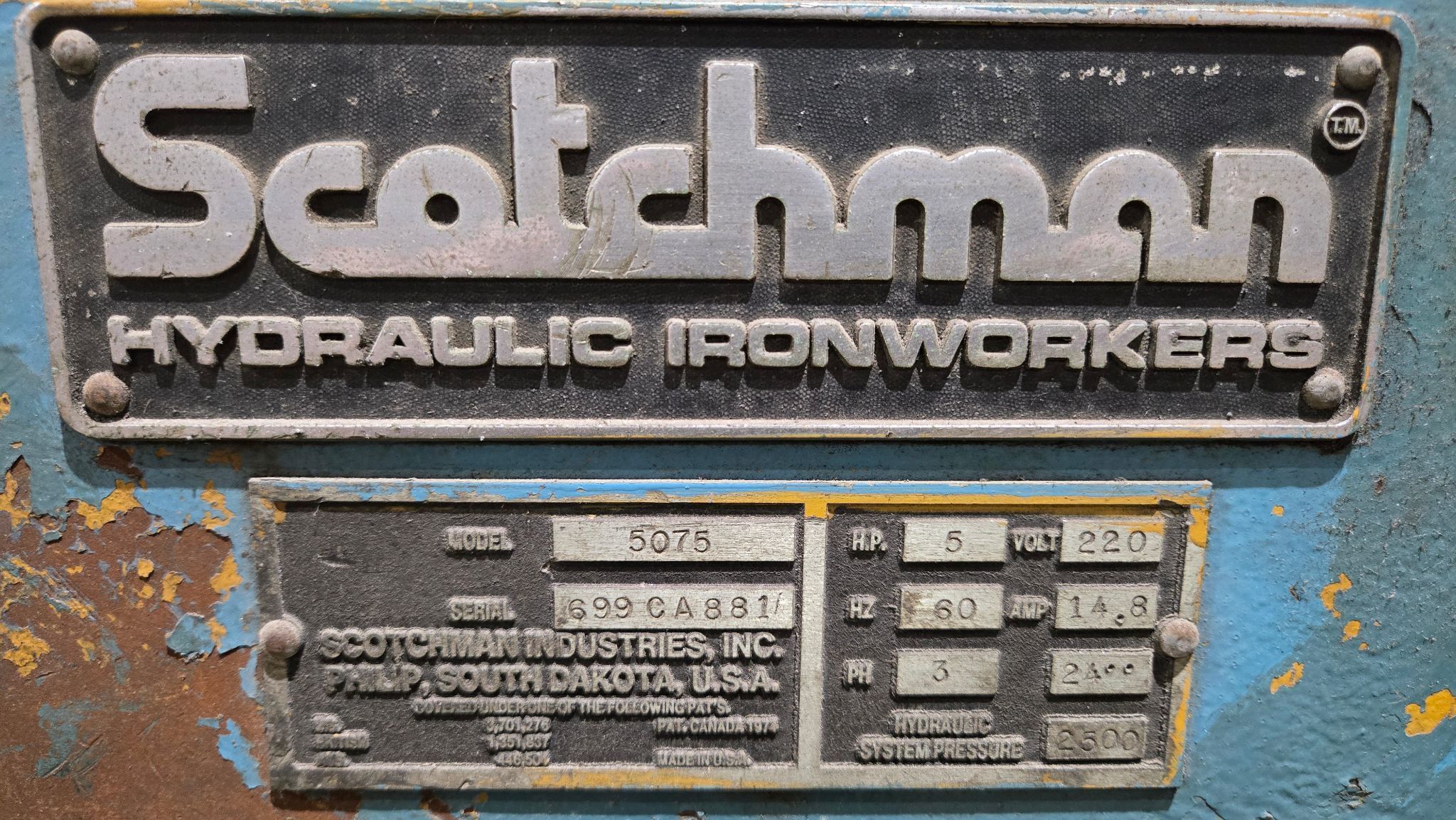

SCOTCHMAN 5075 50 TON PUNCH CAPACITY IRONWORKER USED

Overview

The Scotchman 5075 is a widely used and respected hydraulic ironworker, suitable for various metalworking tasks in industries like construction, manufacturing, and metal fabrication.

Key features and specifications:

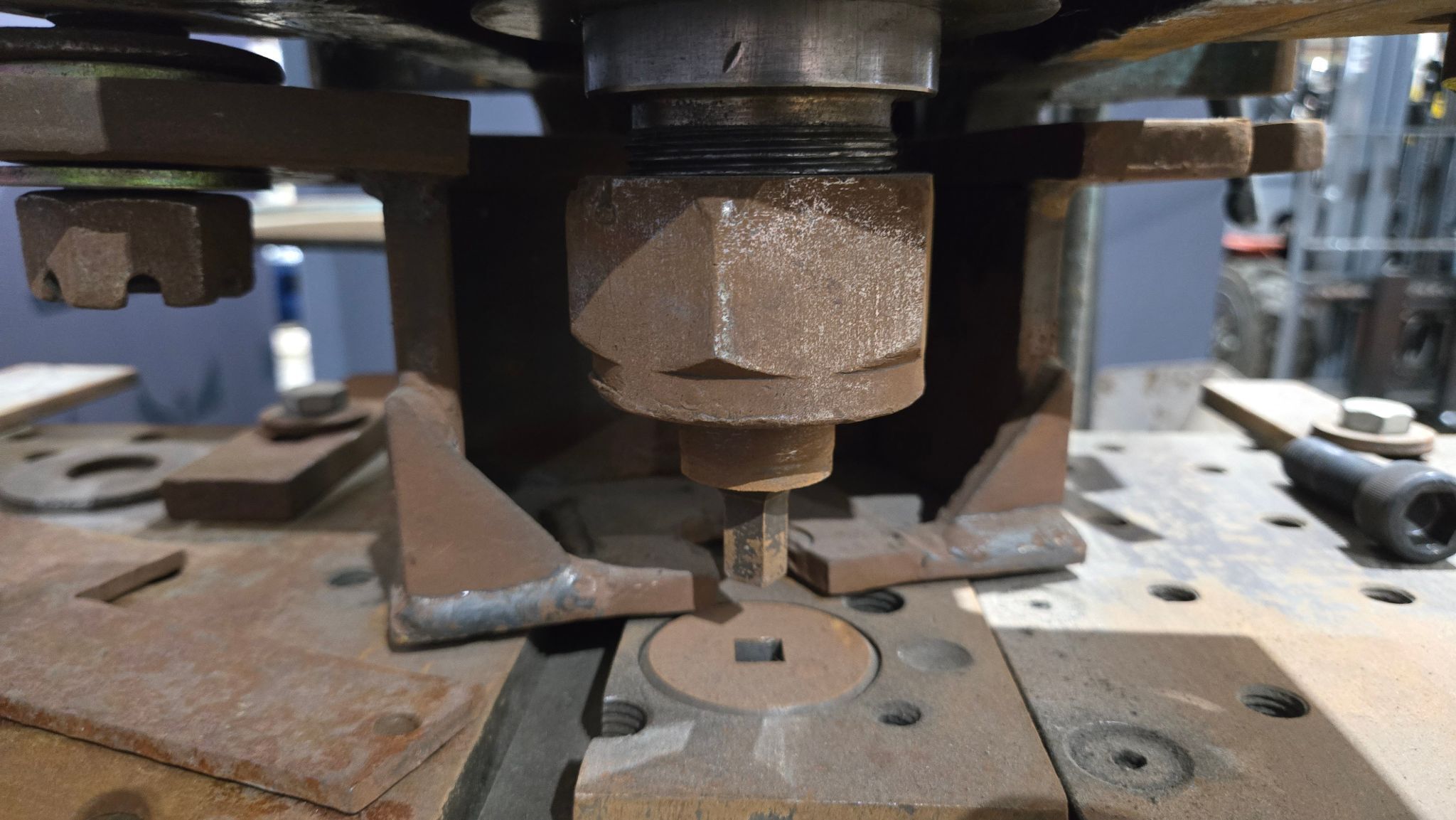

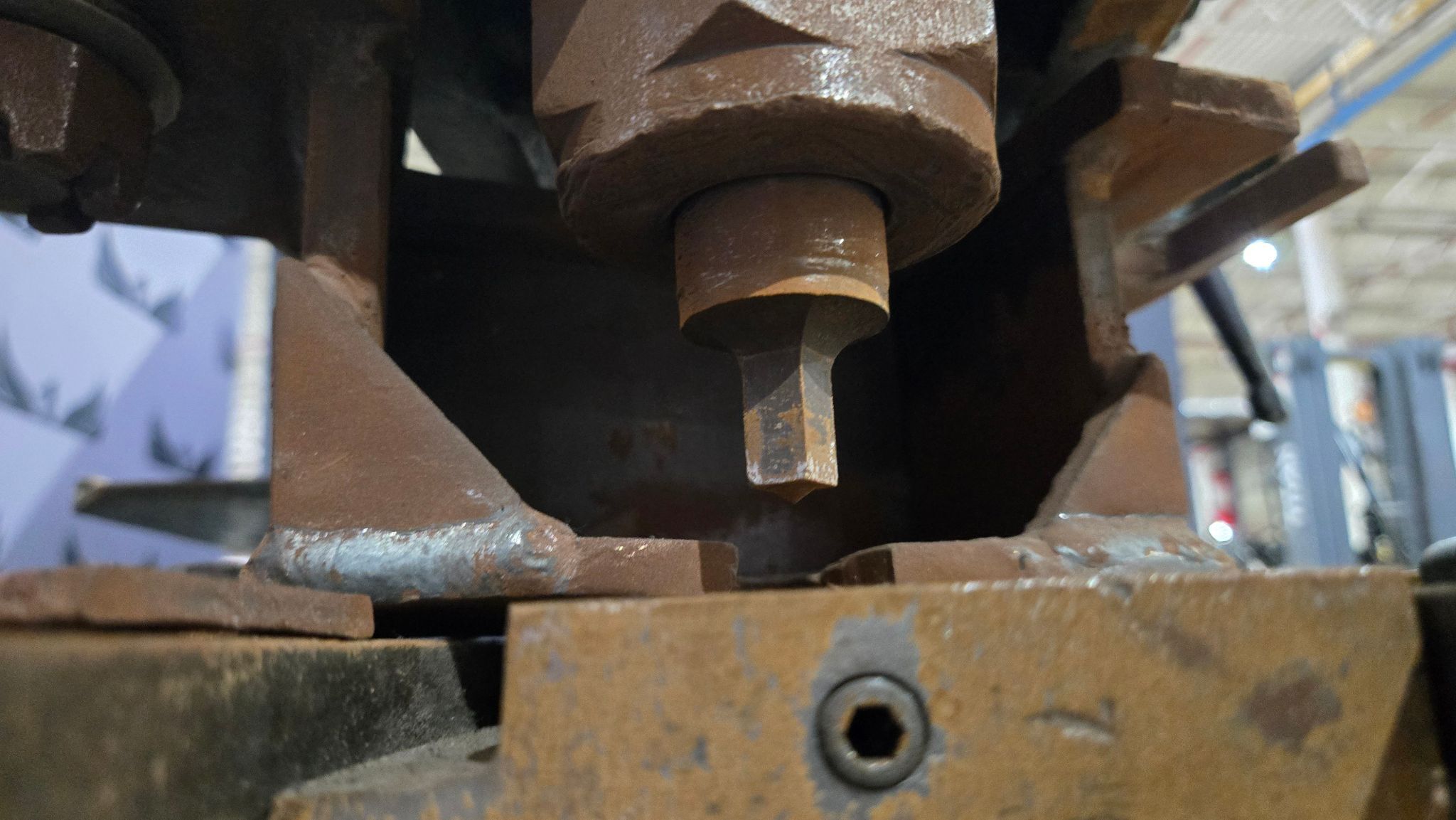

50 Ton Punching Capacity: Capable of punching holes up to 1-1/4″ in 1/2″ thickness and 13/16″ in 3/4″ thickness.

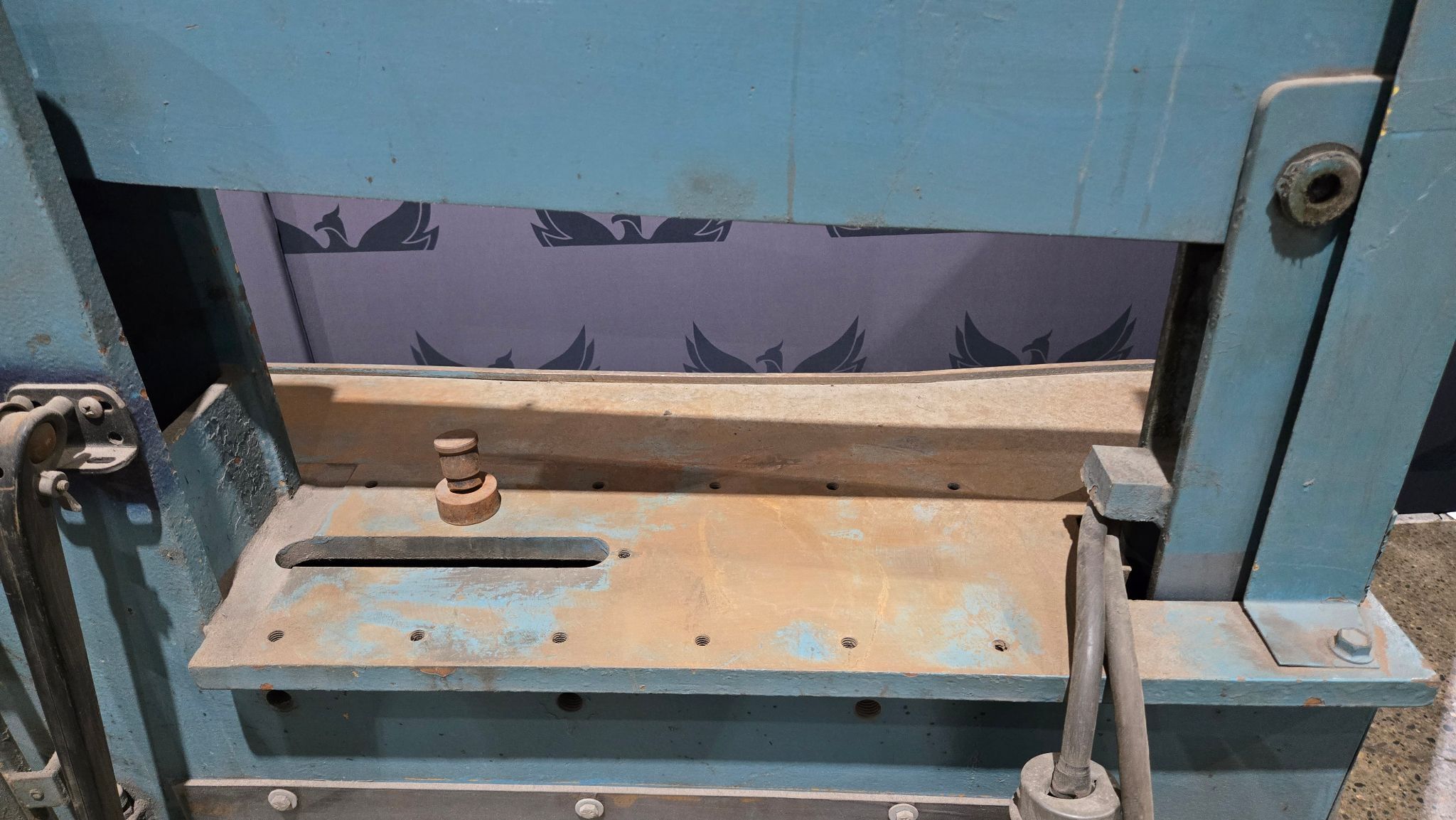

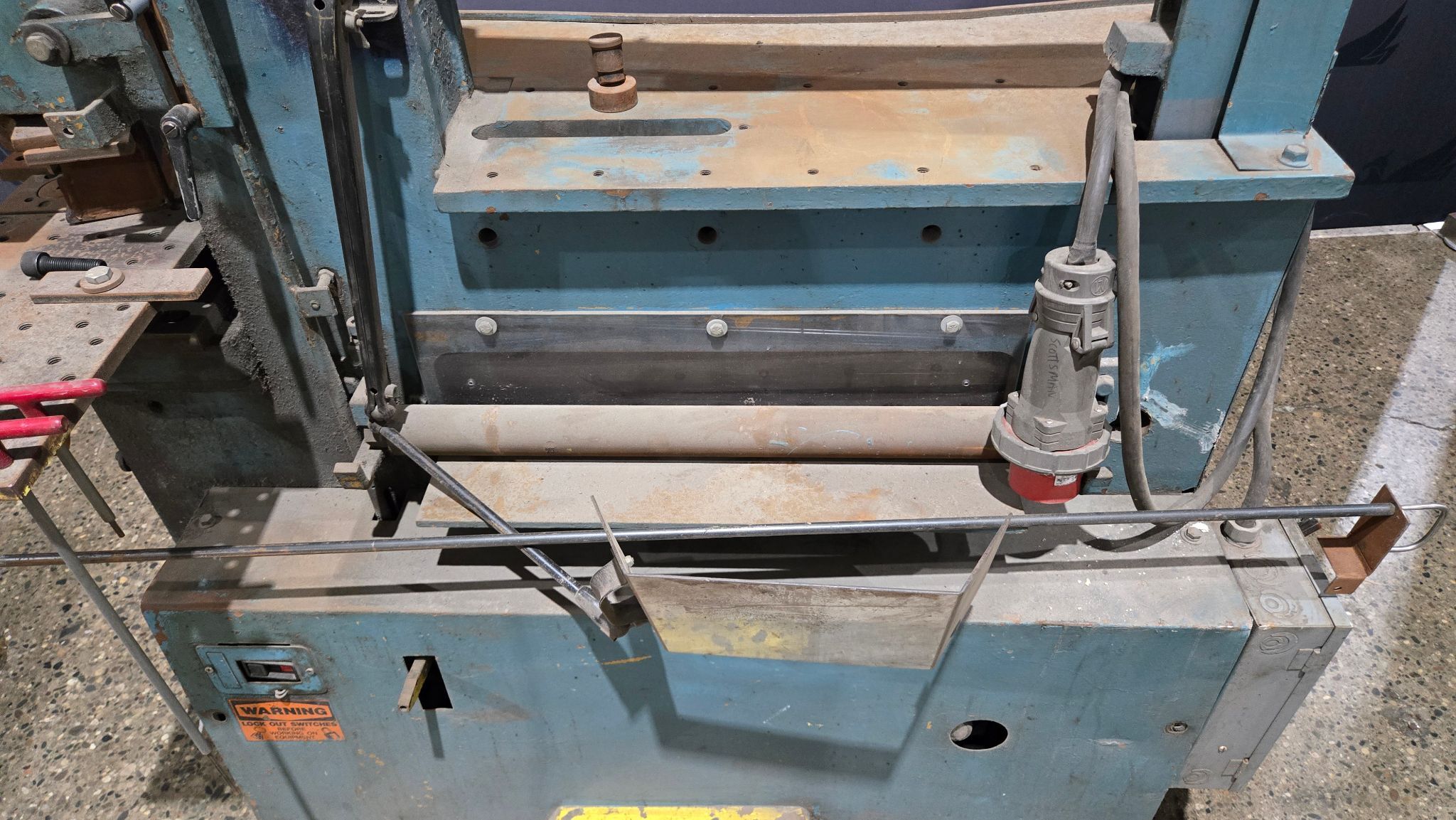

Bar Shear: Shears up to 24 inches wide and 3/16 inch thick, or 6 inches wide and 3/4 inch thick, without blade adjustments. Optional 12 or 24 inch blade lengths are available.
7.5 inch open end throat: Provides generous space for manipulating materials.
Stroke Control: Adjusts cutting and punching actions for optimal tool clearance and stroke rate.
Automatic Hydraulic Relief Valve: Protects the machine from overloading.
Tool Table: Machined work area for mounting quick change component tooling.
Quick Change Tooling: Optional tooling is available for shearing rod, angle, channel, and brakes.

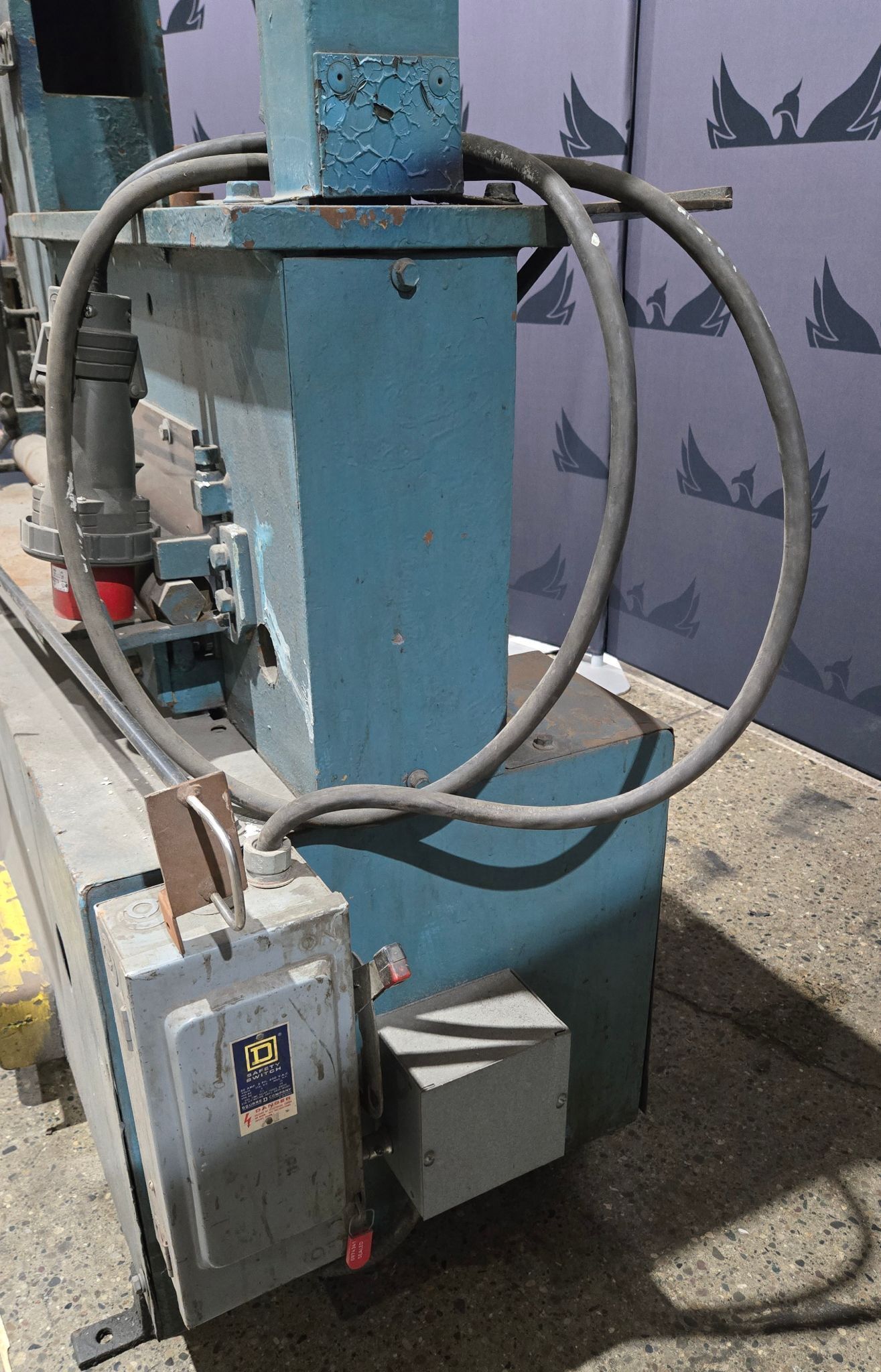

Motor: Typically 5 HP.
Strokes per Minute: 30 (light material).
Dimensions: Approximately 27.5”W x 54”L x 65”H.
Weight: Approximately 2200 lbs.
Hydraulic Operating Pressure: 2500 PSI.
