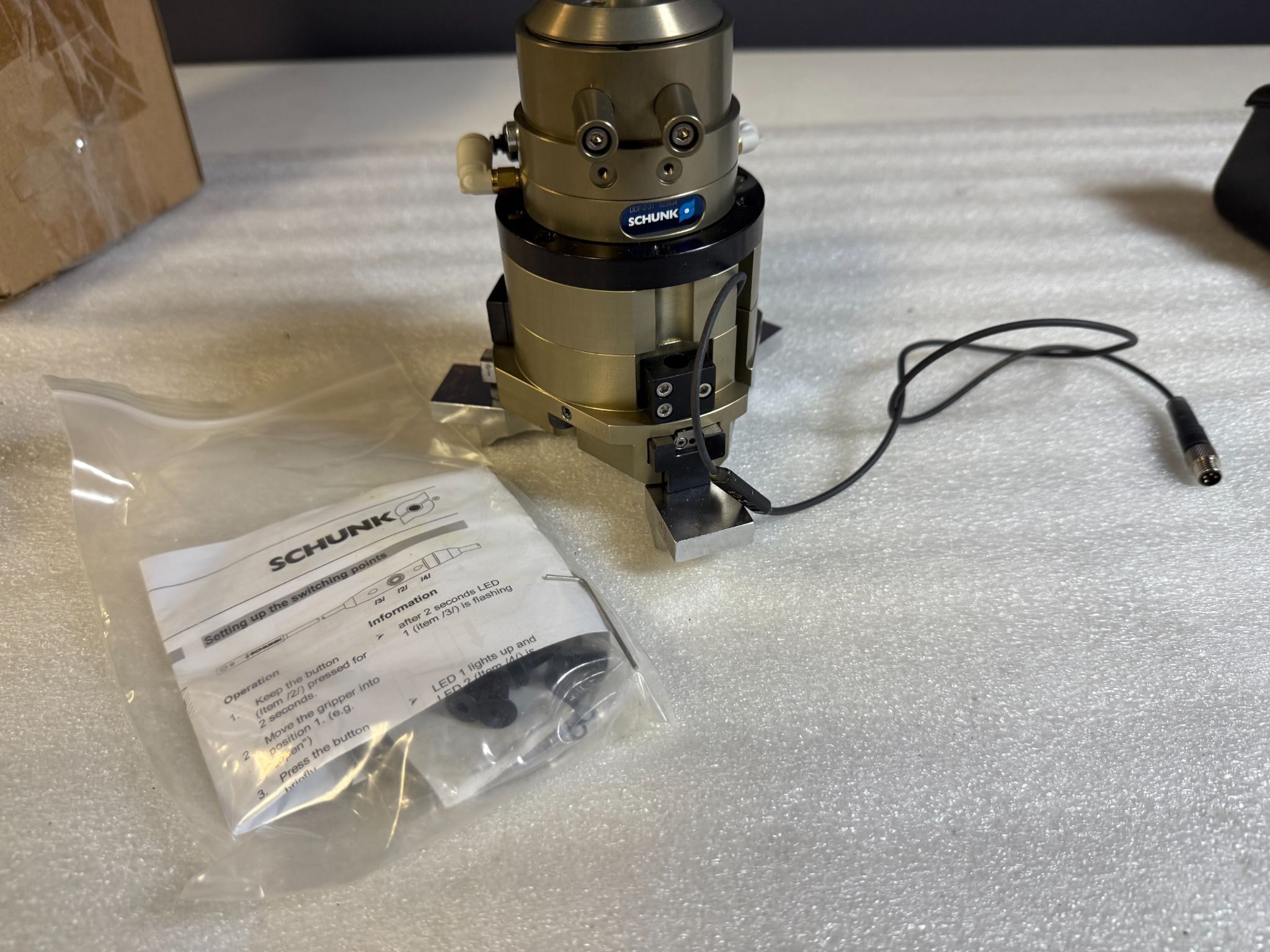

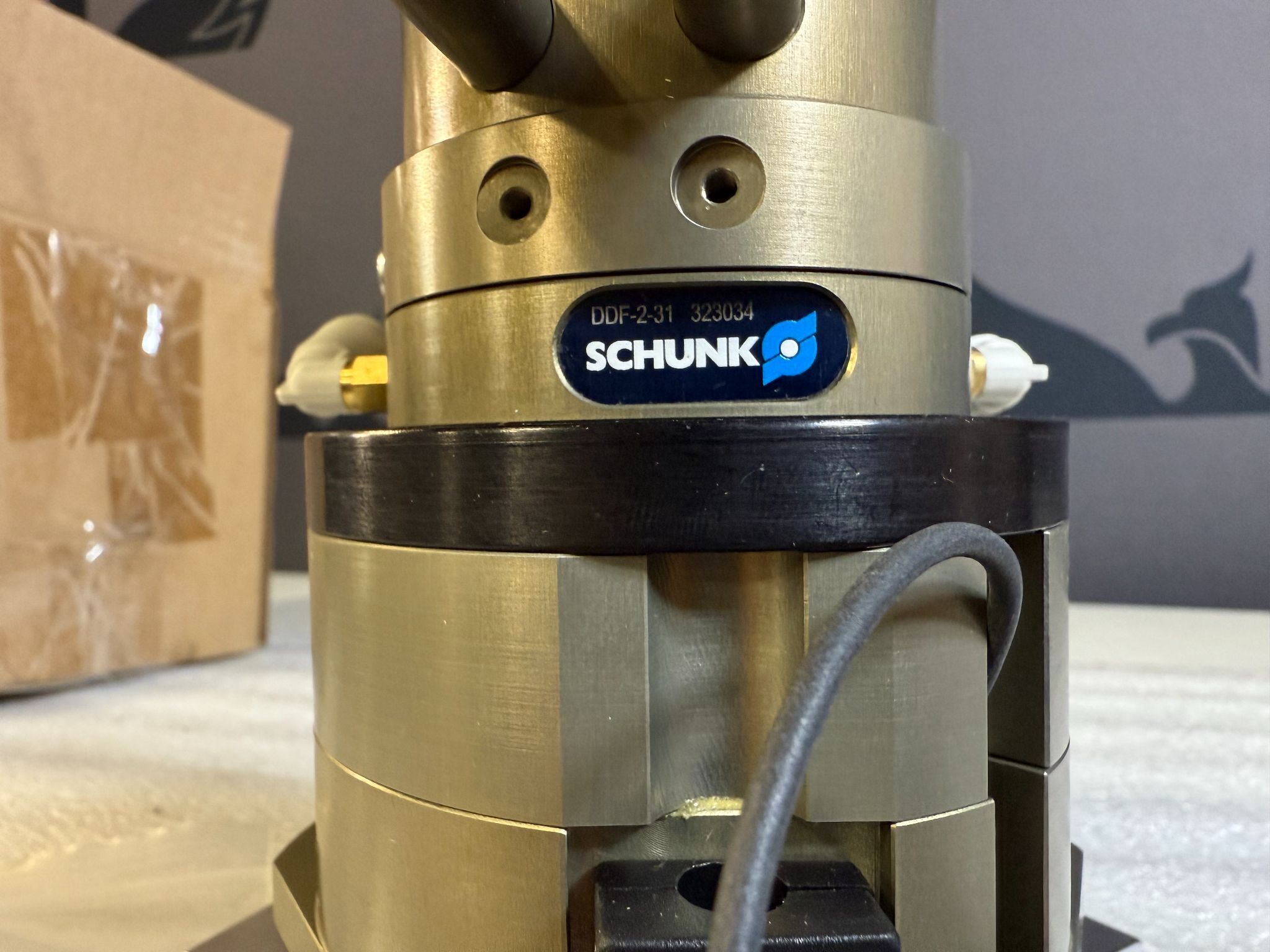

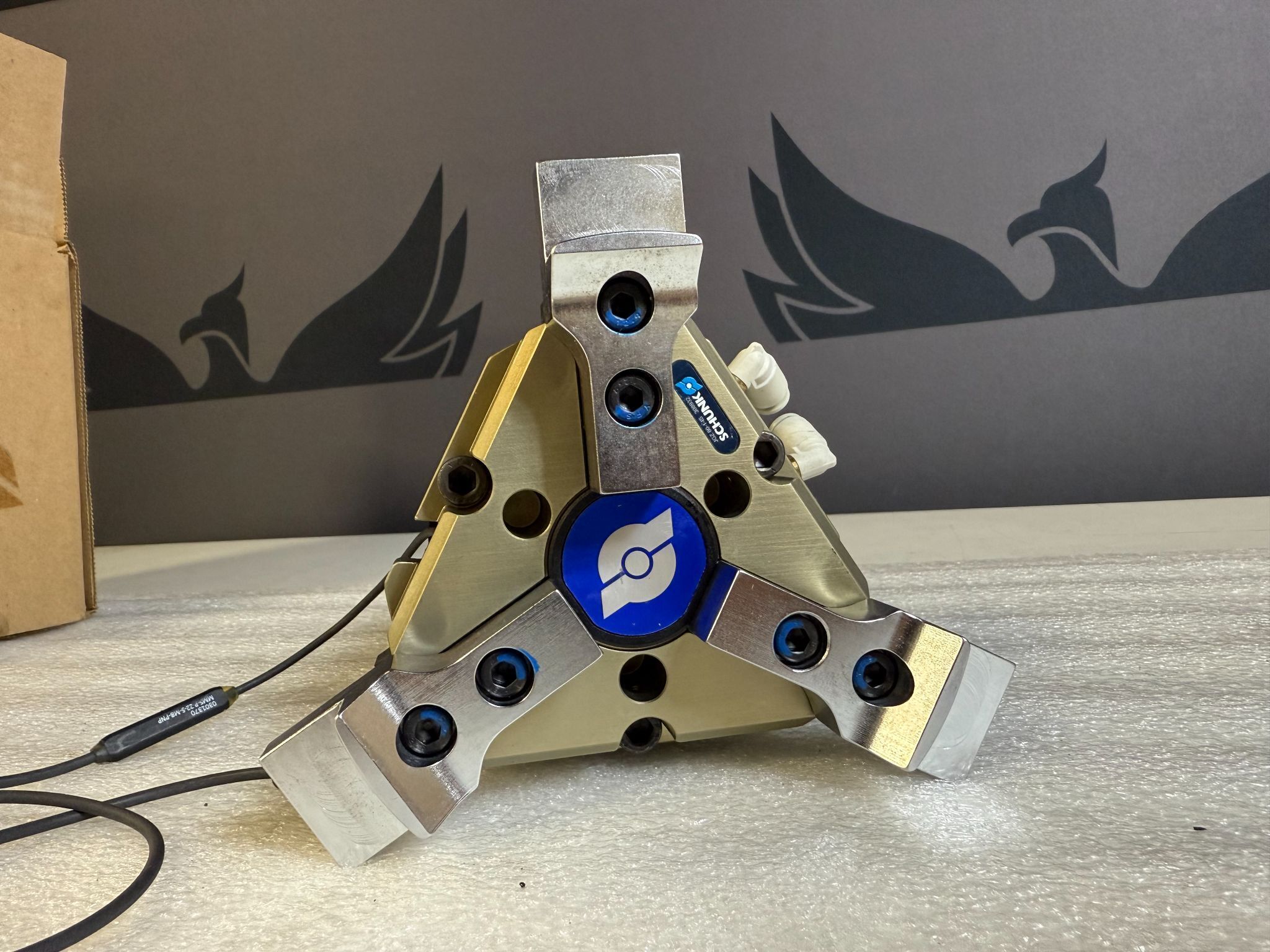

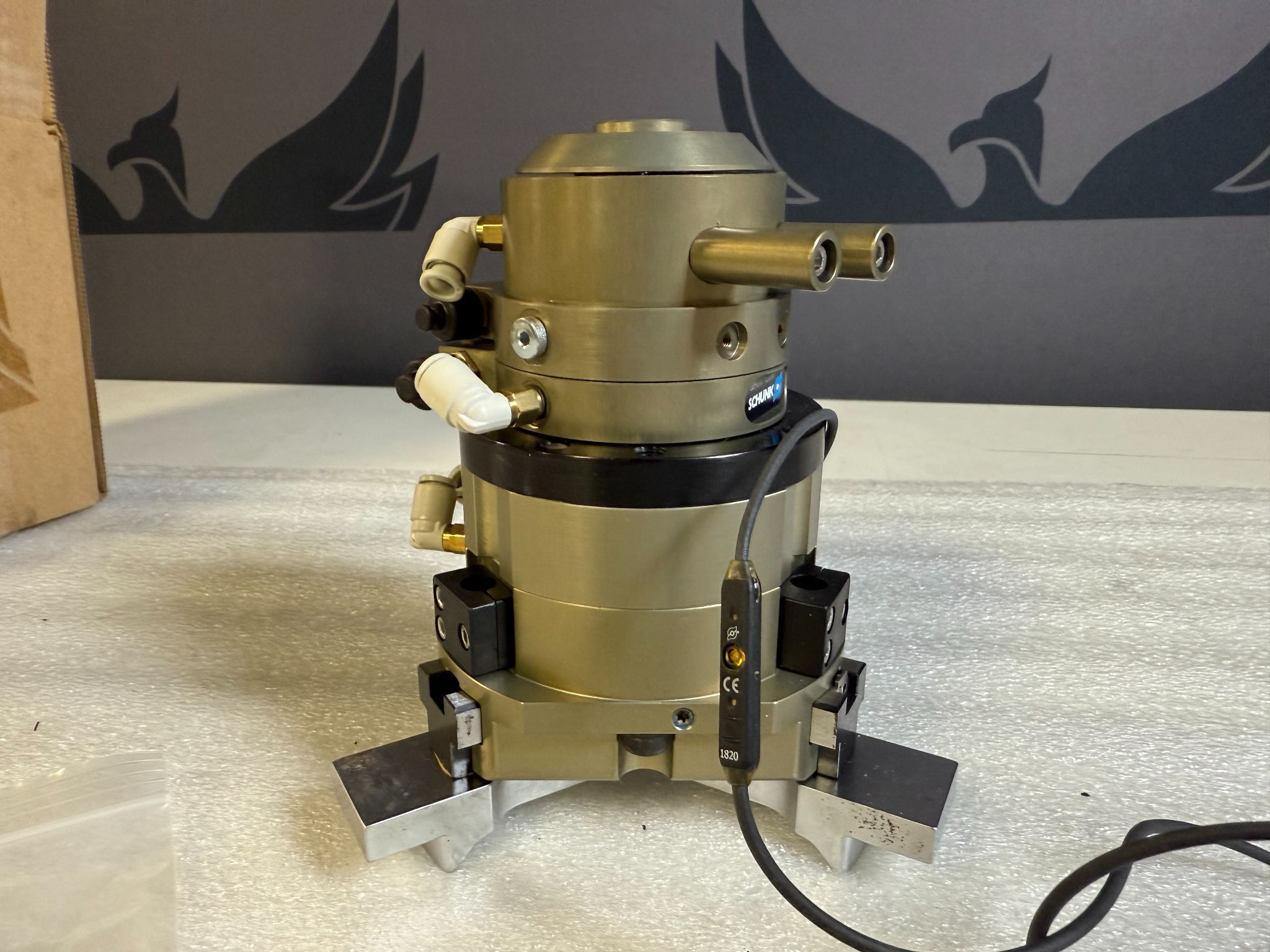

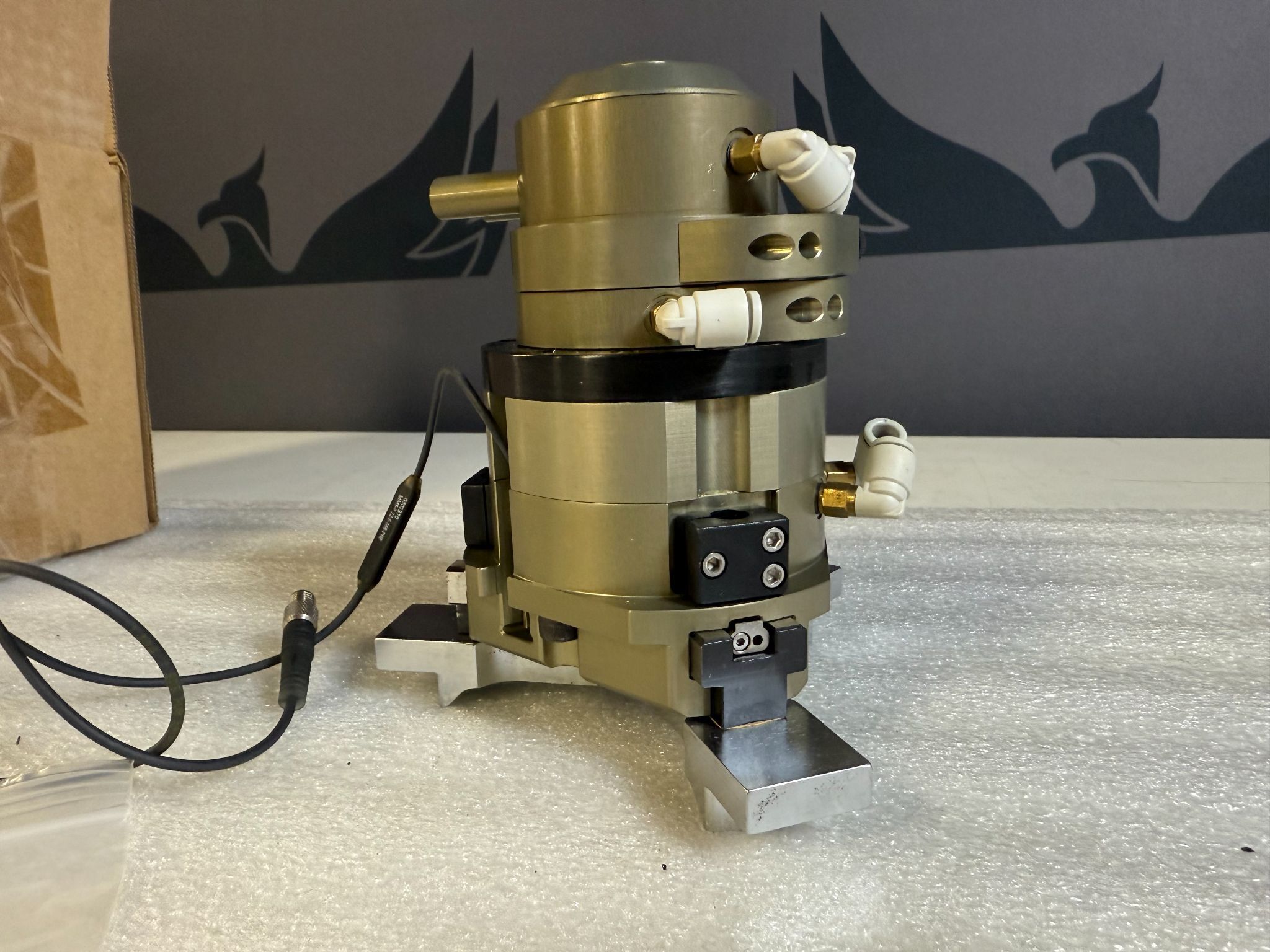

SCHUNK DDF 2-031-P2-E4 (323034) + JGZ 80-1 IS (308932) Pneumatic 3-Jaw Gripper Assembly – USED

Specification Table

Manufacturer: SCHUNK Assembly Configuration: DDF 2-031-P2-E4 + JGZ 80-1 IS + MMS-P 22-S-M8-PNP Condition: USED Product Type: Pneumatic 3-Jaw Centric Gripper Assembly Rotary Feed-Through: DDF 2-031-P2-E4 Part Number: 323034 Rotary Module Type: Pneumatic and Electrical Feed-Through Angle of Rotation: >360° Pneumatic Feed-Throughs: 2 Electrical Feed-Throughs: 4 Maximum Pressure: 10 bar Flow Rate: 100 l/min per channel @ 6 bar Maximum Voltage: 60 V Maximum Current: 1 A Maximum Drive Speed: 120 RPM Nominal Torque: 0.8 Nm Starting Torque: 1.3 Nm Robot Interface: ISO 9409-1-31.5-4-M5 Gripper Model: JGZ 80-1 IS Part Number: 308932 Gripper Type: 3-Jaw Centric Universal Gripper Operating Principle: Wedge-Hook Kinematics Actuation: Pneumatic Stroke Per Jaw: 8 mm Opening Force: 1450 N Minimum Spring Force: 370 N Operating Pressure: 4-6.5 bar Recommended Workpiece Weight: 5 kg Maximum Finger Length: 90 mm Maximum Finger Weight: 0.6 kg Repeat Accuracy: 0.01 mm Protection Rating: IP40 Maximum Jaw Loads: Mx 48 Nm My 76 Nm Mz 44 Nm Fz 1200 N Sensor: MMS-P 22-S-M8-PNP Part Number: 301370 Sensor Type: Programmable Magnetic Switch Output Type: PNP Connector: M8 Monitoring Capability: Two Programmable Positions Ambient Temperature: 5°C to 60°C (DDF) 5°C to 90°C (JGZ)
