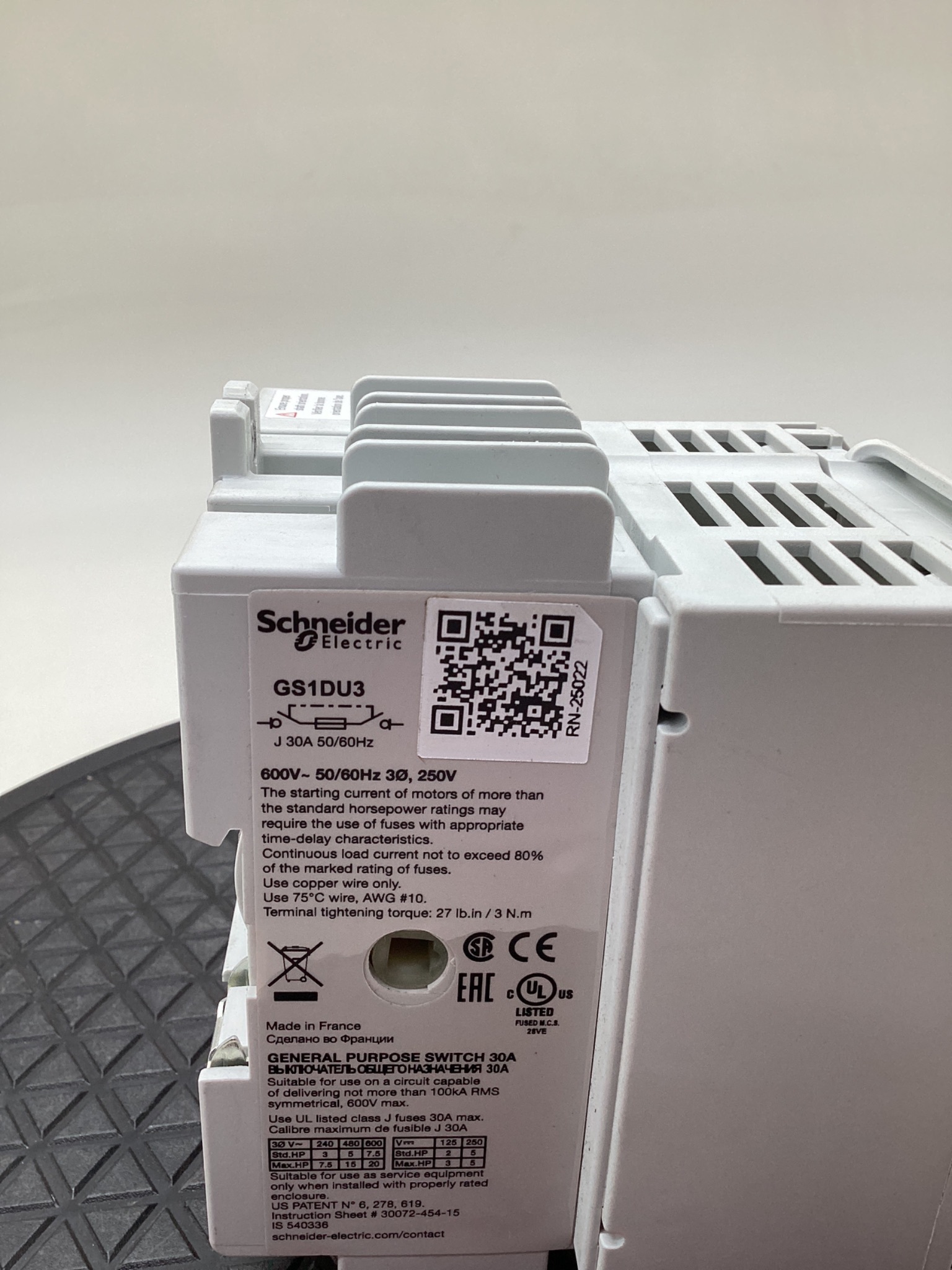

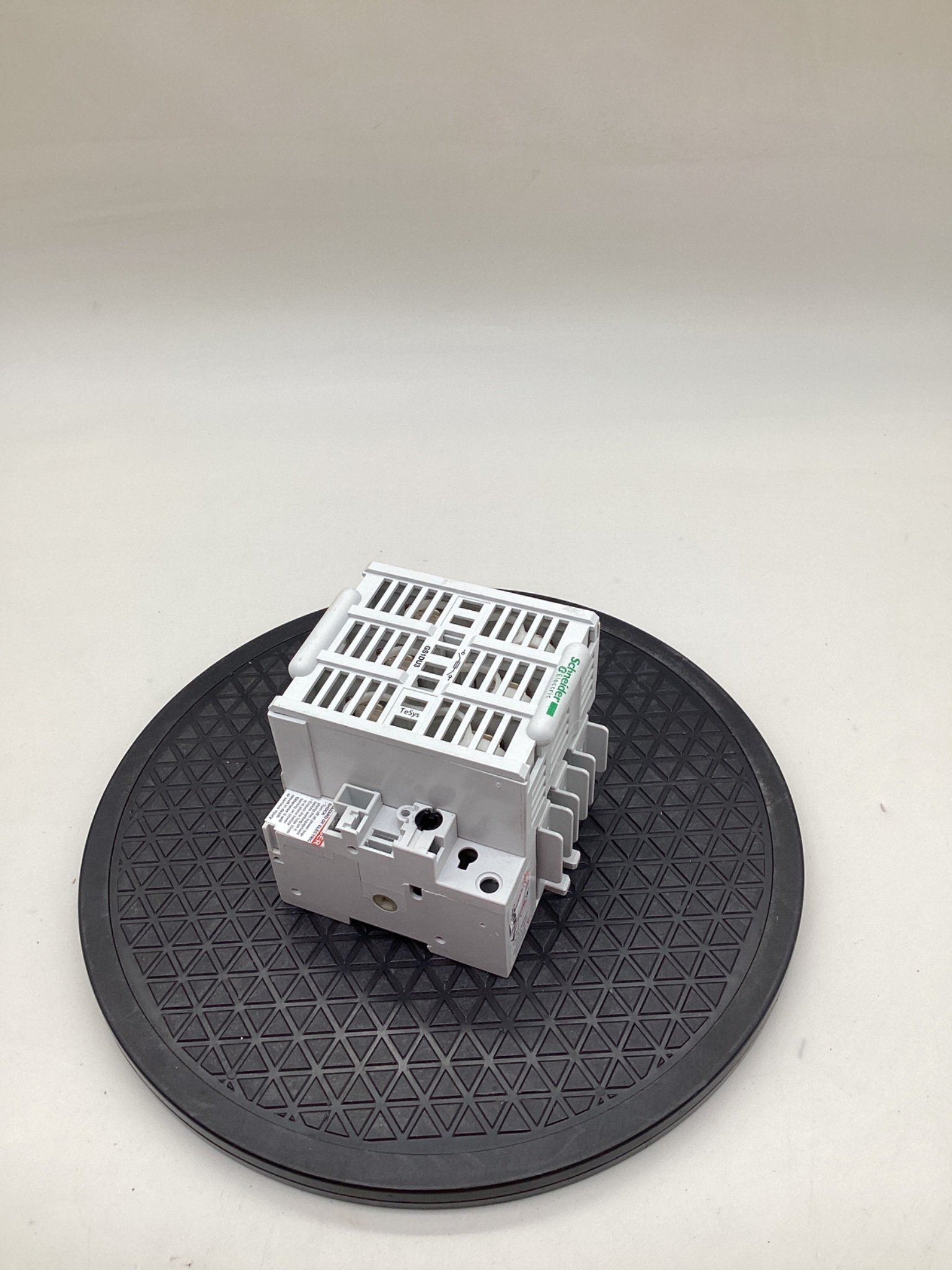

Schneider Electric GS1DU3 General Purpose Fusible Disconnect Switch NEW

Specification Table

IDENTIFICATION Manufacturer: Schneider Electric Series: TeSys GS Part Number: GS1DU3 Product Type: Fusible Switch Disconnector Condition: NEW Country of Manufacture: France YOM: n/a   FUNCTION Primary Function: Manual circuit isolation and disconnect Fuse Type: Class J Fuse Accommodation: Up to 30A Number of Poles: 3   ELECTRICAL Rated Operational Voltage: 600 VAC Maximum Frequency: 50/60 Hz Switch Rating: 30 A Motor Rating @ 240 VAC 3-Phase: 7.5 HP Motor Rating @ 480 VAC 3-Phase: 15 HP Motor Rating @ 600 VAC 3-Phase: 20 HP Motor Rating @ 125 VAC 1-Phase: 3 HP Motor Rating @ 250 VAC 1-Phase: 5 HP Short Circuit Rating: 100 kA RMS Symmetrical Maximum Fuse Rating: 30 A   CONSTRUCTION Device Type: Fusible Disconnect Switch Terminal Material Compatibility: Copper Conductors Finger-Safe Design: Yes Operating Method: Manual   INSTALLATION Mounting Method: DIN Rail or Panel Mount Wire Temperature Rating: 75°C Maximum Conductor Size: AWG #10 Terminal Tightening Torque: 27 lb-in (3 N·m)   COMPLIANCE UL Listed: Yes CSA Certified: Yes CE Marked: Yes EAC Marked: Yes   ADDITIONAL INFORMATION Service Entrance Rated: Not specified Enclosure Included: No Handle Included: Not specified Lockout Provision: Not specified
