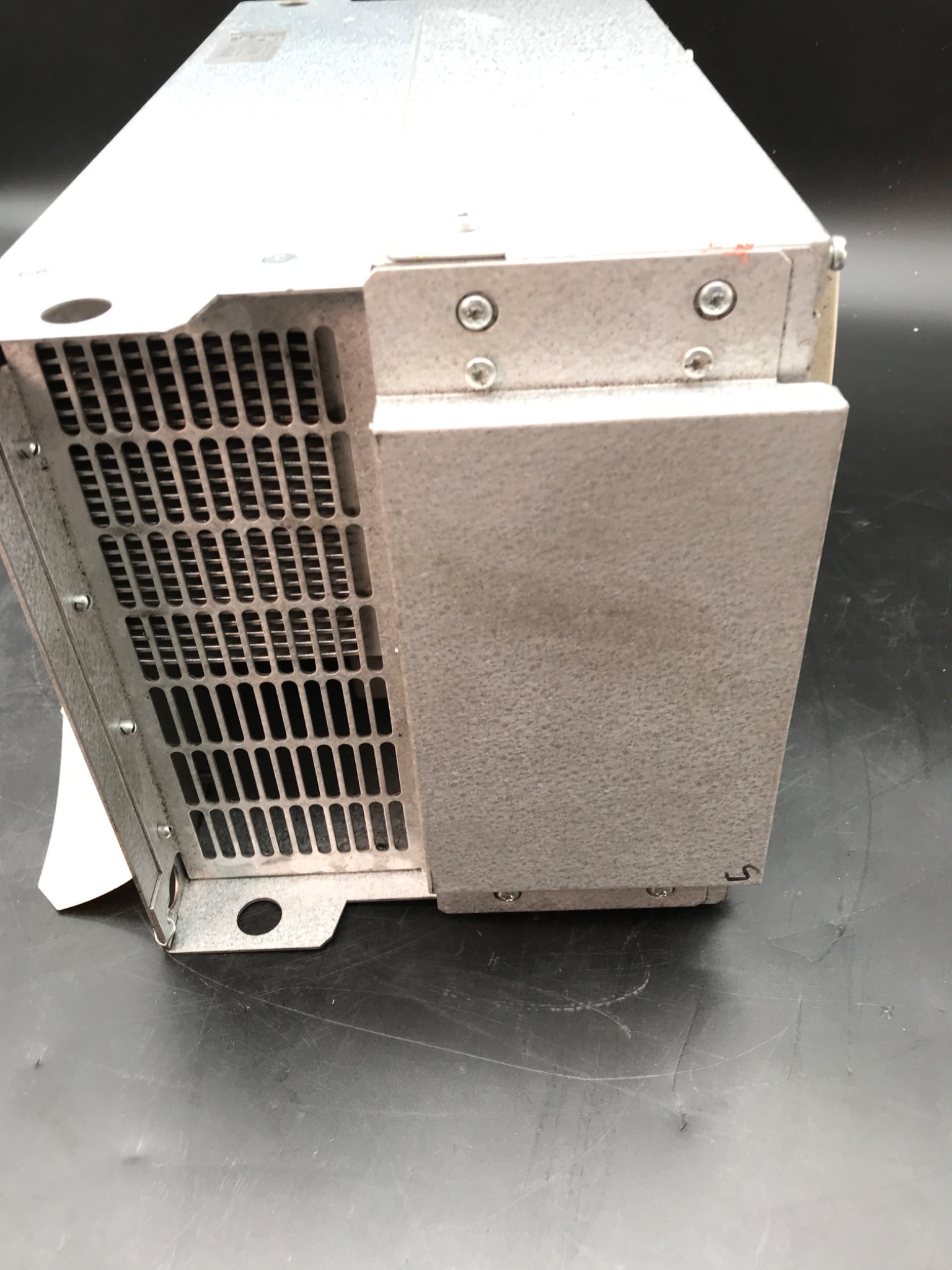

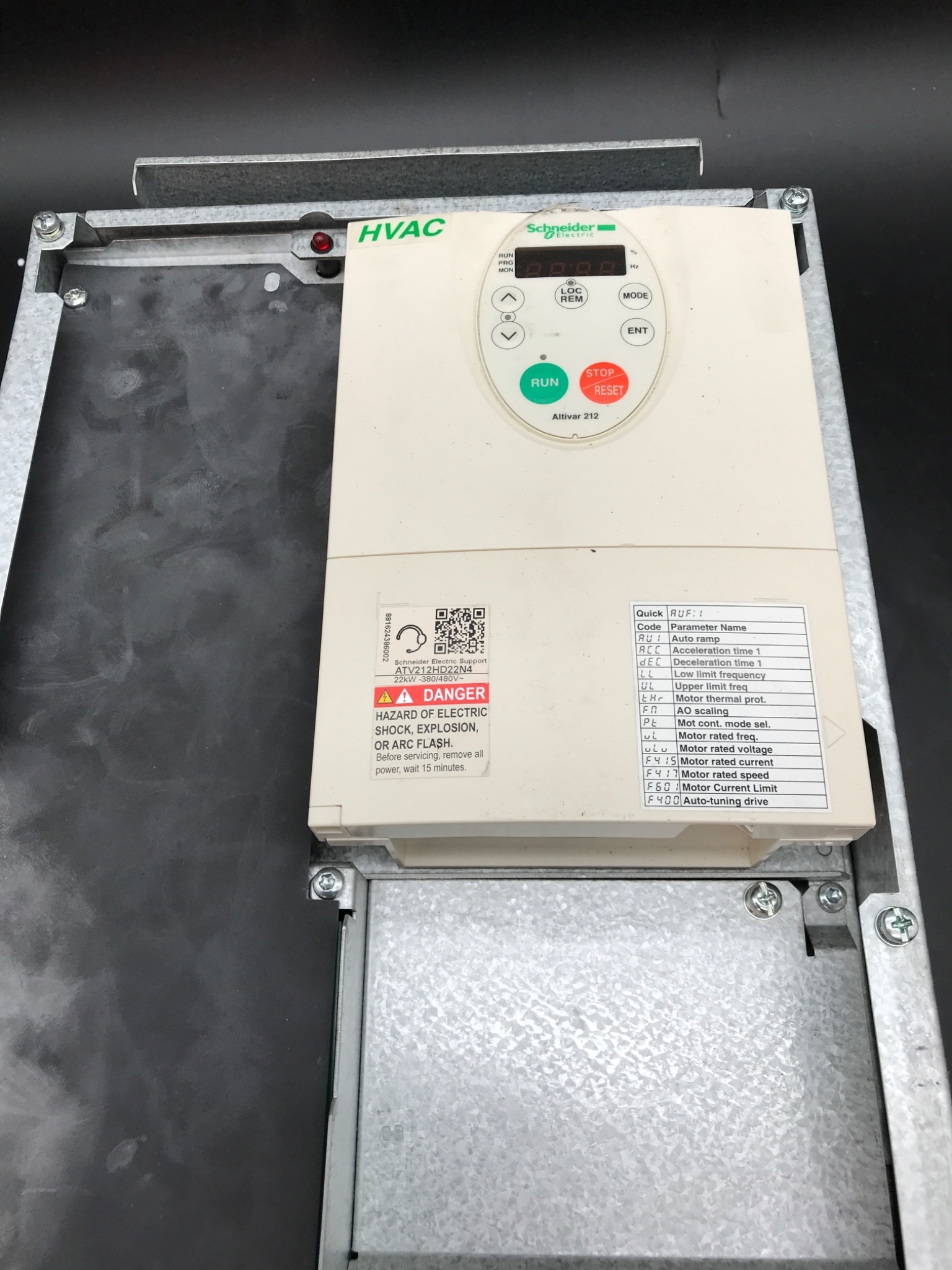

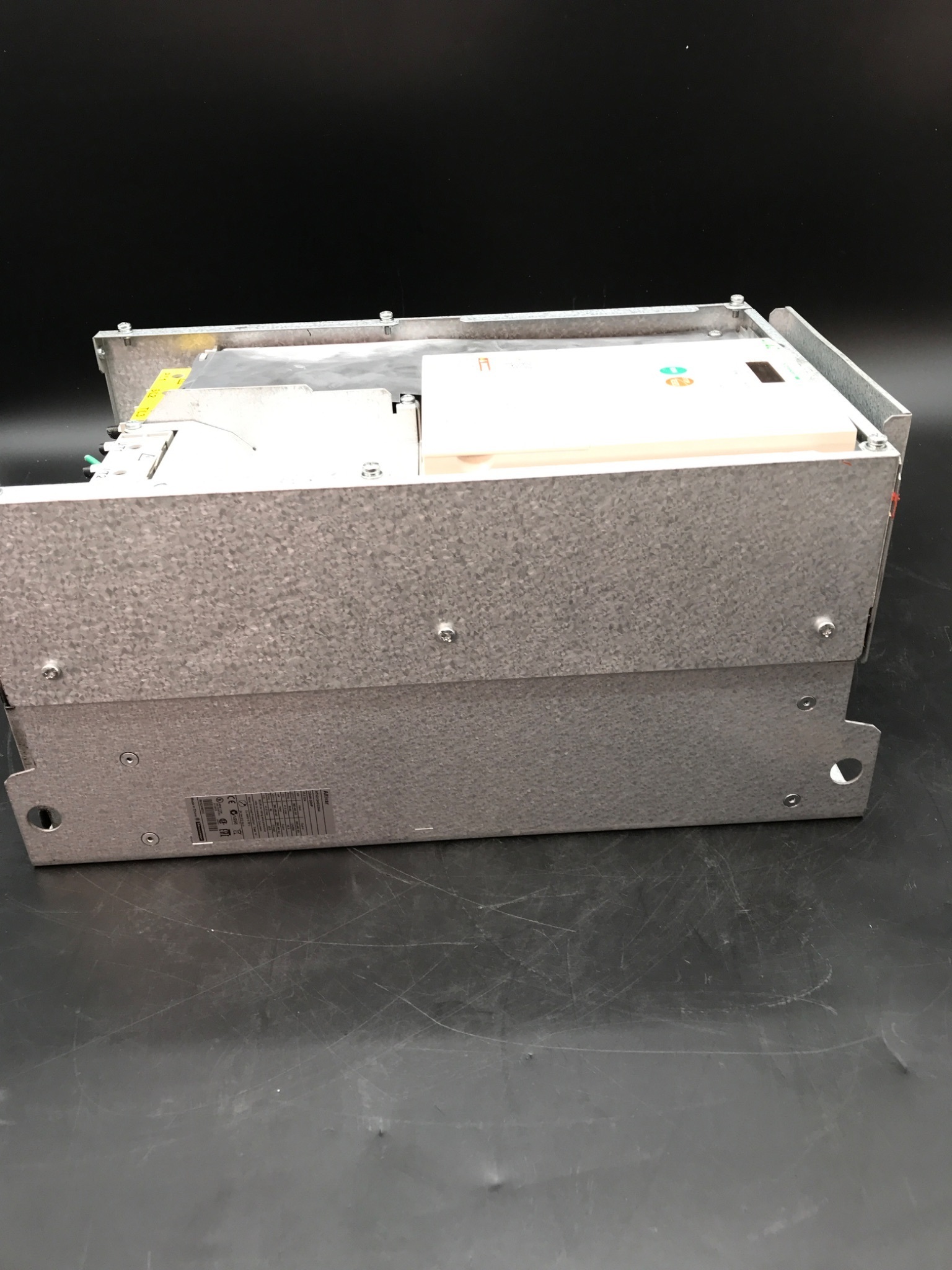

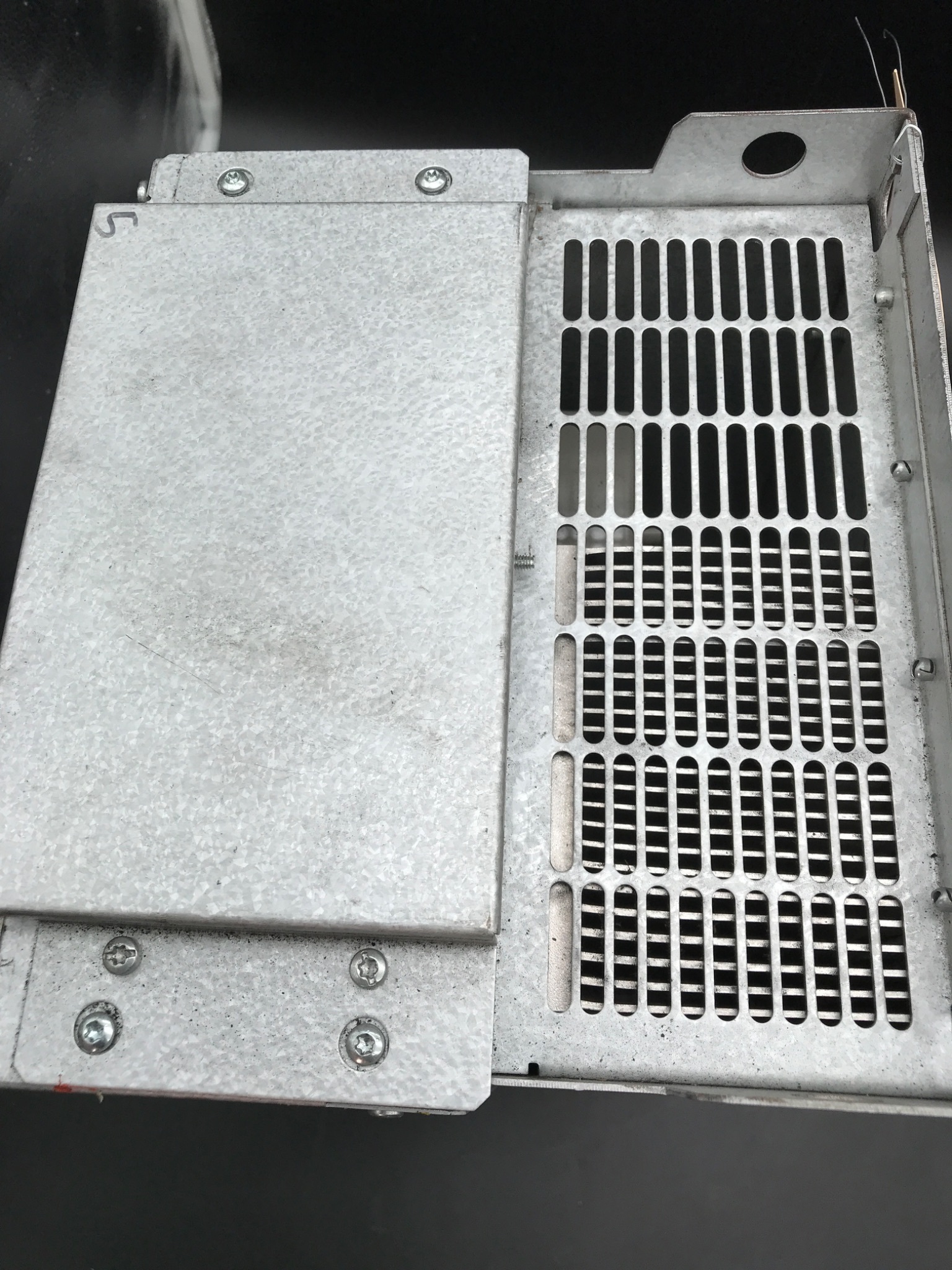

Schneider Electric ATV212HD22N4 Altivar 30HP 480V VFD USED – Missing Front Cover

Specification Table

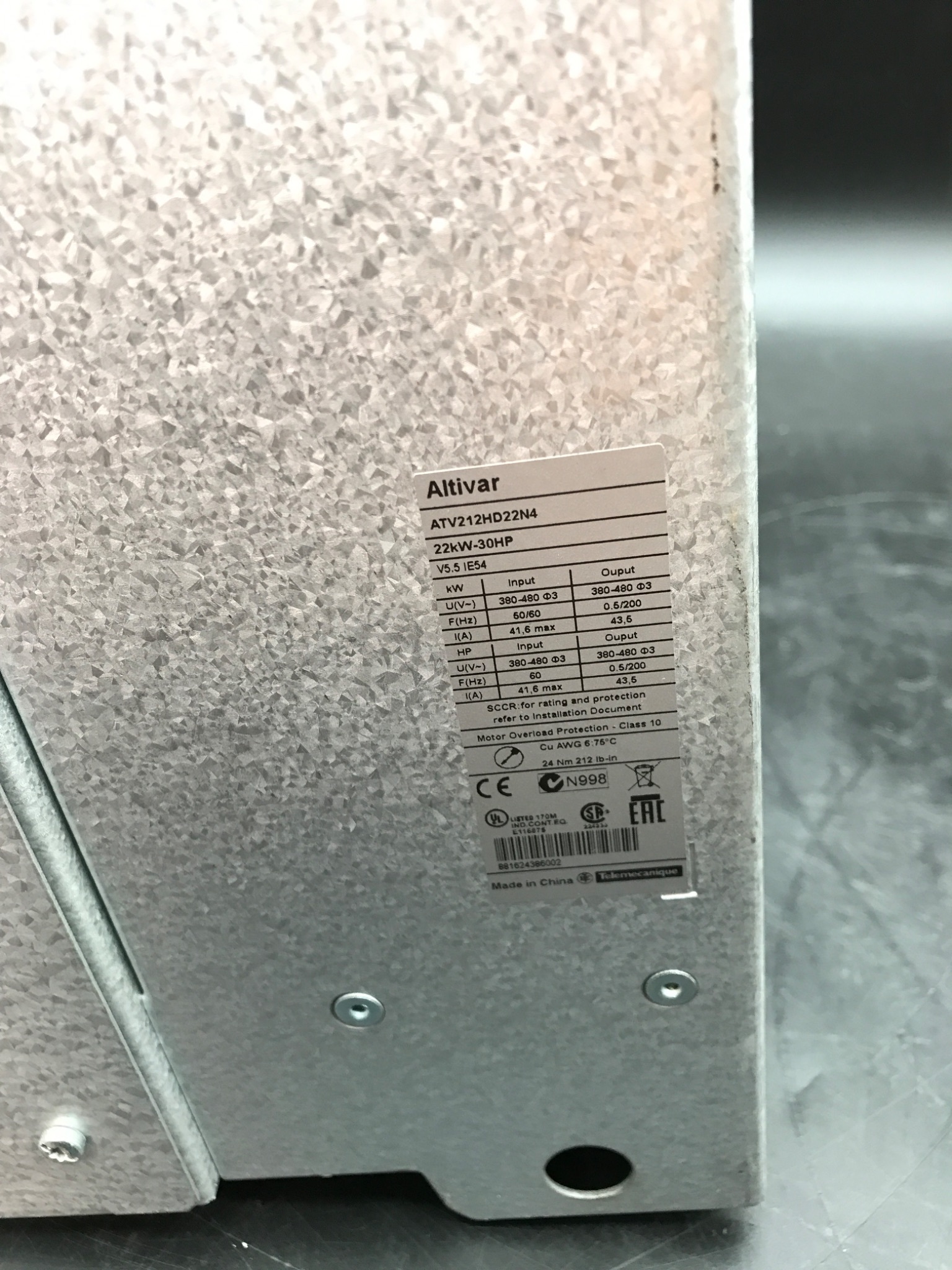

IDENTIFICATION Manufacturer: Schneider Electric Model / Part Number: ATV212HD22N4 Product Family: Altivar 212 Product Type: Variable Frequency Drive Application Class: HVAC Condition: USED YOM: n/a Country of Manufacture: China   POWER RATING Rated Power: 22 kW Motor Power: 30 HP Motor Overload Protection: Class 10   INPUT Input Voltage: 380-480 VAC Input Phases: 3 Input Frequency: 60 Hz Maximum Input Current: 41.6 A Input Terminals: R/L1, S/L2, T/L3   OUTPUT Output Voltage: 380-480 VAC Output Phases: 3 Output Frequency: 0.5-200 Hz Rated Output Current: 43.5 A Output Terminals: U/T1, V/T2, W/T3   CONTROL / INTERFACE Operator Display: Digital Local Run Control: Yes Stop / Reset Control: Yes Local / Remote Selection: Yes Parameter Programming: Keypad Frequency Display: Hz Status Modes: RUN / PRG / MON   MOTOR PARAMETERS Motor Rated Frequency: Configurable Motor Rated Voltage: Configurable Motor Rated Current: Configurable Motor Rated Speed: Configurable Motor Current Limit: Configurable Motor Thermal Protection: Configurable   POWER TERMINALS DC Bus Positive: PA/+ DC Bus Negative: PC/- Protective Earth: Present Terminal Torque: 24 Nm / 212 lb-in Conductor Temperature: 75 °C Copper   CONSTRUCTION / INSTALLATION Cooling: Forced Air Cooling Fan: Integrated Mounting Configuration: Panel / Chassis Power Terminal Covers: Integrated Control Terminal Interface: Integrated   APPROVALS / MARKINGS UL: Listed CSA: Certified CE: Yes EAC: Yes RCM: Yes
