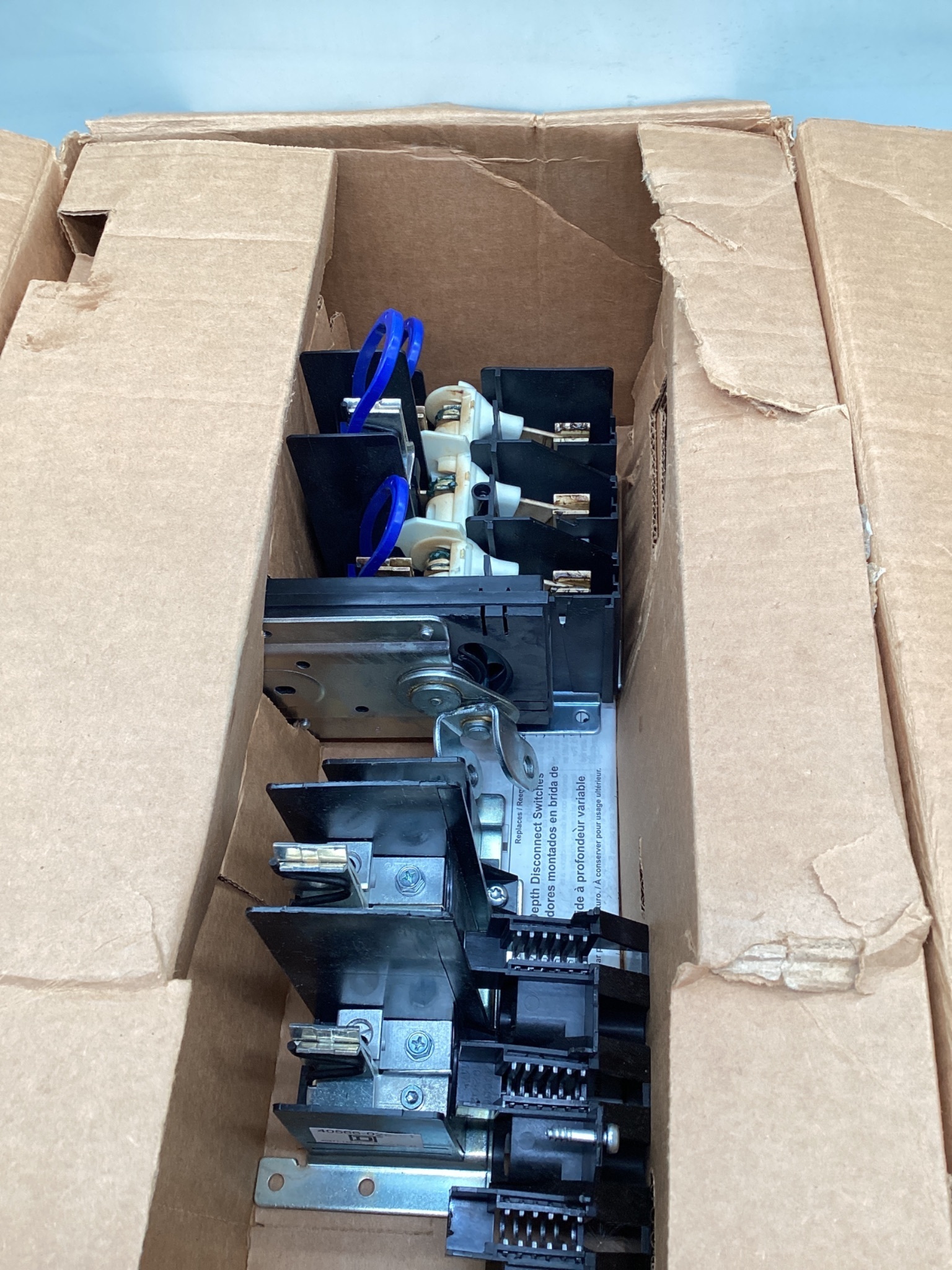

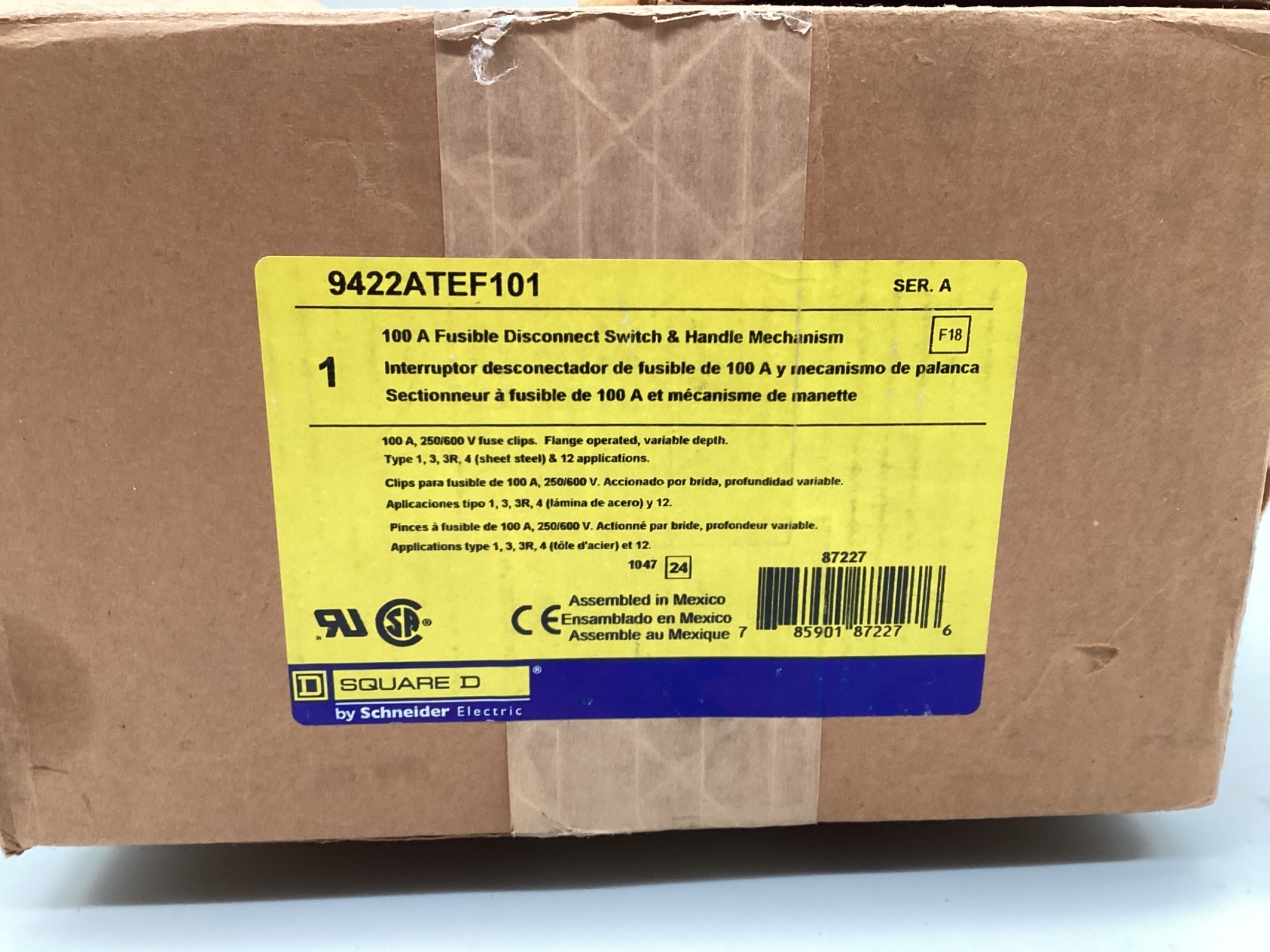

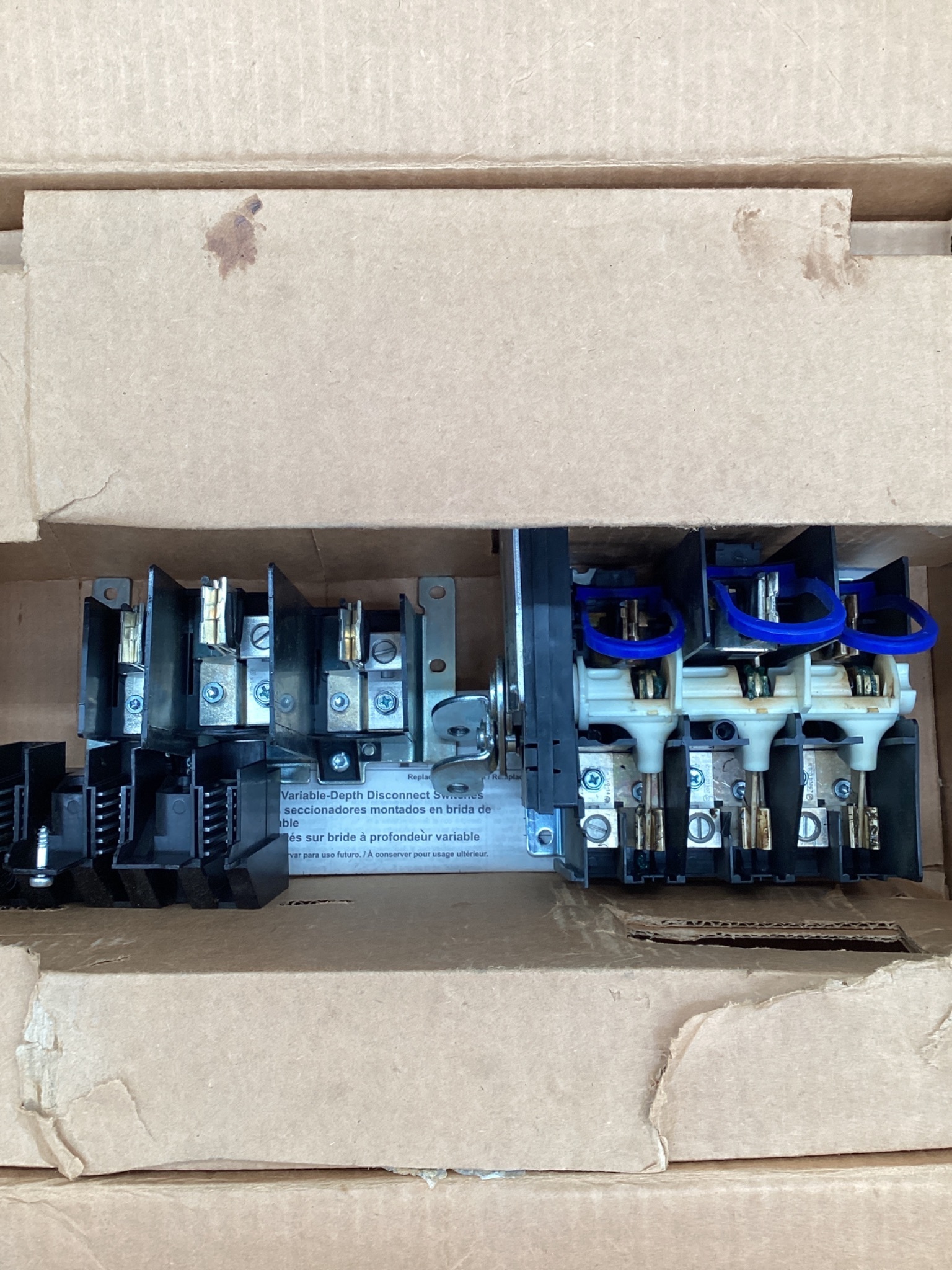

Schneider Electric 9422ATEF101 100A Fusible Disconnect Switch & Handle Mechanism NEW

Specification Table

IDENTIFICATION Manufacturer: Schneider Electric Brand: Square D Part Number: 9422ATEF101 Series: Class 9422 Product Type: Fusible Disconnect Switch Condition: NEW Assembly Location: Mexico Series Revision: Ser. A YOM: n/a   FUNCTION Primary Function: Circuit isolation and manual disconnect Operating Method: Flange Operated Handle Mechanism Included: Yes Depth Configuration: Variable Depth   ELECTRICAL Current Rating: 100 A Voltage Rating: 250/600 V Switch Type: Fusible Pole Configuration: 3 Pole Fuse Clip Rating: 100 A   FUSE INFORMATION Fuse Accommodation: 250V and 600V Fuse Clips Fuse Included: No Fuse Class: Not specified   INSTALLATION Mounting Type: Panel/Enclosure Installation Operator Type: External Handle Mechanism Enclosure Compatibility: Type 1 Enclosure Compatibility: Type 3R Enclosure Compatibility: Type 4 (Sheet Steel) Enclosure Compatibility: Type 12   CONSTRUCTION Handle Mechanism: Included Operating Shaft Type: Variable Depth Terminal Style: Mechanical Lug Connections Configuration: Flange Mounted Disconnect   COMPLIANCE UL Recognized: Yes CSA Certified: Yes CE Marked: Yes   ADDITIONAL INFORMATION Application Type: Industrial Power Isolation Lockout Capability: Not specified
