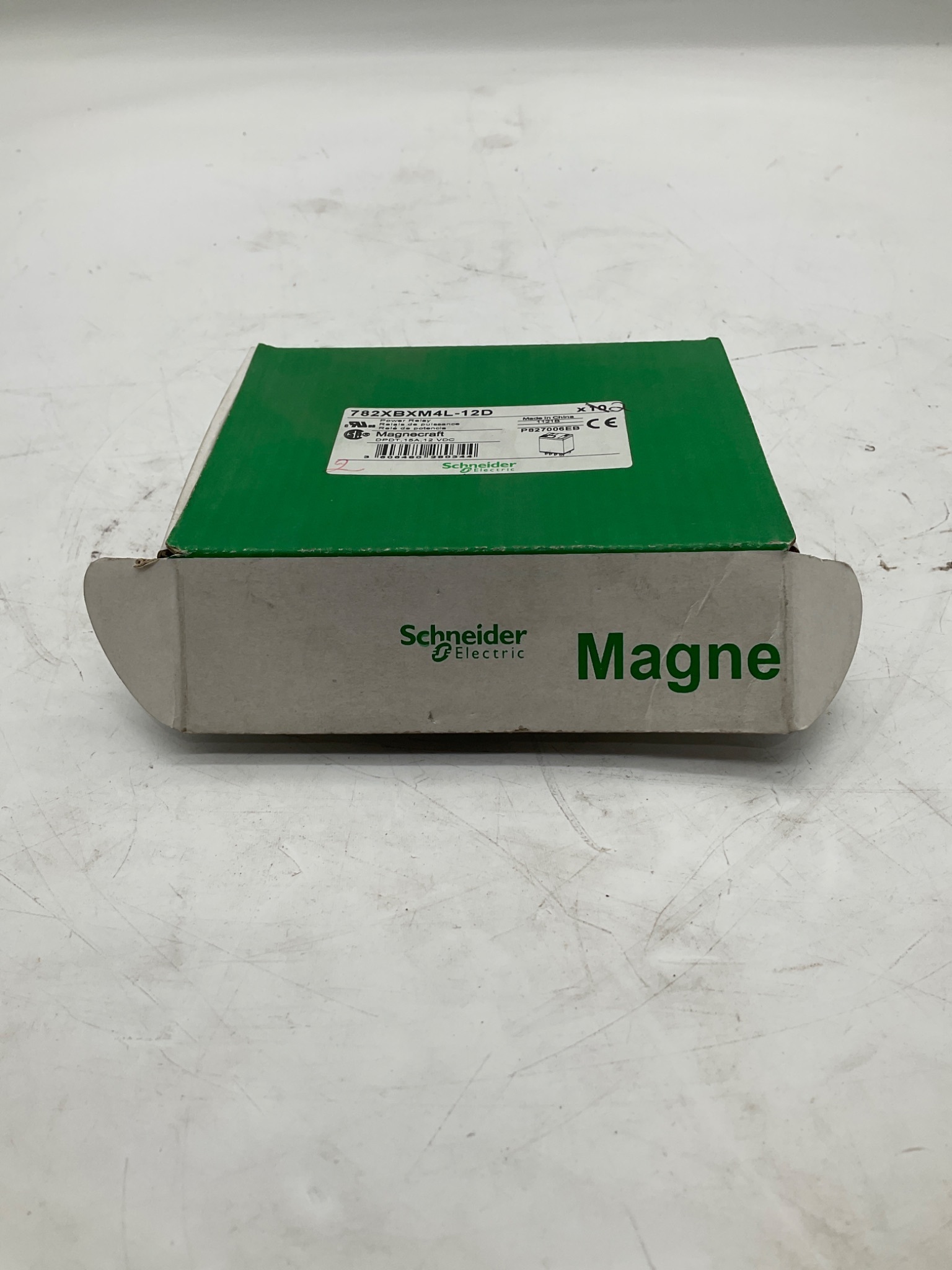

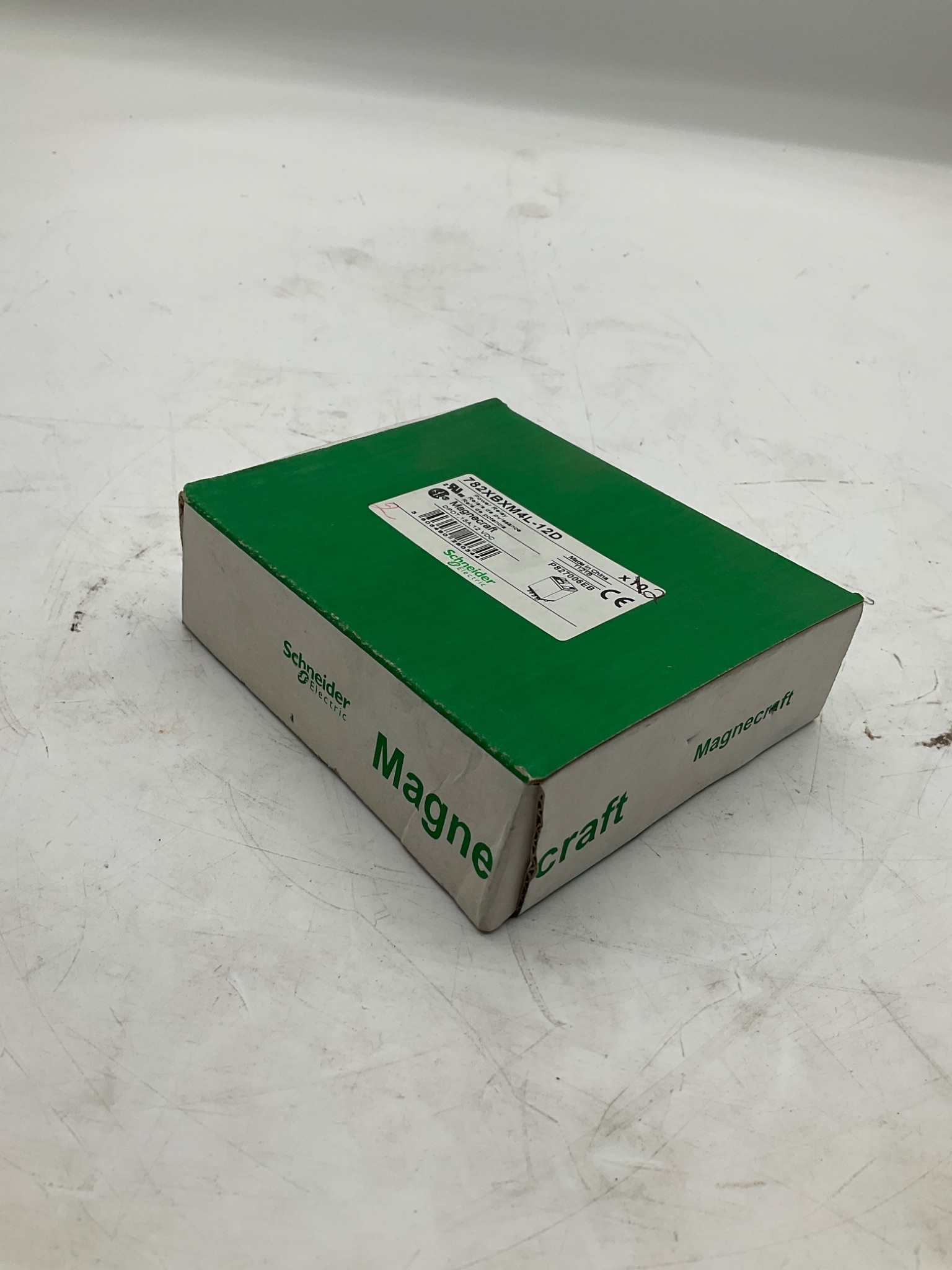

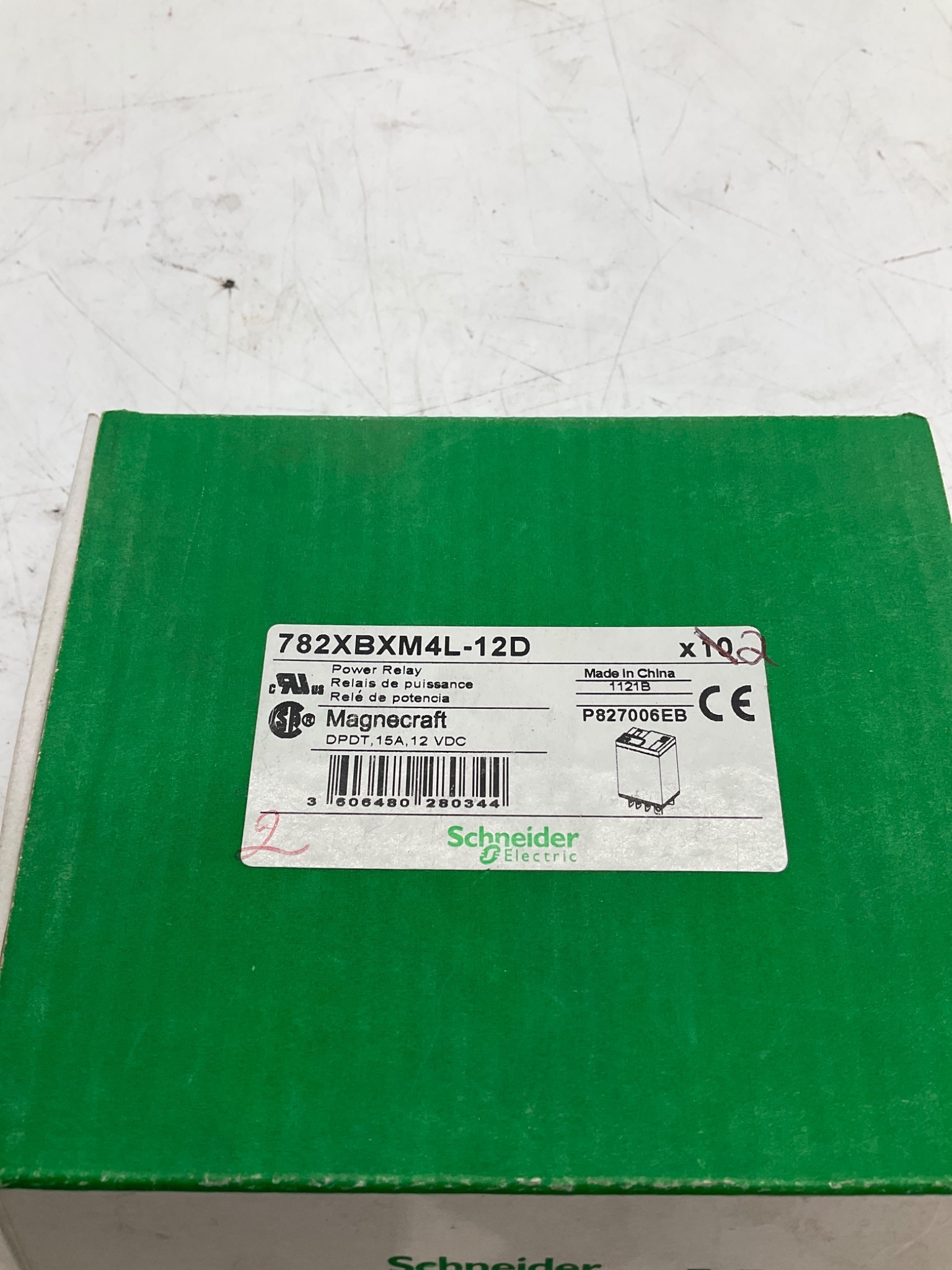

Schneider Electric 782XBXM4L-12D DPDT Power Relay 12VDC 15A (Lot of 2) NEW

Specification Table

IDENTIFICATION Manufacturer: Schneider Electric Product Line: Magnecraft Part Number: 782XBXM4L-12D Product Type: General Purpose Power Relay Contact Configuration: DPDT (2 Form C) Condition: NEW Country of Manufacture: China YOM: n/a   FUNCTION Primary Function: Electromechanical control relay Relay Style: Plug-In Operation: Non-Latching   COIL DATA Coil Voltage: 12 VDC Coil Type: DC Coil Nominal Coil Voltage: 12 VDC   CONTACT RATINGS Contact Arrangement: DPDT Resistive Load Rating: 15 A @ 120 VAC, 50/60 Hz Resistive Load Rating: 12 A @ 277 VAC, 50/60 Hz CSA Resistive Rating: 10 A @ 277 VAC DC Load Rating: 12 A @ 28 VDC Pilot Duty Rating: B300 Motor Rating: 1/2 HP @ 120 VAC Motor Rating: 1 HP @ 250 VAC   ELECTRICAL Contact Material: Not specified Dielectric Strength: Not specified Insulation Resistance: Not specified Operate Time: Not specified Release Time: Not specified   CONSTRUCTION Housing Type: Transparent Dust Cover Terminal Style: Blade / Quick Connect Plug-In Terminals Mounting Method: Socket Mounted Mechanical Indicator: Visible Contact Assembly   INSTALLATION Compatible Socket: Schneider Electric / Magnecraft 782 Series Socket Family Termination Style: Plug-In Orientation: Not specified   COMPLIANCE UL Recognized: Yes CSA Certified: Yes CE Marked: Yes RoHS Compliant: Yes   ADDITIONAL INFORMATION Series: 782 Series Industrial Control Use: Yes
