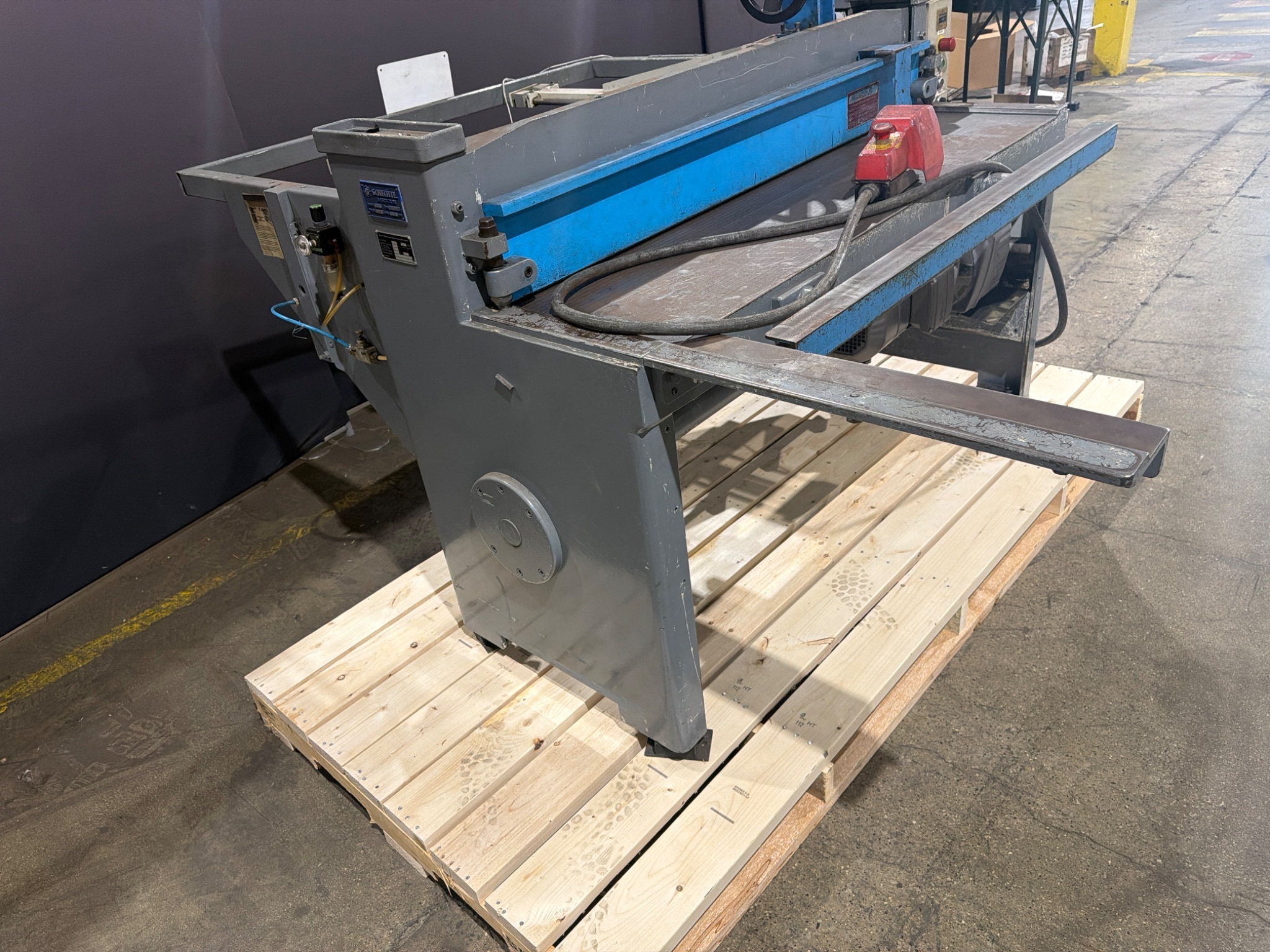

Schechtl MSB150 BV Powered Sheet Metal Shear 1500mm USED

Specification Table

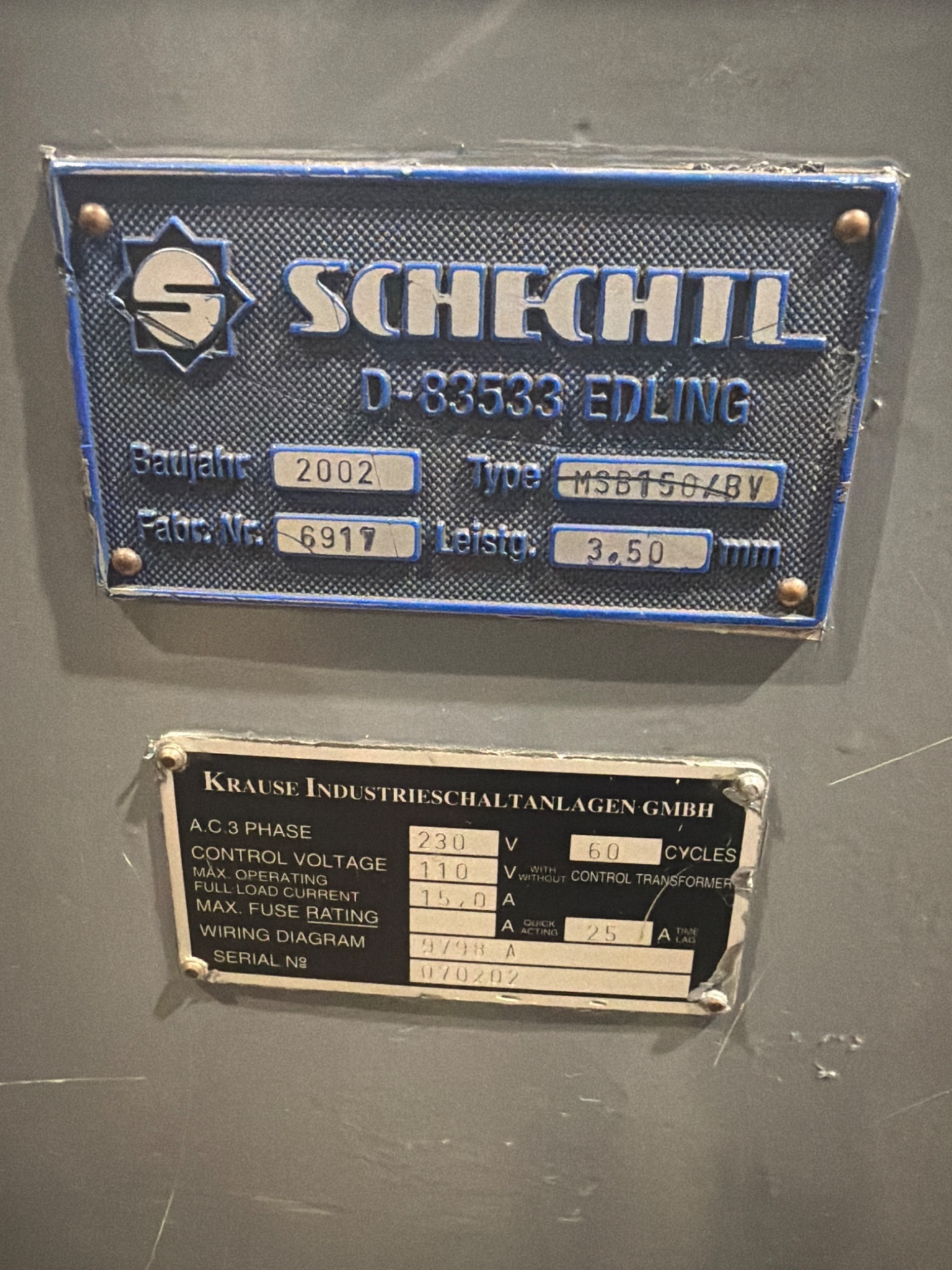

Manufacturer: Schechtl
Model: MSB150 BV
Condition: USED
YOM: 2002
Serial Number: 6917
Equipment Type: Powered Sheet Metal Guillotine Shear
Cutting Capacity Class: 1500 mm (59 in)
Cutting Method: Mechanical Blade Shearing
Frame Construction: Welded Steel Frame
Mounting: Floor Standing
Work Surface: Integrated Support Table

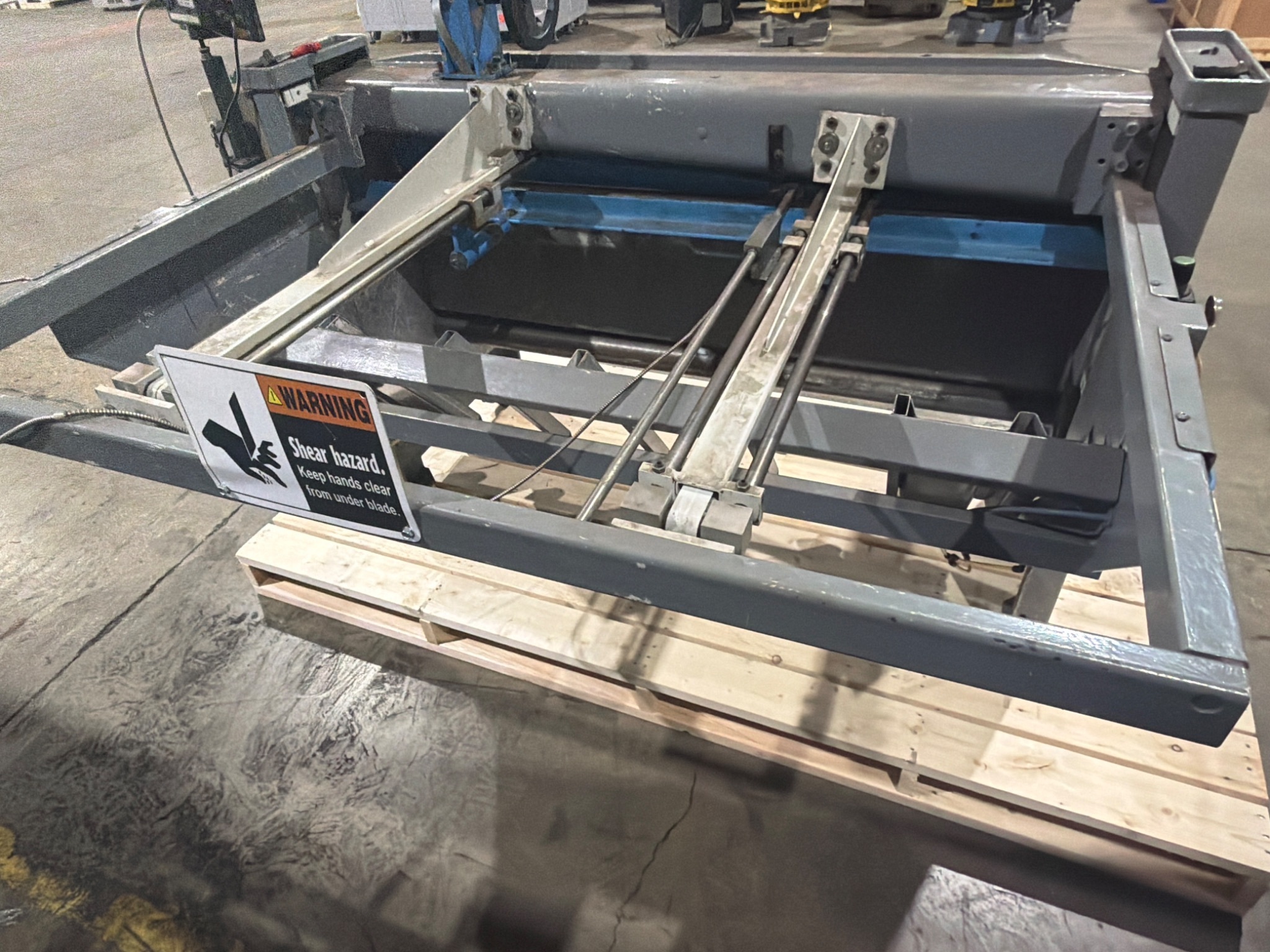

Backgauge Type: Manual Adjustable
Backgauge Drive: Handwheel Operated

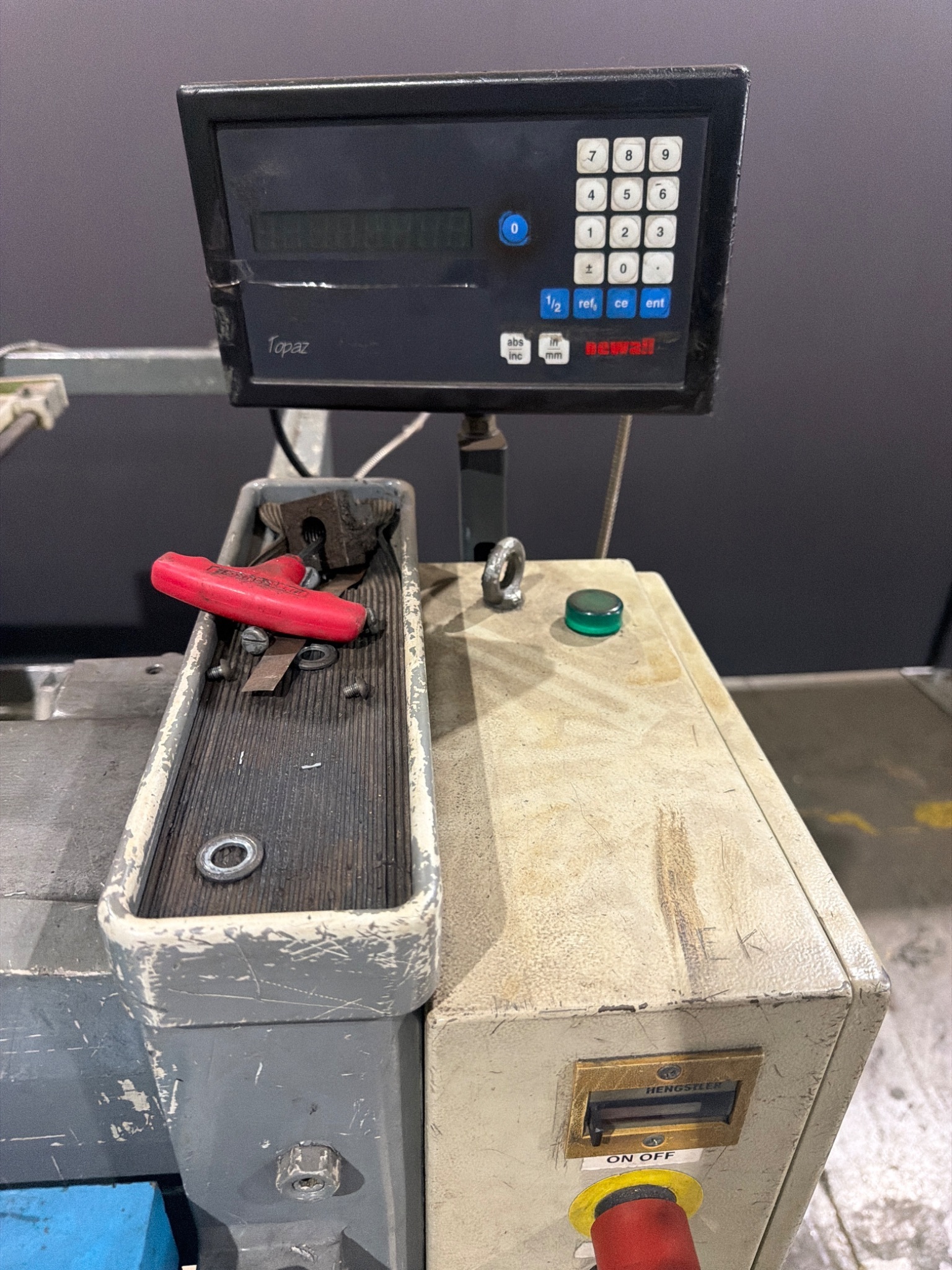

Position Feedback: Digital Readout Display (numeric keypad interface)
Actuation Method: Motor Driven Mechanical Linkage

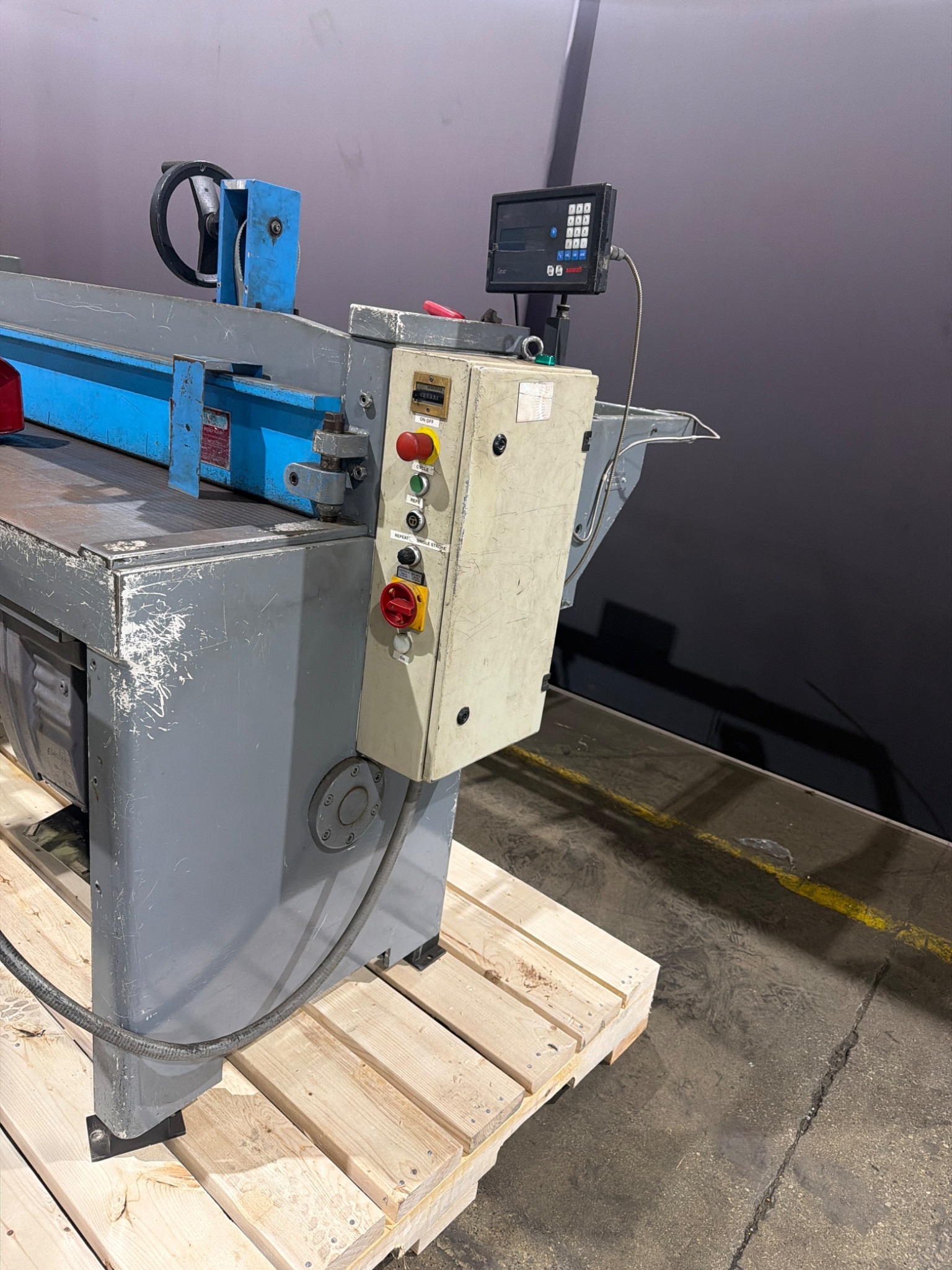

Operator Control: Pushbutton Station with Emergency Stop

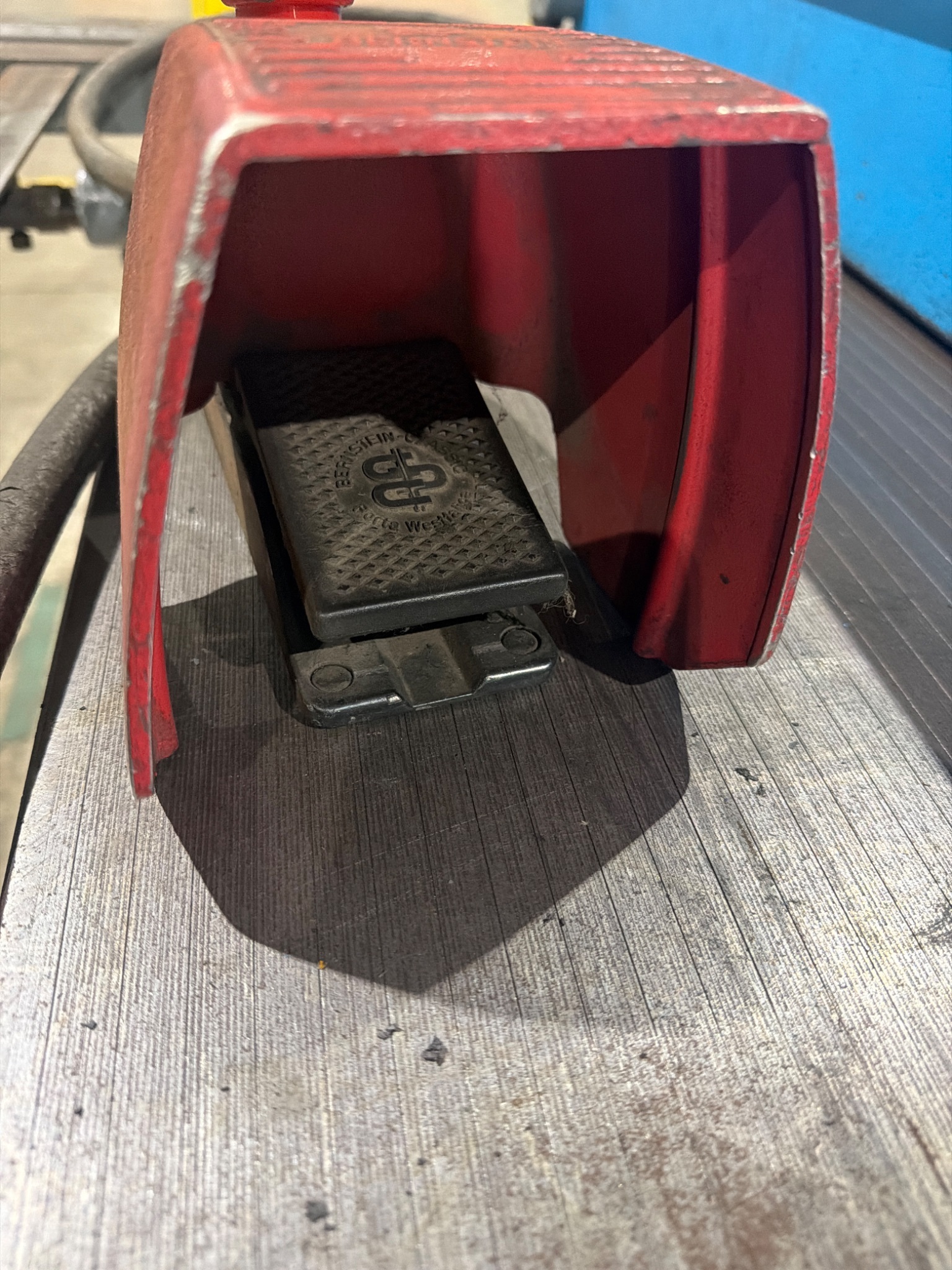

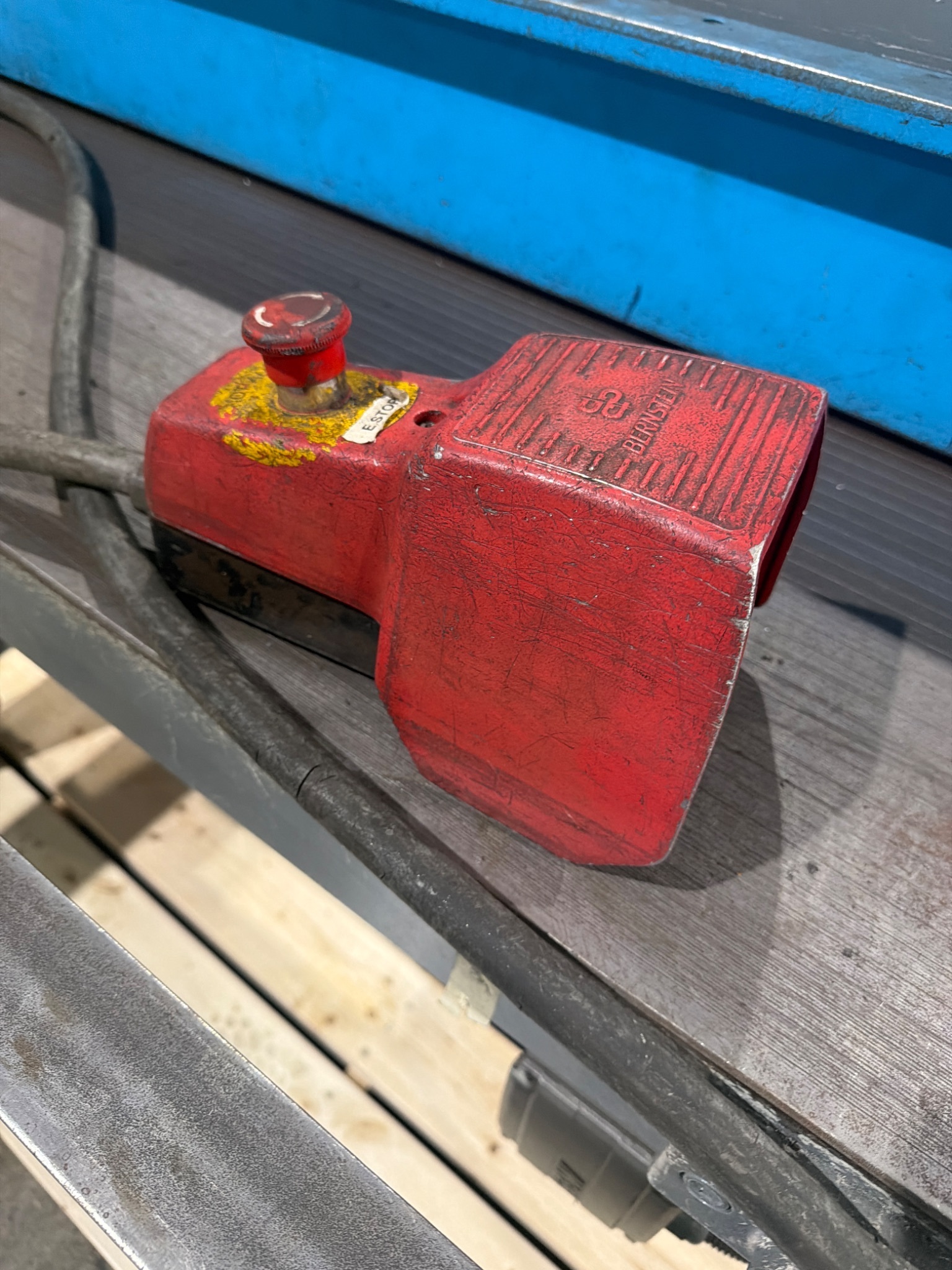

Secondary Control: Foot Pedal Actuation Switch
Main Motor Power: 3.5 kW
Motor Power (HP Equivalent): ~4.7 HP
Supply Voltage: 230 VAC
Control Voltage: 110 VAC
Frequency: 60 Hz
Phase: 3 Phase
Full Load Current: 17 / 11 A
Max Fuse Rating: 25 A
Electrical Assembly: Industrial Control Cabinet
Control Manufacturer: Krause Industrieschaltanlagen GmbH
Function: Straight-line sheet metal cutting using powered guillotine blade with manual backgauge positioning
