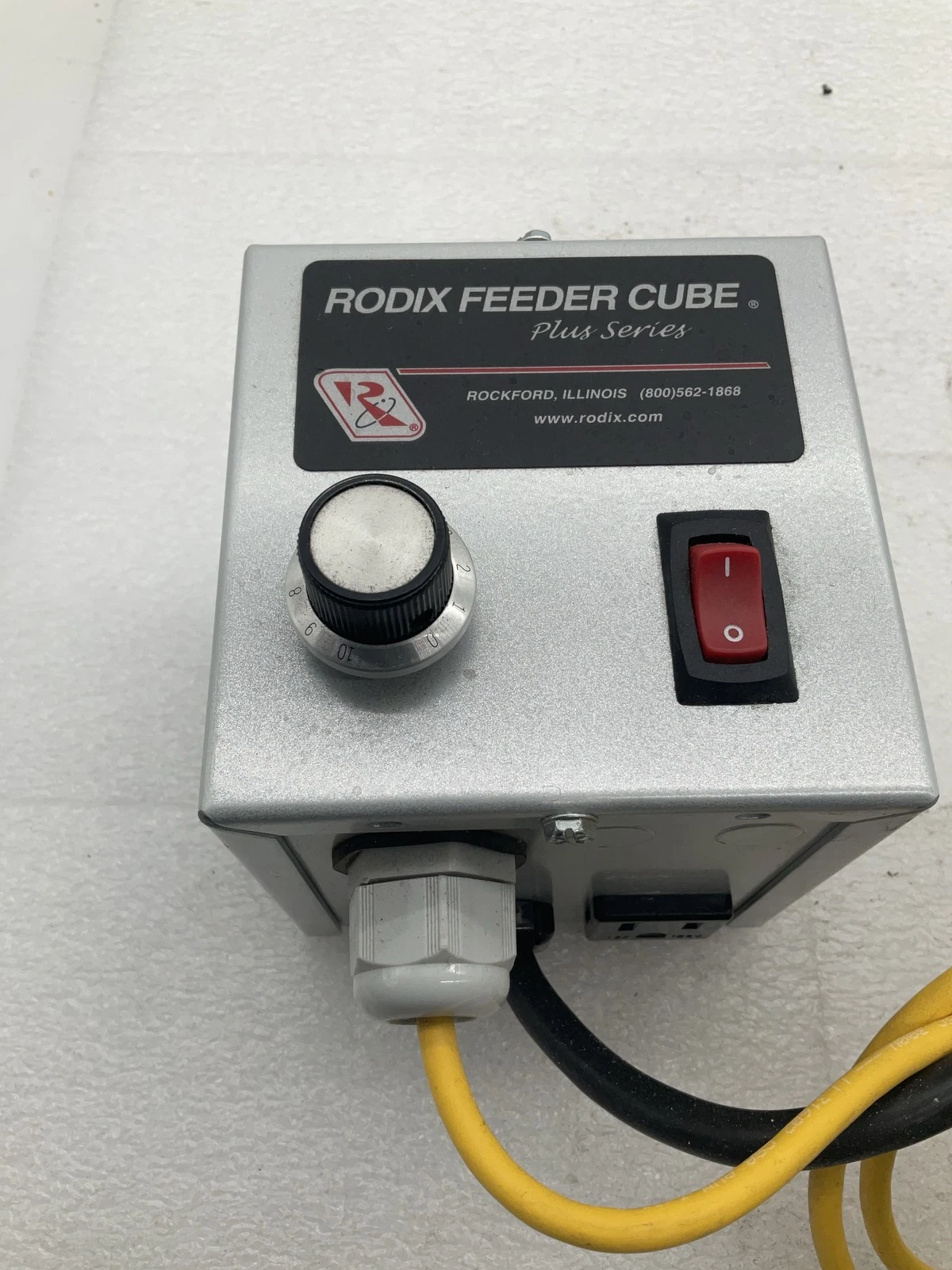

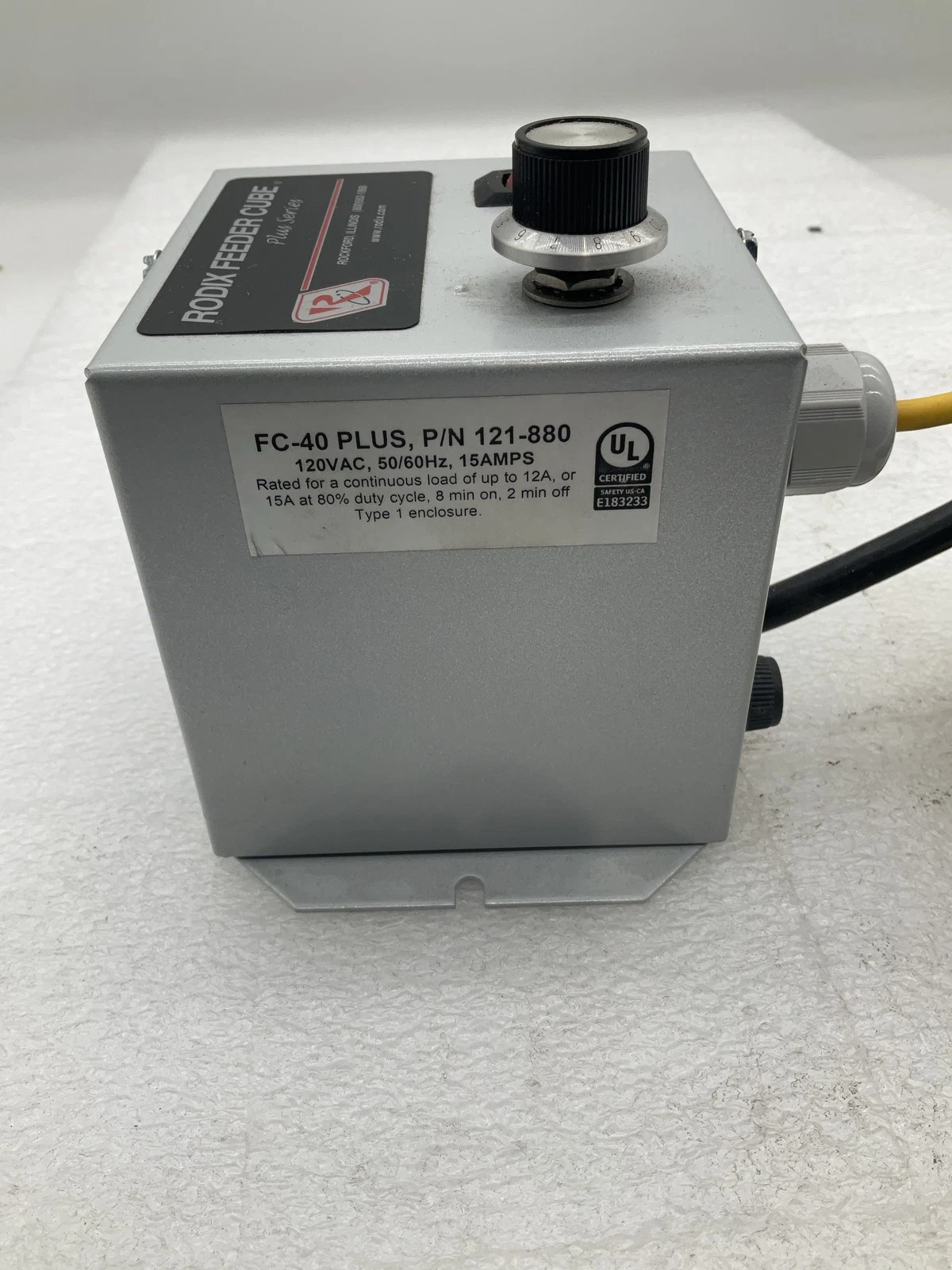

RODIX 121-000-0880 FC-40 Plus Vibratory Feeder Controller USED

Specification Table

IDENTIFICATION -------------- Manufacturer: RODIX Series: Feeder Cube Plus Series Model: FC-40 Plus Part Number: 121-000-0880 Condition: USED YOM: n/a Country of Origin: USA FUNCTION -------- Device Type: Vibratory Feeder Controller Controller Configuration: Single Controller Number of Control Channels: 1 Output Type: Single AC Output Operation Type: Fixed Frequency Application: Vibratory Feeder Systems ELECTRICAL ---------- Input Voltage: 120 VAC Input Frequency: 50/60 Hz Output Voltage Range: 0-120 VAC Current Rating: 15 A CONTROL FEATURES ---------------- Control Interface: Potentiometer and DIP Switch Remote Enable Capability: Optional Remote Enable Methods: Low Voltage DC or Relay Contact Remote Amplitude Control: 4-20 mA or 0-5 VDC Minimum Amplitude Adjustment: Adjustable Maximum Amplitude Adjustment: Adjustable Line Voltage Compensation: Selectable On/Off Soft Start Range: 0-6 Seconds Auxiliary Output: Not Available PULSE MODES ----------- 50 Hz Modes: 100, 50, 50 Reverse, 33, or 25 PPS 60 Hz Modes: 120, 60, 60 Reverse, 40, or 30 PPS CONSTRUCTION ------------ Enclosure Rating: NEMA-1 Enclosure Type: General Purpose Housing Material: Metal CONNECTIONS ----------- Power Cord: Attached Output Connection: Attached Output Receptacle: Present CERTIFICATIONS -------------- UL Certified: Yes cUL Certified: Yes UL File Number: E183233
