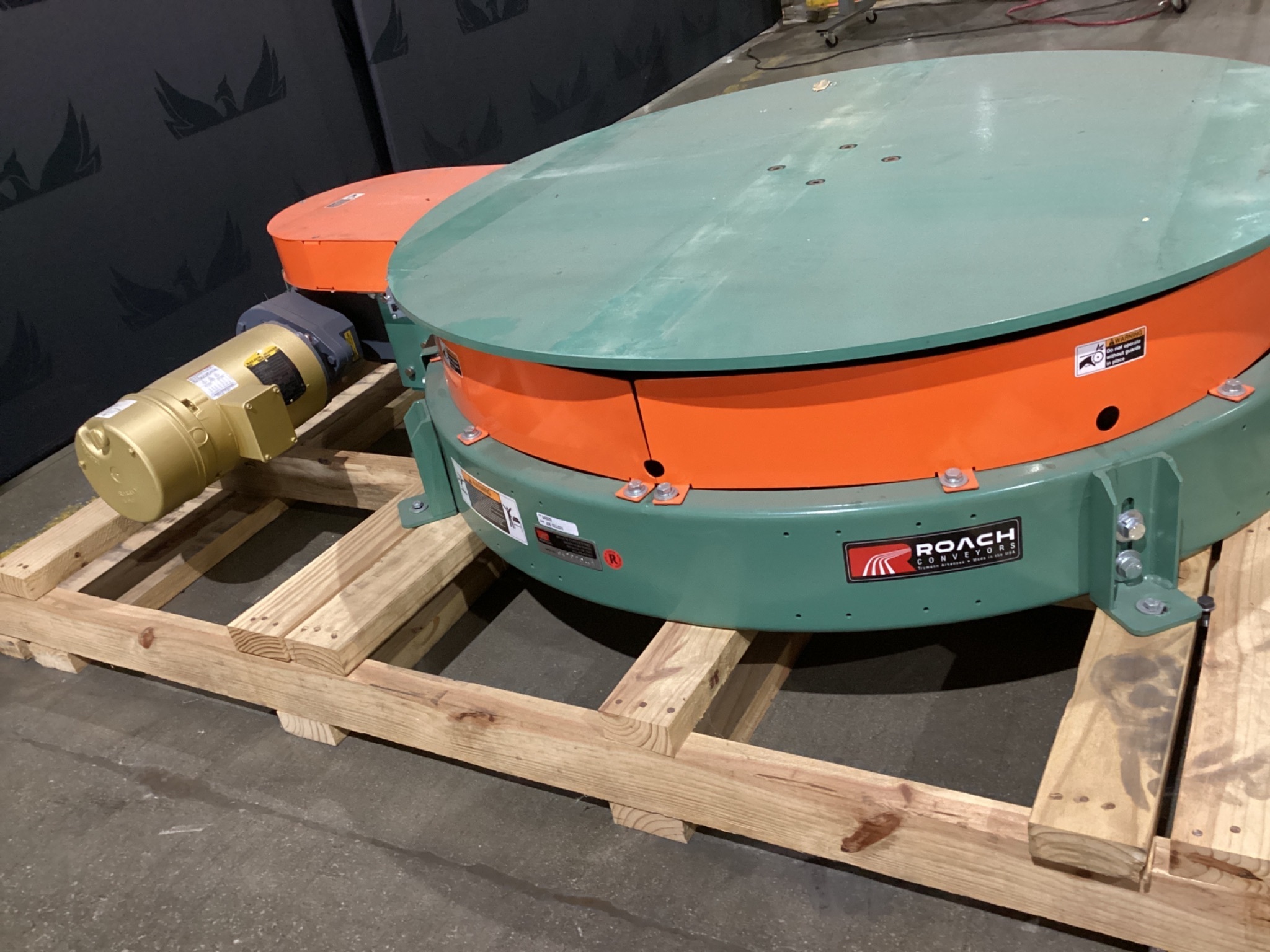

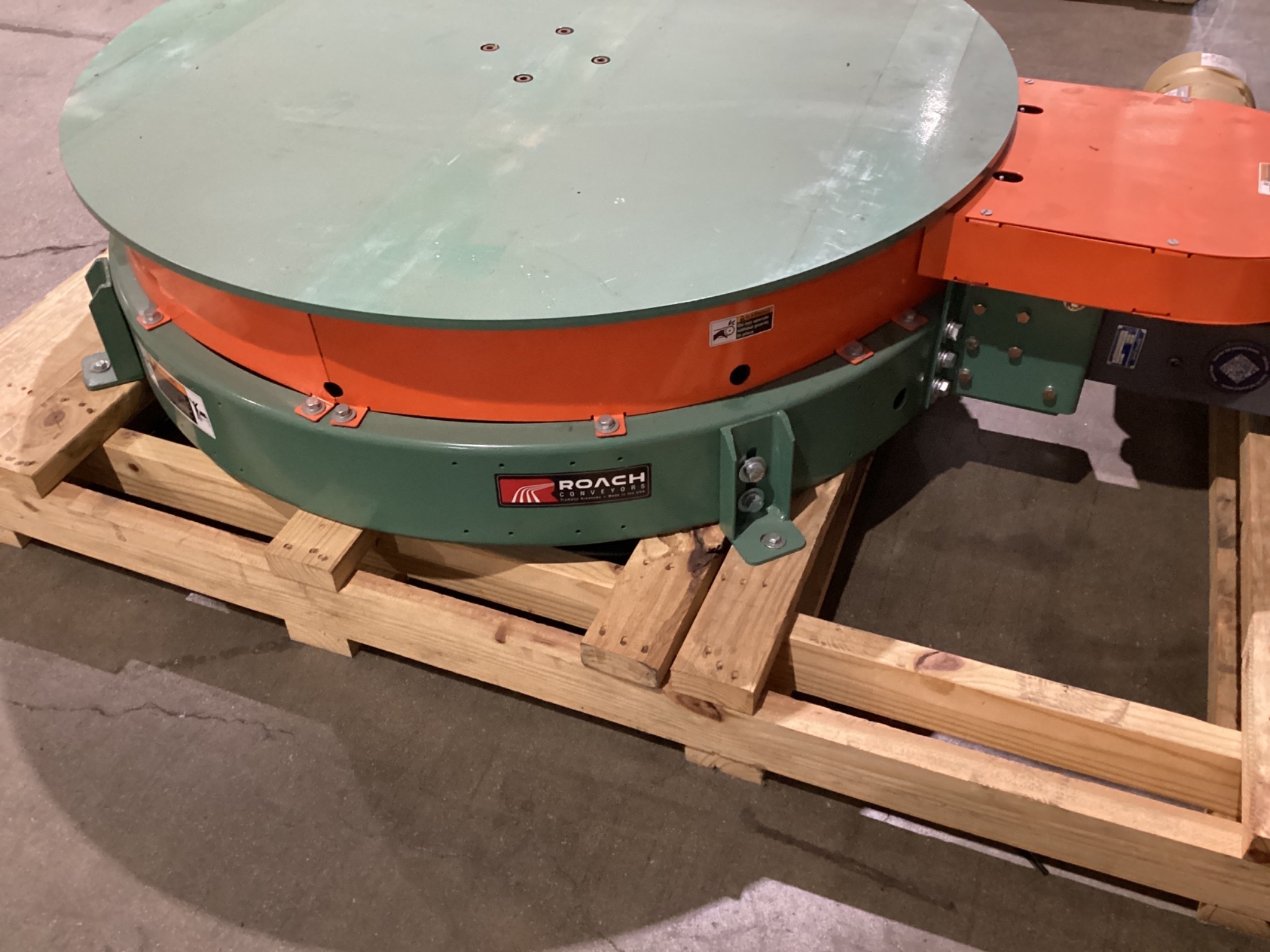

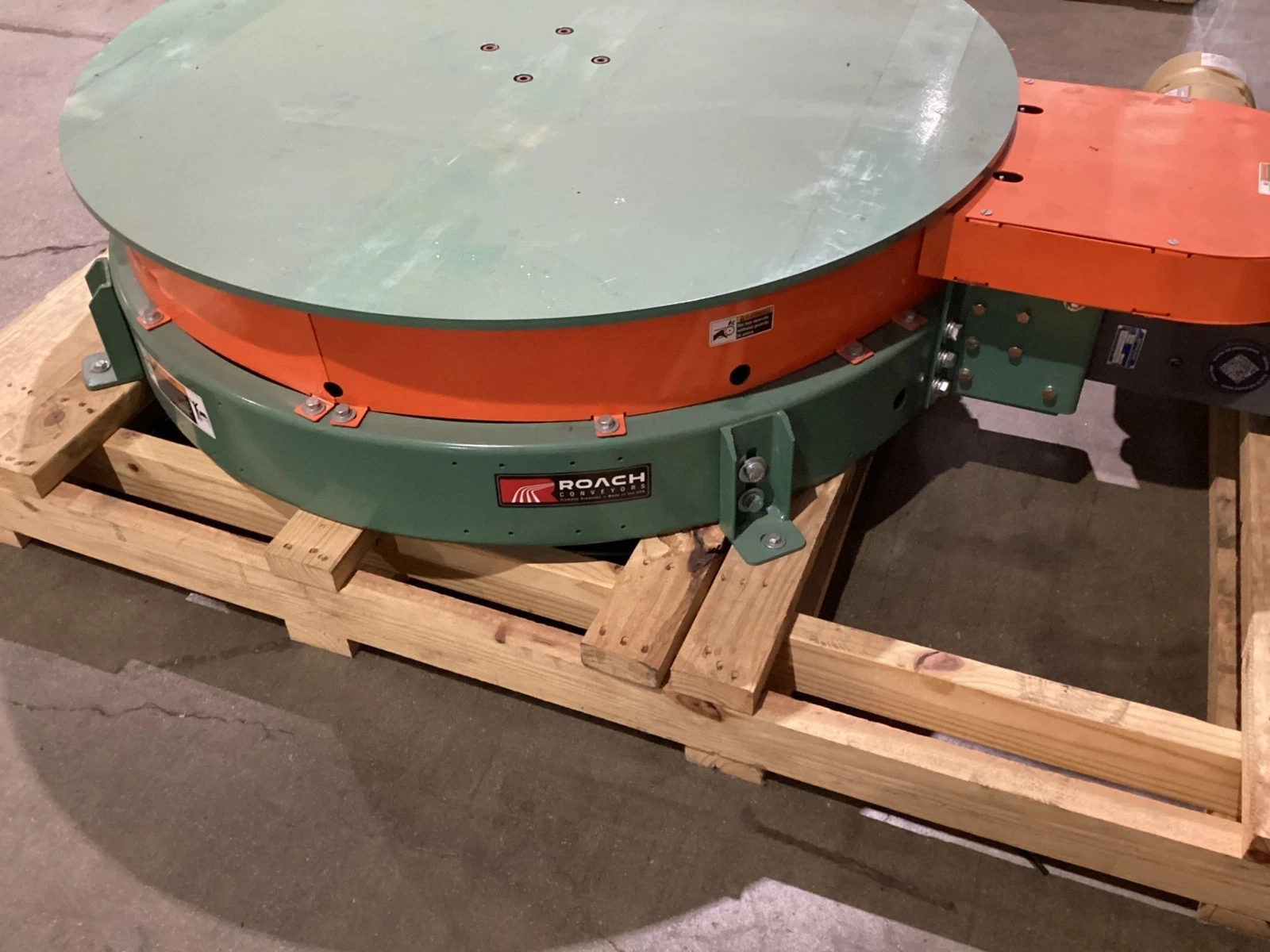

ROACH IPT Powered Industrial Turntable 4000 lb 3/4 HP NEW

Specification Table

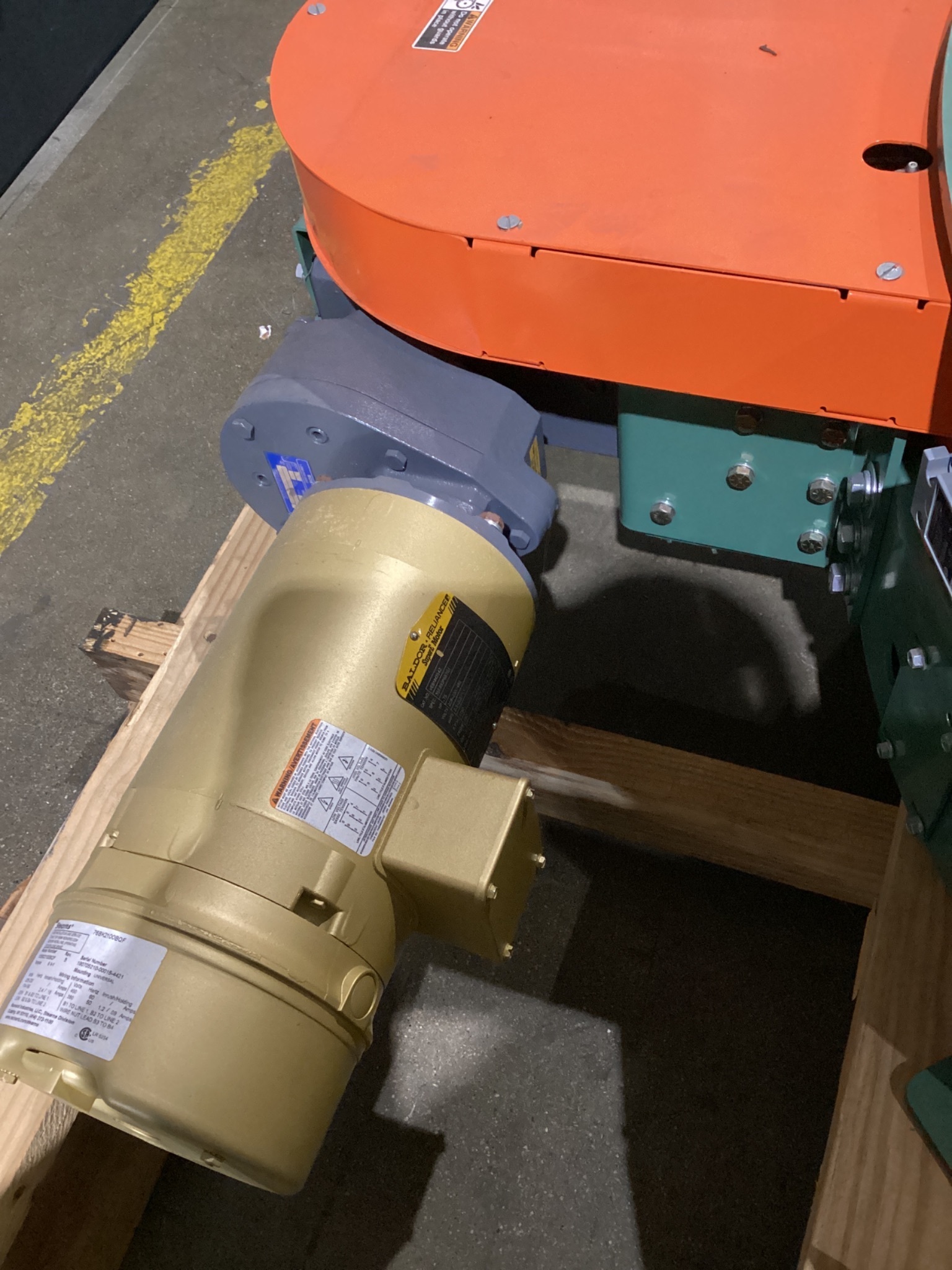

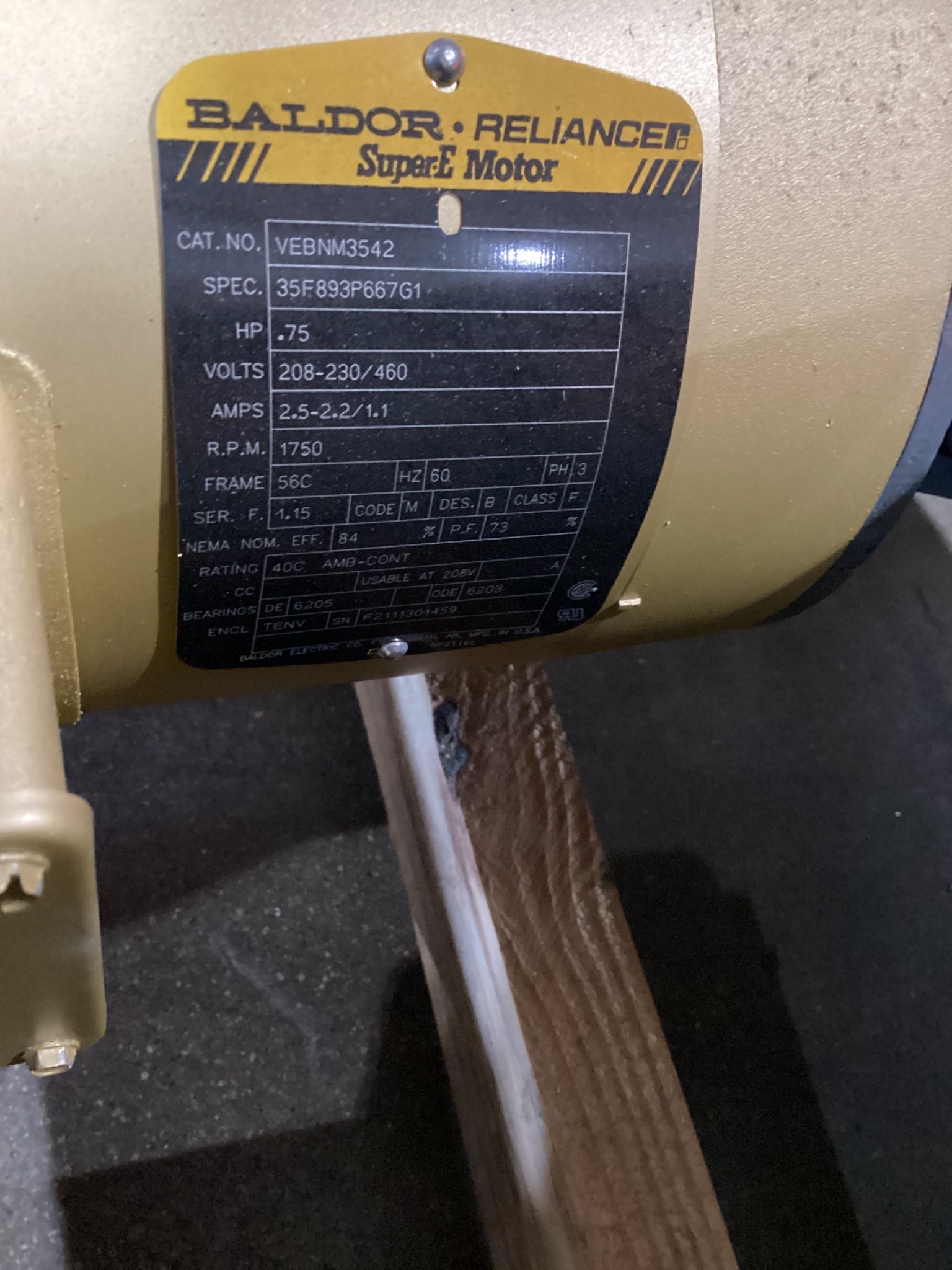

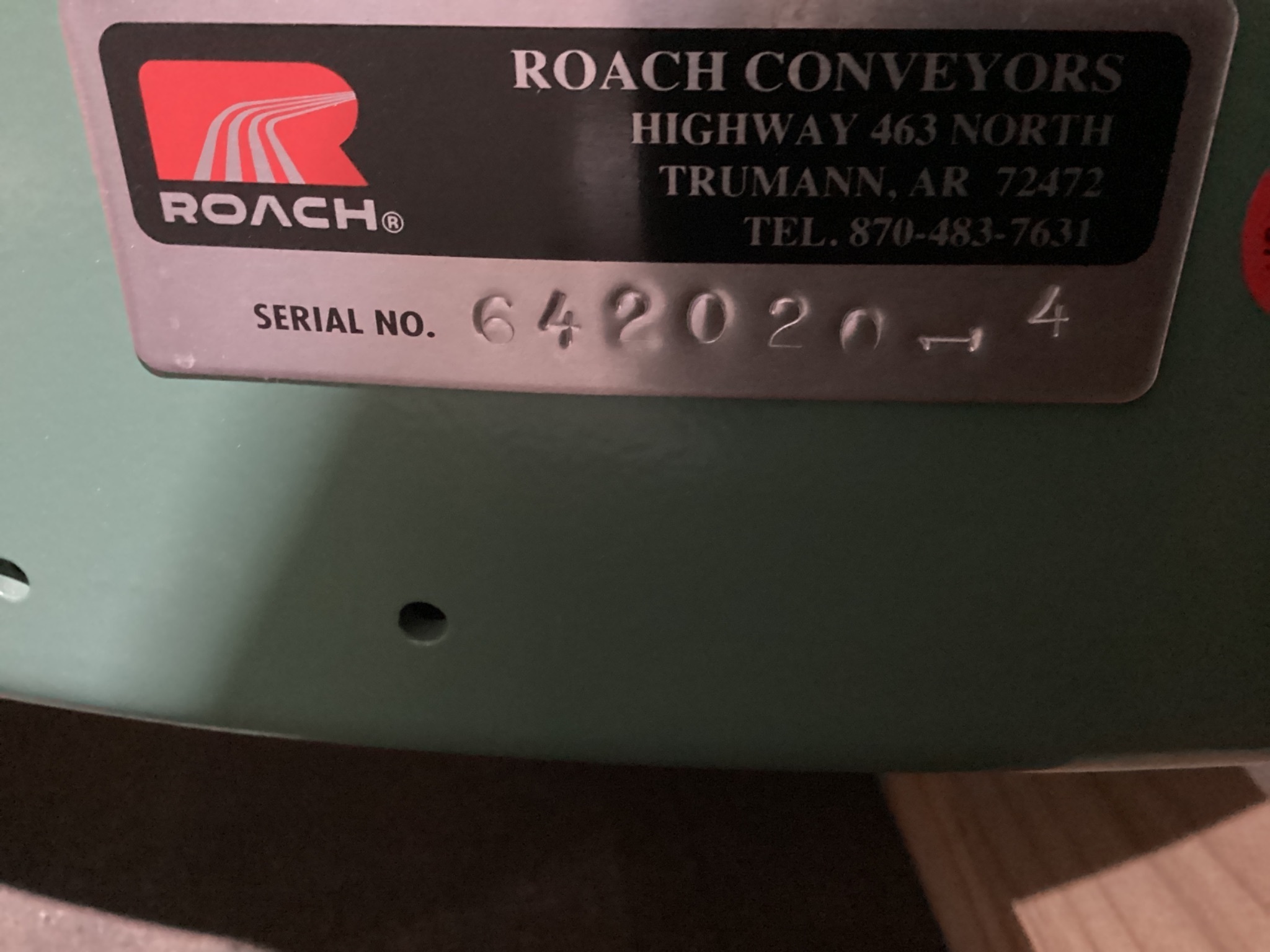

IDENTIFICATION Manufacturer: Roach Conveyors Model: IPT Product Type: Powered industrial turntable Serial Number: 642020-4 Condition: NEW YOM: n/a Manufacturer Location: Trumann, Arkansas, USA   TURNTABLE PERFORMANCE Maximum Product Load: 4,000 lb Operating Speed: 35 FPM at outside diameter Platform Diameter: Not specified Rotation Configuration: Not specified Minimum Top-of-Plate Height: 12-1/2 in   DRIVE SYSTEM Drive Type: Chain Drive Chain: No. 80 roller chain Chain Guard: Fully enclosed Position Detection: Limit switch Number of Positions: Not specified   CARRIER PLATFORM Structural Platform: 3 in Top Plate Material: Steel Top Plate Thickness: 1/2 in Carrier Casters: 8 Caster Diameter: 4 in Caster Type: Heavy-duty rubber covered   BEARING / SUPPORT Main Bearing Type: Heavy-duty ball bearing Bearing Mounting: 4-hole flange Structural Leveling Supports: 4   MOTOR Manufacturer: Baldor-Reliance Series: Super-E Catalog Number: VEBNM3542 Specification: 35F893P667G1 Motor Power: 0.75 HP Voltage: 208-230 / 460 VAC Current: 2.5-2.2 / 1.1 A Speed: 1750 RPM Phase: 3 Frequency: 60 Hz Frame: 56C Enclosure: TENV Service Factor: 1.15 NEMA Design: B Insulation Class: F Nominal Efficiency: 84% Power Factor: 73% Duty Rating: Continuous Ambient Rating: 40 °C Motor Serial Number: F2111301459   GEAR REDUCER Manufacturer: Boston Gear Catalog Number: HMF2-5K-B5-B5 Gear Ratio: 5:1 Input HP Rating: 5.06 HP Output Torque: 884 lb-in Country of Manufacture: Taiwan
