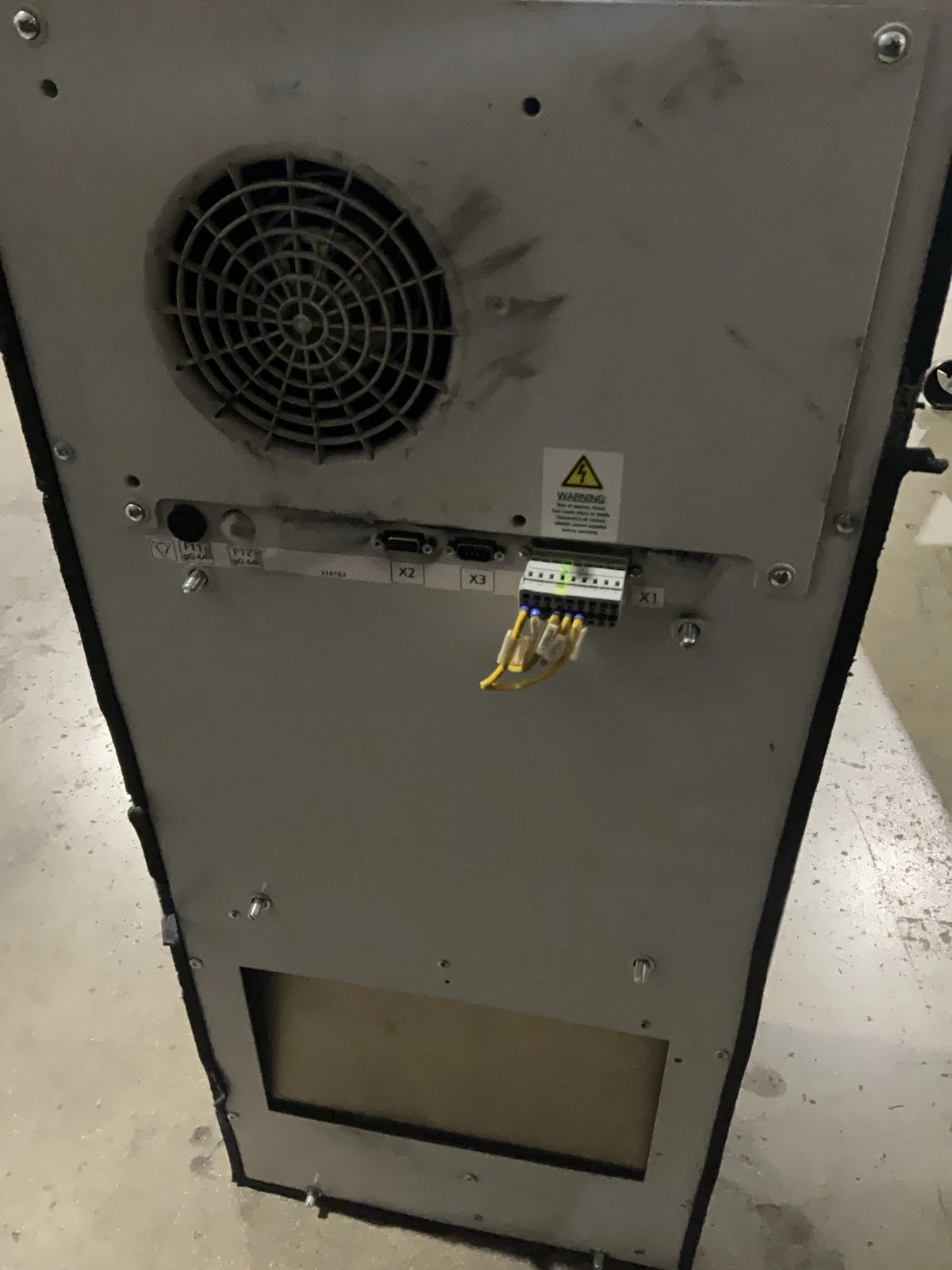

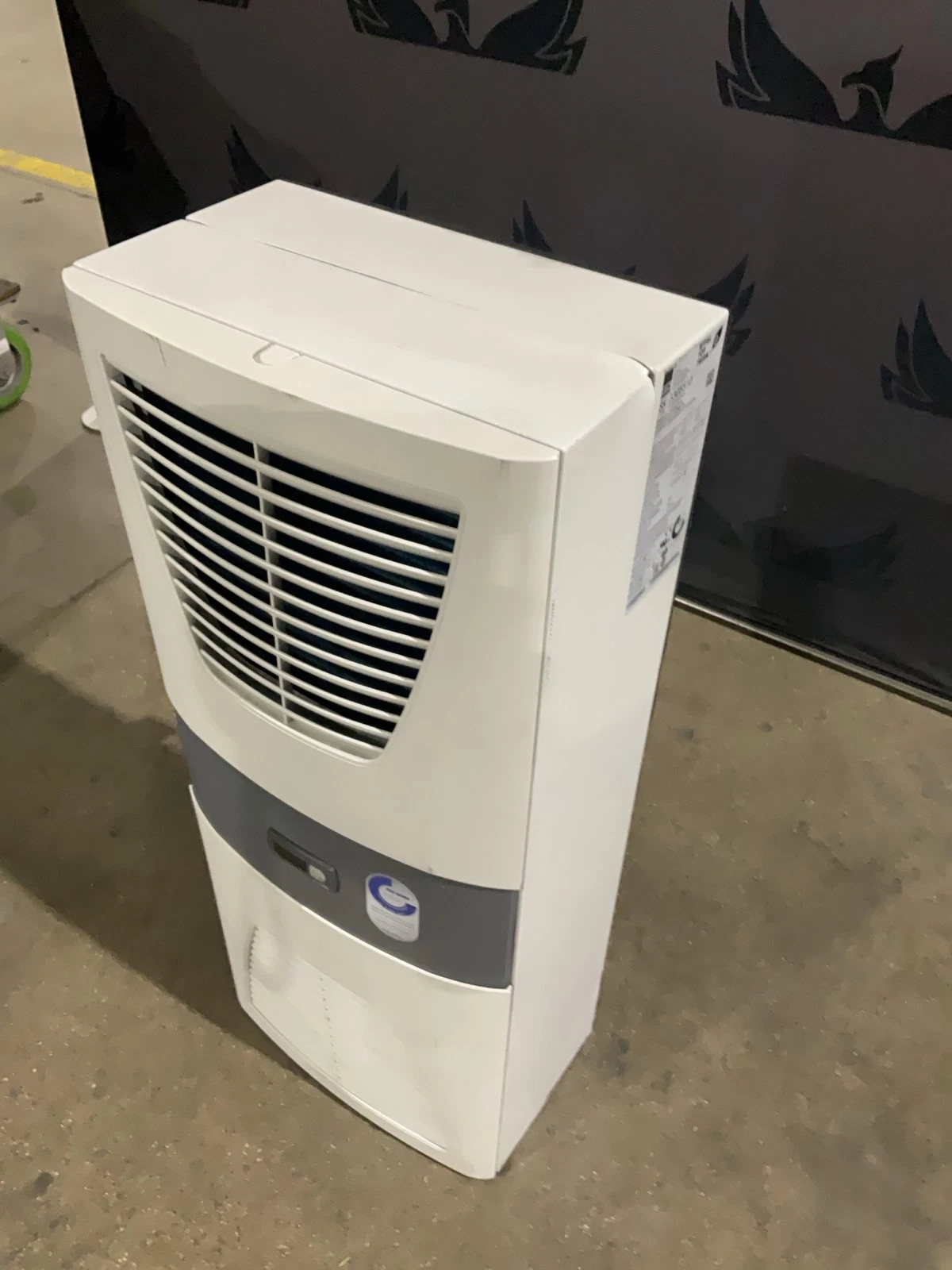

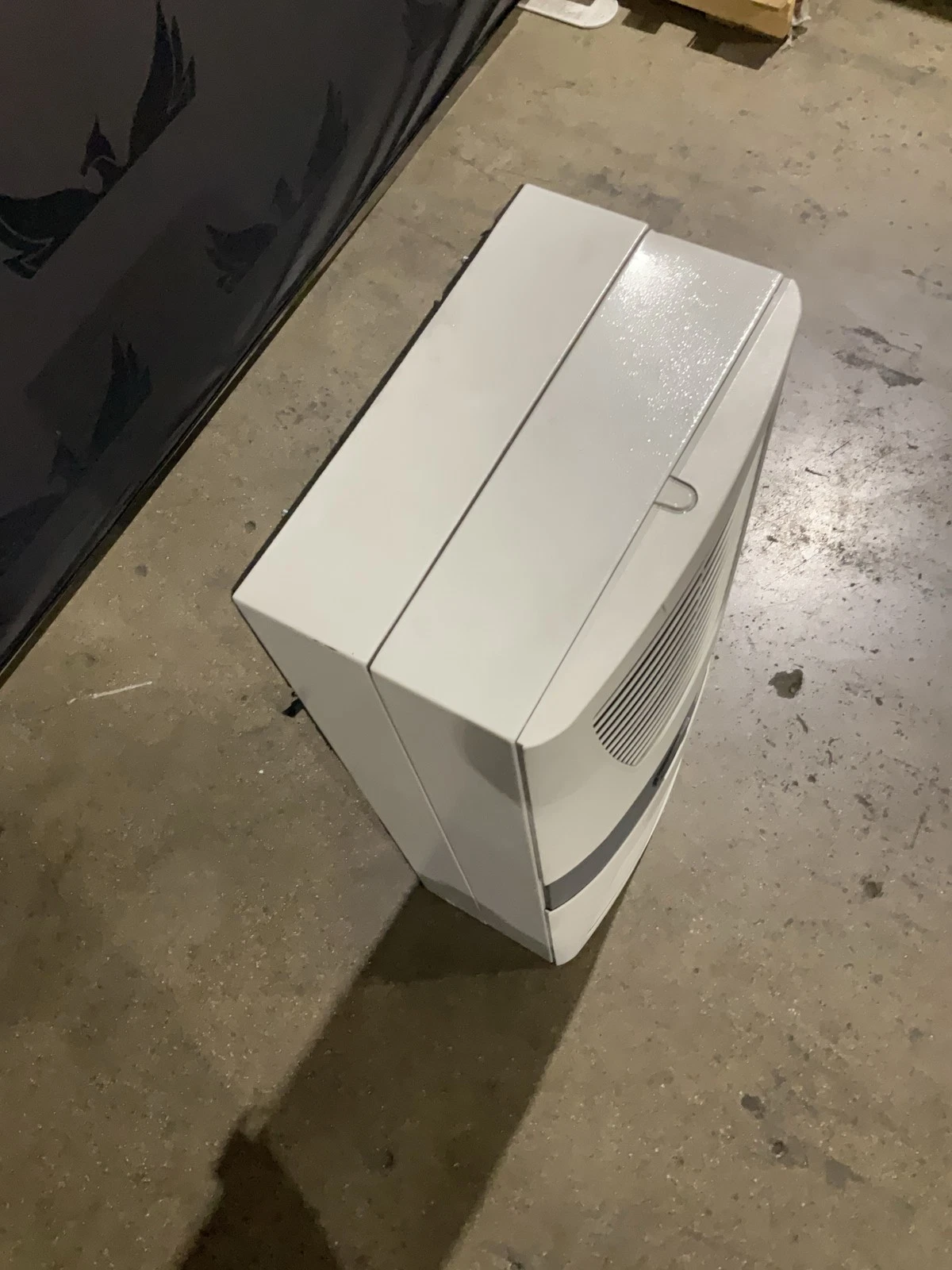

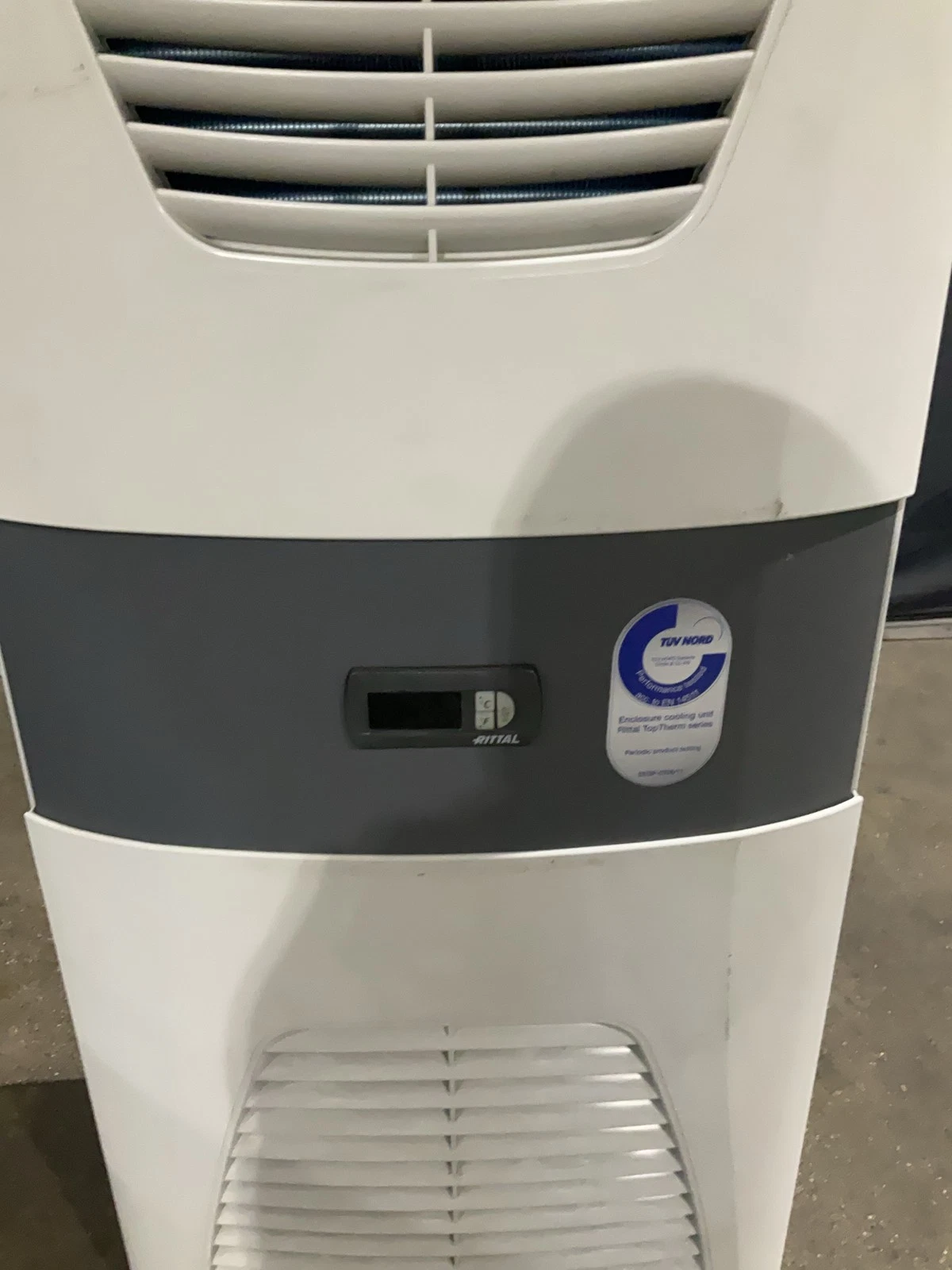

RITTAL SK 3305510 TopTherm Enclosure Cooling Unit 115V USED

Specification Table

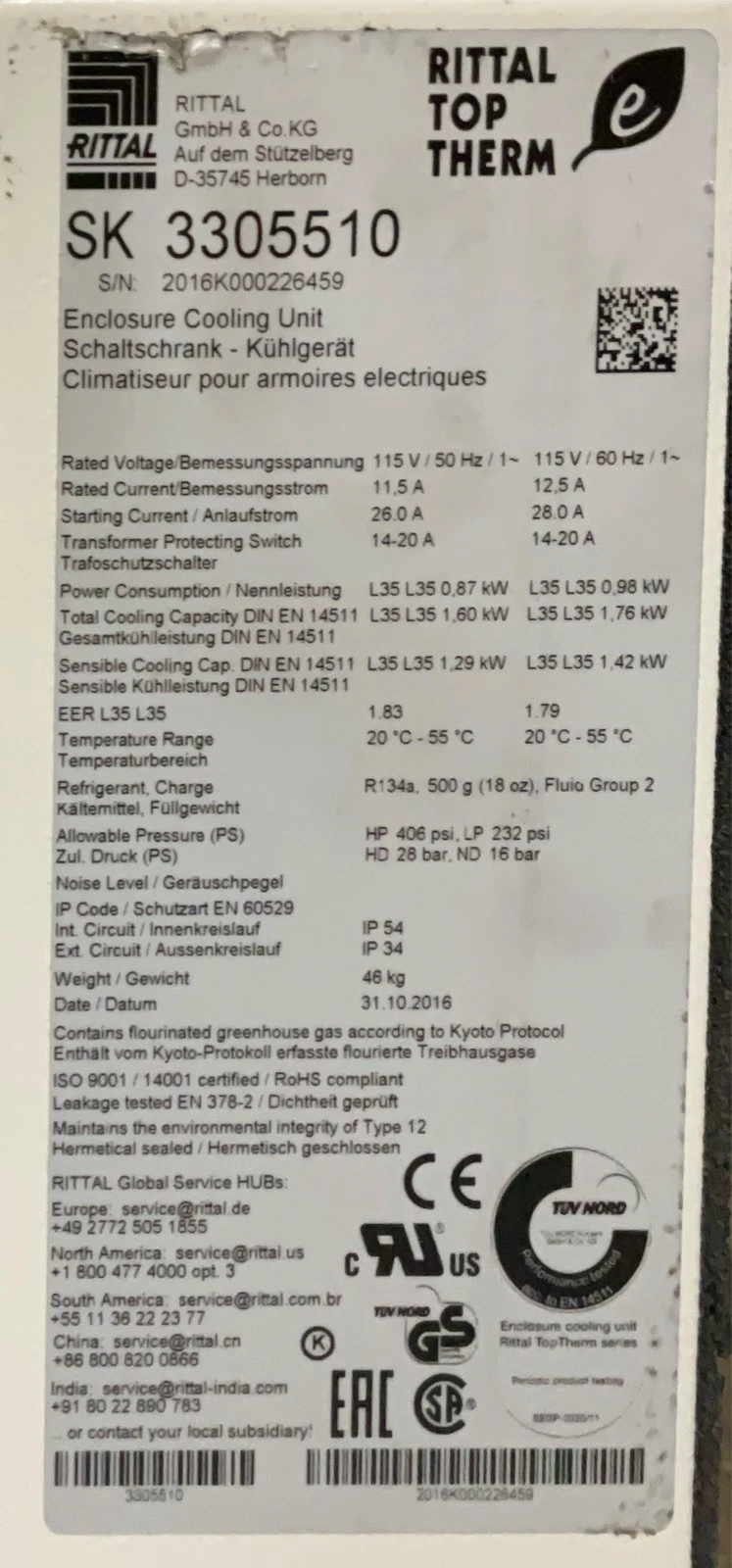

IDENTIFICATION Manufacturer:               Rittal Series:                     TopTherm Model:                      SK 3305510 Product Type:               Enclosure Cooling Unit Serial Number:              2016K000226459 Condition:                  USED YOM:                        2016 COOLING PERFORMANCE Total Cooling Capacity @ 50 Hz (L35/L35):          1.60 kW Total Cooling Capacity @ 60 Hz (L35/L35):          1.76 kW Sensible Cooling Capacity @ 50 Hz (L35/L35):          1.29 kW Sensible Cooling Capacity @ 60 Hz (L35/L35):          1.42 kW EER @ 50 Hz (L35/L35):      1.83 EER @ 60 Hz (L35/L35):      1.79 ELECTRICAL Supply Voltage:             115 VAC Phase:                      1 Phase Frequency:                  50/60 Hz Rated Current @ 50 Hz:      11.5 A Rated Current @ 60 Hz:      12.5 A Starting Current @ 50 Hz:   26.0 A Starting Current @ 60 Hz:   28.0 A Transformer Protection:     14-20 A Power Consumption @ 50 Hz (L35/L35):          0.87 kW Power Consumption @ 60 Hz (L35/L35):          0.98 kW REFRIGERATION SYSTEM Refrigerant Type:           R134a Refrigerant Charge:         500 g (18 oz) Fluid Group:                2 Maximum High Pressure:      406 PSI Maximum Low Pressure:       232 PSI Maximum High Pressure:      28 Bar Maximum Low Pressure:       16 Bar ENVIRONMENTAL Operating Temperature Range:                      20°C to 55°C PROTECTION Internal Circuit Rating:    IP54 External Circuit Rating:    IP34 CERTIFICATIONS CE Marked:                  Yes cRUus Recognized:           Yes CSA Certified:              Yes TÜV Certified:              Yes EAC Marked:                 Yes RoHS Compliant:             Yes CONSTRUCTION Mounting Style:             Enclosure Mounted Internal Air Circuit:       Separated External Air Circuit:       Separated Hermetically Sealed:        Yes Series:                     TopTherm
