RITTAL SK 3304540 TopTherm Enclosure Cooling Unit 400/460V USED

Specification Table

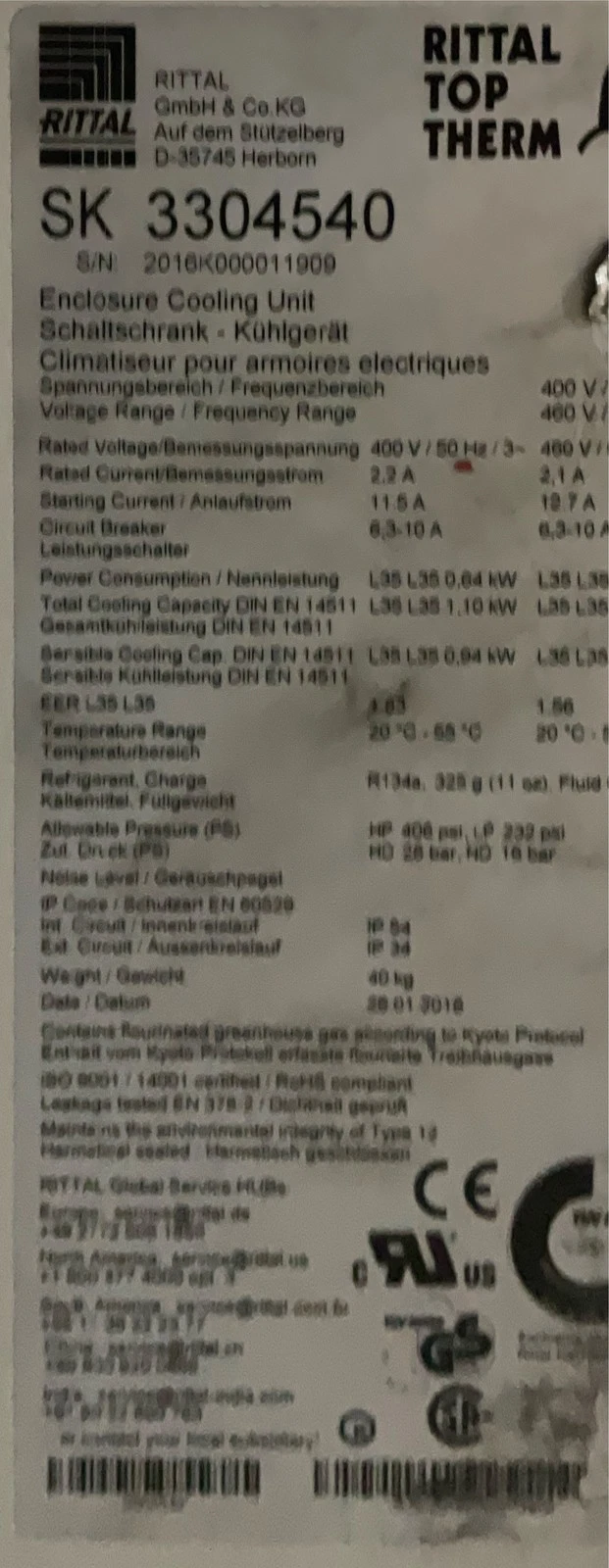

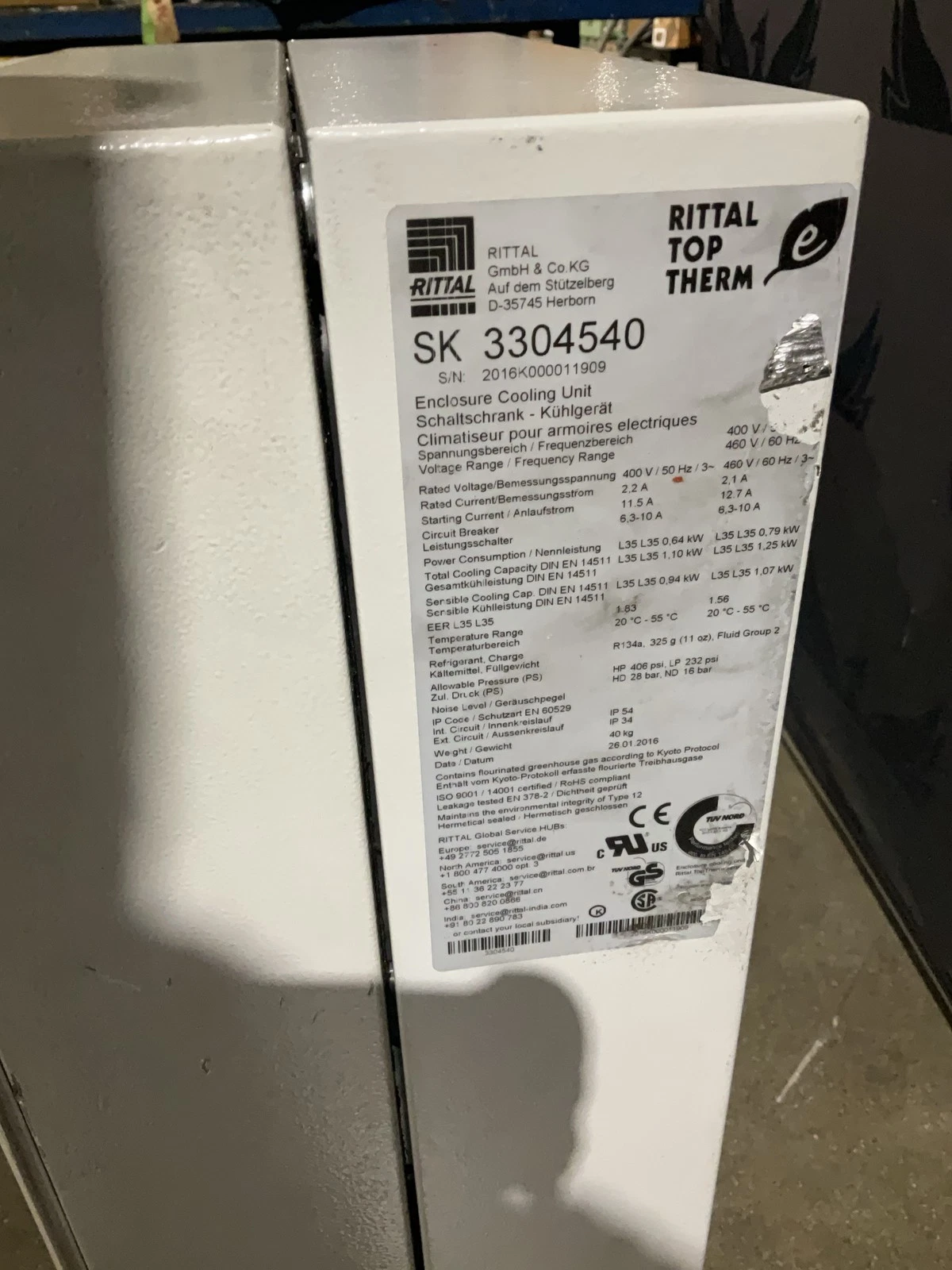

IDENTIFICATION Manufacturer: Rittal Series: TopTherm Model: SK 3304540 Product Type: Enclosure Cooling Unit Serial Number: 2016K000011909 Condition: USED YOM: 2016 COOLING PERFORMANCE Total Cooling Capacity @ 50 Hz: 1.10 kW Total Cooling Capacity @ 60 Hz: 1.25 kW Sensible Cooling Capacity @ 50 Hz: 0.94 kW Sensible Cooling Capacity @ 60 Hz: 1.07 kW EER @ 50 Hz: 1.83 EER @ 60 Hz: 1.56 ELECTRICAL Supply Voltage: 400 VAC / 50 Hz / 3 Phase Supply Voltage: 460 VAC / 60 Hz / 3 Phase Rated Current @ 50 Hz: 2.2 A Rated Current @ 60 Hz: 2.1 A Starting Current @ 50 Hz: 11.5 A Starting Current @ 60 Hz: 12.7 A Circuit Breaker: 6.3-10 A Power Consumption @ 50 Hz: 0.64 kW Power Consumption @ 60 Hz: 0.79 kW REFRIGERATION SYSTEM Refrigerant Type: R134a Refrigerant Charge: 325 g (11 oz) Fluid Group: 2 Maximum High Pressure: 406 PSI Maximum Low Pressure: 232 PSI Maximum High Pressure: 28 Bar Maximum Low Pressure: 16 Bar ENVIRONMENTAL Operating Temperature Range: 20°C to 55°C PROTECTION Internal Circuit Rating: IP54 External Circuit Rating: IP34 CERTIFICATIONS CE Marked: Yes cRUus Recognized: Yes TÜV Certified: Yes RoHS Compliant: Yes CONSTRUCTION Mounting Style: Enclosure Mounted Internal Air Circuit: Separated External Air Circuit: Separated Hermetically Sealed: Yes
