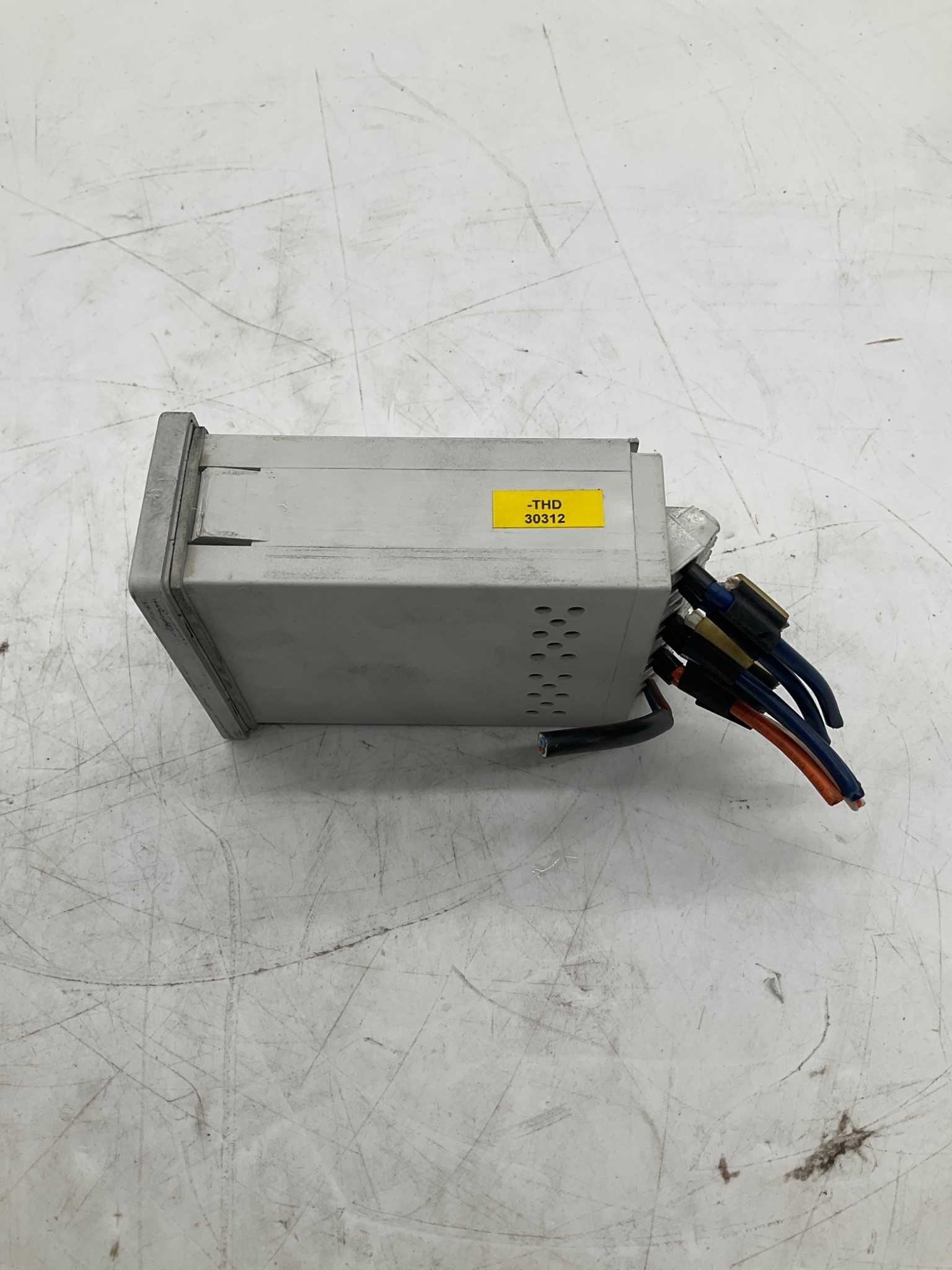

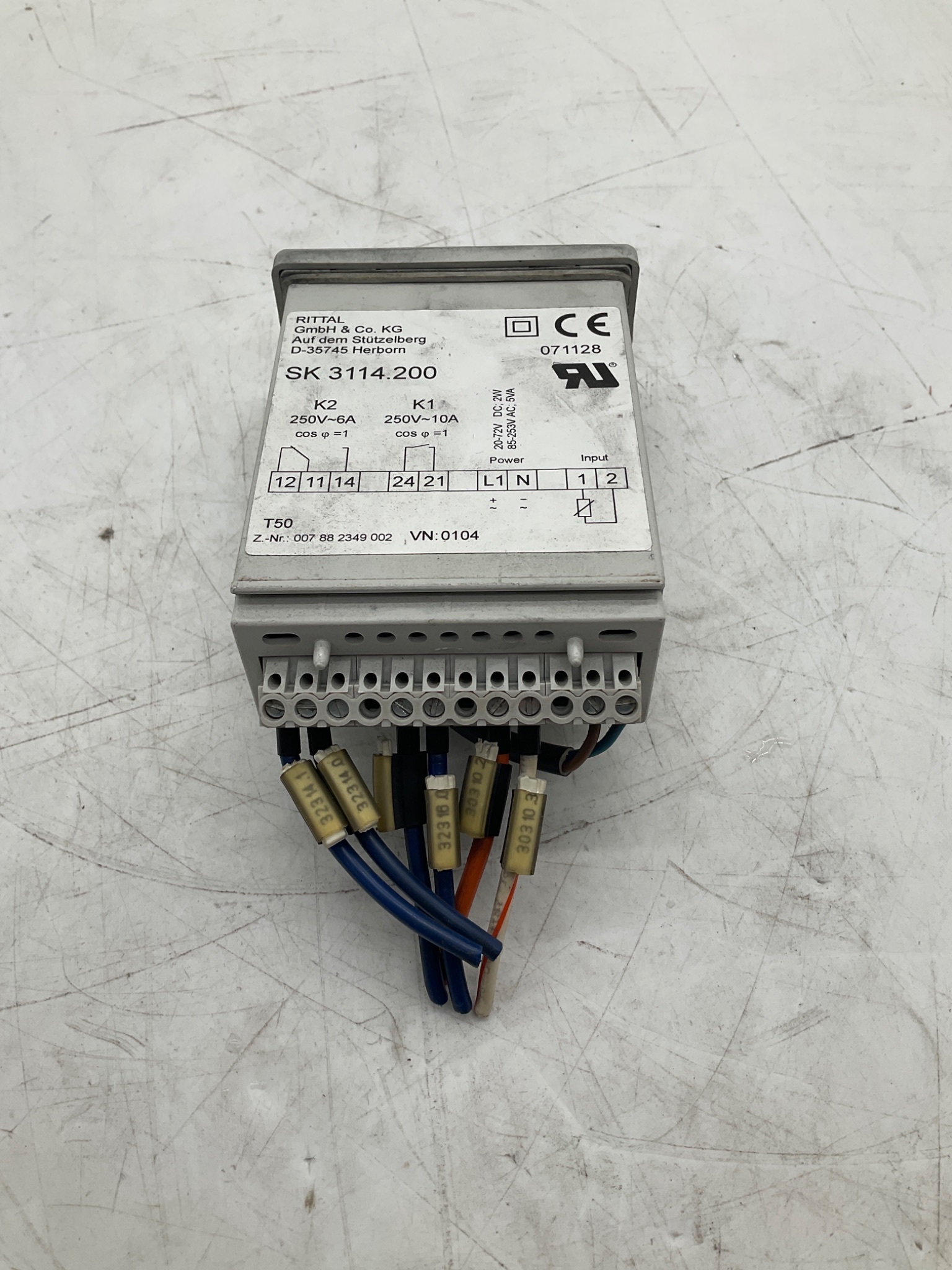

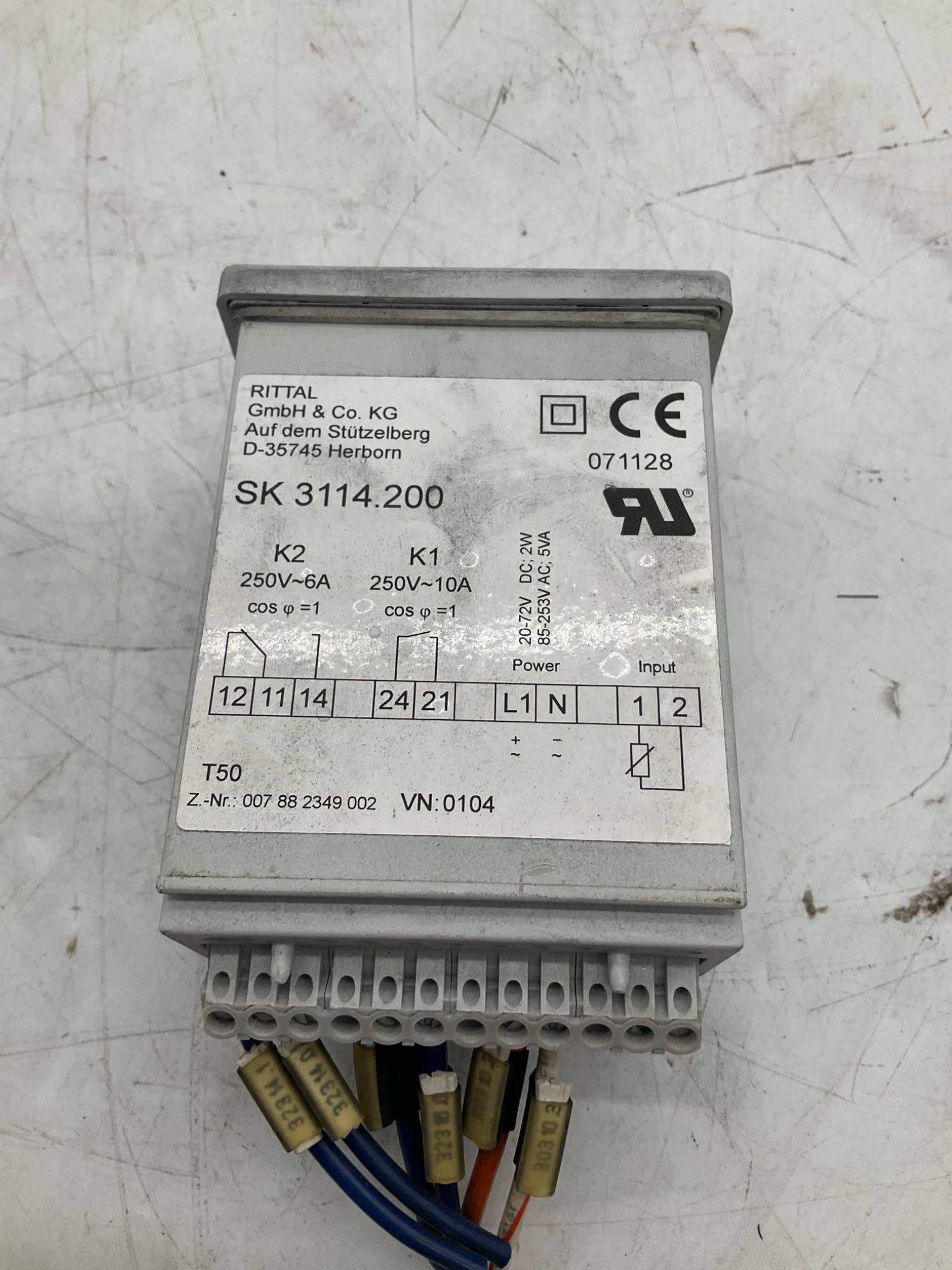

Rittal SK 3114.200 Digital Temperature Controller 20-72VDC 85-253VAC USED

Specification Table

IDENTIFICATION Manufacturer: Rittal Model / Part Number: SK 3114.200 Product Type: Electronic Temperature Controller Condition: USED YOM: n/a   POWER DC Supply Range: 20-72 VDC DC Power Consumption: 2 W AC Supply Range: 85-253 VAC AC Power Consumption: 5 VA Power Terminals: L1 / N   SWITCHING OUTPUTS Number of Relay Outputs: 2 Relay Designations: K1 / K2 K1 Contact Rating: 250 VAC / 10 A K2 Contact Rating: 250 VAC / 6 A K1 Power Factor: cos φ = 1 K2 Power Factor: cos φ = 1   RELAY CONNECTIONS K1 Terminals: 21 / 24 K2 Terminals: 11 / 12 / 14 K2 Contact Type: Changeover K1 Contact Type: Not specified   TEMPERATURE CONTROL Controller Type: Digital Temperature Display: Digital Setpoint Adjustment: Pushbutton Control Outputs: K1 / K2 Sensor Input: Terminals 1 / 2 Sensor Type: Not specified   CONNECTION / INSTALLATION Power Connection: Terminal Block Signal Connection: Terminal Block Mounting Configuration: Panel Mount Terminal Configuration: Integrated   CONSTRUCTION Housing Configuration: Enclosed Display Type: LED Operator Controls: Pushbutton Electrical Protection Class: Class II   APPROVALS / MARKINGS CE: Yes UL: Recognized
