REX POWER MAGNETICS DA51H-P/C&C 51 kVA 480V Isolation Transformer USED

$475.00
Availability:

1 in stock
BRAND: REX POWER MAGNETICS MODEL: DA51H-P/C&C CONDITION: used
SKU: IGAM17010028 Weight: 325 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer
Get Shipping Quote

Overview

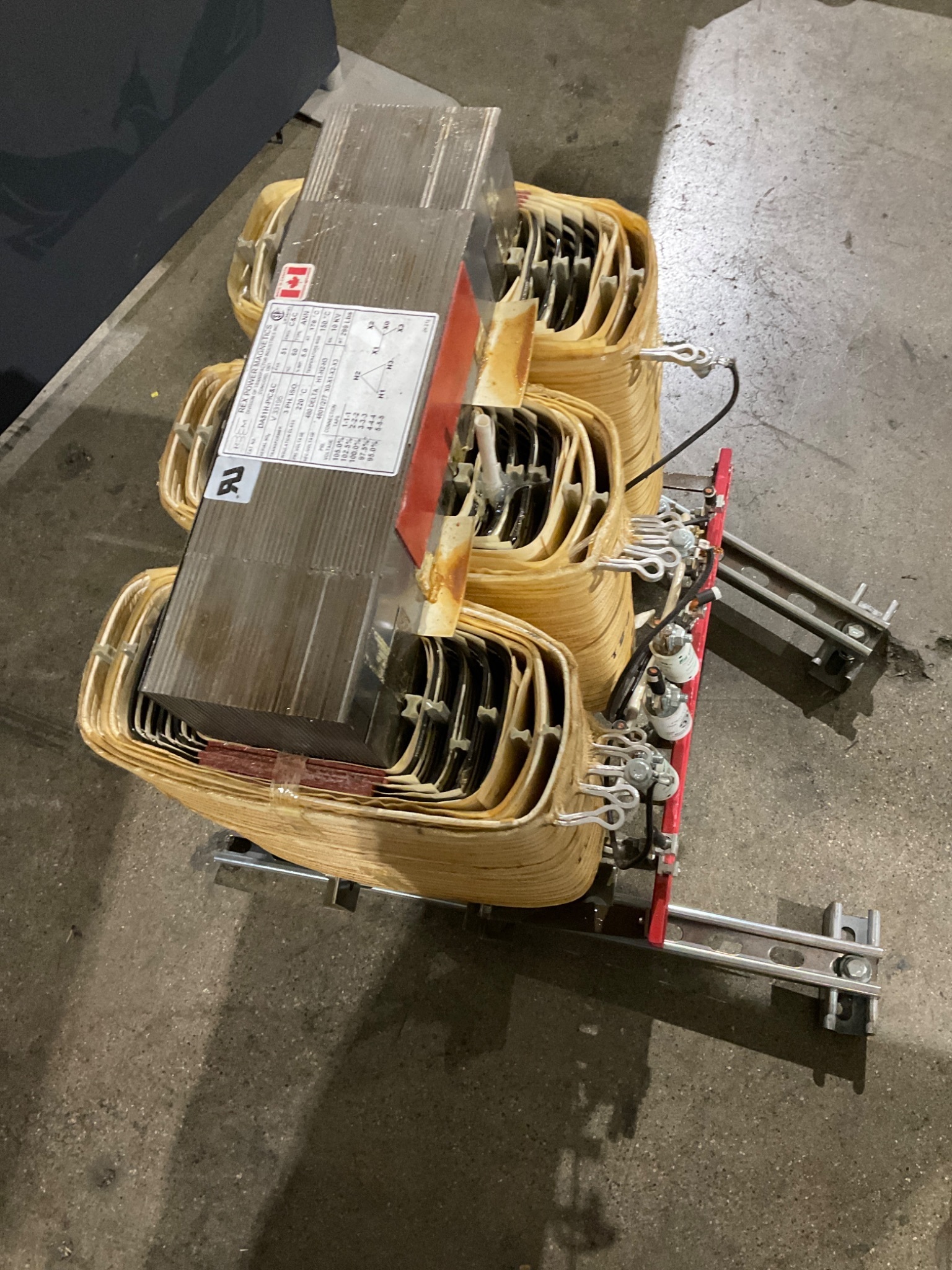

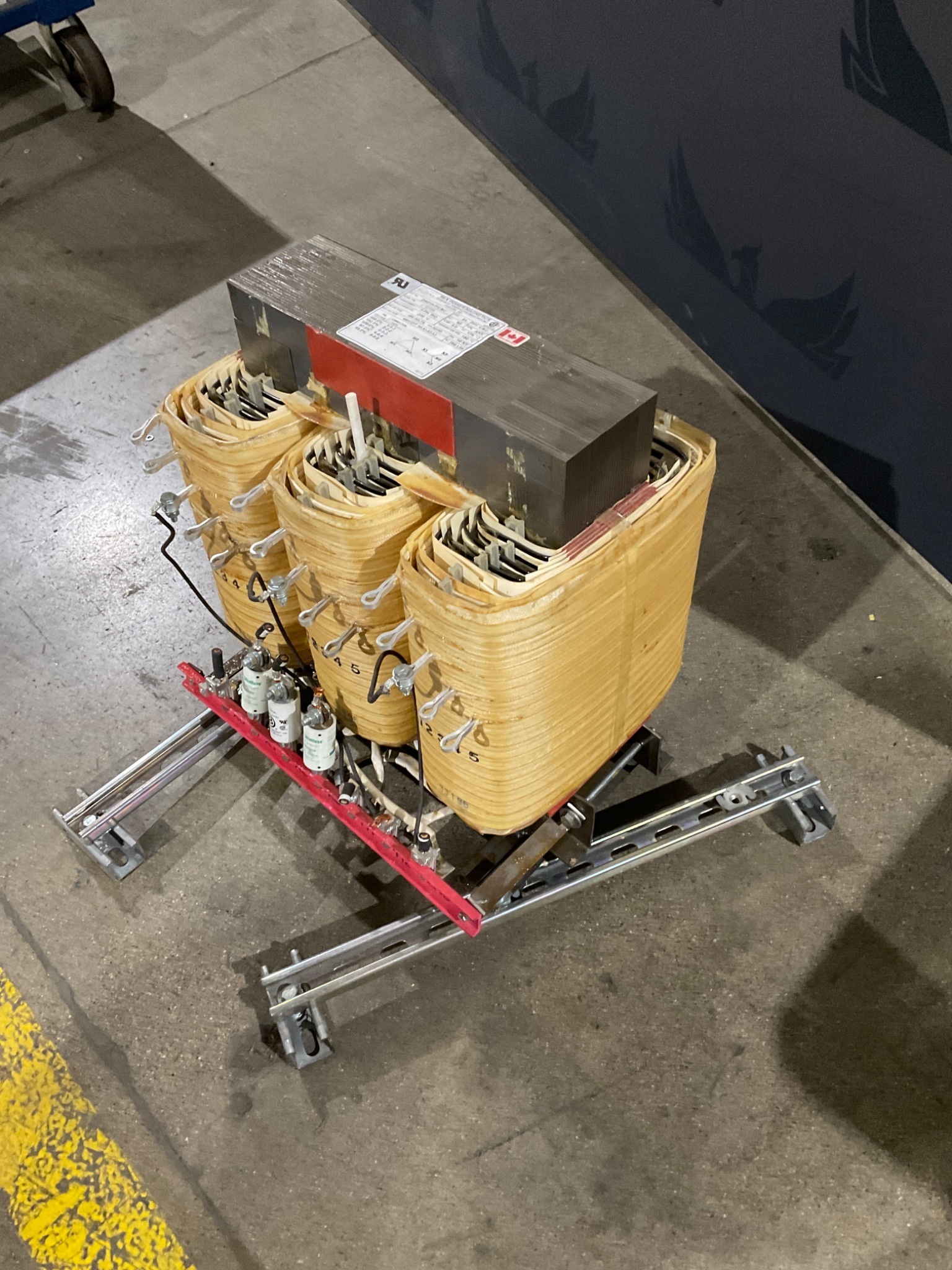

This listing is for a USED Rex Power Magnetics DA51H-P/C&C three-phase isolation transformer. The unit is rated 51 kVA with 480 V delta primary and 480Y/277 V secondary, 60 Hz operation, 5% impedance, and five primary voltage tap settings for industrial power distribution and electrical isolation.

Specification Table

Power 51 kV·A

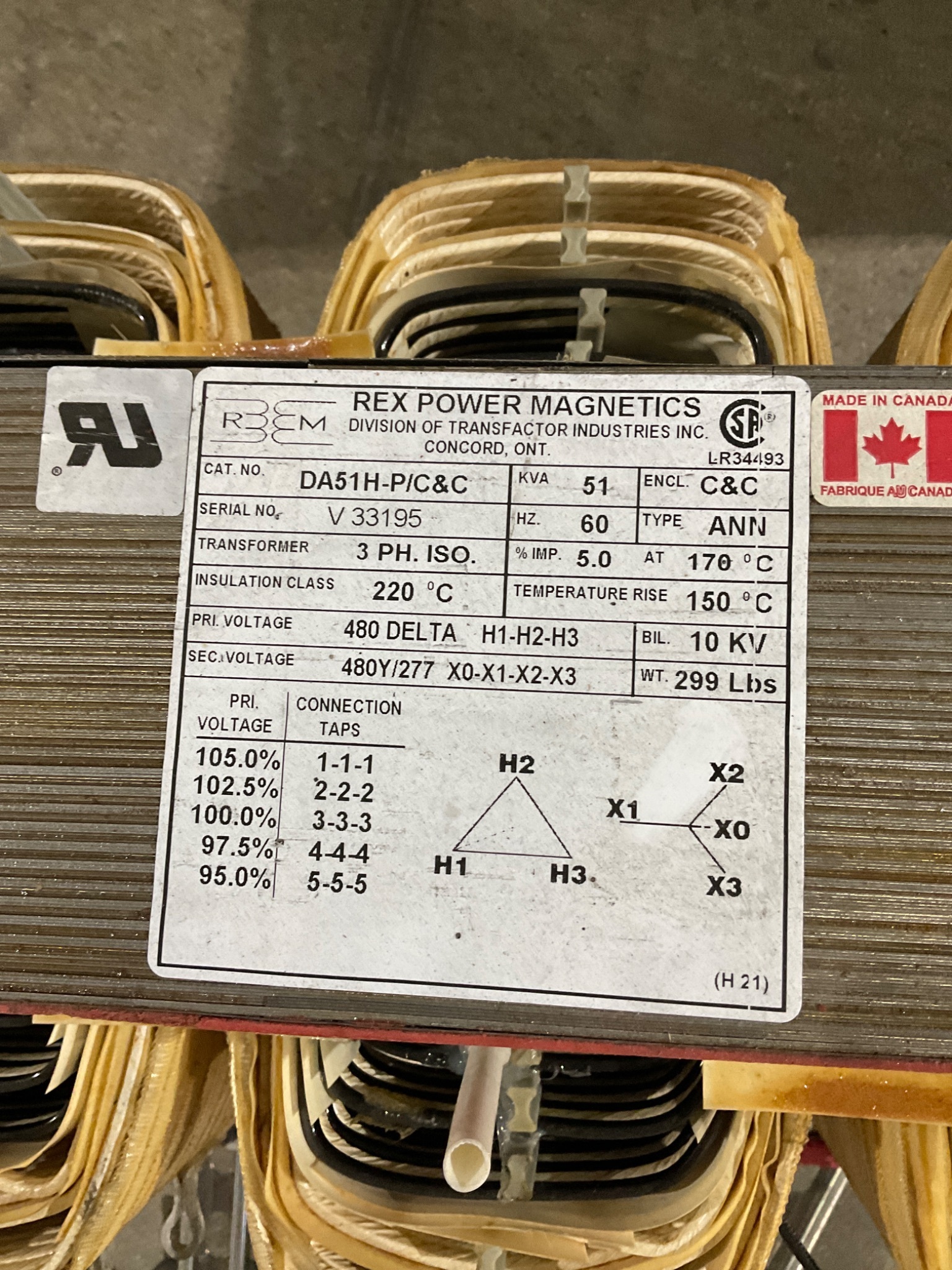

IDENTIFICATION Manufacturer: Rex Power Magnetics Catalog Number: DA51H-P/C&C Product Type: Three-phase isolation transformer Serial Number: V33195 Condition: USED YOM: n/a Country of Manufacture: Canada   POWER RATING Rated Power: 51 kVA Phases: 3 Frequency: 60 Hz Impedance: 5.0% at 170 °C Transformer Type: AN Enclosure: C&C   PRIMARY Primary Voltage: 480 VAC Primary Connection: Delta Primary Terminals: H1 / H2 / H3   SECONDARY Secondary Voltage: 480Y/277 VAC Secondary Connection: Wye Secondary Terminals: X0 / X1 / X2 / X3 Neutral Connection: X0   PRIMARY VOLTAGE TAPS 105.0%: 1-1-1 102.5%: 2-2-2 100.0%: 3-3-3 97.5%: 4-4-4 95.0%: 5-5-5   INSULATION / THERMAL Insulation Class: 220 °C Temperature Rise: 150 °C   DIELECTRIC Basic Impulse Level: 10 kV   CONSTRUCTION Construction: Open dry-type Core: Laminated Windings: Exposed Tap Connections: Accessible Mounting Base: Steel support frame
