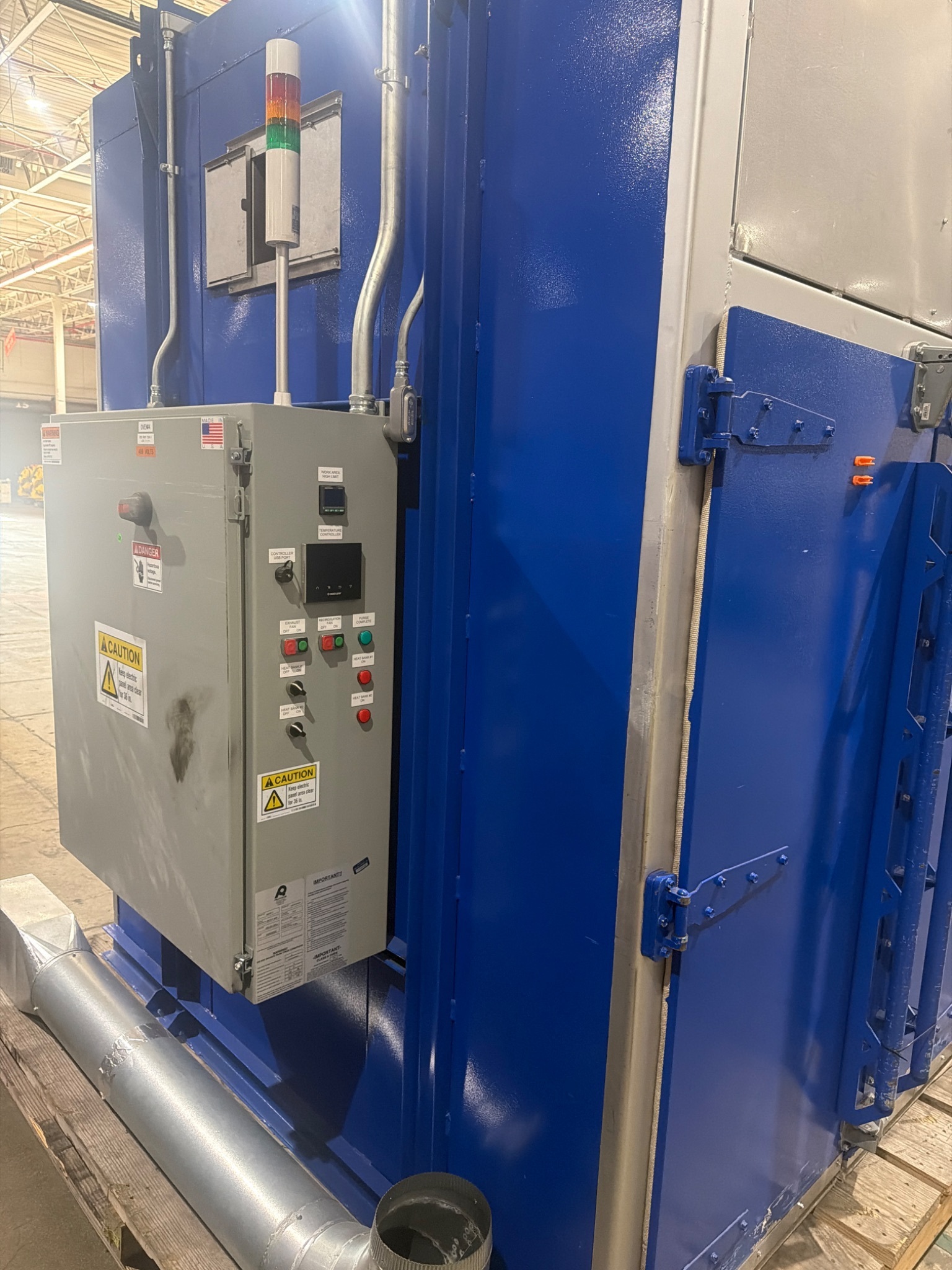

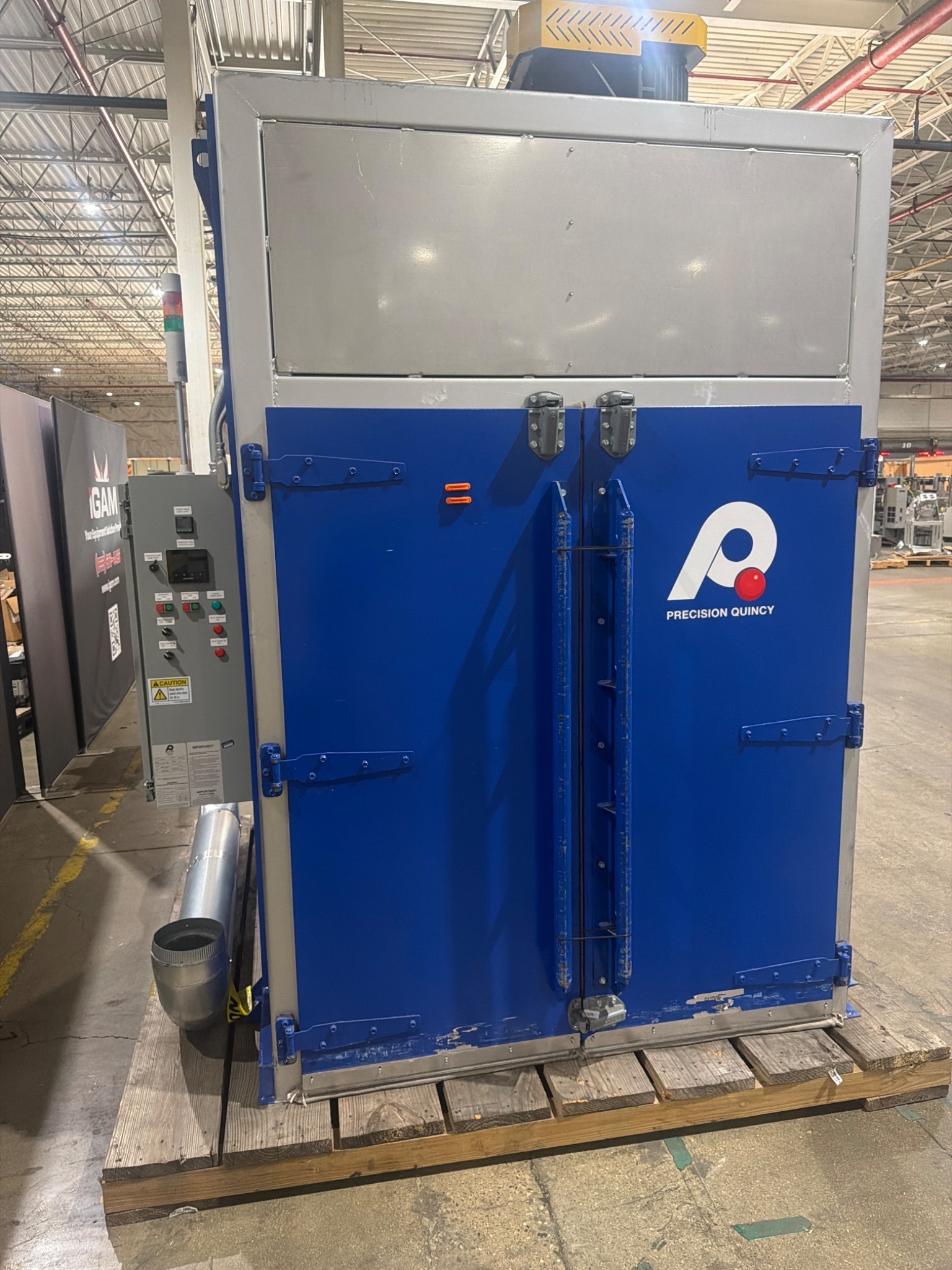

Precision Quincy HD4TE-0406-06 Electric Batch Oven USED

Specification Table

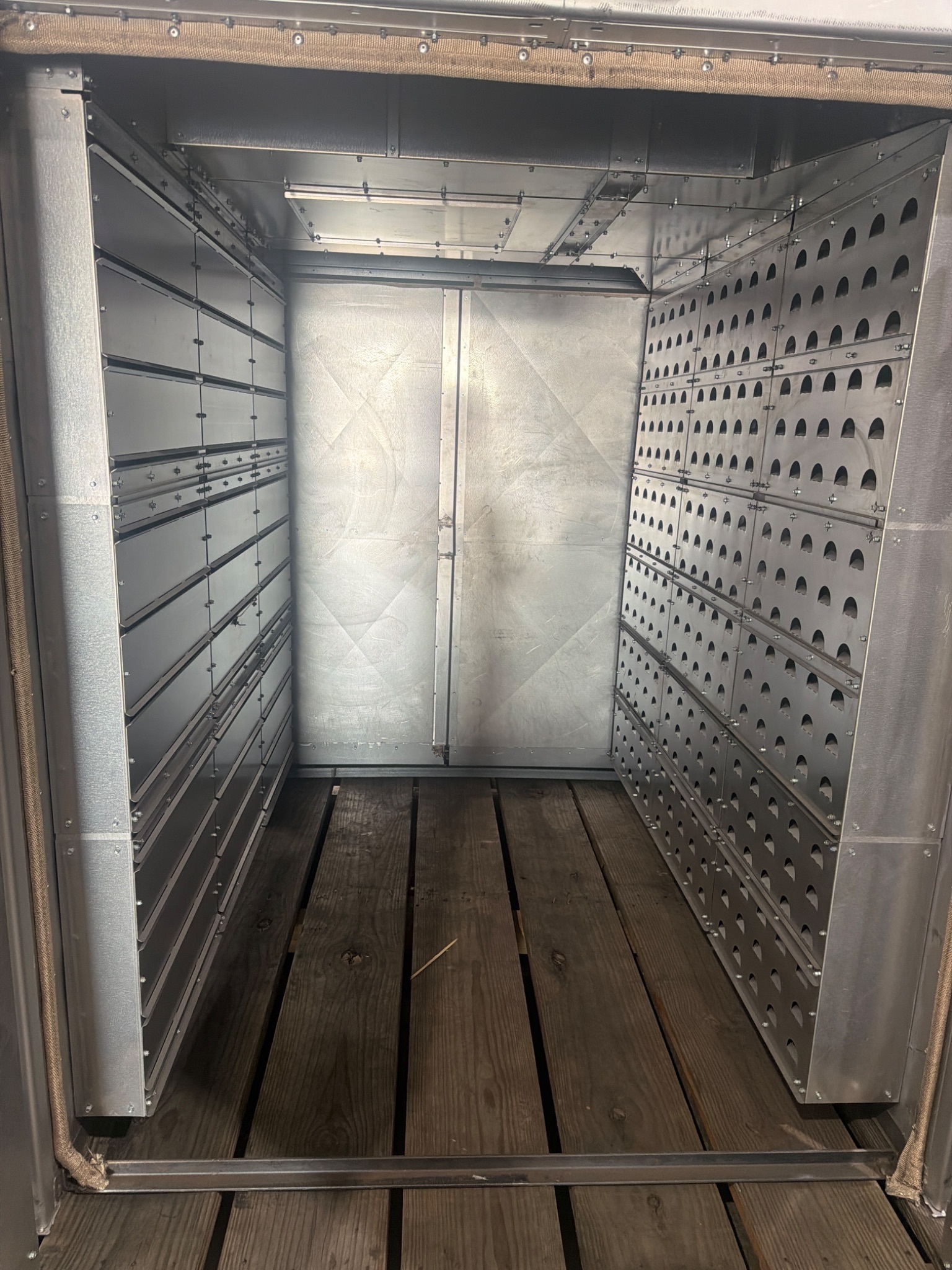

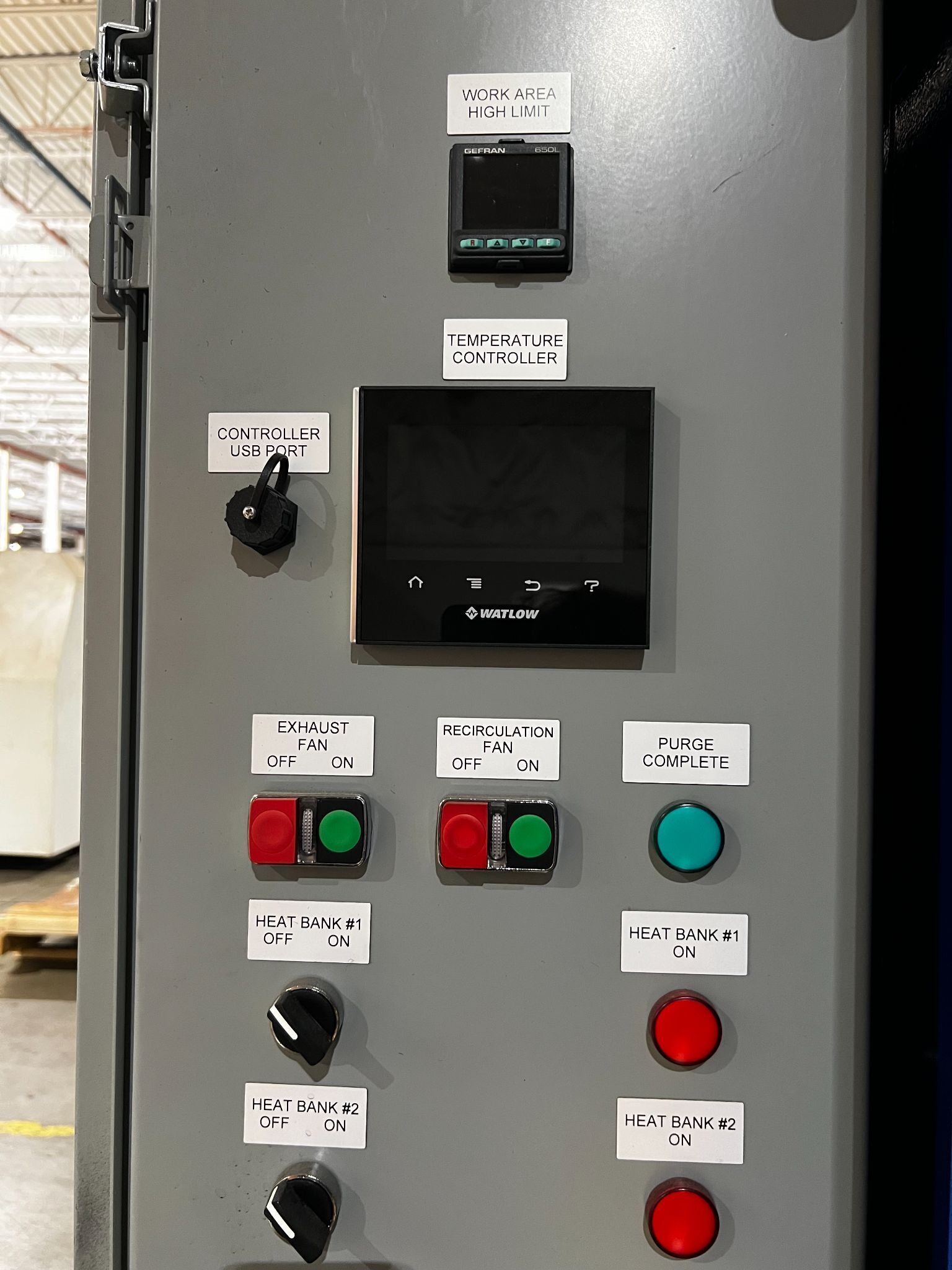

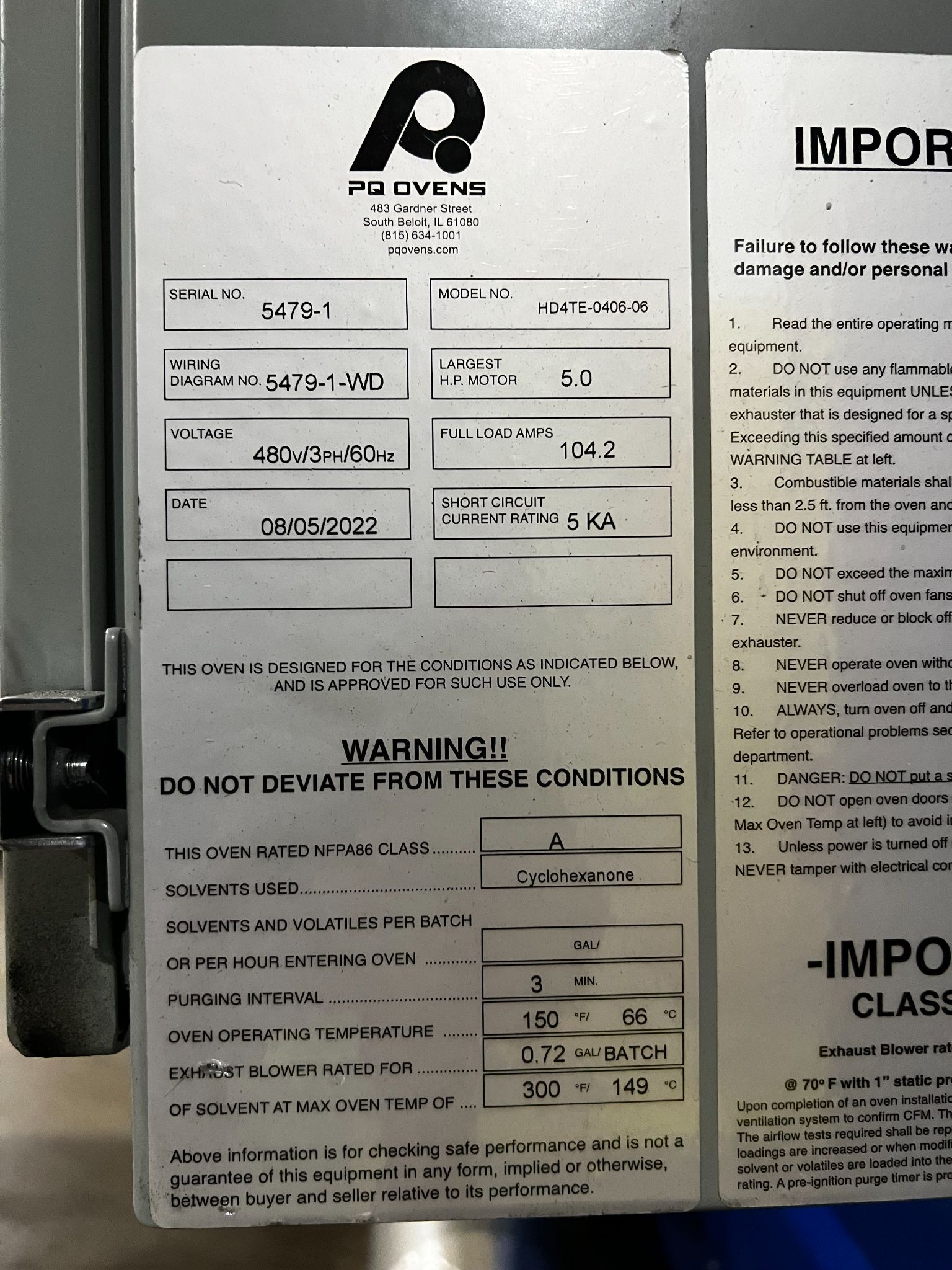

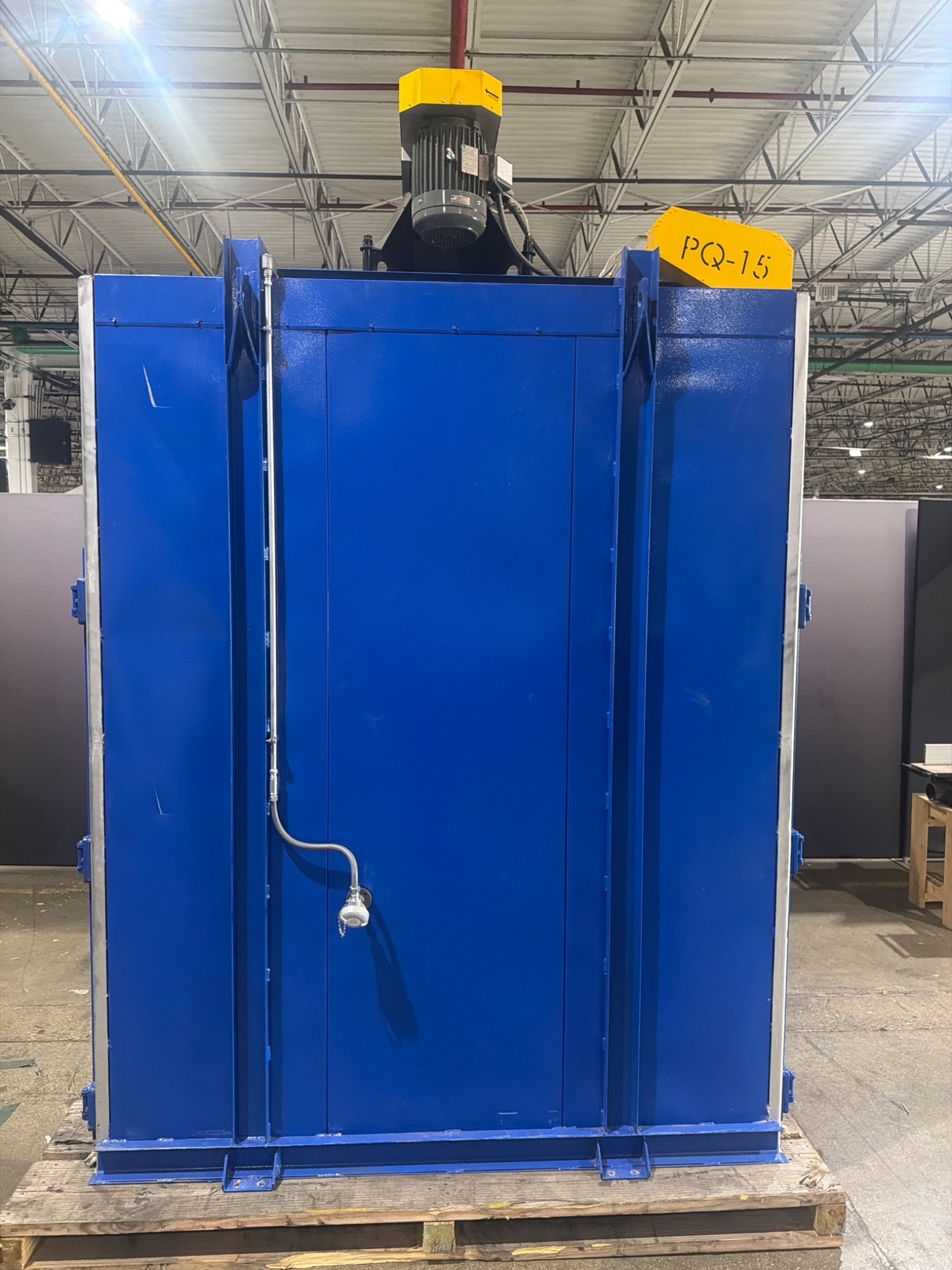

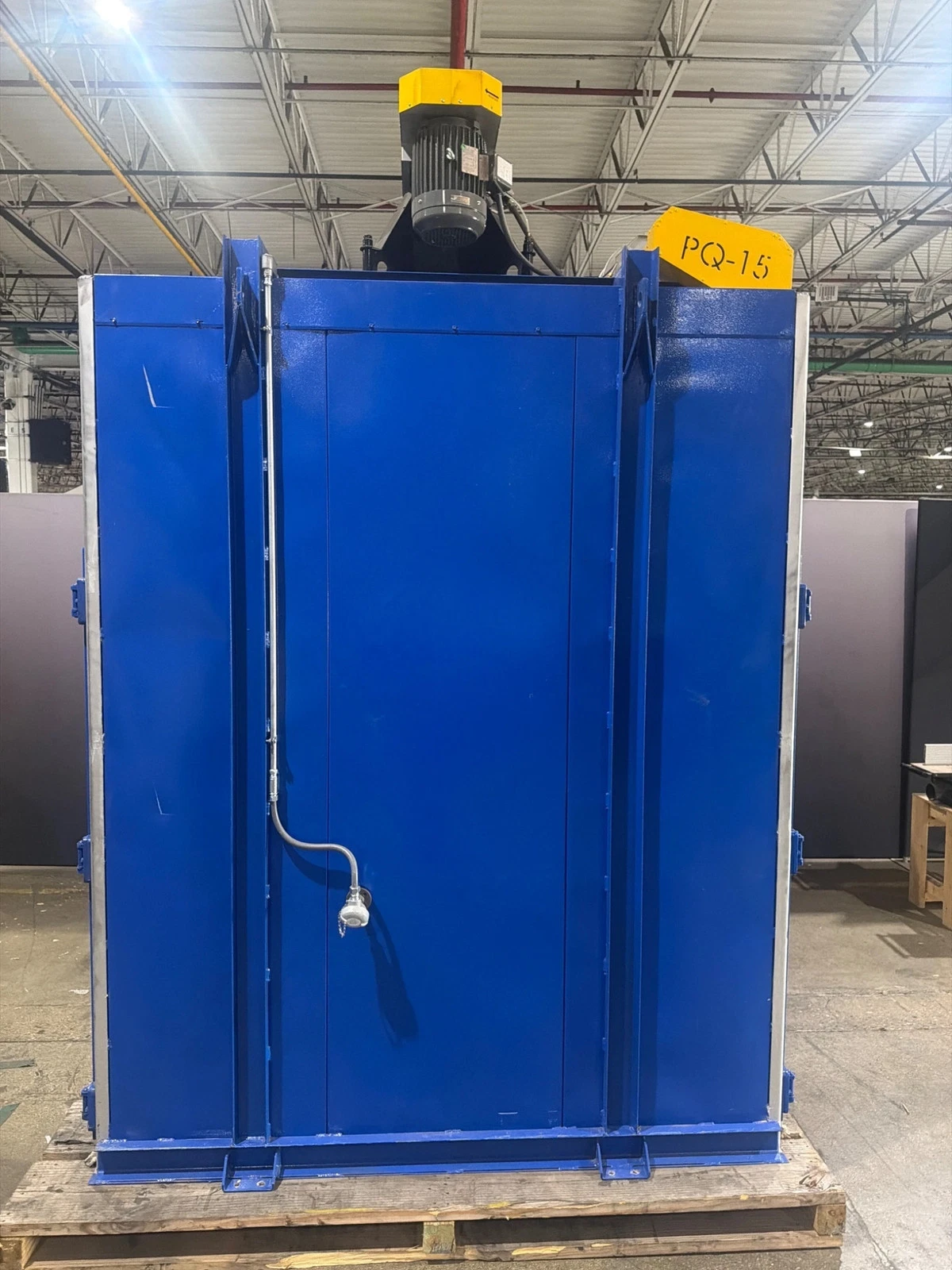

Manufacturer: Precision Quincy Ovens Brand: PQ Ovens Model: HD4TE-0406-06 Condition: USED YOM: 08/05/2022 Product Type: Electric Batch Oven Oven Classification: NFPA 86 Class A Serial Number: 5479-1 Power Requirement: 480 VAC Phase: 3 Phase Frequency: 60 Hz Full Load Current: 104.2 A Largest Motor: 5 HP Short Circuit Current Rating: 5 kA Heating Method: Electric Installed Heating Capacity: 72 kW Heating Banks: 2 Heating Capacity Per Bank: 36 kW Heating Elements: 24 Individual Element Rating: 3000 W @ 460 V Maximum Temperature: 300°F (149°C) Operating Temperature Range: 150°F to 200°F (66°C to 93°C) Temperature Uniformity: ±10°F (±5.6°C) Controller: Watlow F4T Ramp/Soak Controller High Limit Controller: Gefran 650L Minimum Purge Time: 3 Minutes Recirculation Fan: WT-18 Plug Fan Recirculation Fan Motor: 5 HP Recirculation Airflow: 5,800 CFM @ 2 in. W.C. Exhaust Fan: PQ15 Exhauster Exhaust Fan Motor: 0.75 HP Exhaust Airflow: 704 CFM @ 1 in. W.C. Maximum VOC Load: 0.72 Gal/Batch Approved Solvent: Cyclohexanone Design Elevation: 1,100 ft Wall Thickness: 4 in Insulation Type: Mineral Wool Insulation Density: 6 lb Work Area Width: 48 in Work Area Height: 72 in Work Area Depth: 72 in Work Area Volume: 144 ft³ Oven Body Width: 78.47 in Oven Body Height: 109.23 in Oven Body Depth: 84.50 in Overall Width: 89.77 in Overall Height: 130.80 in Overall Depth: 95.98 in Exhaust Outlet Height: 122.49 in Exhaust Opening: 6 in x 10 in Estimated Weight: 3,500 lb Control Enclosure Rating: NEMA 12 Control Panel Standard: UL 508A Open Industrial Control Panel Applicable Standards: NFPA 79, NFPA 86, UL 508A Stack Light: 3-Tier With Audible Alarm Door Configuration: Bi-Parting Doors Floor Configuration: No Internal Floor
