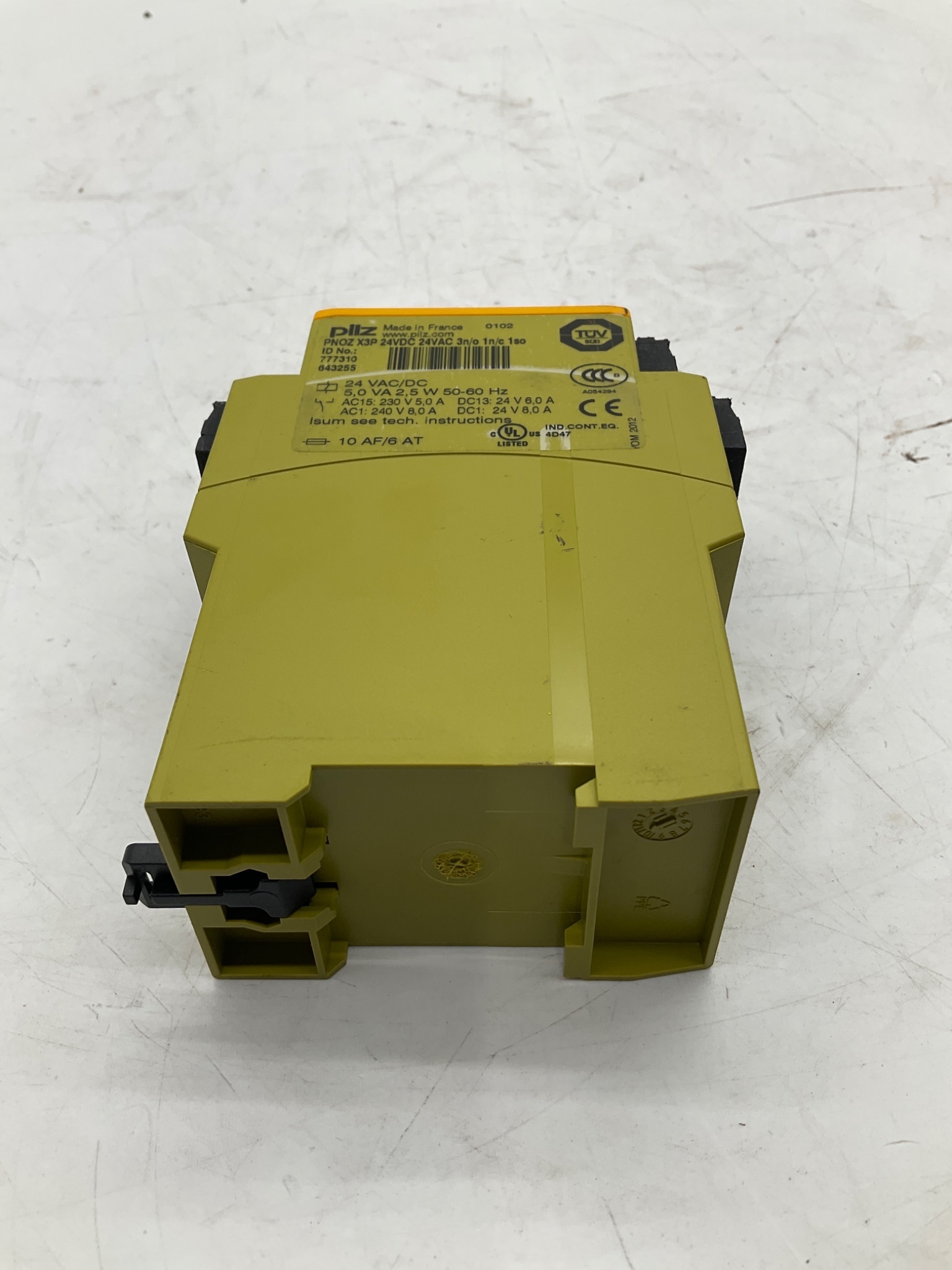

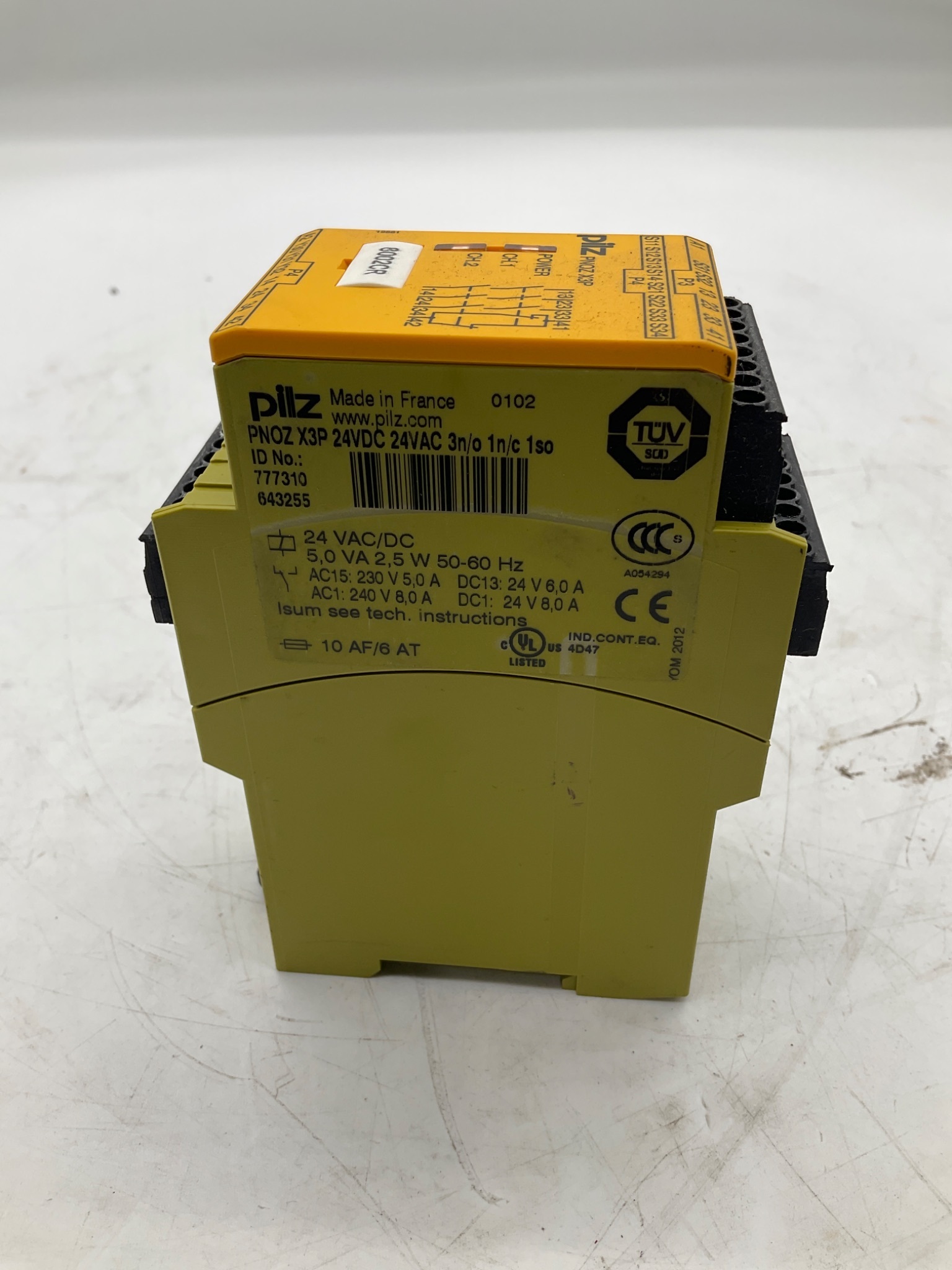

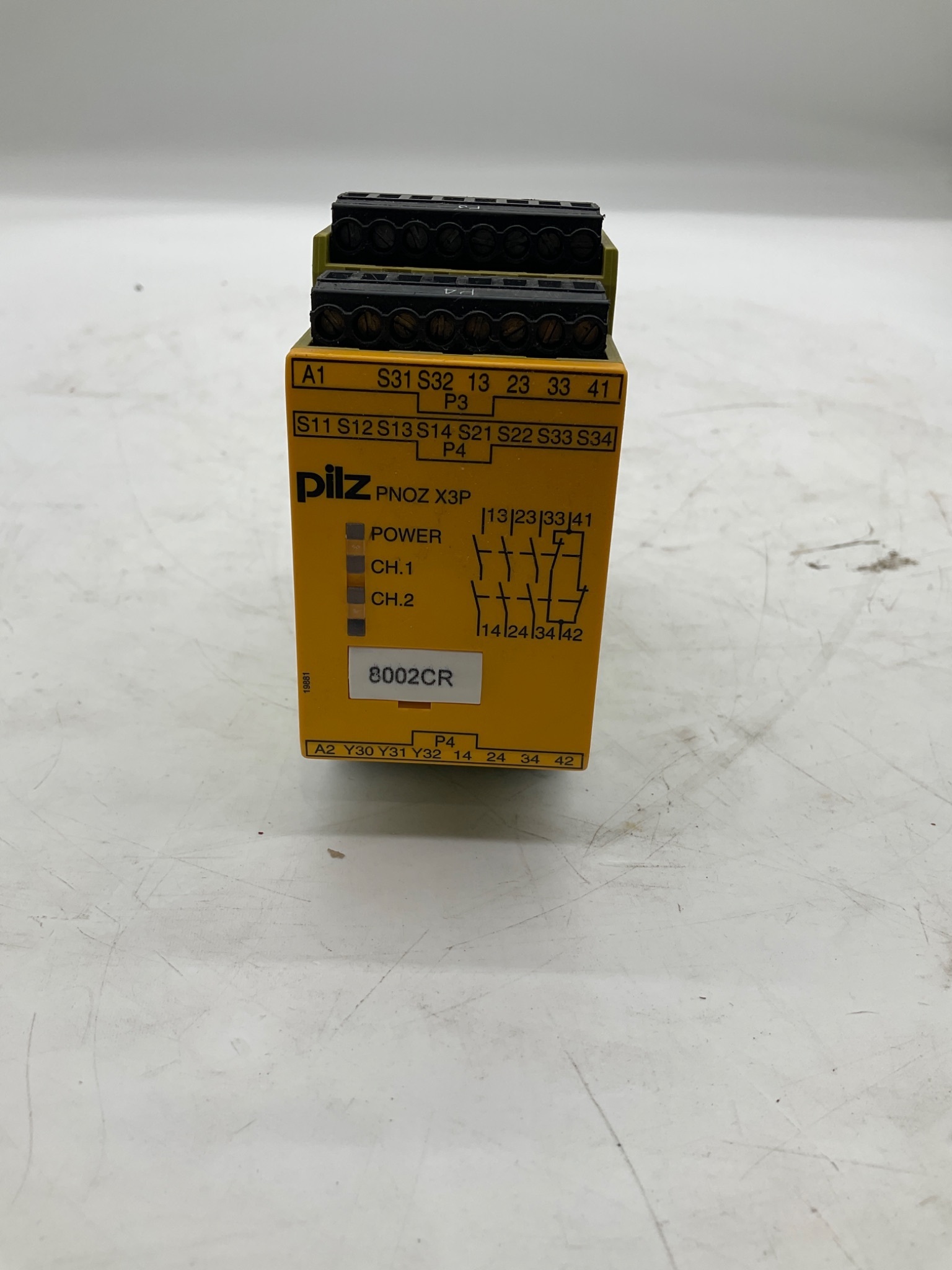

PILZ 777310 PNOZ X3P Safety Relay 24VAC/DC USED

$20.00
Availability:

Out of stock
BRAND: PILZ MODEL: 777310 CONDITION: used
SKU: IGAM4160407 Weight: 1 lbs Shipping Calculated at Checkout

Out of stock

Overview

This listing is for a USED Pilz 777310 PNOZ X3P safety relay. The module monitors safety circuits and provides redundant safety output contacts for machine safeguarding applications. Featuring dual-channel inputs, 24VAC/DC supply operation, and a 3NO/1NC safety contact arrangement, it is commonly integrated into emergency stop, guard monitoring, and machine safety systems.

Specification Table

Manufacturer: Pilz Series: PNOZ X Model: PNOZ X3P Part Number: 777310 Condition: USED   YOM: 2012   Product Type: Safety Relay Safety Function: Dual-Channel Safety Monitoring   Supply Voltage: 24 VAC/DC Frequency: 50-60 Hz   Power Consumption: 5.0 VA Power Consumption: 2.5 W   Safety Outputs: 3 NO Auxiliary Outputs: 1 NC   Output Contacts: Contact 13-14: NO Contact 23-24: NO Contact 33-34: NO Contact 41-42: NC   Input Channels: CH.1, CH.2 Start Inputs: S33, S34 Feedback Loop: Y30, Y31, Y32   AC15 Rating: 230 VAC: 5.0 A   AC1 Rating: 240 VAC: 8.0 A   DC13 Rating: 24 VDC: 6.0 A   DC1 Rating: 24 VDC: 8.0 A   Fuse Protection: 10 AF / 6 AT   Status Indicators: POWER Status Indicators: CH.1 Status Indicators: CH.2   Mounting: DIN Rail Terminal Type: Screw Terminal   Approvals: TÜV Approvals: UL Listed Compliance: CE Compliance: CCC   UL Category: Industrial Control Equipment UL File Marking: 4D47   Country of Manufacture: France
