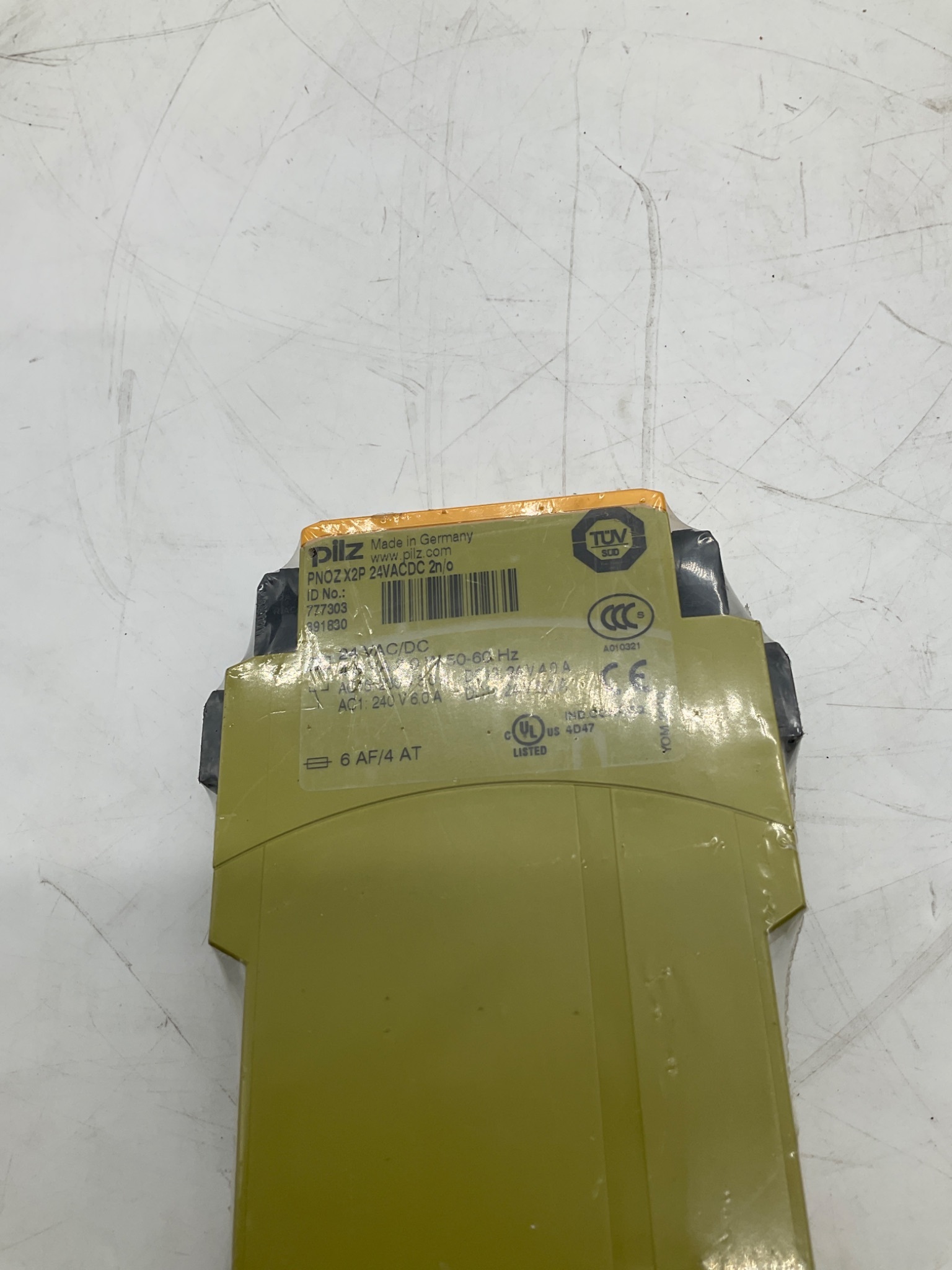

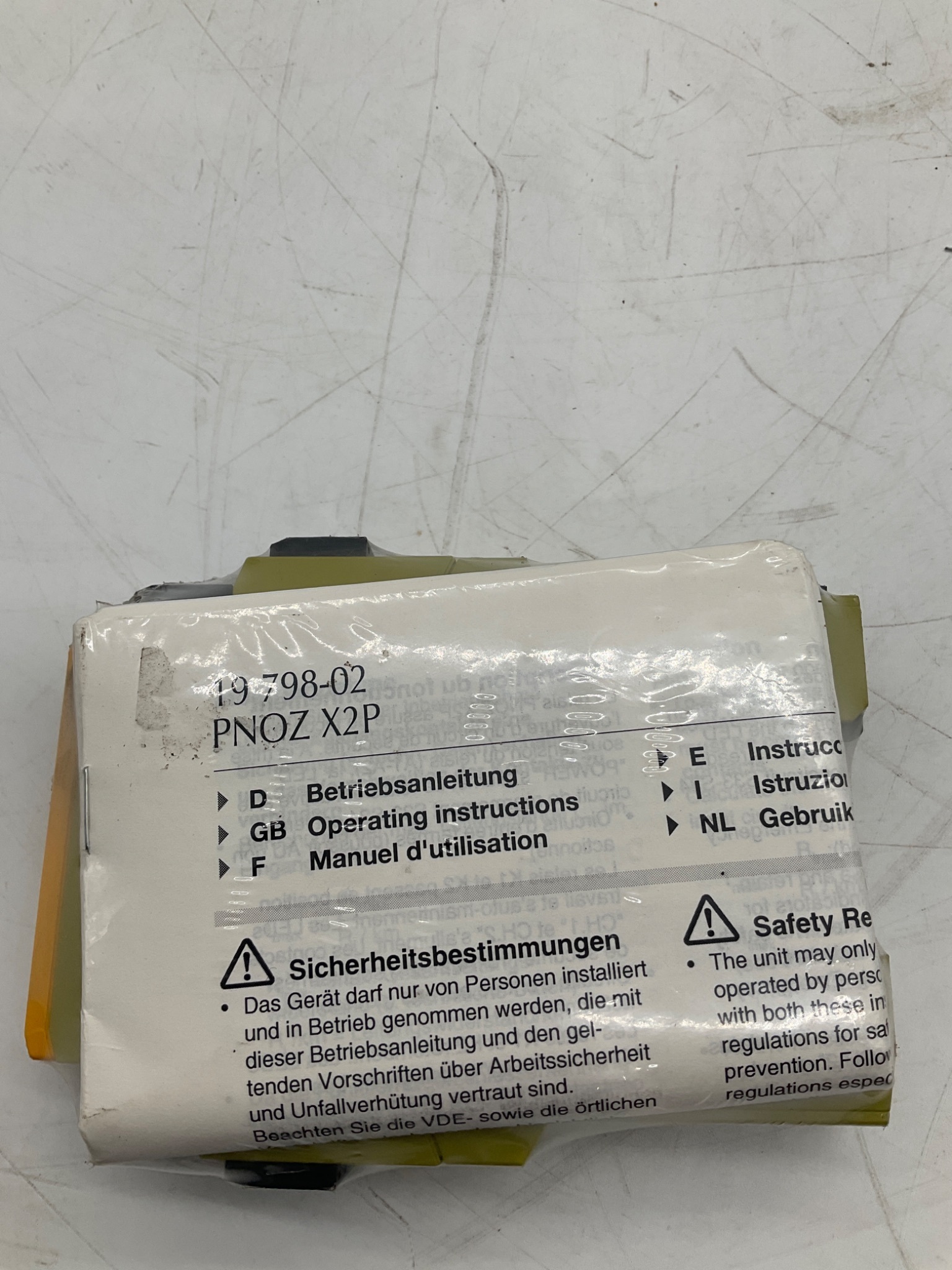

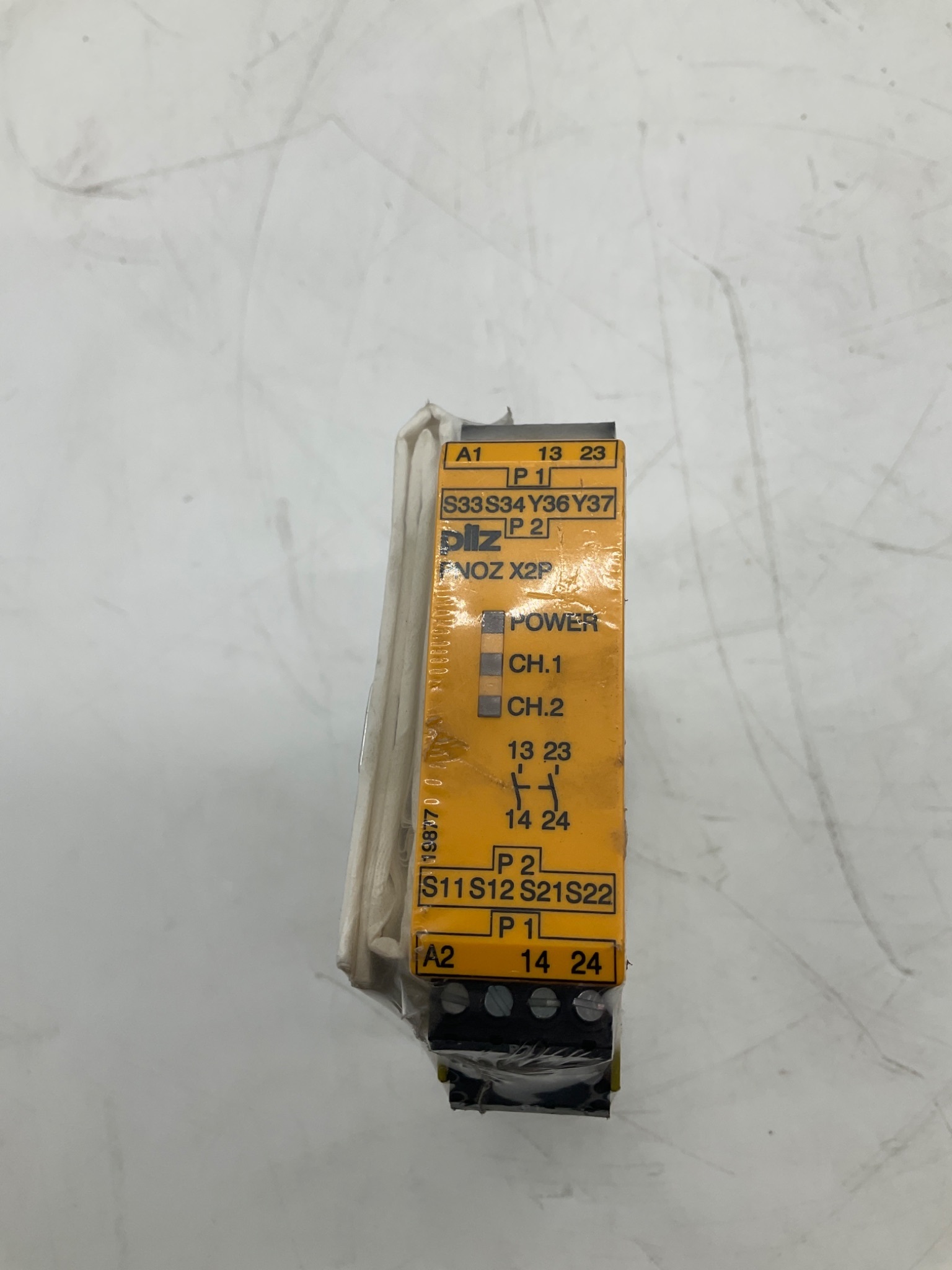

PILZ 777303 PNOZ X2P Safety Relay 24VAC/DC 2 N/O NEW

Specification Table

Manufacturer: Pilz Series: PNOZ X Model: PNOZ X2P Part Number: 777303 Condition: NEW   Product Type: Safety Relay Function: Safety Monitoring Relay Safety Architecture: Dual Channel Mounting Type: DIN Rail Mount   Power Specifications   Supply Voltage: 24 VAC/DC Frequency: 50-60 Hz Power Consumption AC: 5 VA Power Consumption DC: 2.5 W   Input Specifications   Safety Inputs: 2 Input Configuration: Dual Channel Input Type: E-Stop / Safety Device Monitoring   Output Specifications   Safety Outputs: 2 N.O. Output Contact Configuration: 2 N.O. Output Contact Material: AgSnO2   Contact Ratings   AC1 Rating: 240 VAC 6 A DC1 Rating: 24 VDC 6 A AC15 Rating: 230 VAC 3 A DC13 Rating: 24 VDC 4 A   Protection Specifications   External Fuse AC: 6 A Fast Acting External Fuse DC: 4 A Fast Acting   Electrical Specifications   Terminal Type: Screw Terminal Rated Insulation Voltage: 250 V Rated Frequency: 50-60 Hz Indicators   Power LED: Yes Channel 1 LED: Yes Channel 2 LED: Yes   Compliance   UL Listed: Yes CE Marked: Yes TUV Approved: Yes CCC Approved: Yes   Manufacturing Information   Country of Manufacture: Germany YOM: n/a
