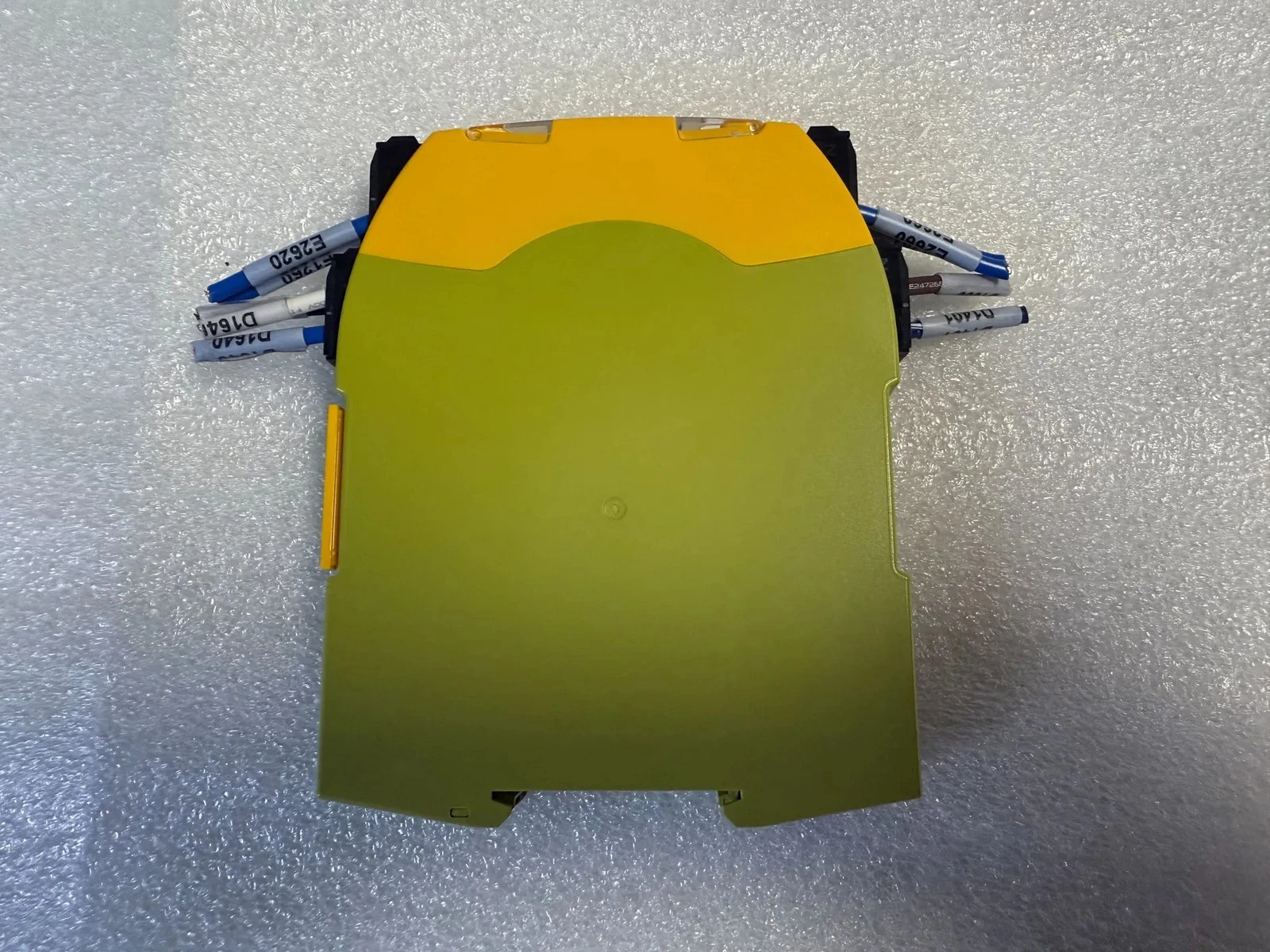

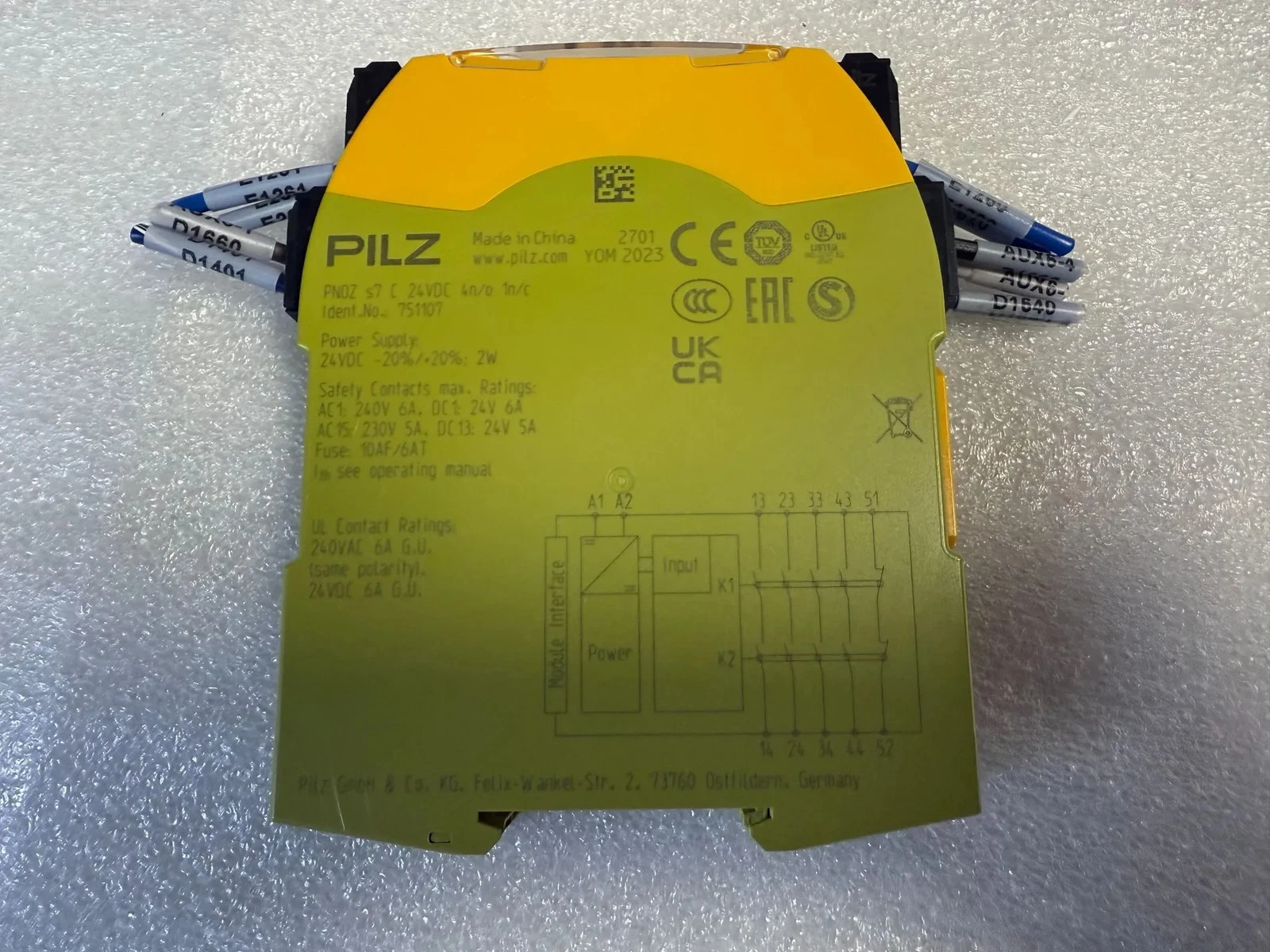

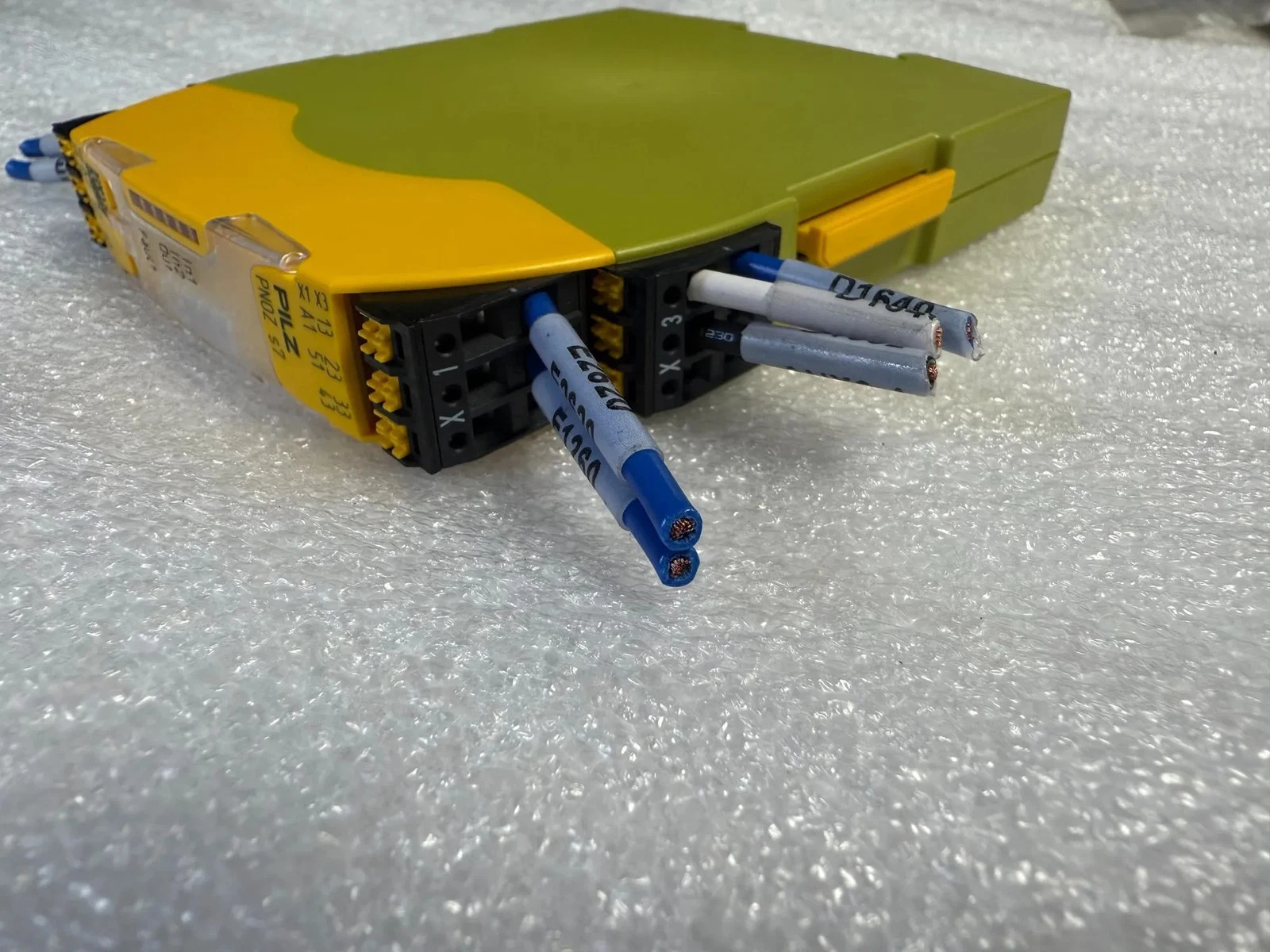

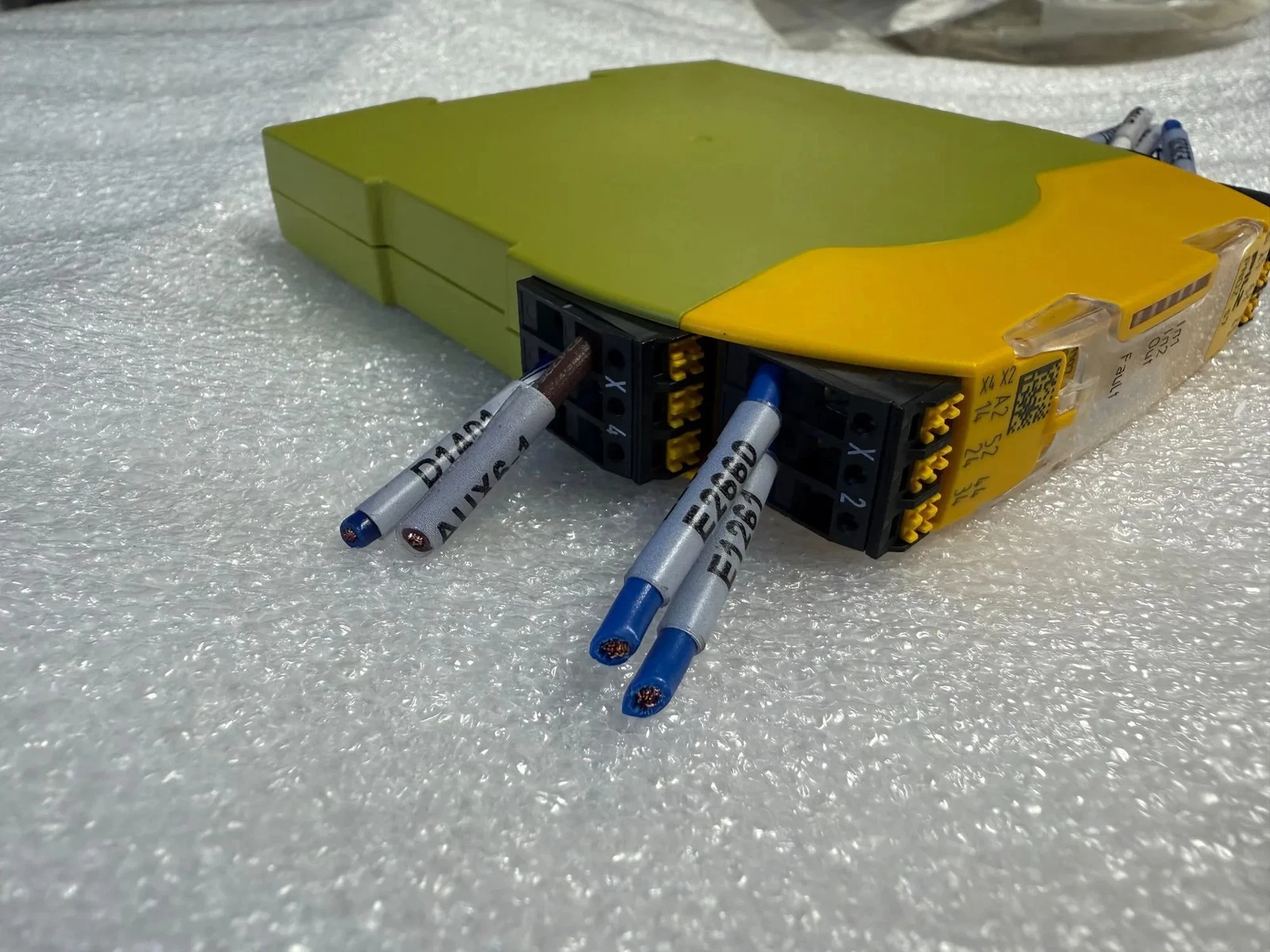

PILZ 751107 PNOZ s7 C Safety Relay USED

Specification Table

IDENTIFICATION Manufacturer: PILZ Model / Series: PNOZ s7 C Ident. No.: 751107 Product Type: Safety Relay Condition: USED YOM: 2023 Country of Manufacture: China CONTACT CONFIGURATION Normally Open Contacts: 4 Normally Closed Contacts: 1 Terminal Pairs, N/O: 13-14, 23-24, 33-34, 43-44 Terminal Pair, N/C: 51-52 POWER SUPPLY Supply Voltage: 24 VDC Voltage Tolerance: -20% / +20% Power Consumption: 2 W Supply Terminals: A1 / A2 SAFETY CONTACT RATINGS AC-1 Rating: 240 VAC, 6 A DC-1 Rating: 24 VDC, 6 A AC-15 Rating: 230 VAC, 5 A DC-13 Rating: 24 VDC, 5 A UL CONTACT RATINGS General Purpose, AC: 240 VAC, 6 A General Purpose, DC: 24 VDC, 6 A PROTECTION Fuse Rating: 10 AF / 6 AT STATUS / CONTROL Input Status Indicators: In1, In2 Output Status Indicator: Out Fault Status Indicator: Fault Internal Relays: K1, K2 CONNECTION / INSTALLATION Terminal Style: Removable terminal blocks Terminal Designations: A1, A2, 13, 14, 23, 24, 33, 34, 43, 44, 51, 52 Module Interface: Present Mounting Type: Not specified Dimensions: Not specified Weight: Not specified COMPLIANCE / MARKINGS CE: Marked UKCA: Marked cULus: Listed TÜV: Marked CCC: Marked EAC: Marked WEEE: Marked
