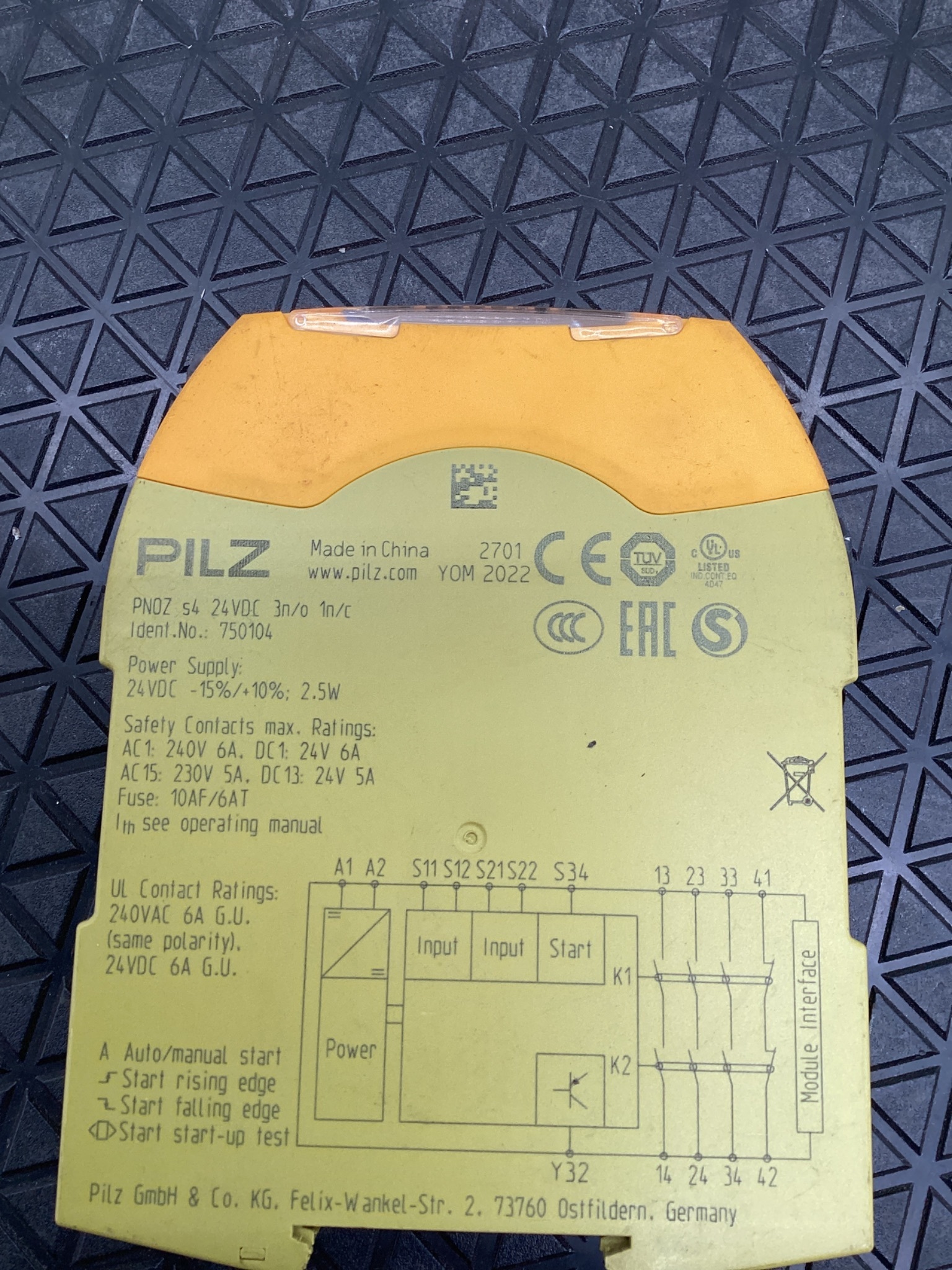

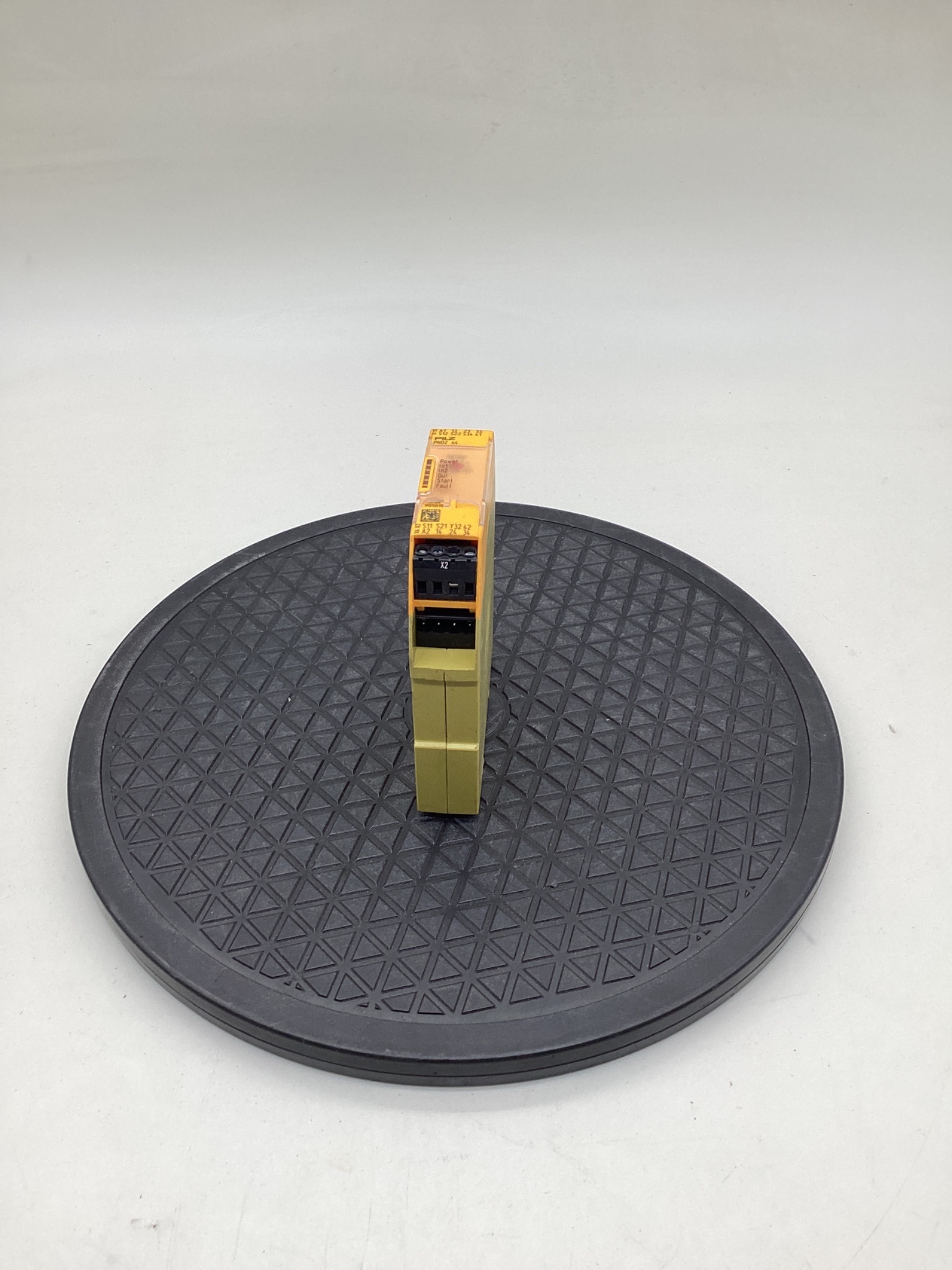

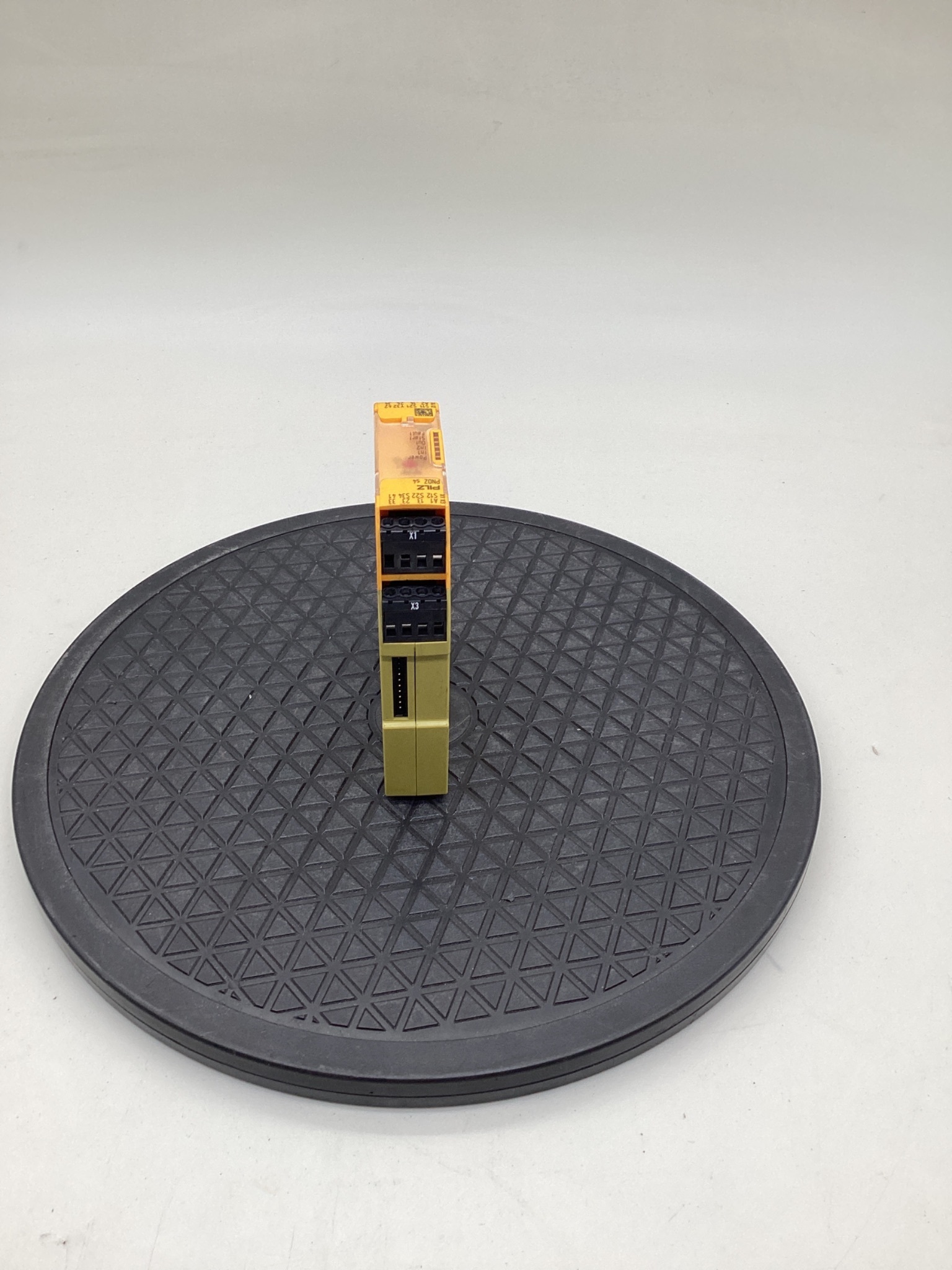

Pilz 750104 PNOZ s4 24VDC Safety Relay 3 N/O 1 N/C USED

Specification Table

IDENTIFICATION Manufacturer: Pilz Part Number: 750104 Series: PNOZsigma Model: PNOZ s4 Product Type: Safety Relay Condition: USED YOM: 2022 Country of Manufacture: China   POWER Supply Voltage: 24 VDC Supply Voltage Tolerance: -15% / +10% Power Consumption: 2.5 W Supply Terminals: A1 / A2   SAFETY CONTACTS Normally Open Safety Contacts: 3 Normally Closed Auxiliary Contacts: 1 N/O Terminals: 13-14 / 23-24 / 33-34 N/C Terminals: 41-42   INPUT & START CIRCUITS Input Channel 1: S11-S12 Input Channel 2: S21-S22 Start Terminal: S34 Start Modes: Automatic / Manual Start Edge Selection: Rising / Falling Start-Up Test Function: Indicated   CONTACT RATINGS AC-1: 6 A @ 240 VAC DC-1: 6 A @ 24 VDC AC-15: 5 A @ 230 VAC DC-13: 5 A @ 24 VDC UL General Use AC: 6 A @ 240 VAC UL General Use DC: 6 A @ 24 VDC Fuse Protection: 10 A Fast / 6 A Time-Delay   INDICATION Status Indicators: Power / In1 / In2 / Out / Start / Fault   INTERFACE Module Interface: Integrated   CERTIFICATIONS CE Mark: Present TÜV SÜD Mark: Present UL Listed: Yes CCC Mark: Present EAC Mark: Present
