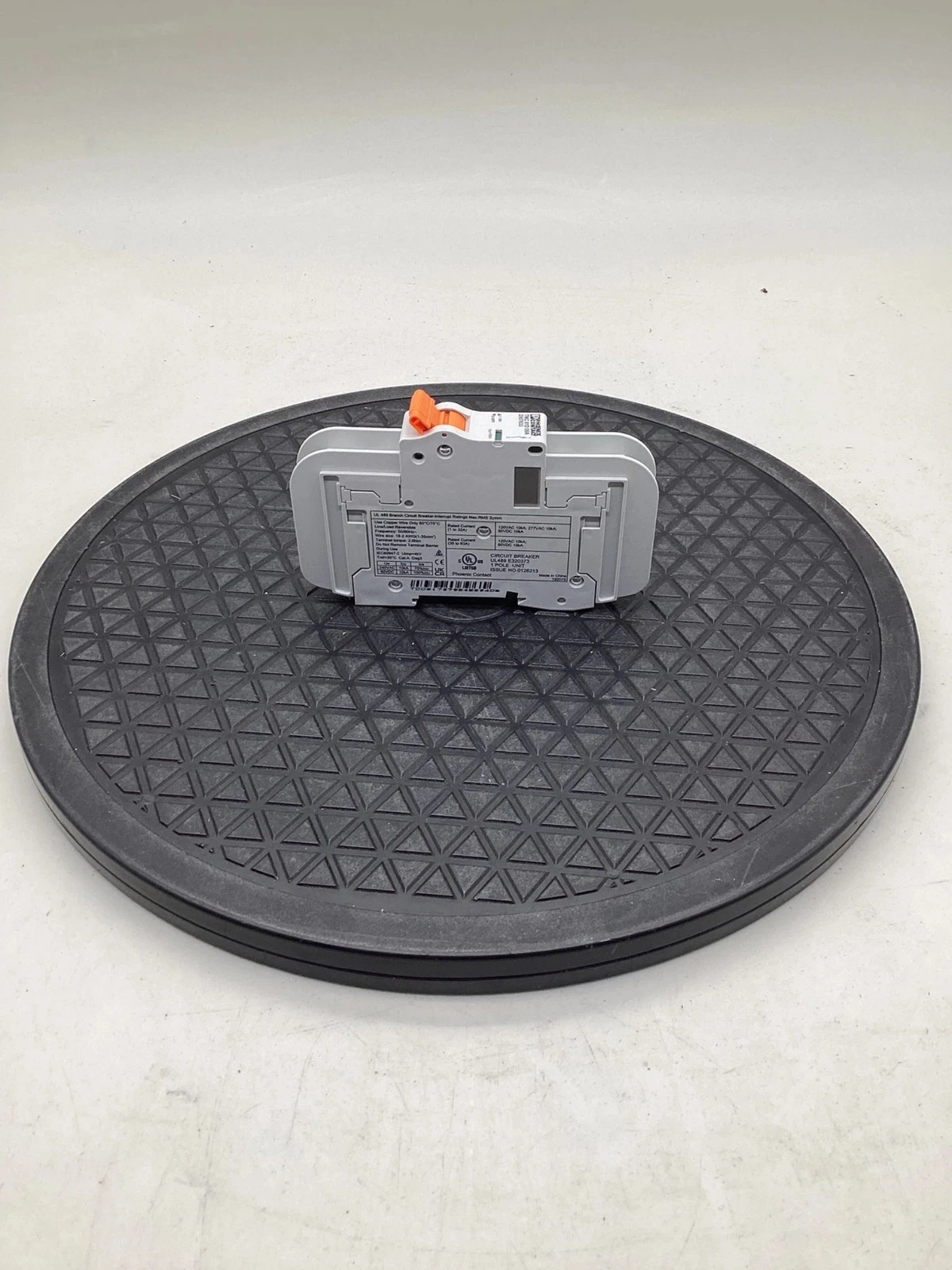

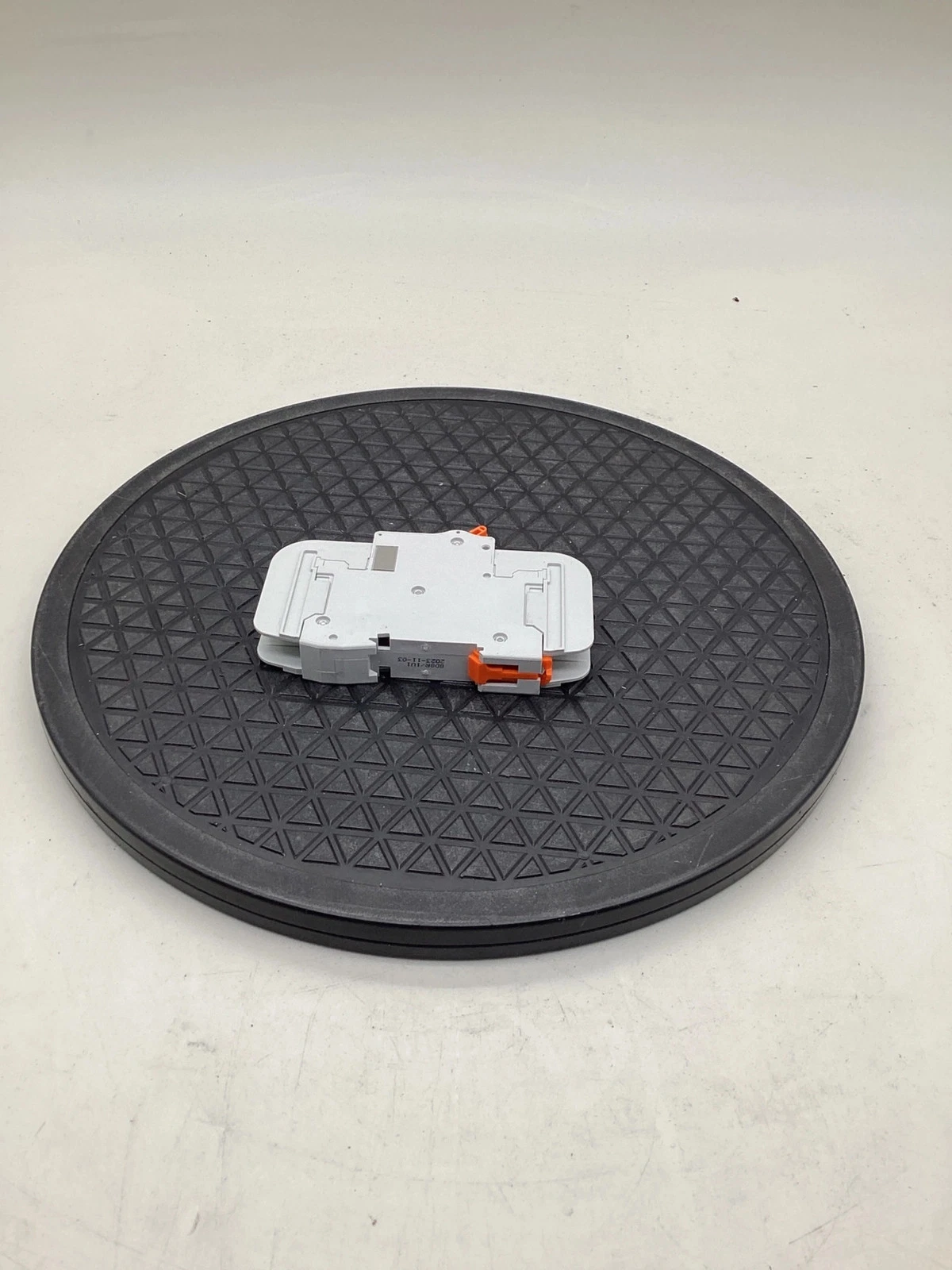

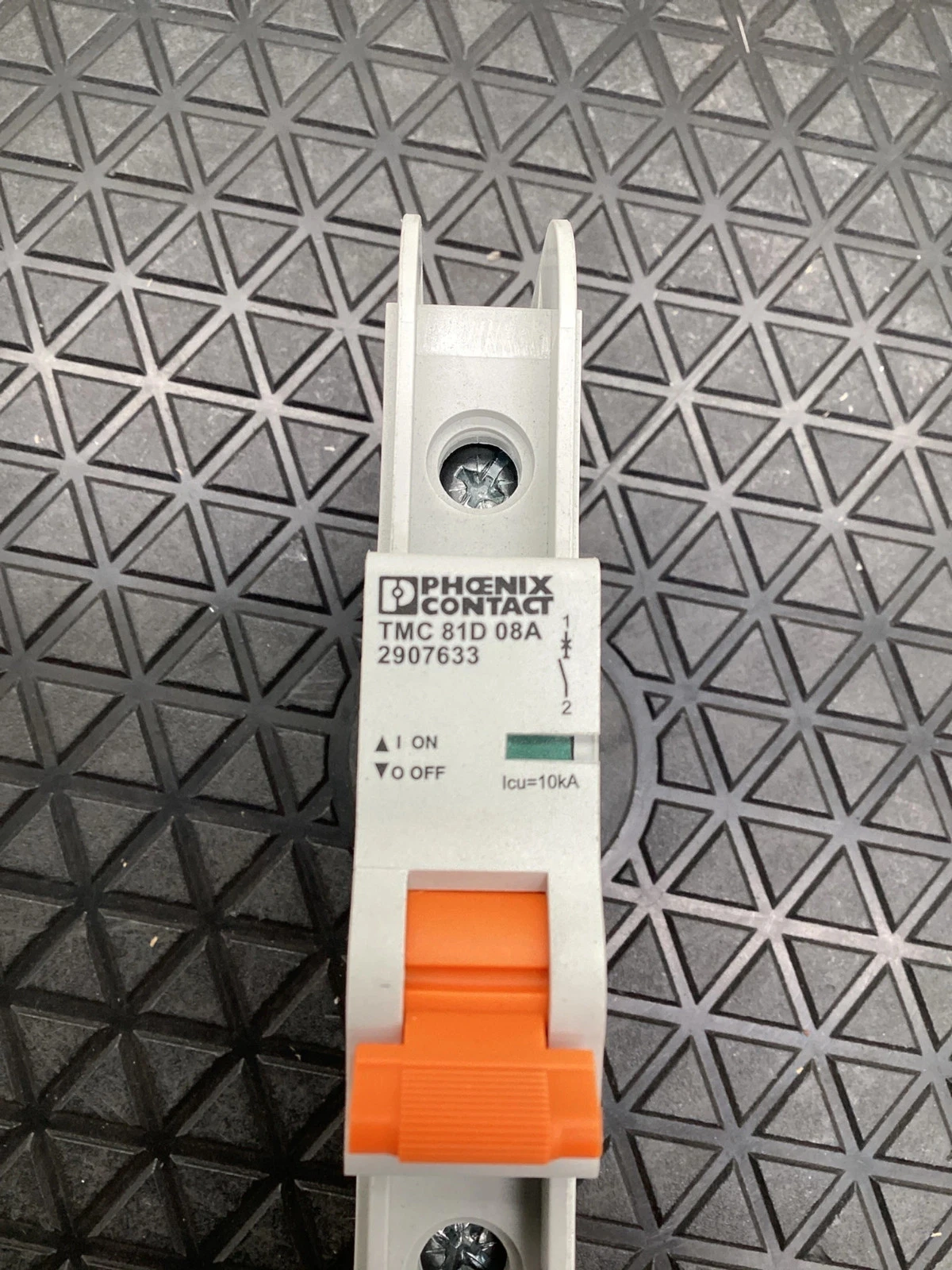

PHOENIX CONTACT TMC 81D 08A 8A 1-Pole Branch Circuit Breaker 10kA USED

Specification Table

IDENTIFICATION Manufacturer: Phoenix Contact Model / Type: TMC 81D 08A Order Number: 2907633 Product Type: Branch circuit breaker Condition: USED YOM: n/a Country of Manufacture: China CIRCUIT PROTECTION Number of Poles: 1 Rated Current: 8 A Trip Characteristic: D Interrupting Capacity: 10 kA Operating Mechanism: Manual toggle Switch Positions: ON / OFF ELECTRICAL Rated Voltage - 1 Pole: 120 VAC Rated Voltage - 2 Pole: 240 VAC Additional AC Rating: 277 VAC Multi-Pole AC Rating: 480Y / 277 VAC DC Rating: 60 VDC Frequency: 50 / 60 Hz CONNECTION Circuit Terminals: 1 / 2 Terminal Type: Screw Conductor Type: Copper Conductor Temperature Rating: 75 °C Wire Range: AWG 14 to 8 Terminal Torque: 2.3 Nm / 20 lb-in INSTALLATION / CONSTRUCTION Mounting Type: DIN rail Module Width: Single pole Housing: Molded insulating enclosure Operating Handle: Front accessible Position Indication: ON / OFF marked APPROVALS / STANDARDS UL Listed: Yes UL Standard: UL 489 CSA Standard: CSA C22.2 No. 5 UL Classification: Circuit Breaker CE Marking: Present UKCA Marking: Present
