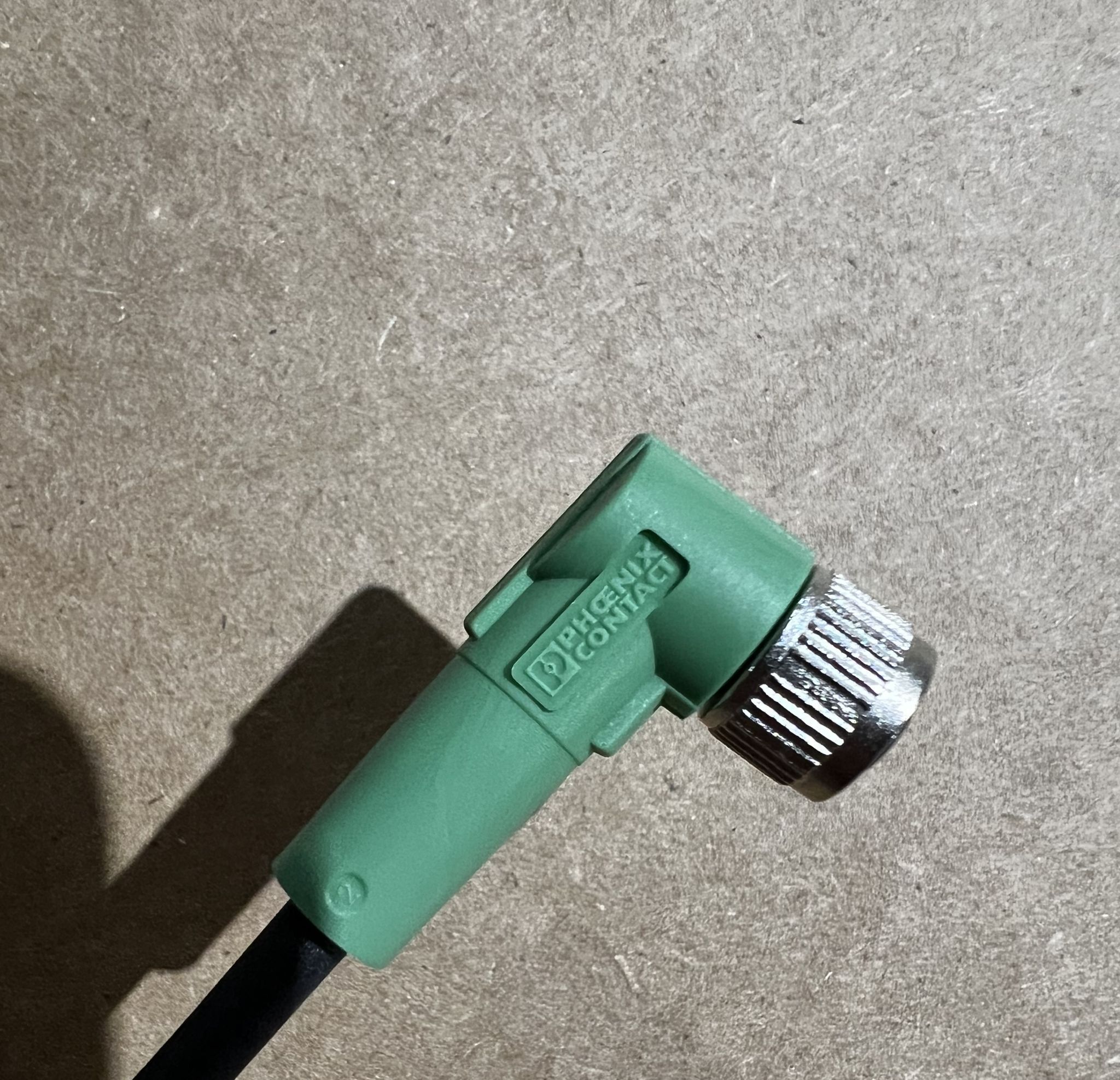

Phoenix Contact 1694169 SAC-3P-10,0-PUR/M 8FR M8 Female Sensor Cable 10M NEW

Specification Table

Manufacturer: Phoenix Contact Part Number: 1694169 Model: SAC-3P-10,0-PUR/M 8FR Condition: NEW YOM: n/a   Product Type: Sensor/Actuator Cable Series: SAC   Connector Interface: M8 Connector Gender: Female Connector Orientation: Right Angle Coding: A-Coded Number Of Positions: 3   Connector Construction: Molded Coupling Nut Material: Metal Connector Body Color: Green   Cable Length: 10 m Cable Length: 32.81 ft   Cable Jacket Material: PUR Cable Color: Black   Conductor Count: 3 Conductor Size: 0.25 mm² Wire Size: 24 AWG   Rated Voltage: 60 V AC Rated Voltage: 75 V DC Rated Current: 4 A   Contact Material: CuZn Contact Finish: Gold Plated   Insulation Material: PP Connector Body Material: TPU   Ingress Protection: IP65 Ingress Protection: IP67   Ambient Temperature: -25°C to +80°C (Fixed Installation) Ambient Temperature: -5°C to +80°C (Flexible Installation)   Bending Cycles: 5000000 Minimum Bending Radius: 10 x Cable Diameter   Connection Method: Molded Cordset Standard: IEC 61076-2-104   RoHS Compliant: Yes Function: Sensor and Actuator Connectivity Mounting Style: Cable Mounted
