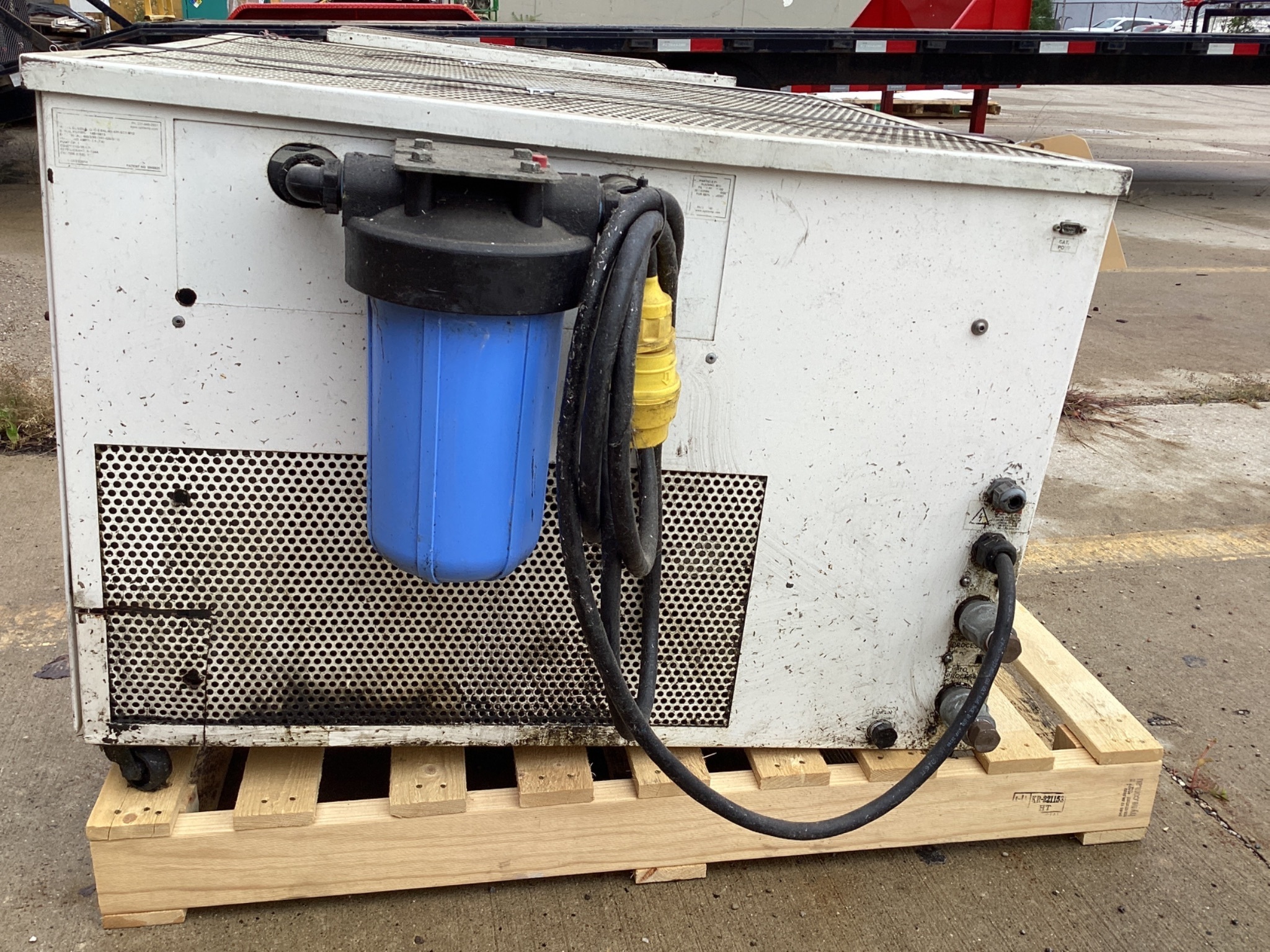

Opti Temp OTC-2.0AL-R5-436-SC1-M12 2HP Process Chiller 460V 3-Phase USED

Specification Table

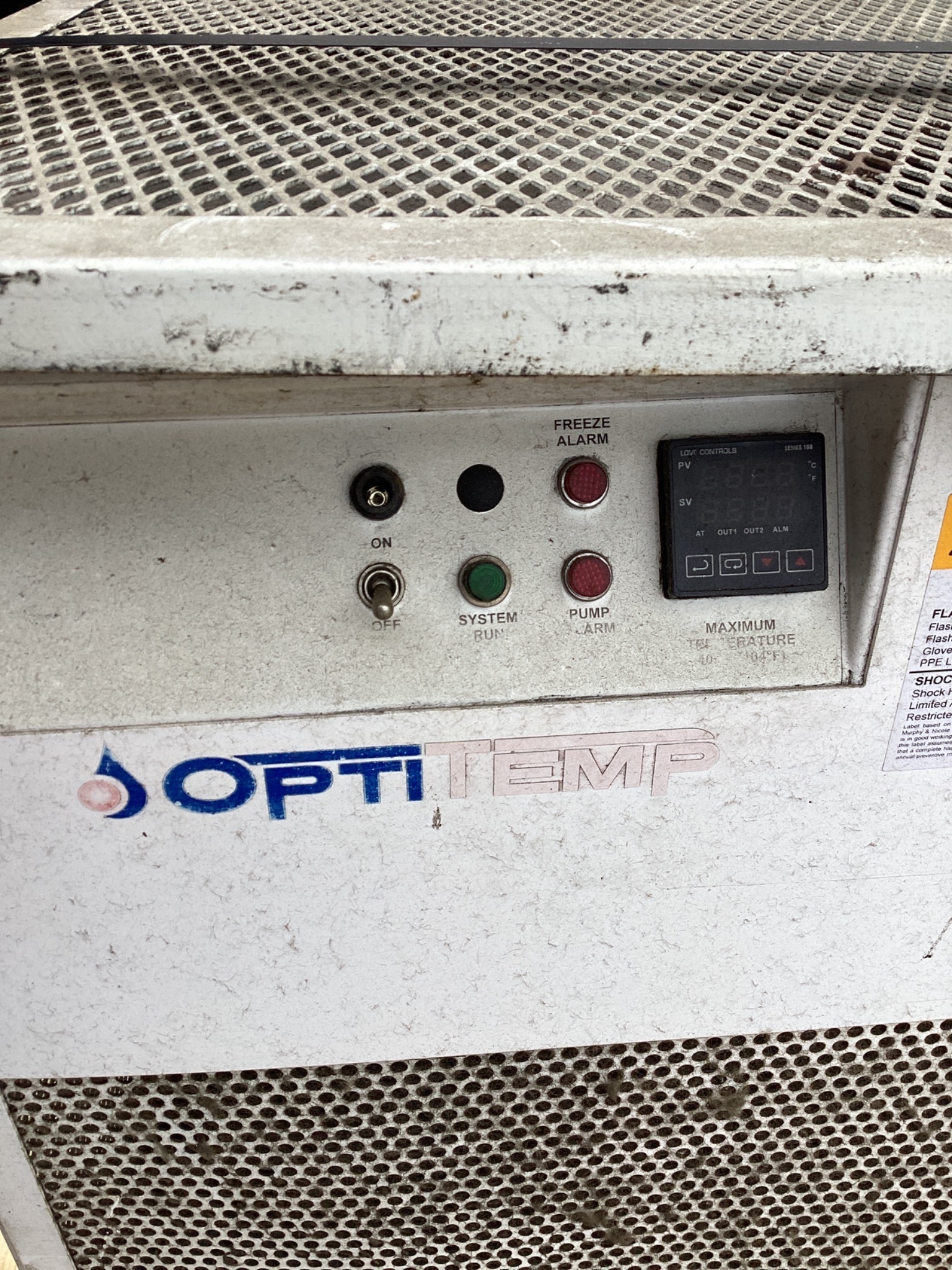

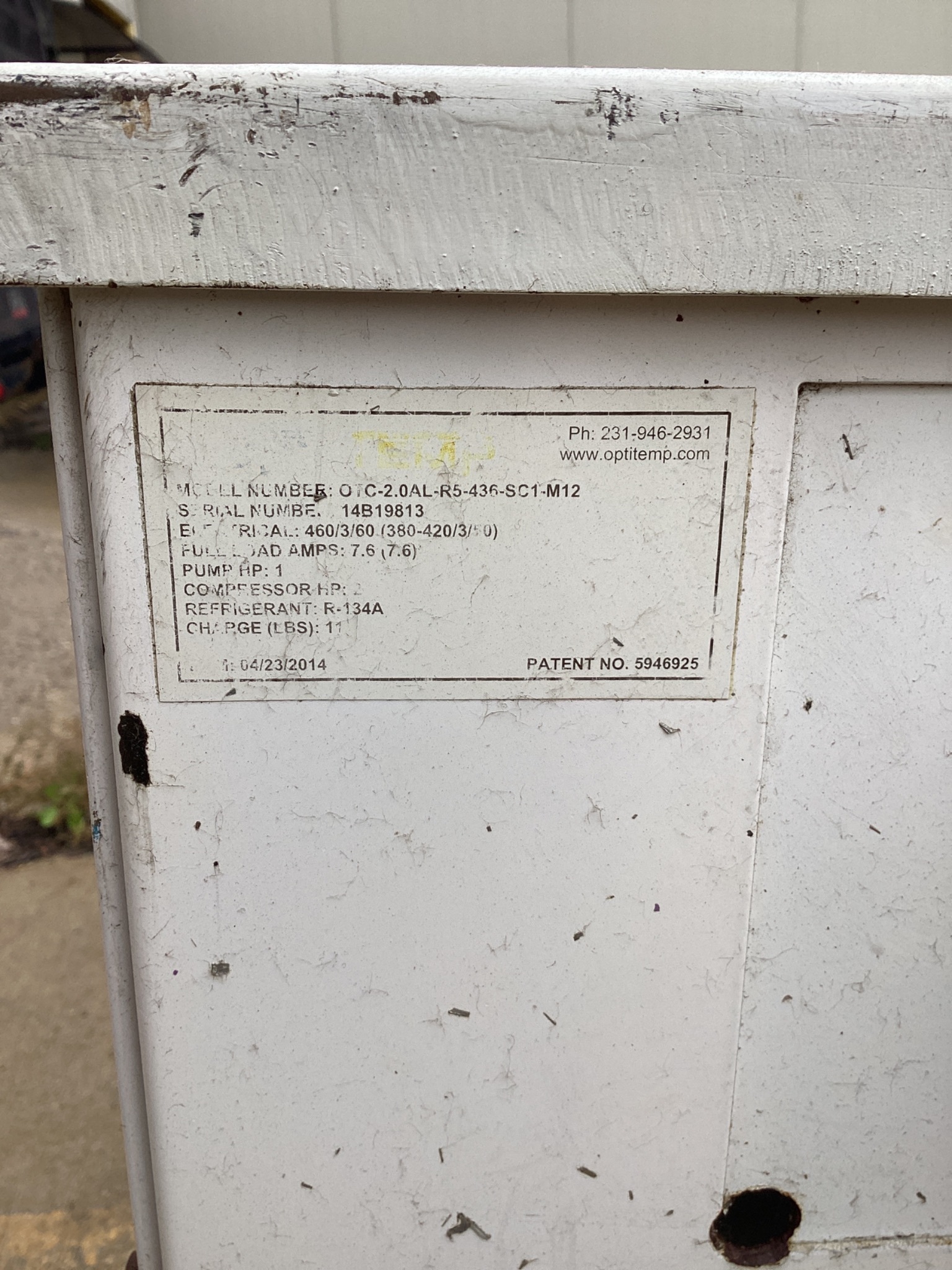

IDENTIFICATION Manufacturer: Opti Temp Model / Part Number: OTC-2.0AL-R5-436-SC1-M12 Product Type: Industrial Process Chiller Serial Number: 14B19813 Condition: USED YOM: 2014 ELECTRICAL Primary Supply: 460 VAC Primary Phases: 3 Primary Frequency: 60 Hz Alternate Supply: 380-420 VAC Alternate Phases: 3 Alternate Frequency: 50 Hz Full Load Amps: 7.6 A REFRIGERATION Compressor Power: 2 HP Refrigerant: R-134a Refrigerant Charge: 11 lb Cooling Configuration: Air Cooled Cooling Capacity: Not specified Temperature Range: Not specified FLUID CIRCULATION Pump Power: 1 HP Circulation Type: Recirculating External Filtration: Present Process Supply: Present Process Return: Present Flow Rate: Not specified Reservoir Capacity: Not specified TEMPERATURE CONTROL Controller Manufacturer: Love Controls Controller Series: Series 16B Controller Type: Digital Temperature Controller Process Value Display: Digital Set Value Display: Digital Temperature Units: °C / °F Maximum Temperature Control: Present MONITORING / ALARMS System Run Indicator: Green Freeze Alarm Indicator: Red Pump Alarm Indicator: Red Controller Alarm Indicator: ALM Controller Outputs: OUT1 / OUT2 Auto-Tune Indicator: AT System Power Control: ON / OFF CONNECTION / INSTALLATION Process Connections: External Process Connection Size: Not specified Power Cable: Attached Power Connector: Industrial Mobility: Casters Installation Configuration: Floor Standing CONSTRUCTION Condenser Cooling: Forced Air Ventilation: Perforated Panels Condenser Guard: Metal Mesh Enclosure Construction: Metal Control Location: Front Panel
