Opti Temp OTC-2.0AL-R5-436-SC1-M12 2HP Process Chiller 460V 3-Phase USED

Specification Table

Capacity	11 lb
Power	2 hp

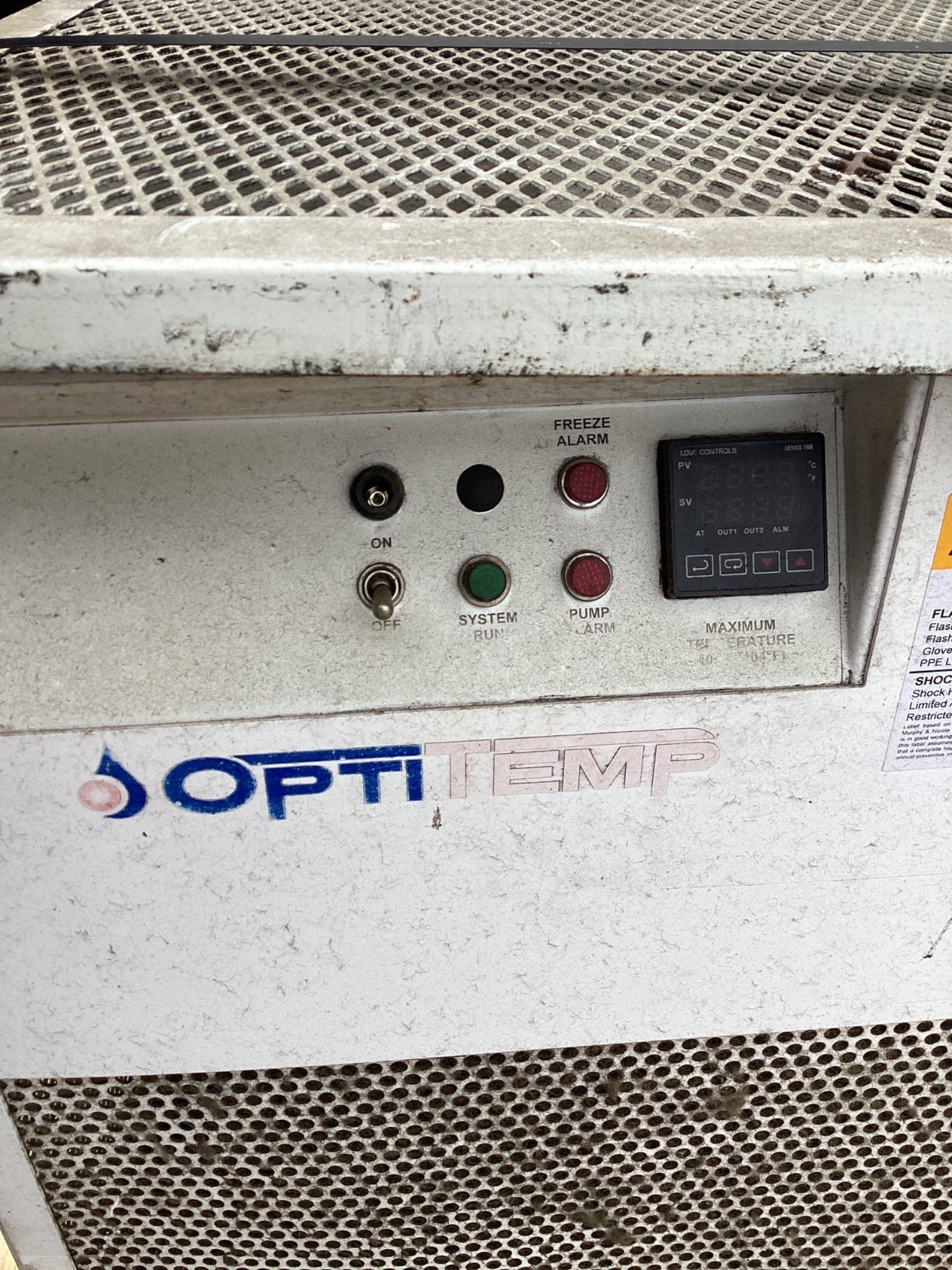

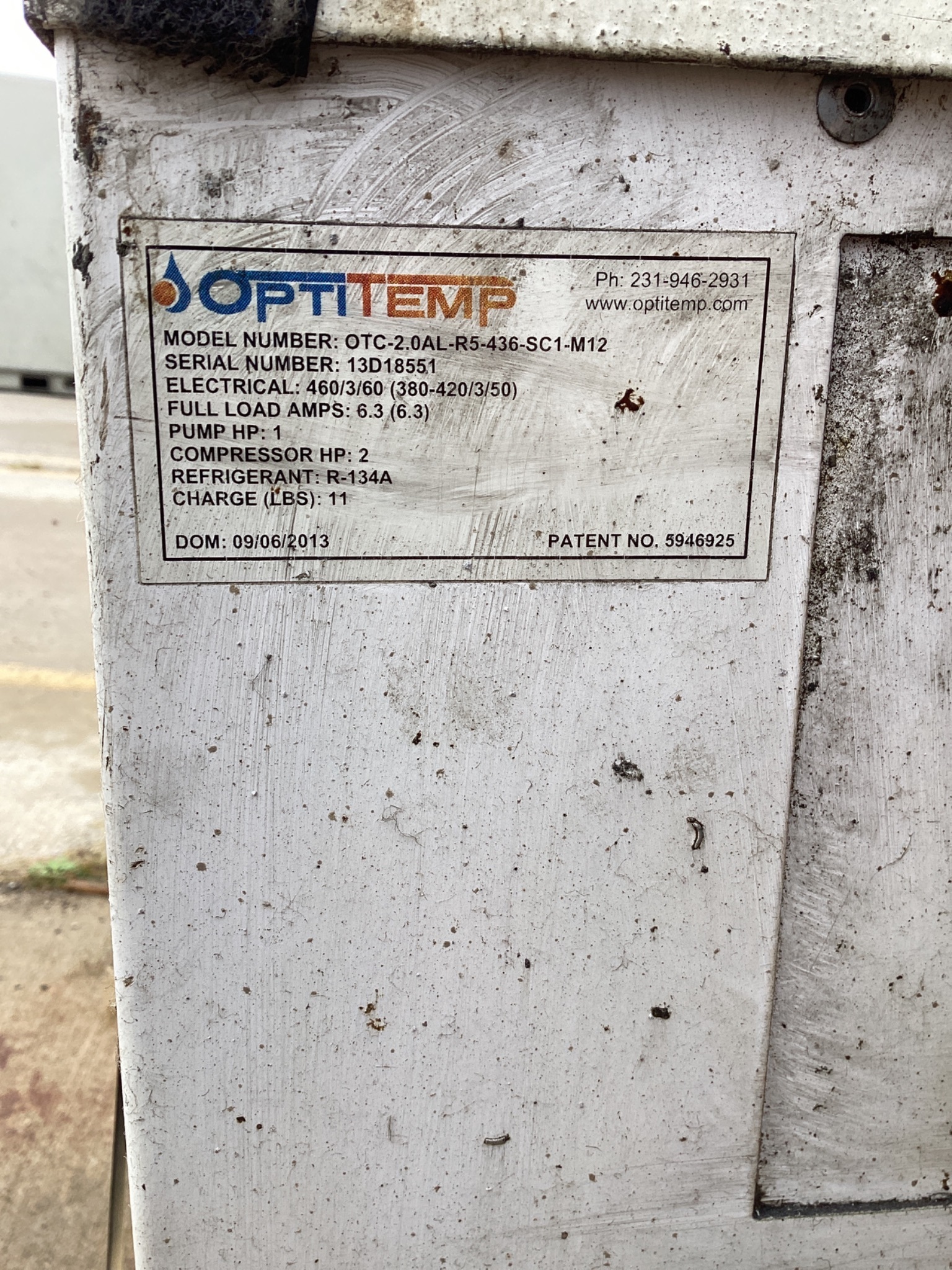

IDENTIFICATION Manufacturer: Opti Temp Model / Part Number: OTC-2.0AL-R5-436-SC1-M12 Product Type: Industrial Process Chiller Serial Number: 13D18551 Condition: USED YOM: 2013   ELECTRICAL Primary Supply: 460 VAC Primary Phases: 3 Primary Frequency: 60 Hz Alternate Supply: 380-420 VAC Alternate Phases: 3 Alternate Frequency: 50 Hz Full Load Amps: 6.3 A   REFRIGERATION Compressor Power: 2 HP Refrigerant: R-134a Refrigerant Charge: 11 lb Cooling Configuration: Air Cooled Cooling Capacity: Not specified Temperature Range: Not specified   FLUID CIRCULATION Pump Power: 1 HP Circulation Type: Recirculating Flow Rate: Not specified Reservoir Capacity: Not specified   TEMPERATURE CONTROL Controller Manufacturer: Love Controls Controller Series: Series 16B Controller Type: Digital Temperature Controller Process Value Display: Digital Set Value Display: Digital Temperature Units: °C / °F Maximum Temperature Control: Present   MONITORING / ALARMS System Run Indicator: Green Freeze Alarm Indicator: Red Pump Alarm Indicator: Red Controller Alarm Indicator: ALM Controller Outputs: OUT1 / OUT2 Auto-Tune Indicator: AT System Power Control: ON / OFF   CONSTRUCTION / INSTALLATION Condenser Cooling: Forced Air Ventilation: Perforated Panels Condenser Guard: Metal Mesh Enclosure Construction: Metal Control Location: Front Panel Mobility: Casters Installation Configuration: Floor Standing
