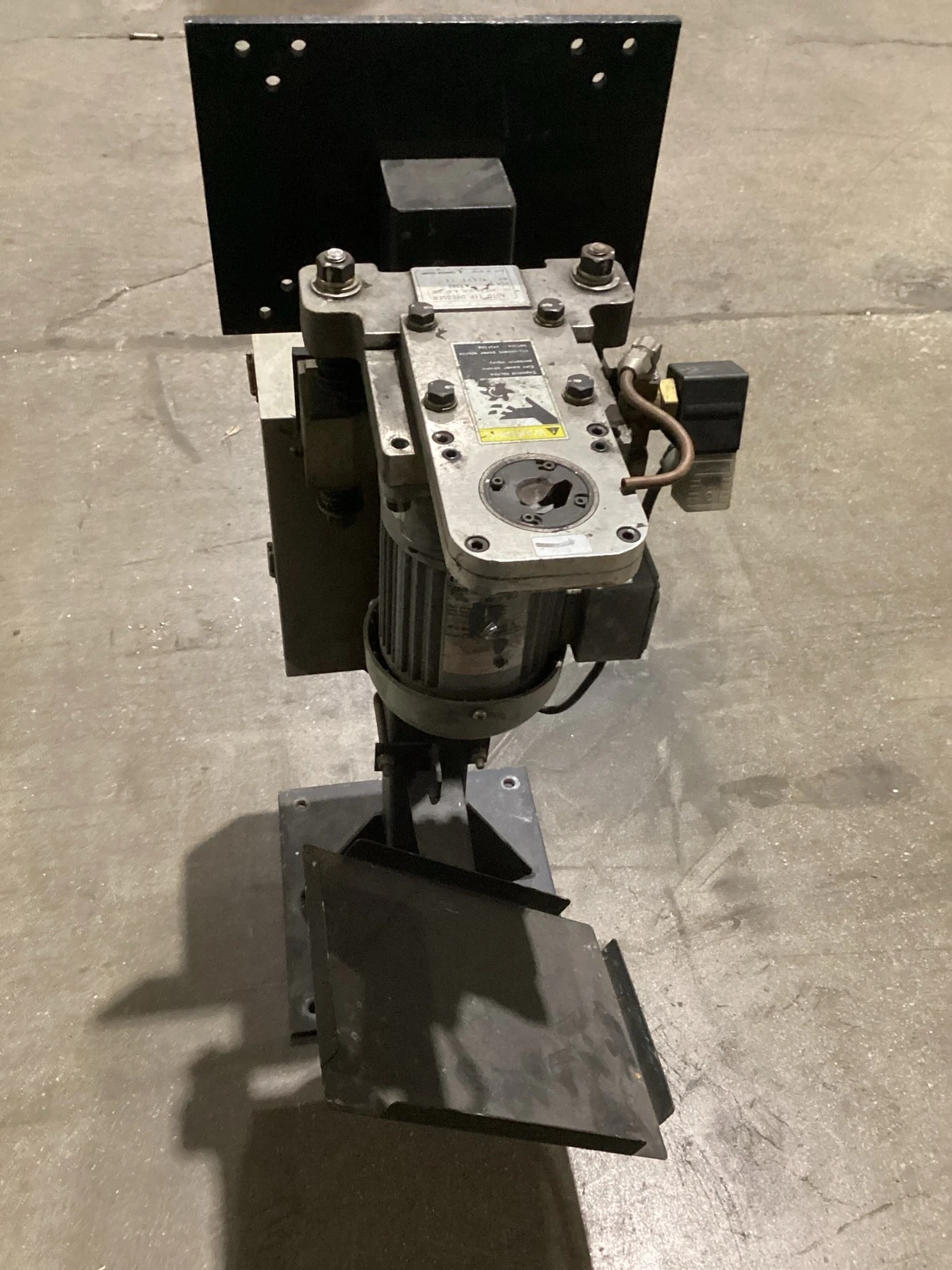

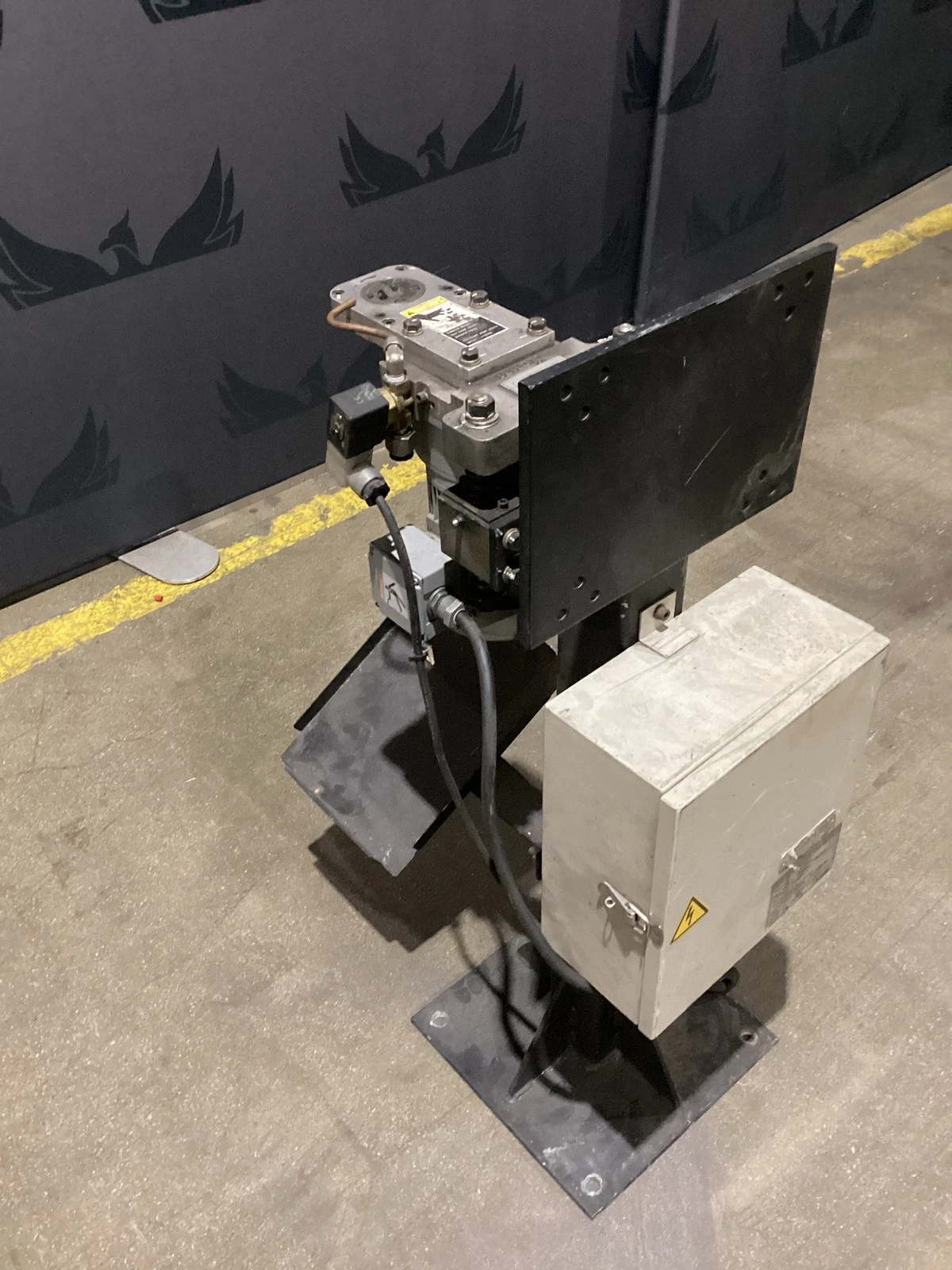

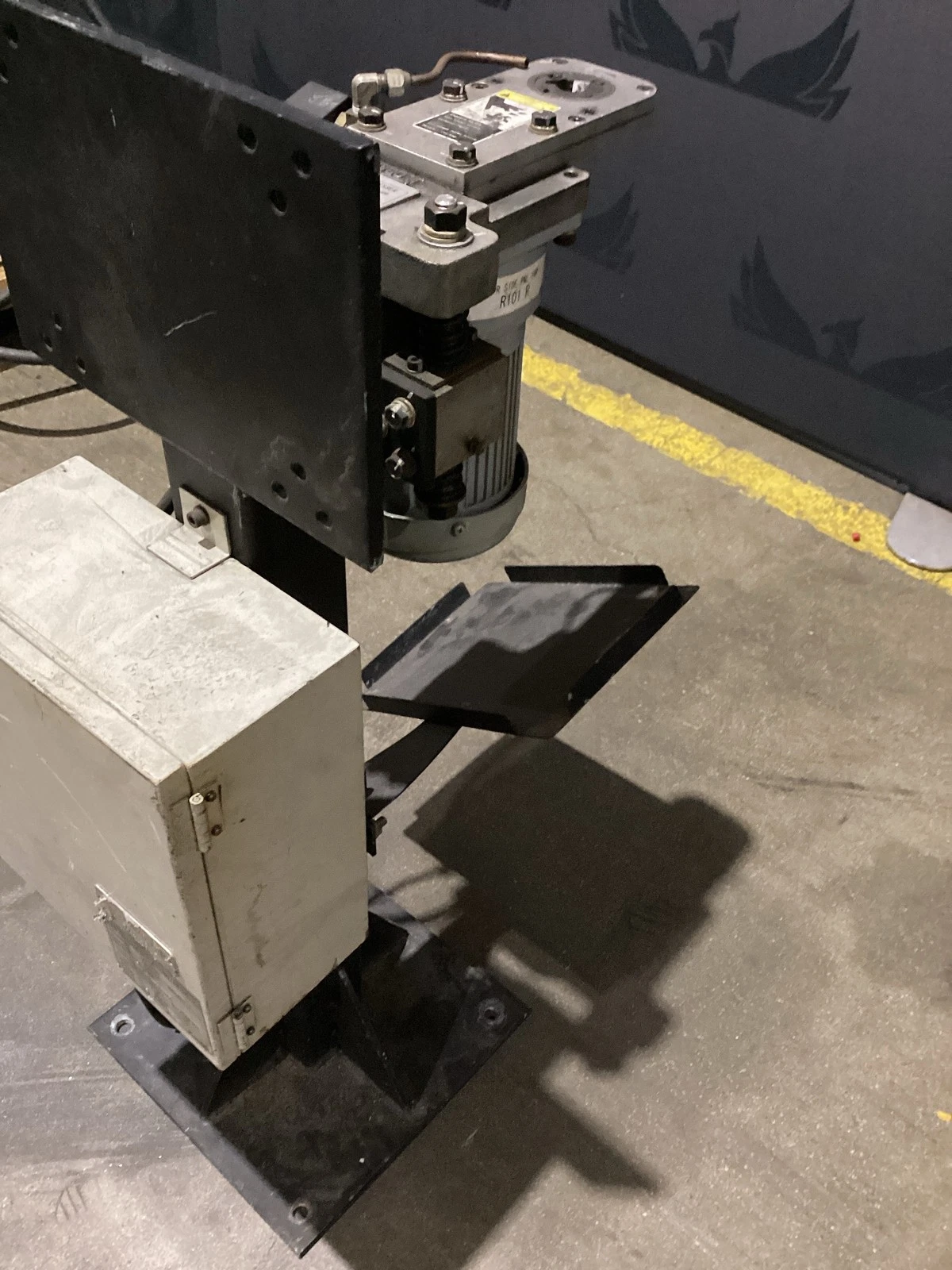

OBARA ATD-89-ULVL-A-RF-480 Auto Tip Dresser USED

Specification Table

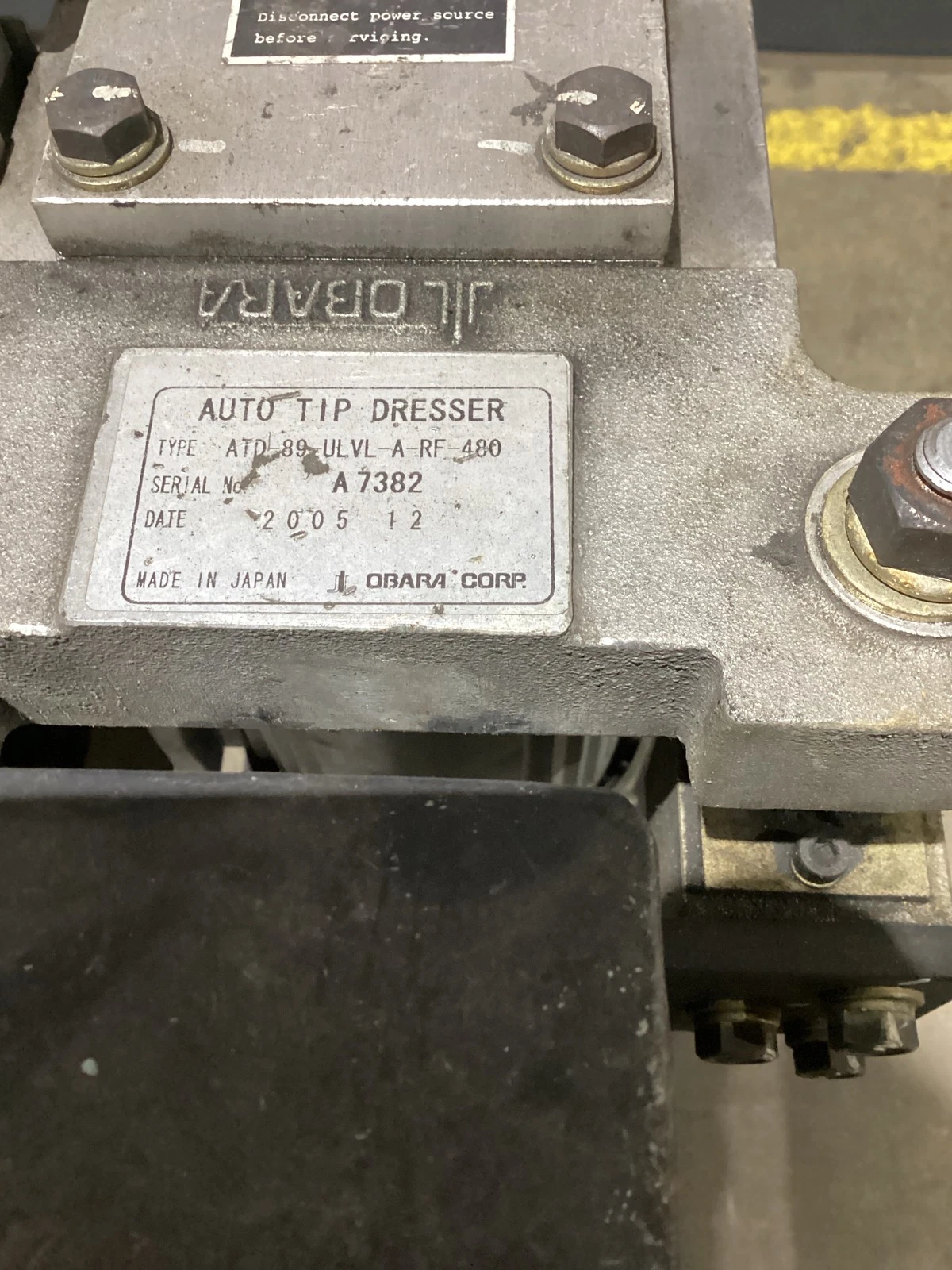

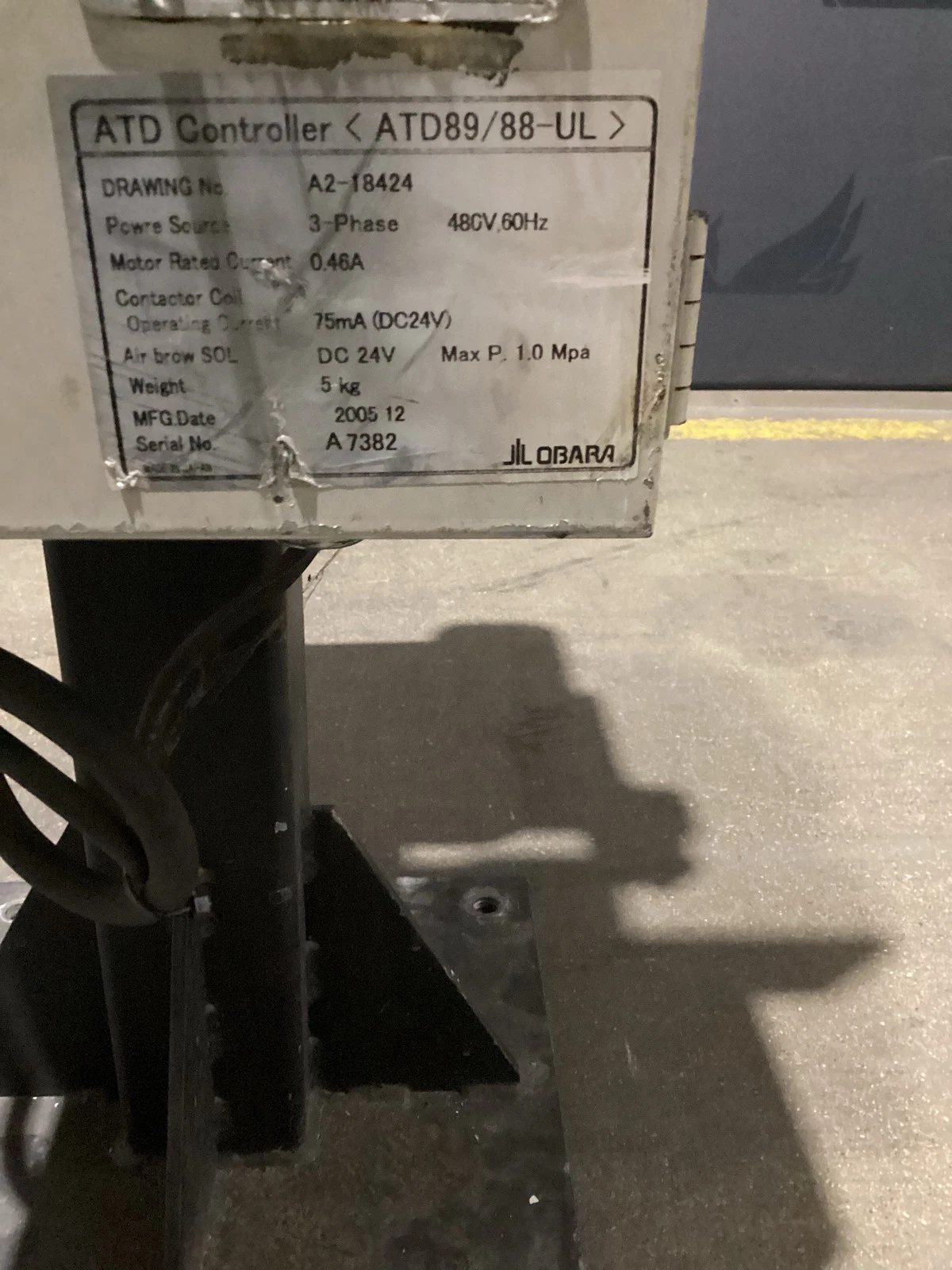

IDENTIFICATION Manufacturer:               Obara Corp. Model:                      ATD-89-ULVL-A-RF-480 Product Type:               Auto Tip Dresser Serial Number:              A7382 Condition:                  USED YOM:                        2005 Country of Origin:          Japan TIP DRESSING SYSTEM Process Type:               Automatic Electrode Tip Dressing Application:                Resistance Spot Welding Series:                     ATD-89 Tip Restoration Method:     Automated Dressing Head:              Installed Tip Cutter Mechanism:       Installed CONTROLLER Controller Type:            ATD Controller Controller Series:          ATD89/88-UL Drawing Number:             A2-18424 Controller Enclosure:       Installed ELECTRICAL Input Voltage:              480 VAC Phase:                      3 Phase Frequency:                  60 Hz Motor Rated Current:        0.46 A Contactor Coil Voltage:     24 VDC Contactor Coil Current:     75 mA PNEUMATIC SYSTEM Air Blow Solenoid Voltage:  24 VDC Maximum Air Pressure:       1.0 MPa Solenoid Valve:             Installed Air Control Components:     Present DRIVE SYSTEM Drive Motor:                Installed Motorized Dressing Head:    Yes Gear Drive Housing:         Present INSTALLATION Mounting Configuration:     Floor Mounted Pedestal Base:              Steel Base Plate Mounting:        4-Bolt Floor Mount Equipment Mounting Plate:   Installed
