NUMATICS R503 Series Pneumatic Valve Manifold Assembly 24VDC USED

$265.00
Availability:

2 in stock

BRAND: NUMATICS MODEL: R503A2B50MA00F1 CONDITION: Used
SKU: IGAM2850040 Weight: 8 lbs Shipping Calculated at Checkout

2 in stock

Overview

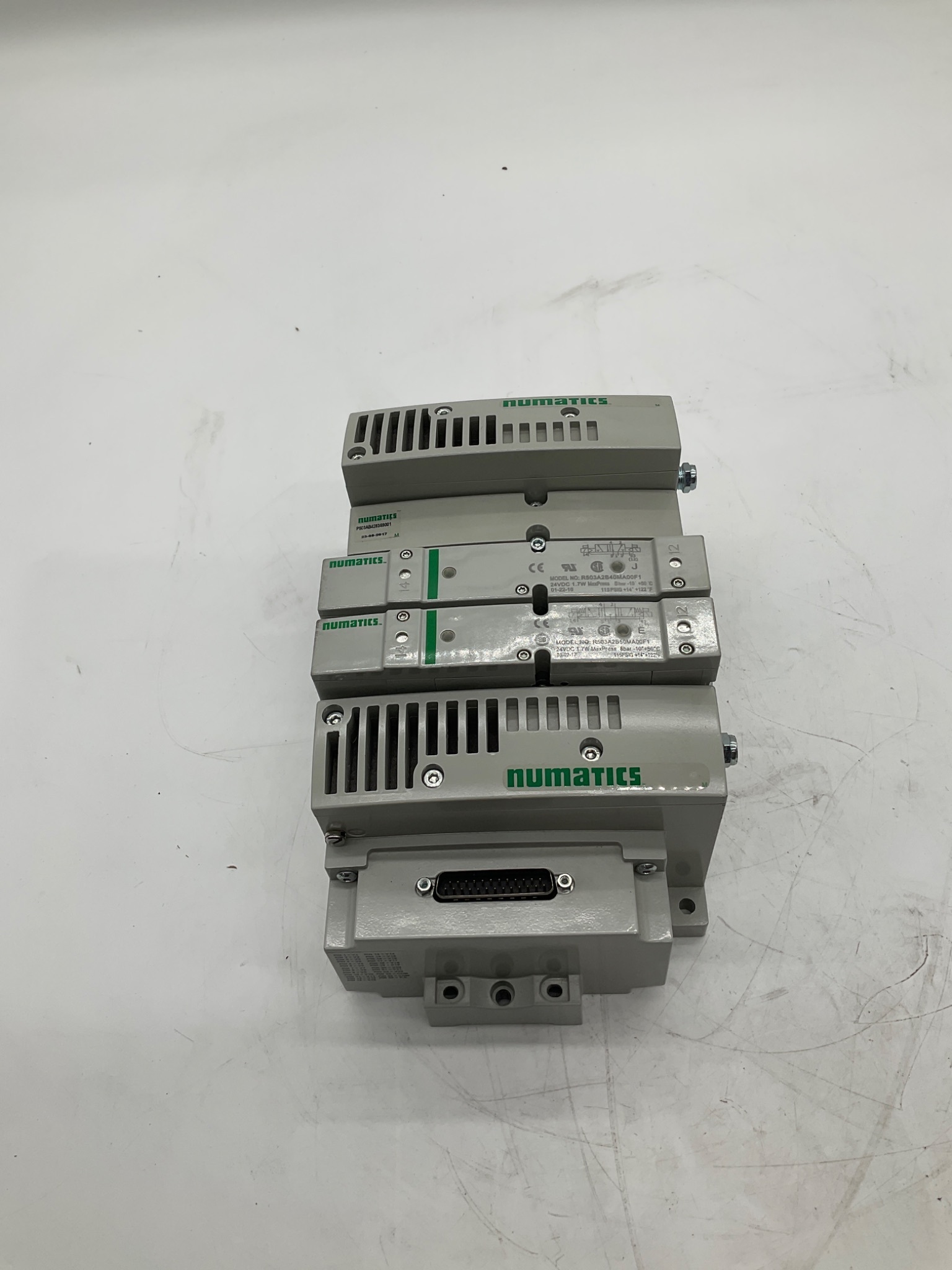

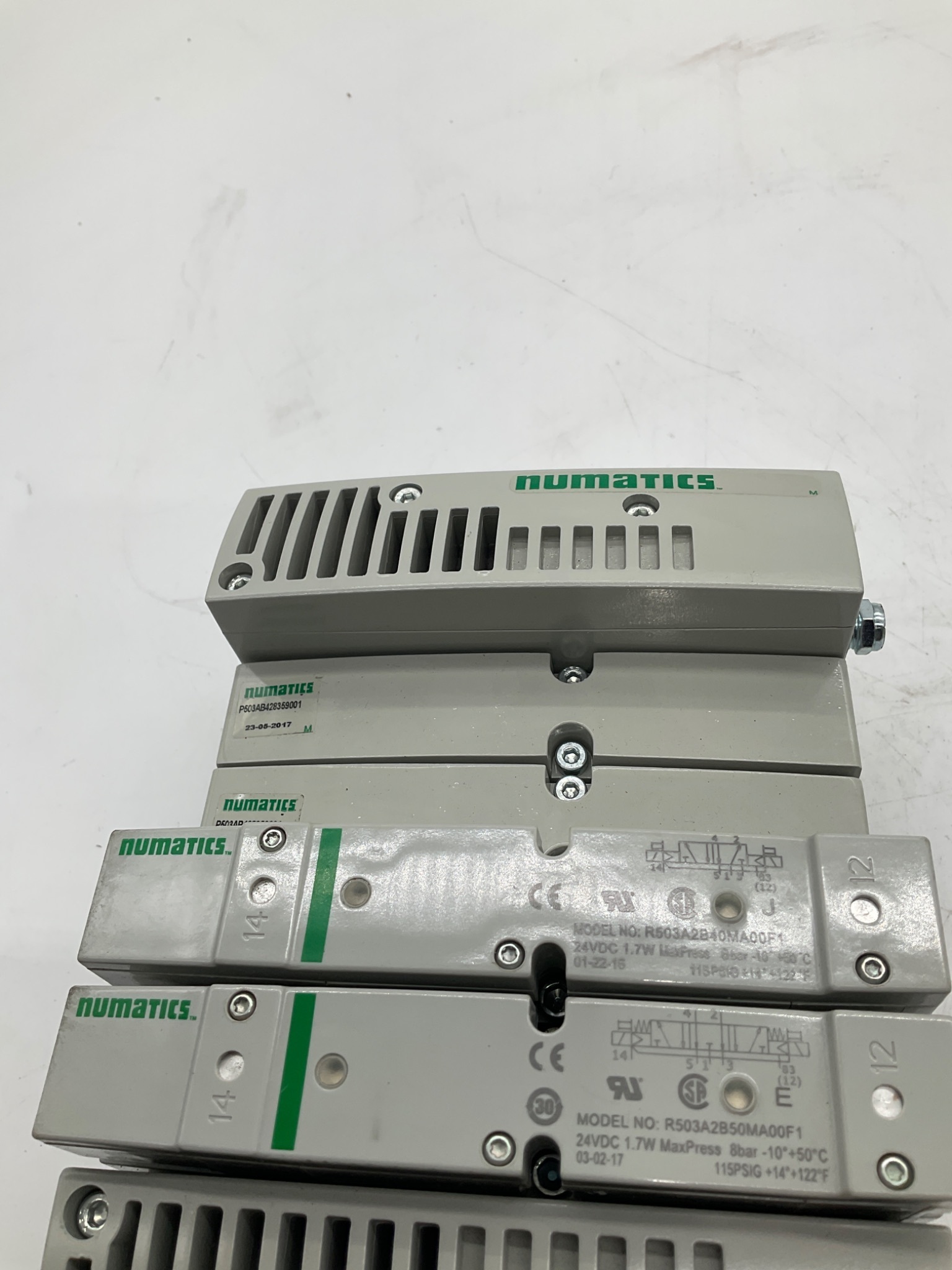

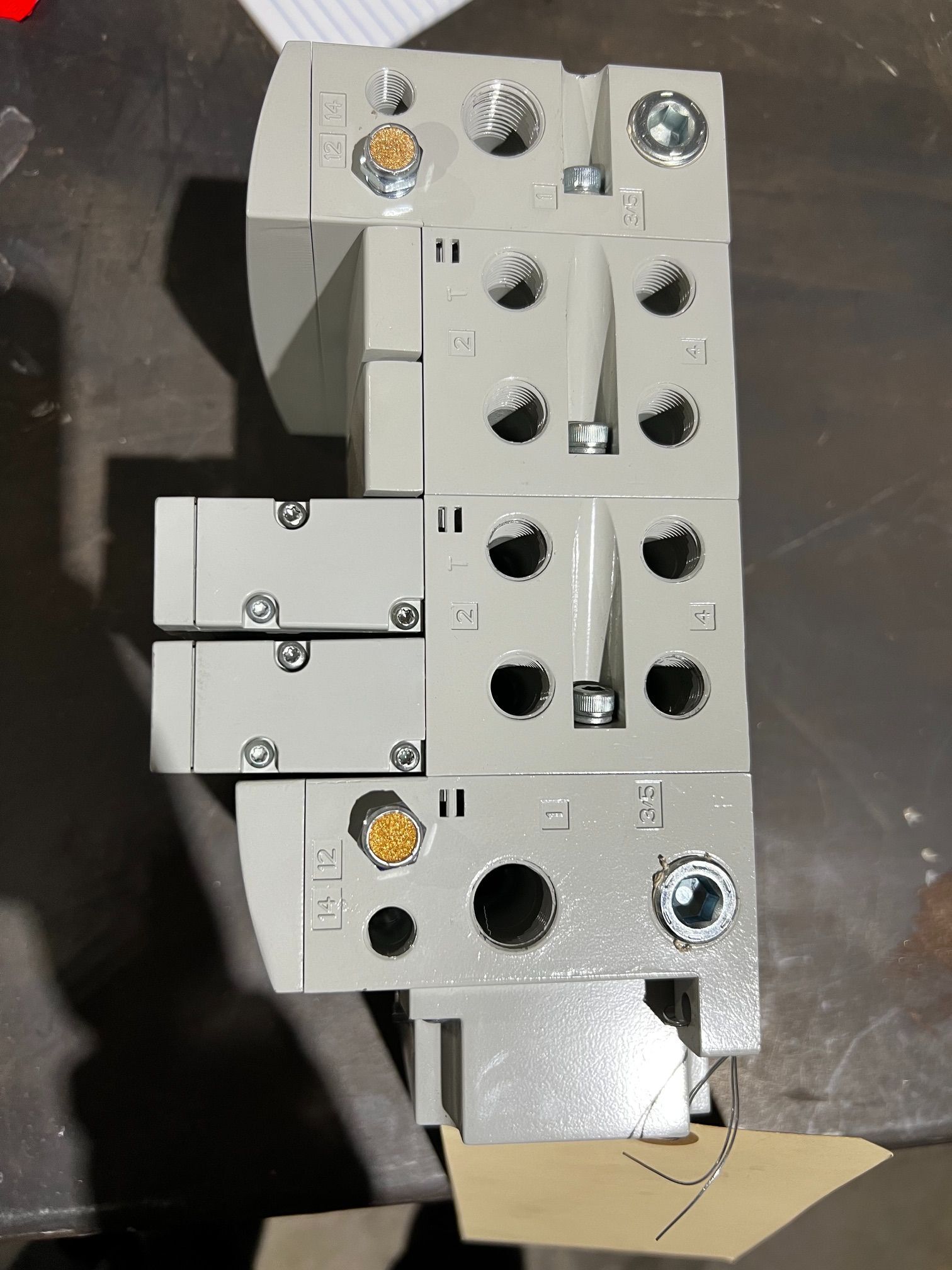

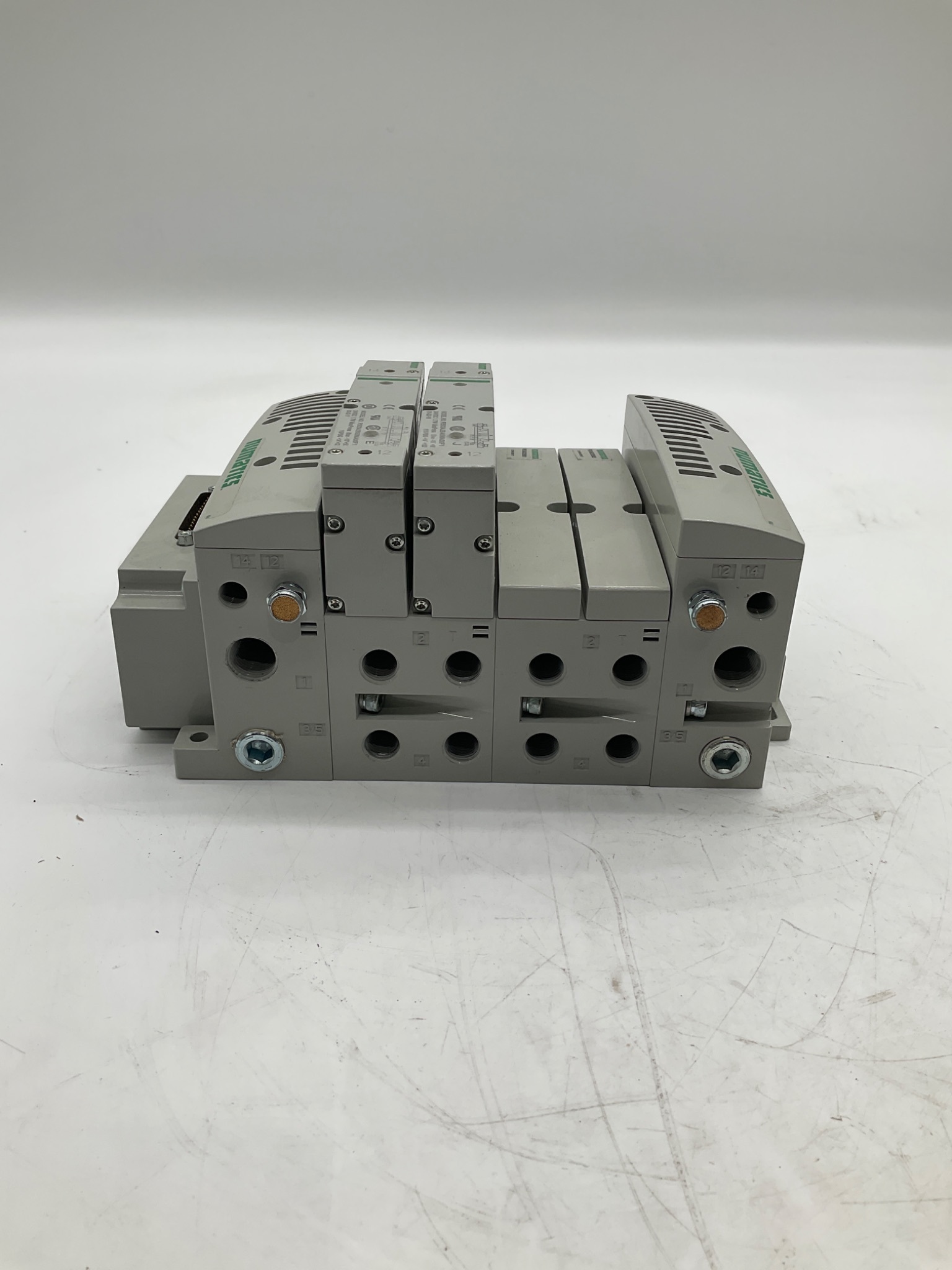

This listing is for a USED Numatics R503 Series pneumatic valve manifold assembly. The unit consists of two R503 Series directional control valves mounted on a modular manifold with integrated 25-pin D-sub electrical interface and pneumatic distribution system. This assembly is designed for centralized pneumatic control of actuators and machine functions in industrial automation, assembly equipment, and material handling systems.

Specification Table

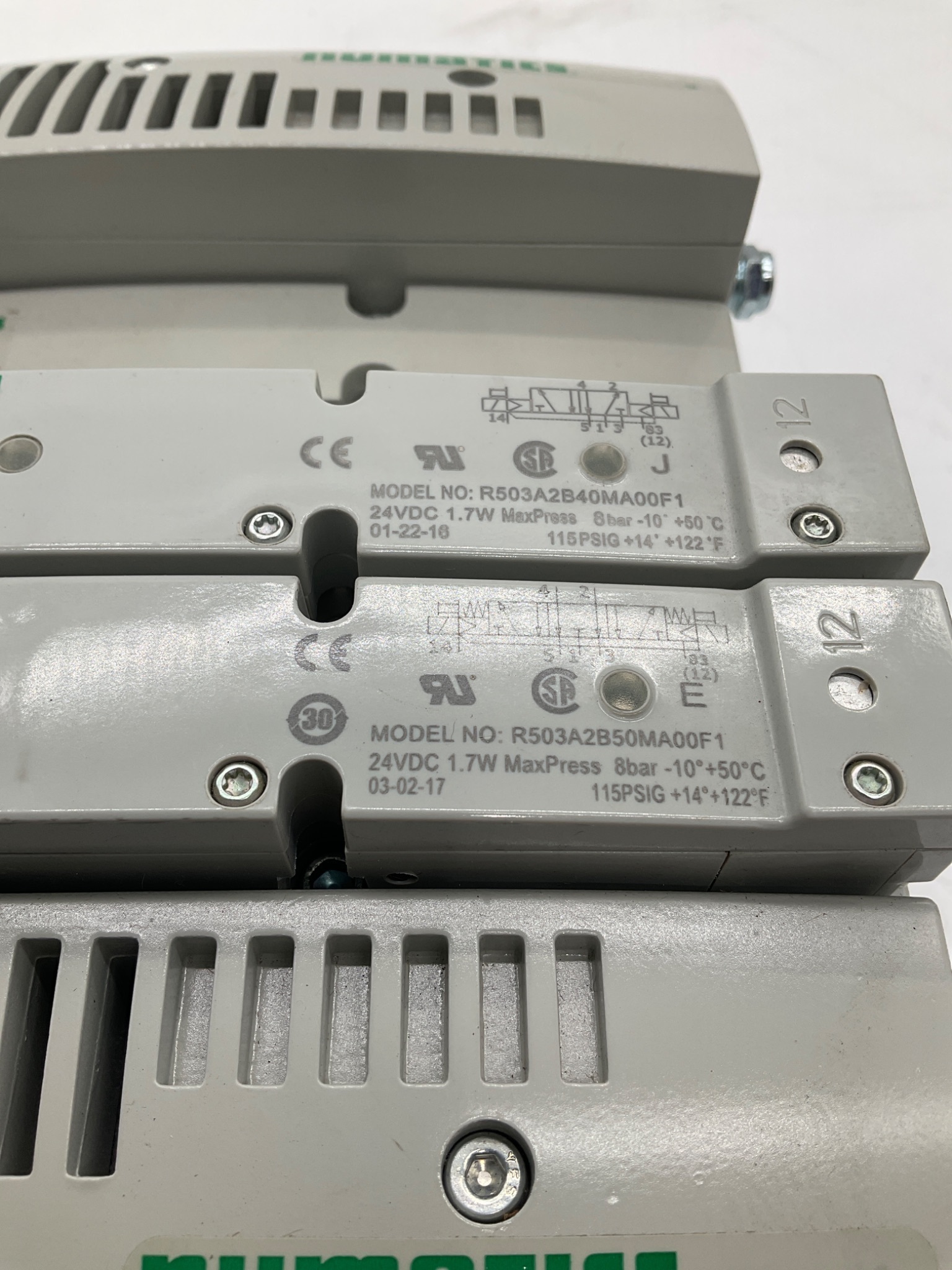

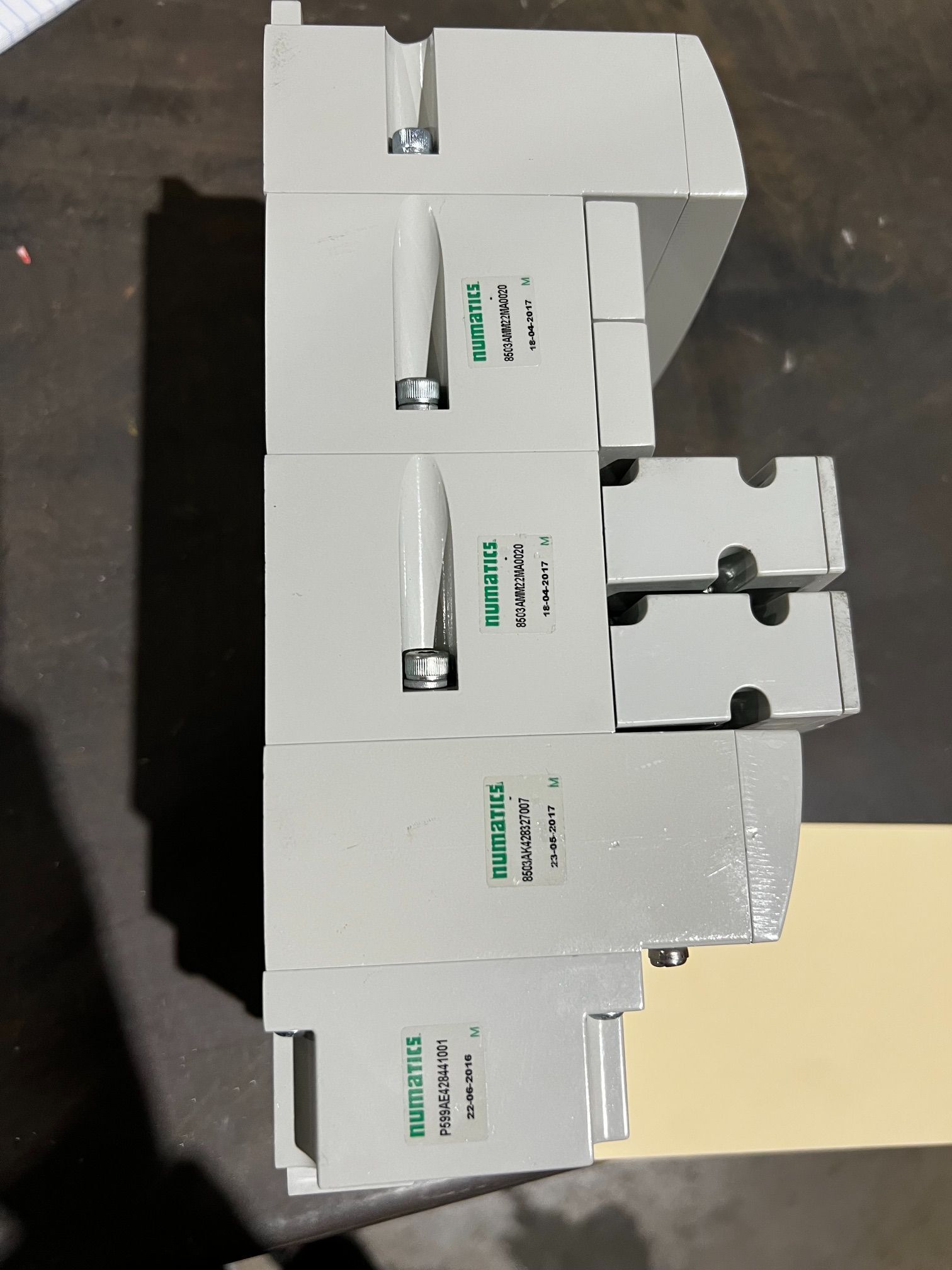

Manufacturer: Numatics Condition: USED Equipment Type: Pneumatic Valve Manifold Assembly Valve Series: R503 Valve Model: R503A2B40MA00F1 Quantity: 1 Valve Model: R503A2B50MA00F1 Quantity: 1 Valve Function: 5-Port Directional Control Valve Operating Voltage: 24 VDC Power Consumption: 1.7 W Maximum Pressure: 8 Bar Maximum Pressure: 115 PSIG Temperature Range: -10°C to +50°C Temperature Range: +14°F to +122°F Electrical Interface: 25-Pin D-Sub Control Outputs: V1-V22 Common Connections: Pins 23-24 Protective Earth: Pin 25 Manifold Module: 8603AK428327007 End Module: P599AE428441001 Port Markings: 1, 2, 3, 4, 5 Pilot Ports: 12, 14 Mounting Style: Machine/Panel Mounted Compliance: CE Compliance: CSA Compliance: UL Recognized YOM: 2017
