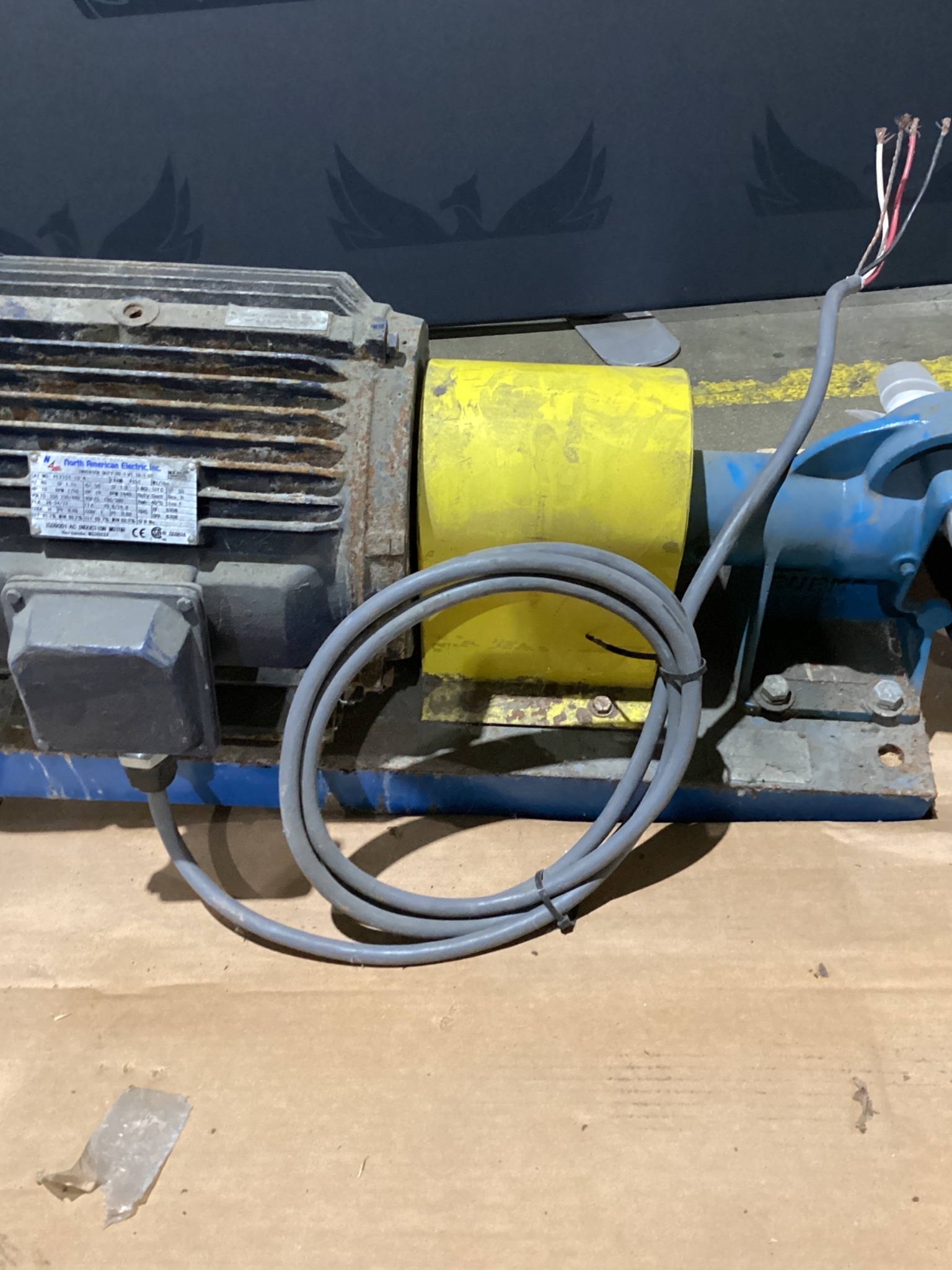

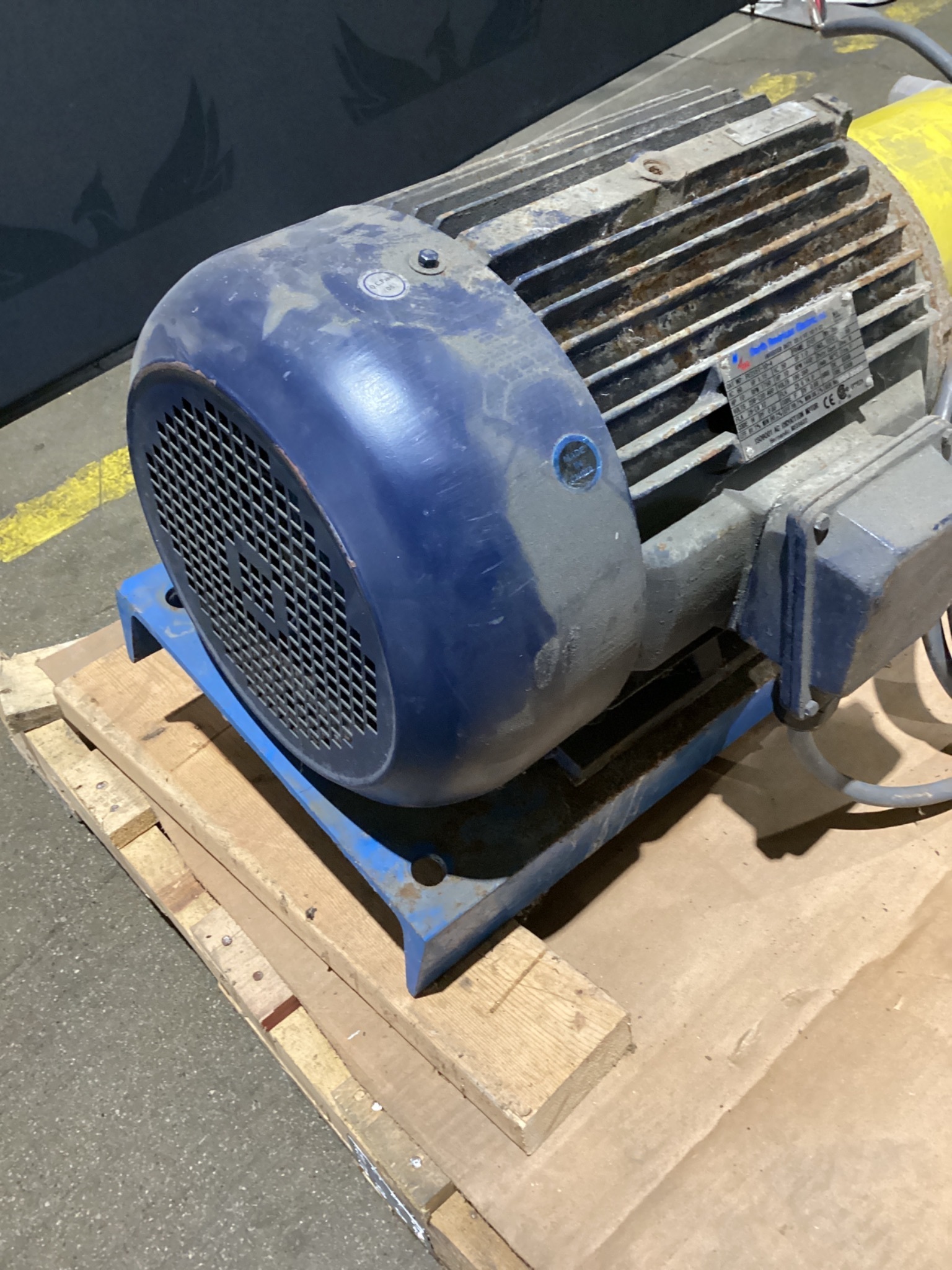

NORTH AMERICAN PE215T-10-4 10 HP AC Motor With Pump USED

Specification Table

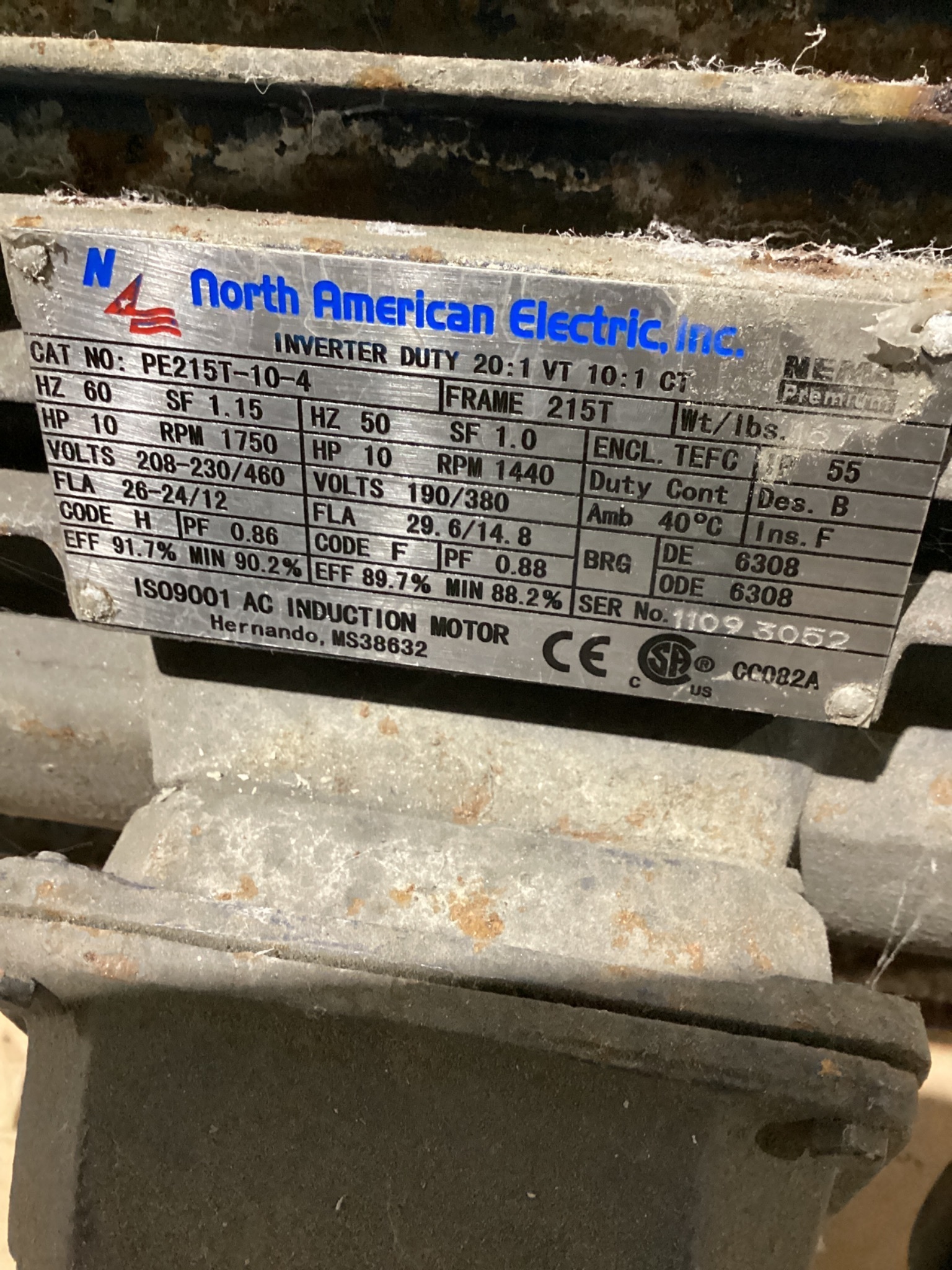

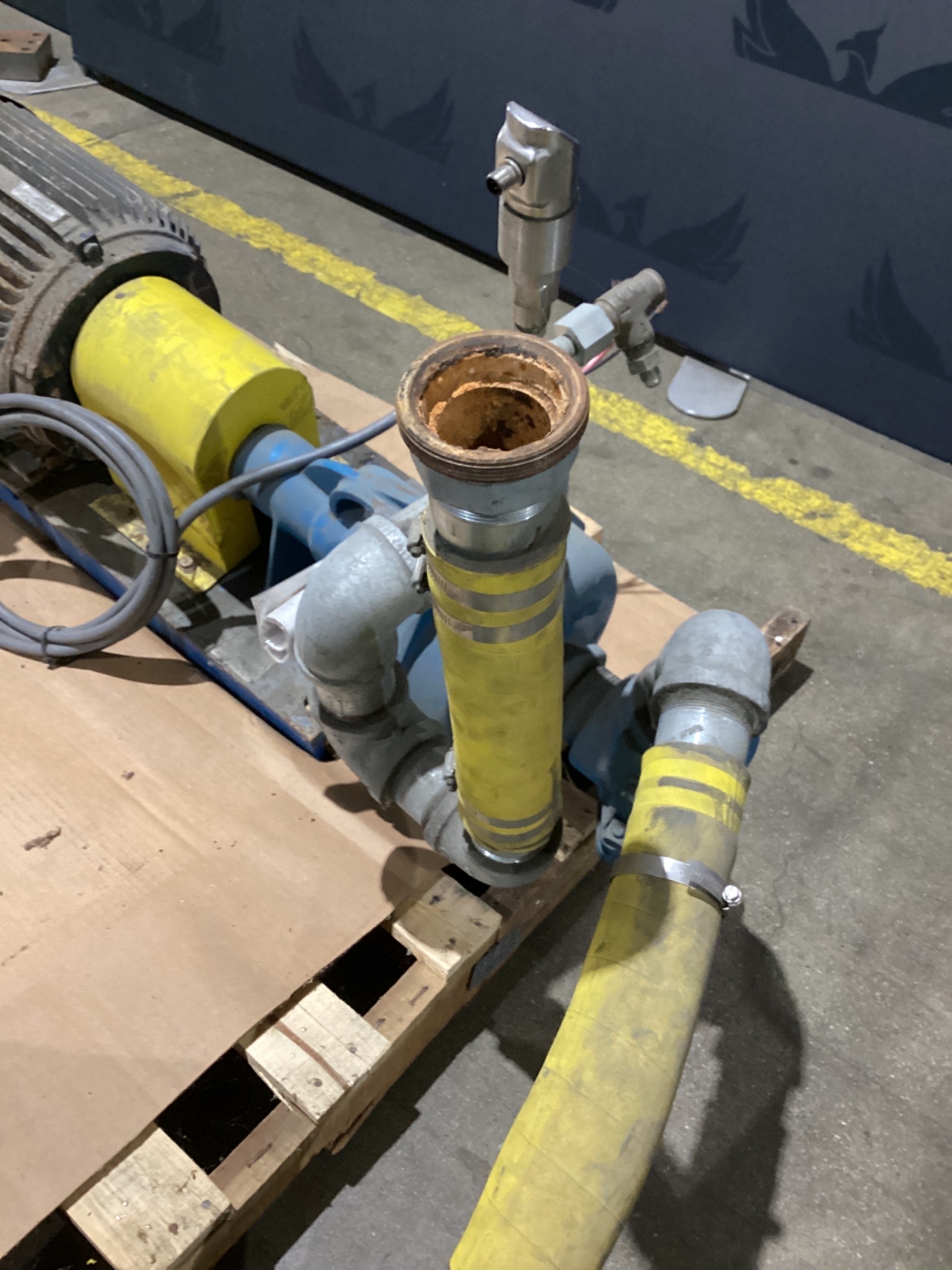

IDENTIFICATION Motor Manufacturer: North American Electric, Inc. Motor Catalog Number: PE215T-10-4 Product Type: Motor-driven industrial pump Condition: USED YOM: n/a   PUMP Pump Type: Centrifugal-style industrial pump Pump Manufacturer: Not specified Pump Model: Not specified Pump Inlet: Present Pump Discharge: Present Installed Piping: Present Flow Rate: Not specified Maximum Head: Not specified Maximum Pressure: Not specified   DRIVE Drive Configuration: Direct coupled Coupling: Present Coupling Guard: Present Mounting Configuration: Common base Motor Orientation: Horizontal   MOTOR - 60 HZ Motor Power: 10 HP Speed: 1750 RPM Voltage: 208-230 / 460 VAC Full Load Current: 26-24 / 12 A Phase: 3 Frequency: 60 Hz Service Factor: 1.15 Power Factor: 0.86 Nominal Efficiency: 91.7% Minimum Efficiency: 90.2%   MOTOR - 50 HZ Motor Power: 10 HP Speed: 1440 RPM Voltage: 190 / 380 VAC Full Load Current: 29.6 / 14.8 A Phase: 3 Frequency: 50 Hz Service Factor: 1.0 Power Factor: 0.88 Nominal Efficiency: 89.7% Minimum Efficiency: 88.2%   MOTOR CONSTRUCTION Motor Type: AC induction Inverter Duty: 20:1 VT / 10:1 CT Frame: 215T Enclosure: TEFC Duty: Continuous NEMA Design: B Insulation Class: F Ambient Rating: 40 °C Motor Weight: 55 lb Drive-End Bearing: 6308 Opposite-End Bearing: 6308 60 Hz Motor Code: H 50 Hz Motor Code: F   CONSTRUCTION / INSTALLATION Configuration: Base mounted Motor Base: Integrated Pump Base: Integrated Common Baseplate: Steel Electrical Leads: Present
