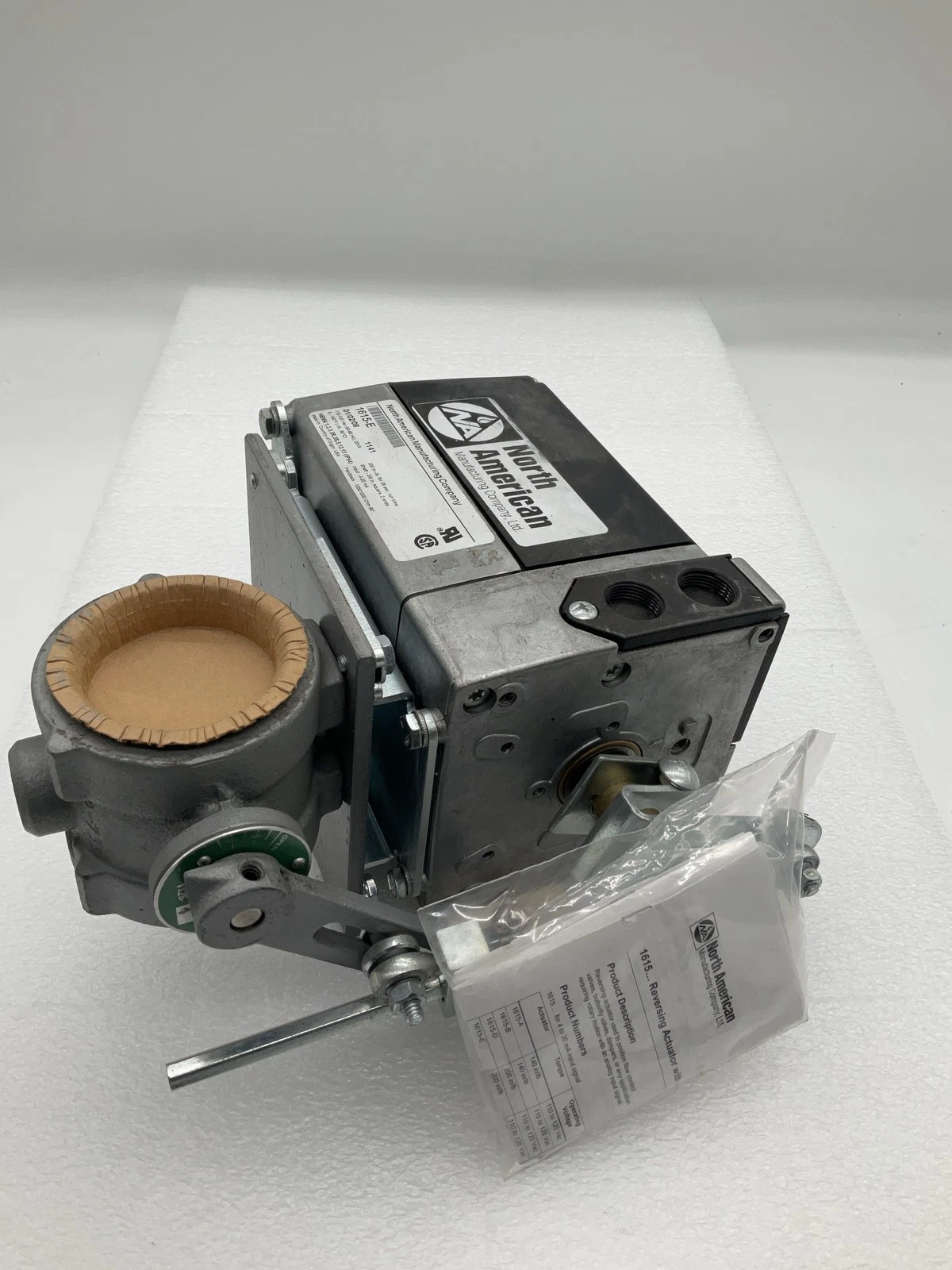

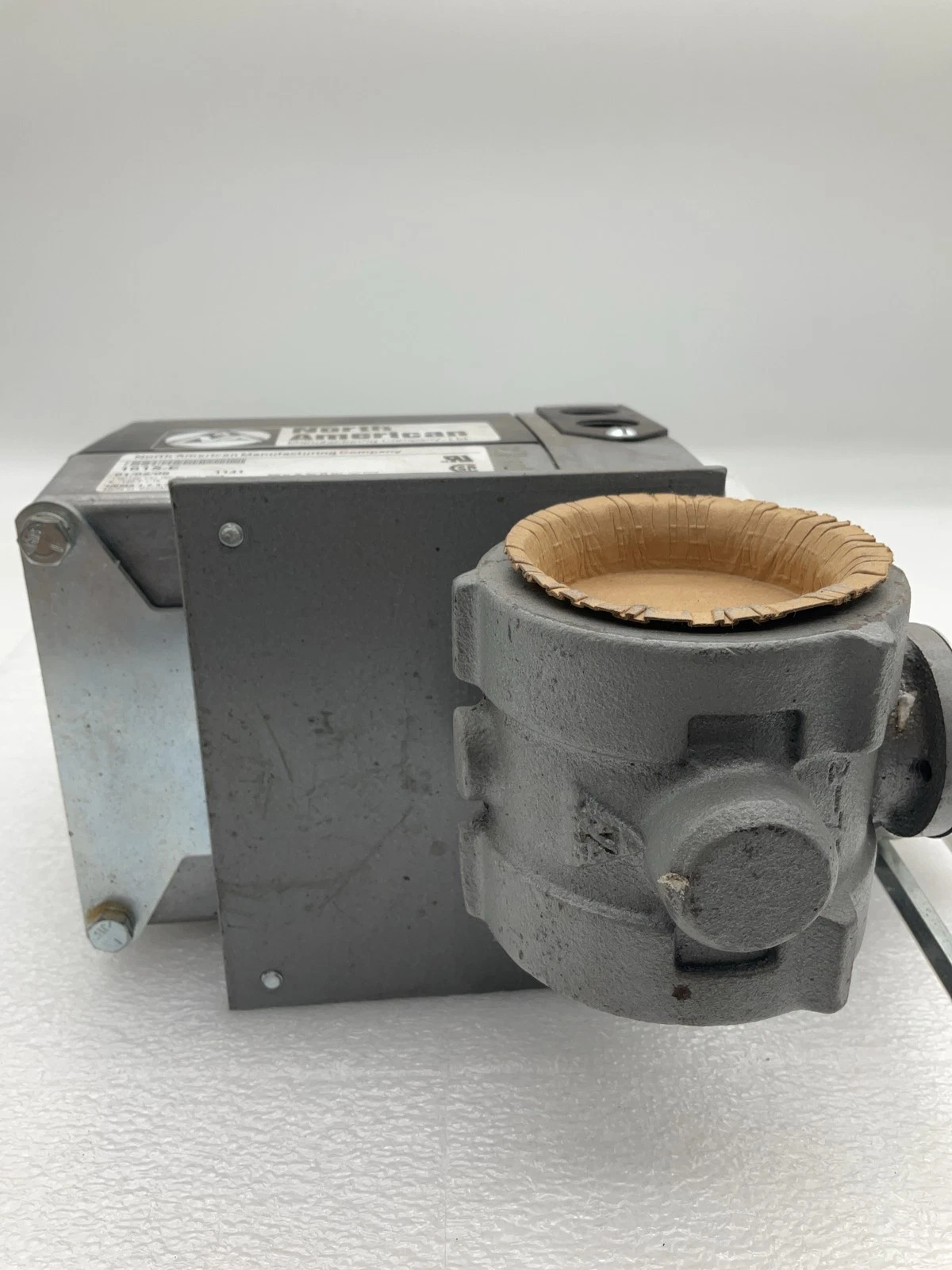

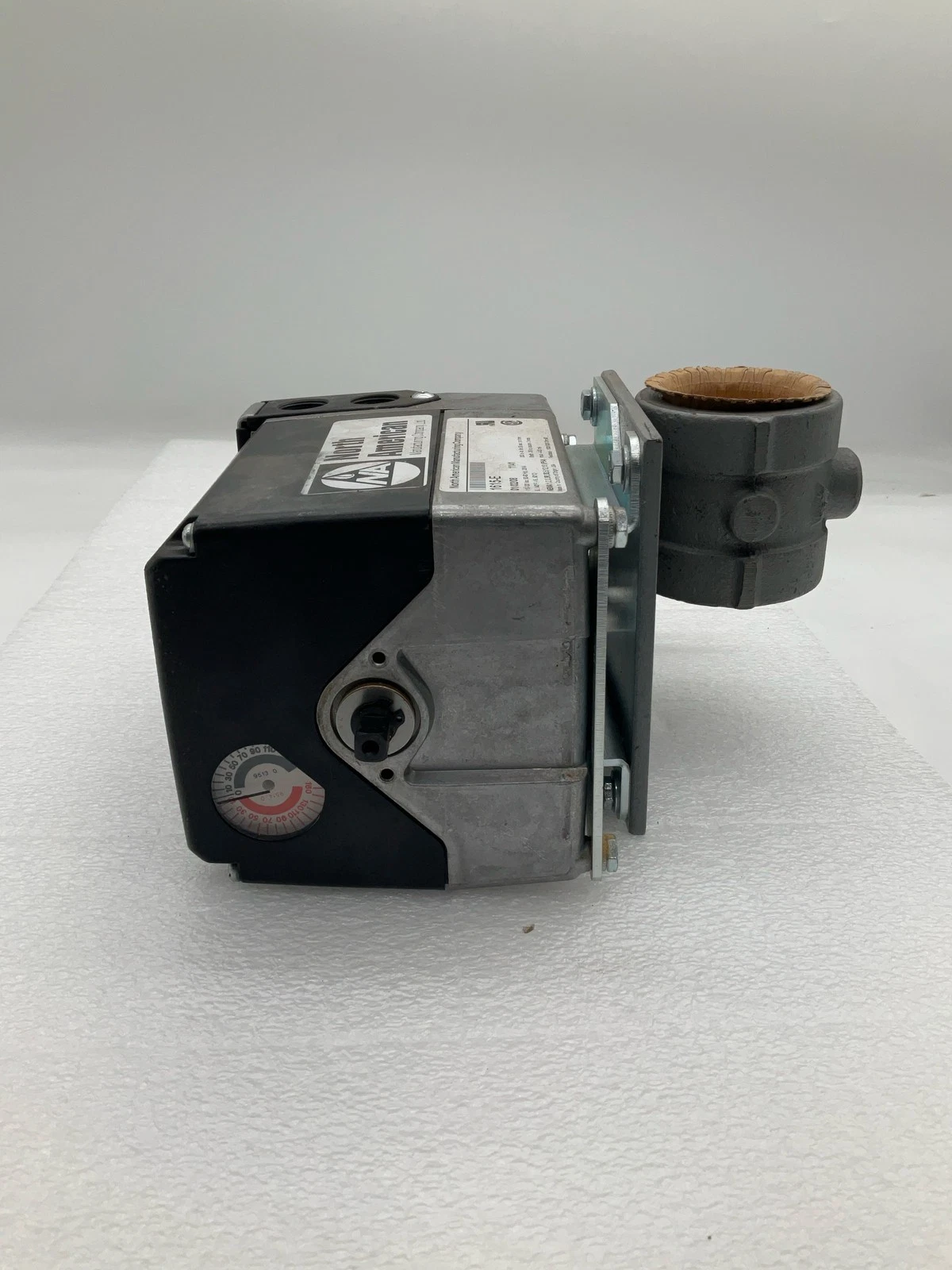

North American 1615-E Rotary Control Motor NEW

Specification Table

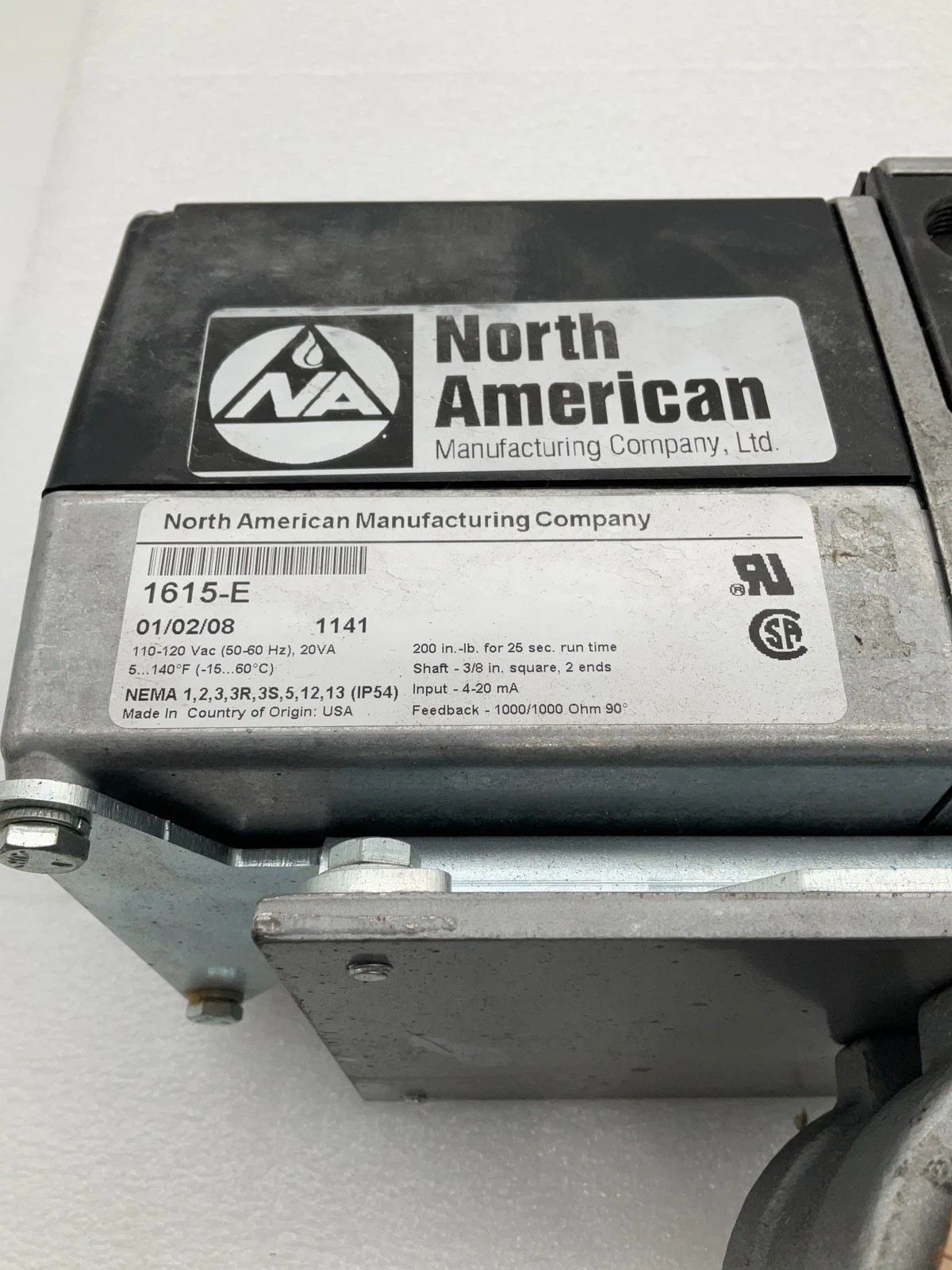

IDENTIFICATION Manufacturer: North American Manufacturing Company Model: 1615-E Condition: NEW Date Code: 01/02/2008 Code Number: 1141 Country of Manufacture: USA FUNCTION Device Type: Rotary Control Motor Control Method: Modulating Travel Range: 90° Application Type: Rotary Valve and Damper Positioning ELECTRICAL Supply Voltage: 110-120 VAC Frequency: 50/60 Hz Power Consumption: 20 VA Control Input Signal: 4-20 mA PERFORMANCE Torque Output: 200 in-lb Travel Time: 25 Seconds Duty Cycle: Continuous Modulating Service FEEDBACK Position Feedback: 1000/1000 Ohm Feedback Rotation: 90° MECHANICAL Output Shaft Configuration: Dual End Output Shaft Size: 3/8 in. Square Output Rotation: 90° ENVIRONMENTAL Operating Temperature: 5°F to 140°F Operating Temperature: -15°C to 60°C CONSTRUCTION Enclosure Rating: IP54 NEMA Rating: 1, 2, 3, 3R, 3S, 5, 12, 13 Housing Material: Cast Aluminum and Steel Construction CERTIFICATIONS UL Recognized: Yes CSA Certified: Yes APPLICATION DATA Combustion Control: Yes Burner Systems: Yes Damper Positioning: Yes Butterfly Valve Positioning: Yes Fuel-Air Ratio Control: Yes Process Heating Equipment: Yes Industrial Furnaces: Yes
