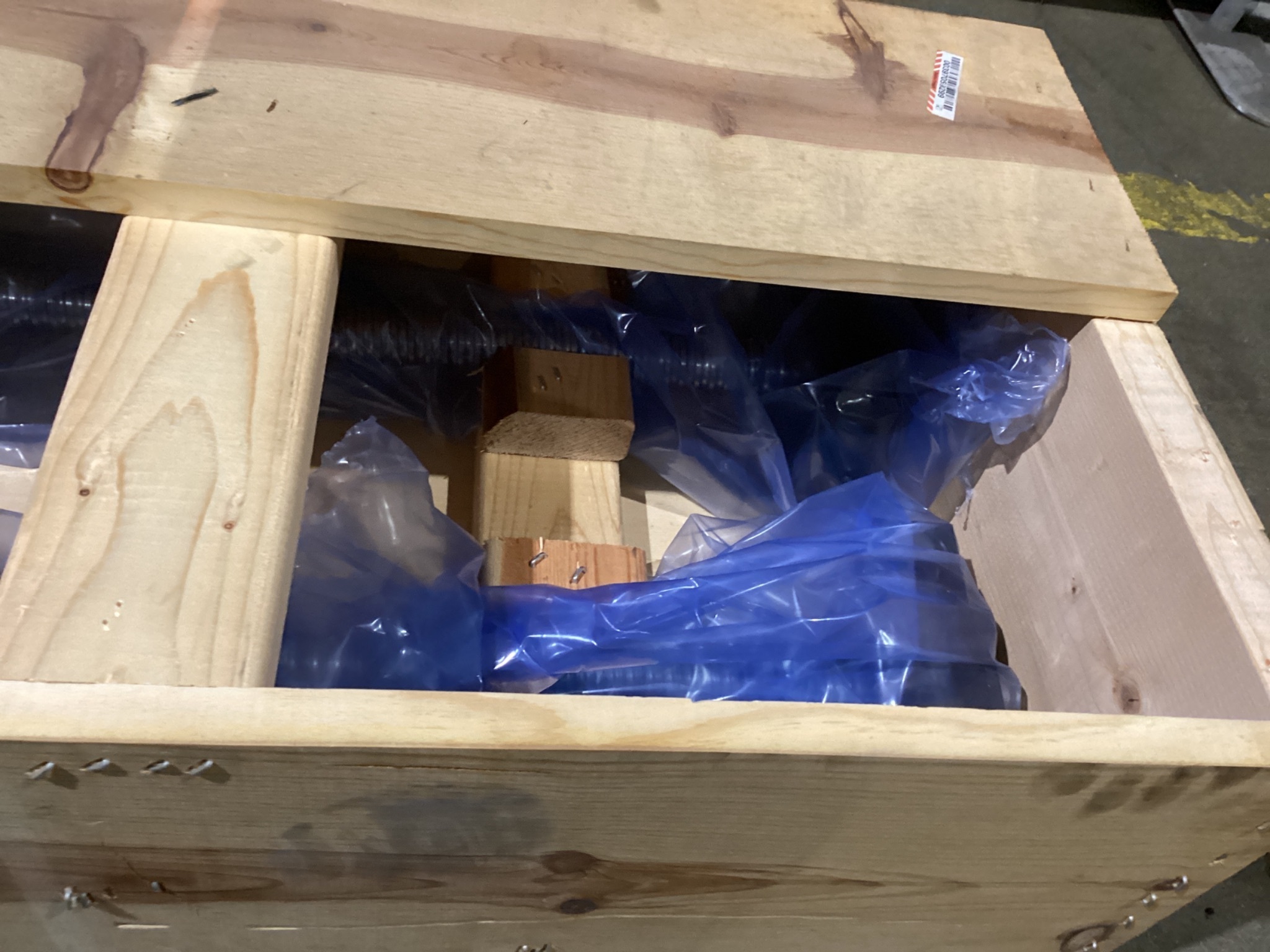

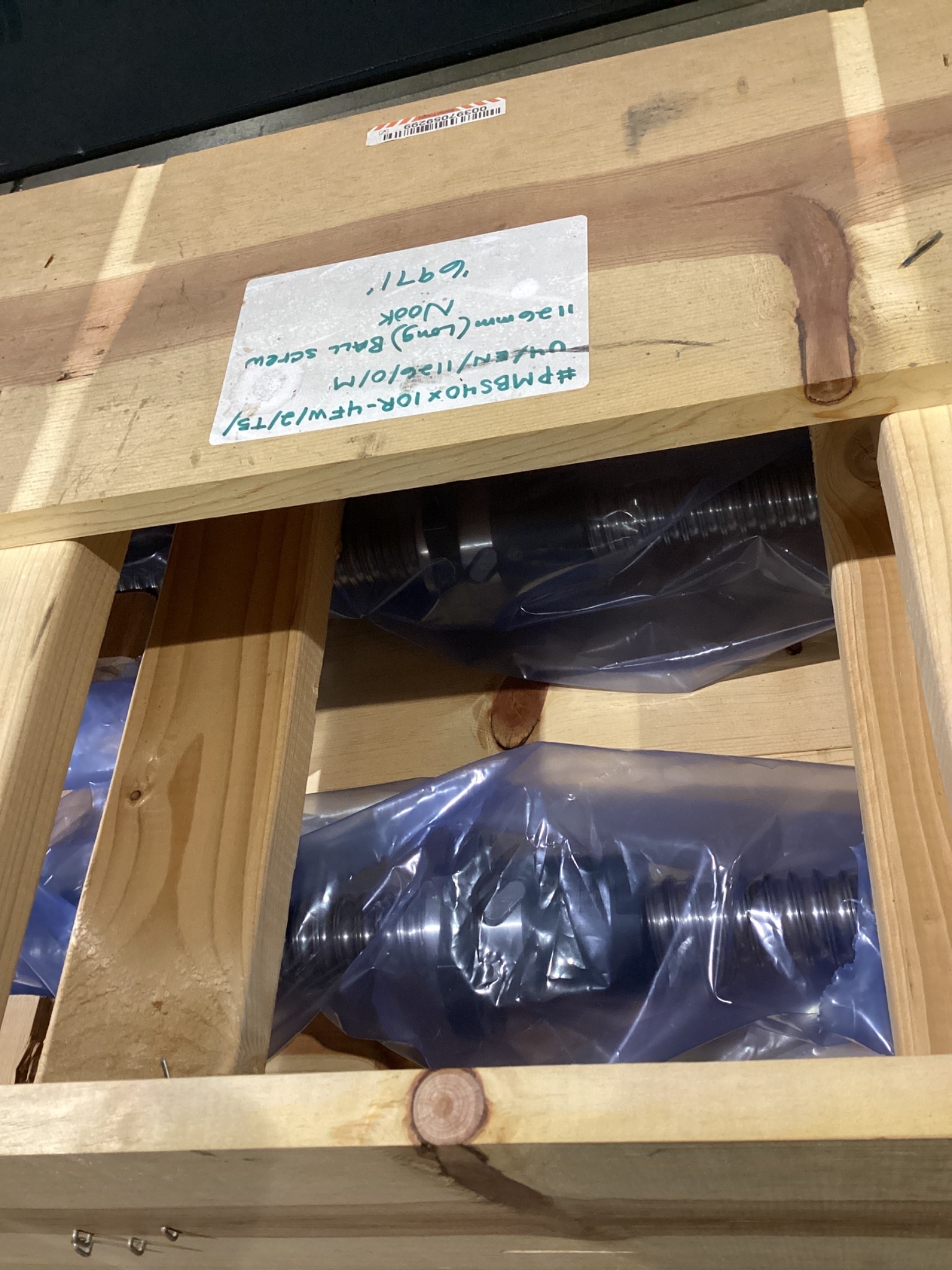

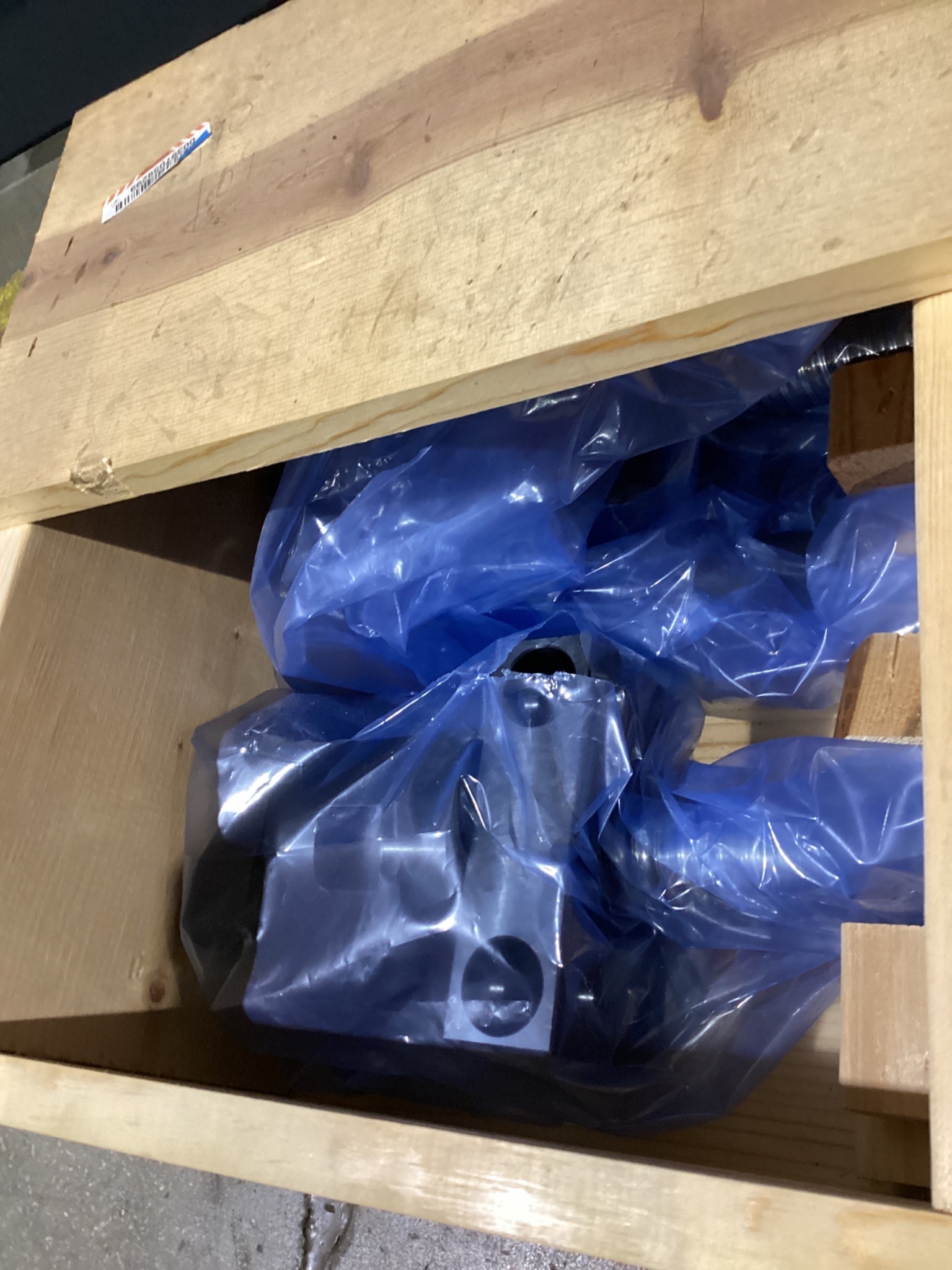

Nook Industries PMBS40x10R-4FW/2/T5/U4/EN/1126/0/M 40x10mm T5 Ball Screw NEW

Specification Table

IDENTIFICATION Manufacturer: Nook Industries / Nook Thomson Part Number: PMBS40x10R-4FW/2/T5/U4/EN/1126/0/M Product Family: PMBS Product Type: Precision Metric Ball Screw Configuration: Modified Condition: NEW YOM: n/a   BALL SCREW Thread Manufacturing: Precision Rolled Nominal Diameter: 40 mm Lead: 10 mm Thread Direction: Right Hand ISO Lead Accuracy Grade: T5 T5 Travel Variation: 23 µm / 300 mm Overall Length: 1126 mm Screw d0: 42.1 mm Screw d1: 40.00 mm Root Diameter d2: 34.81 mm   BALL NUT Ball Nut Reference: MBN40X10R-4FW Ball Nut Type: Flanged Active Turns: 4 Wipers: Yes Preload: 1% - 2% Nominal Ball Diameter: 7.144 mm   LOAD / PERFORMANCE Dynamic Load Rating: 56,770 N Static Load Rating: 116,070 N Linear Speed: 16,700 mm/min   CONFIGURATION First End Configuration: U4 Second End Configuration: EN Documentation Code: 0 Configuration Type: Modified   STANDARDS Ball Screw Standard: ISO 3408 Ball Nut Mounting Standard: DIN 69051 Part 5 Type C
