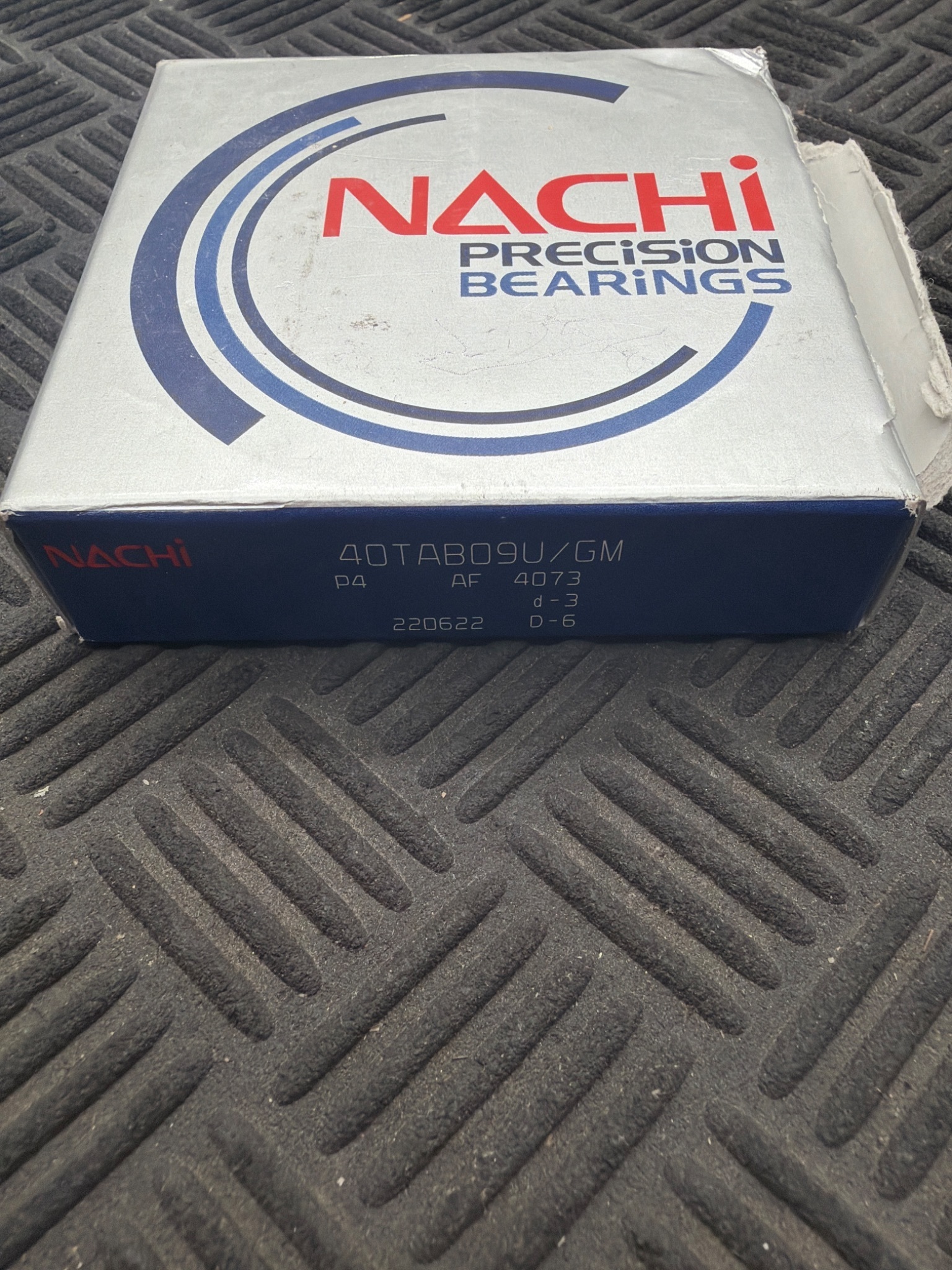

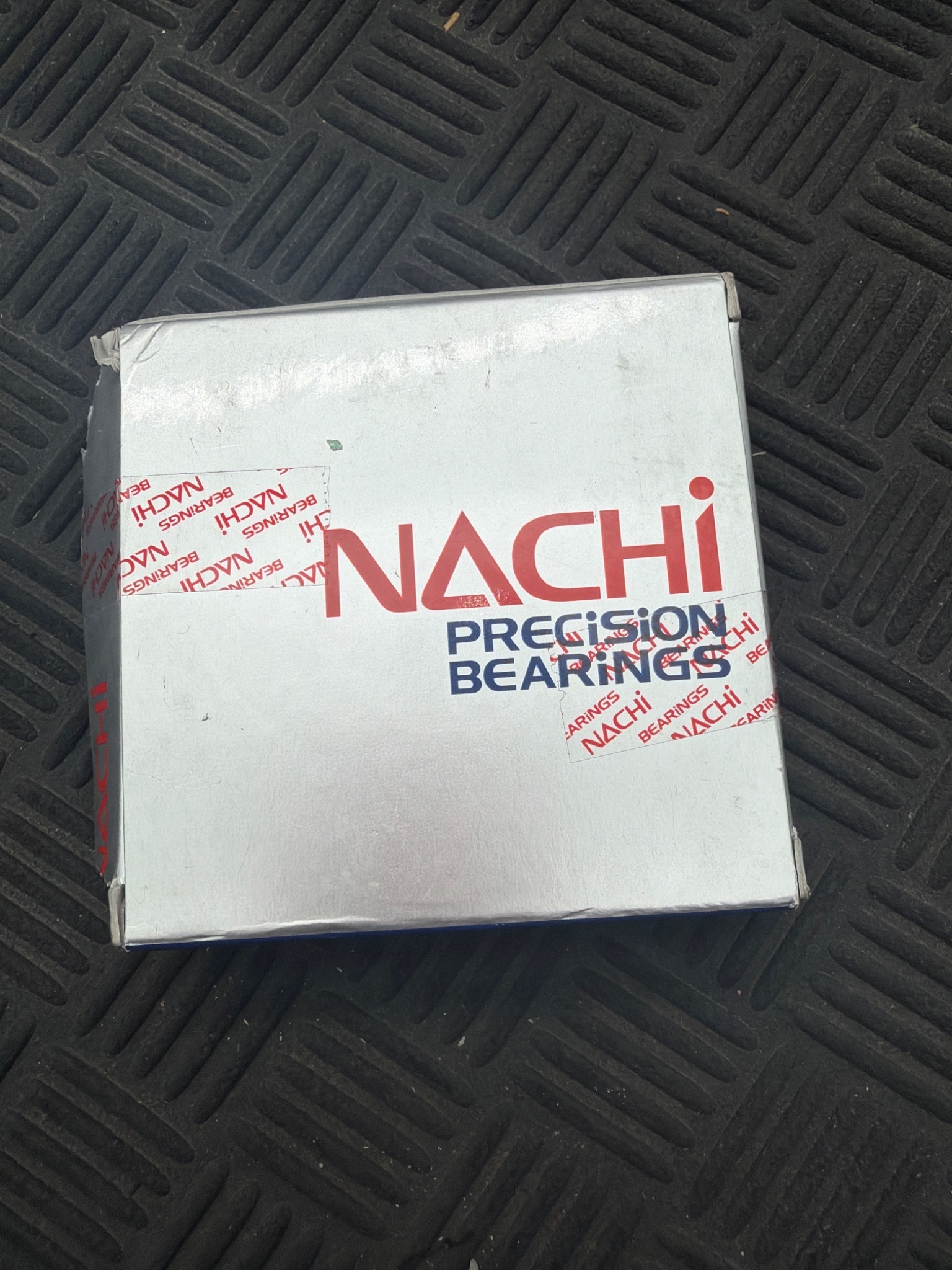

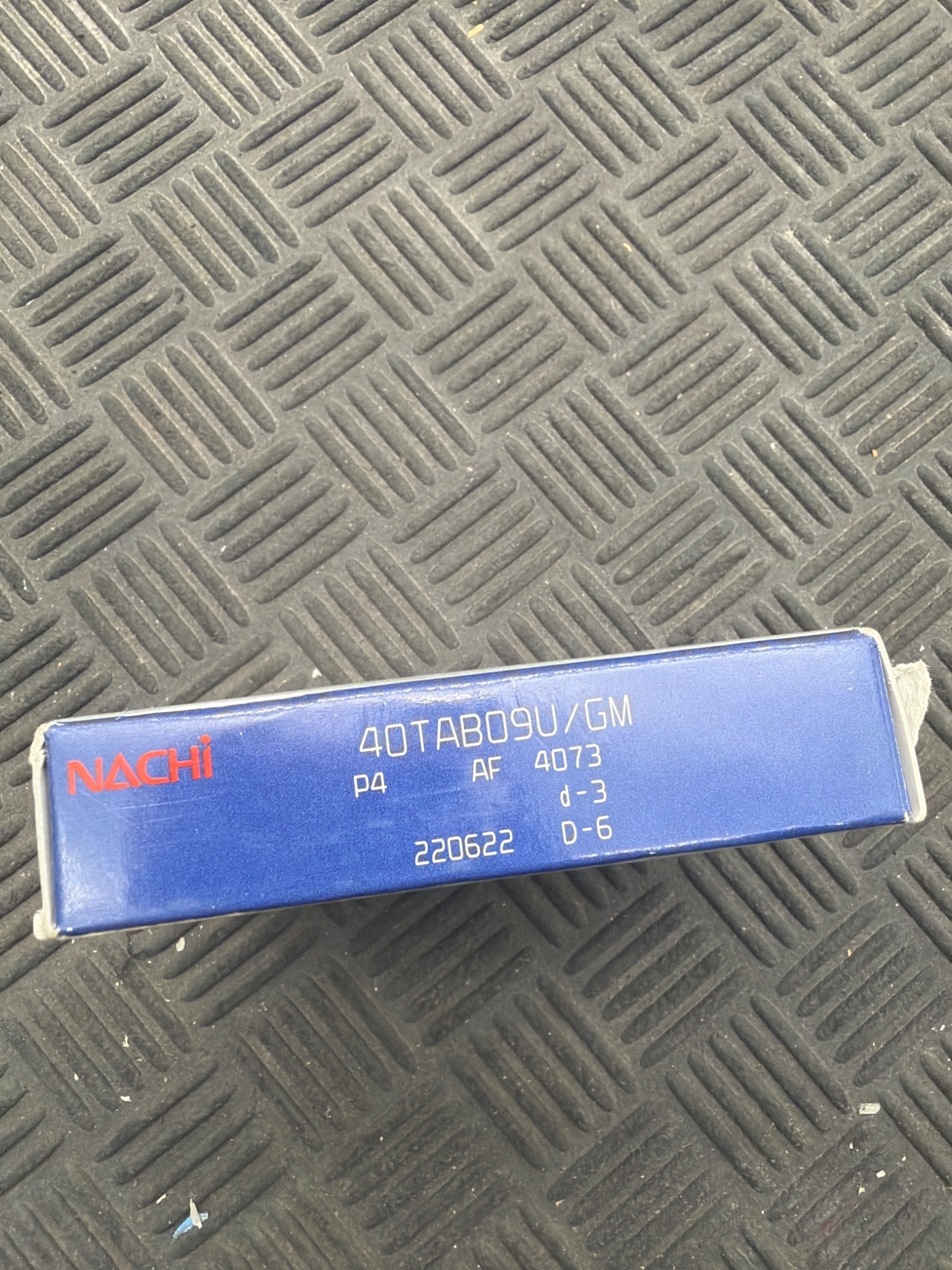

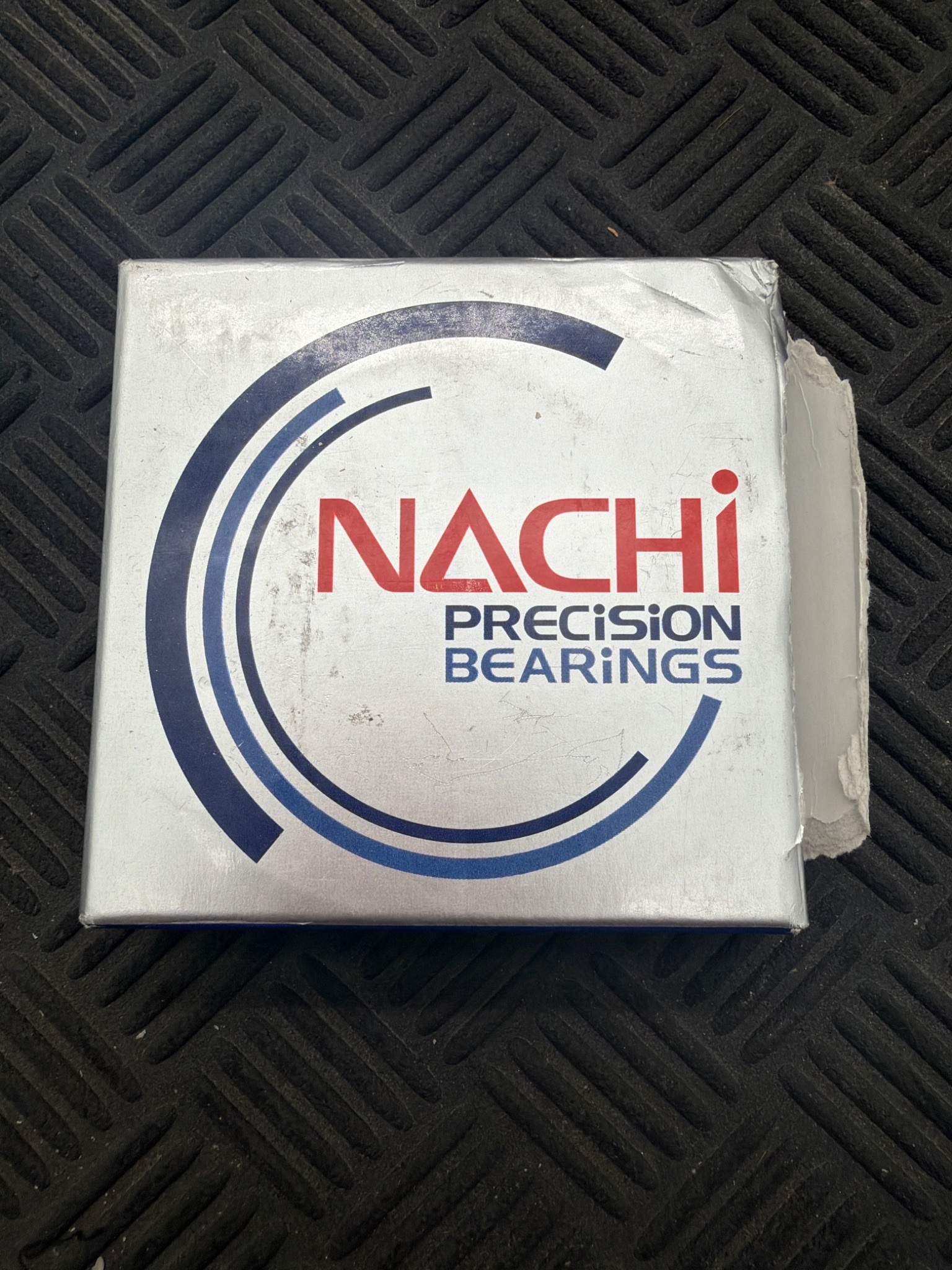

NACHI 40TAB09U/GM Ball Screw Support Bearing NEW

$60.00
Availability:

8 in stock
BRAND: NACHI MODEL: 40TAB09U/GM CONDITION: new
SKU: IGAM3540032 Weight: 2 lbs Shipping Calculated at Checkout

8 in stock

Make an offer

Overview

This listing is for a NEW NACHI 40TAB09U/GM ball screw support bearing. It is designed to support precision ball screws in high‑accuracy, high‑speed motion systems such as CNC machine tools, automation equipment, and robotics. This unit is categorized as a precision angular contact ball screw support bearing and features a 60‑degree contact angle, P4 (ISO Class 4 / ABEC‑7) precision rating, and universal grinding for matched bearing sets.

Specification Table

Manufacturer: NACHI (NACHI-FUJIKOSHI Corp.) Model/Series: TAB Series Ball Screw Support Bearing Part Number: 40TAB09U/GM Condition: NEW YOM: n/a Function: Ball Screw Support / Axial Angular Contact Bearing Bore Diameter: 40 mm Outside Diameter: 90 mm Width: 20 mm Contact Angle: 60° Precision Class: P4 (ISO Class 4 / ABEC-7) Dynamic Load Rating: 65 kN Static Load Rating: 101 kN Limiting Speed: 3,150 RPM (Grease) / 4,000 RPM (Oil)
▸ Key Features:
• Precision ball screw support bearing from NACHI TAB Series

• 60° contact angle for high axial rigidity

• P4 / ISO Class 4 (ABEC‑7) super precision rating

• Universally ground for duplex, triplex, or quad bearing arrangements

• Open type bearing suitable for grease or oil lubrication

• Designed for high‑speed and high‑accuracy motion control
▸ Applications:
• CNC machine tool ball screw support

• Precision positioning systems

• Robotics and automation equipment

• High‑speed linear motion assemblies

• Industrial motion control machinery
▸ Alternative Model Numbers:
40TAB09U/GMP4

40TAC90

40TAB09

BST40X90

NSK 40TAC90

SKF BSD4090
▸ Common Misspellings or Phrasing:
Nachi 40TAB09 Bearing

40TAB09U GM Bearing

Nachi Ball Screw Support Bearing 40mm

40TAC90 Nachi Bearing

Nachi Precision Angular Contact Bearing
